FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
1 / 5
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable
FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable

FTTH Sc APC Fiber Optic Test Cable OTDR Luanch Cable

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Basic Information
Model NO.
OTDR Luanch Cable
Condition
New
Business Type
Manufacturer
Packaging Type
Carton
Payment Terms
Tt/Paypal/LC
Delivery
3-5 Working Days
Application
OTDR Testing
Cable Diameter
0.9mm/2.0mm/3.0mm
Connector Type
Sc/LC/St/FC
Box Size
23.8cmx 14.1cm X 6.7cm
Specification
500M/1000M/2000M
Origin
China
🔍 Product Overview

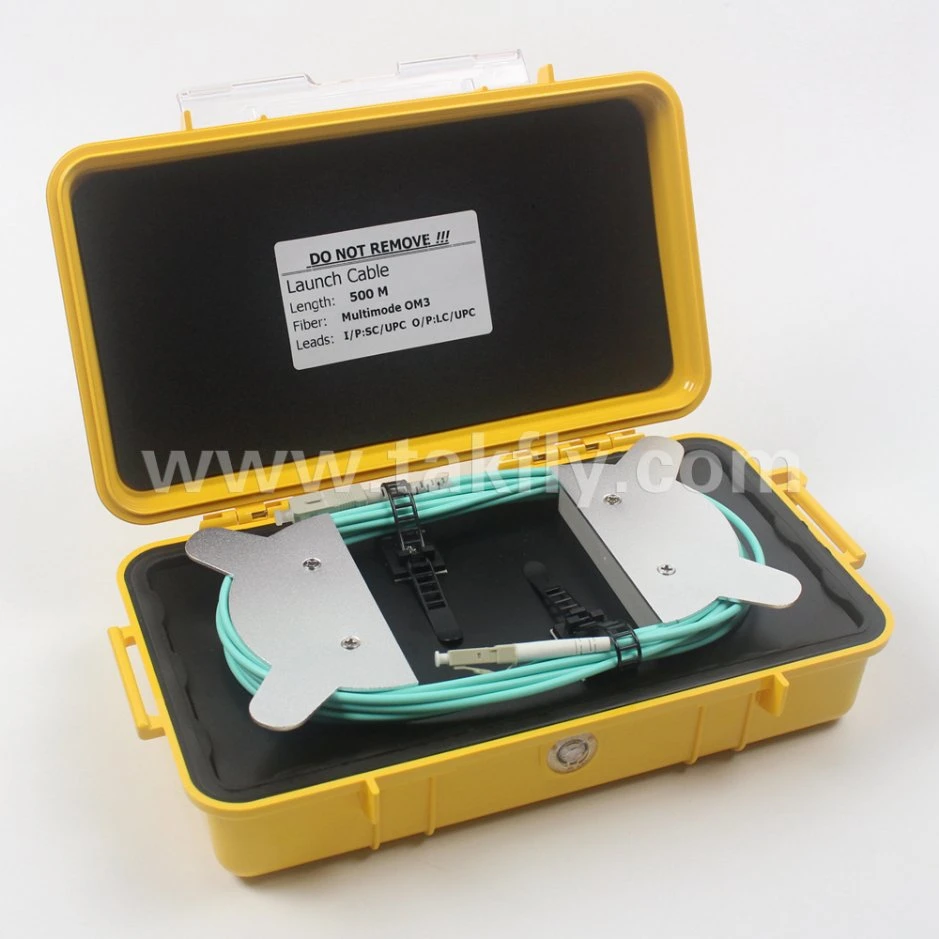

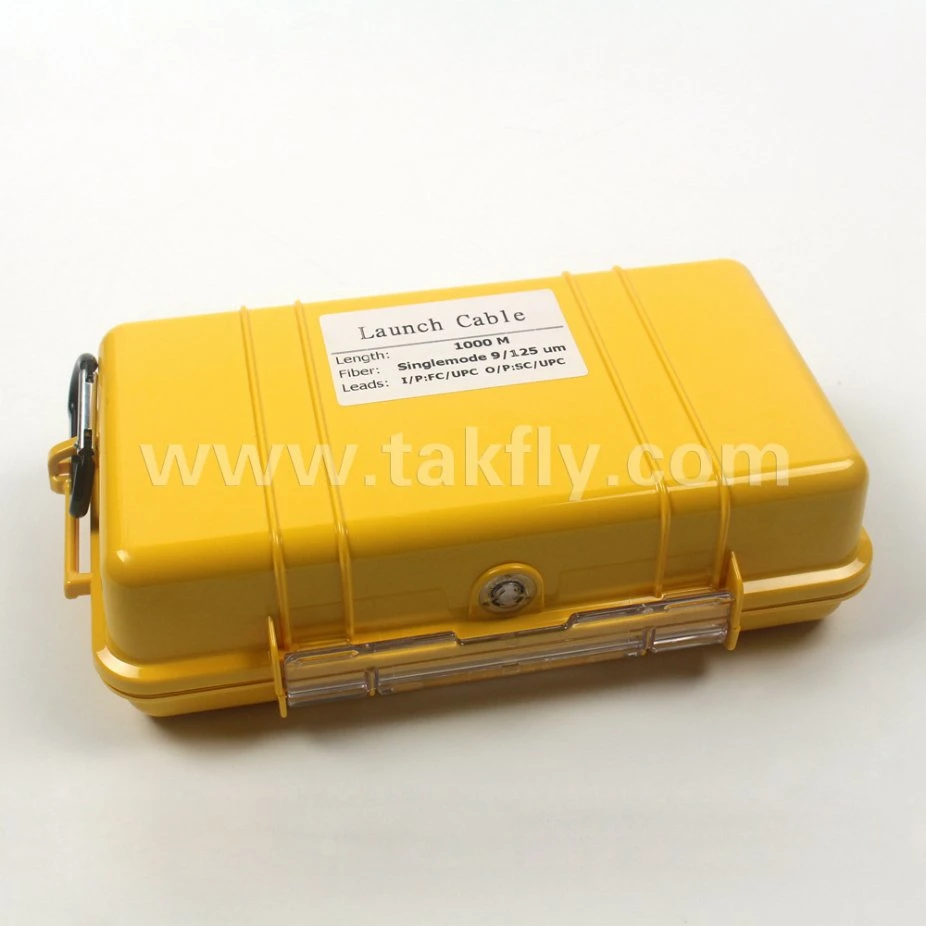

The FTTH SC APC Fiber Optic Test Cable OTDR Launch Cable is designed to aid in the testing of fiber optic cable when using an OTDR. The OTDR Launch Fiber box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty. Available in different configurations and fiber lengths.

Standard Compliance:
  • ITU-T G652.D, G656.A, ITU-T G651.1 OM1 OM2 OM3 OM4
  • IEC60793-2-10 type A1a.1/A1b OM1/OM2, type A1a.2 OM3, type A1a.3 OM4
  • Telcordia (formerly Bellcore) GR-326-CORE
  • RoHS Compliant Directive 2011/65/EU
🚀 Key Applications
  • Use as OTDR launch/receive cable.
  • Test link loss with an OTDR.
  • Measure insertion loss and reflectance of near/far end connector.
  • Pulse suppressor for the first reflection at the beginning of a fiber.
⭐ Product Features
  • Standard boxes along with custom configurations for OTDR applications.

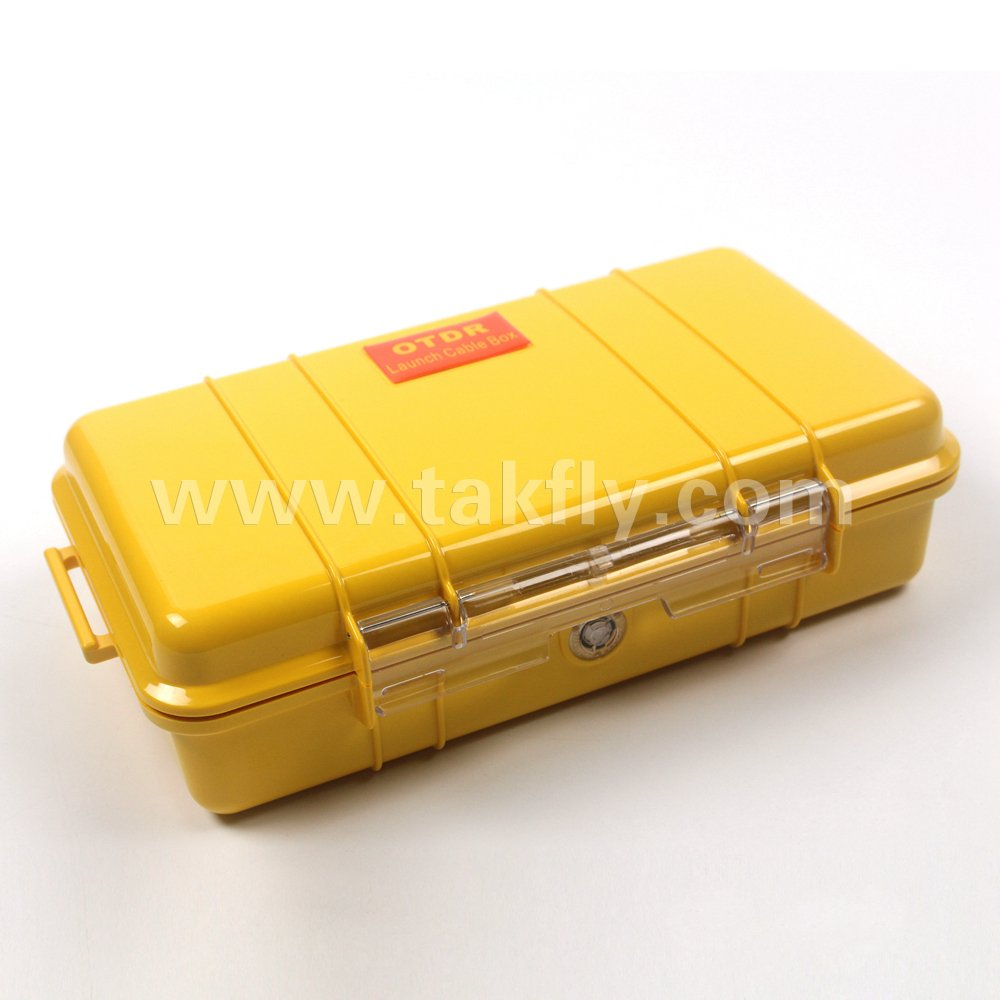

  • Compact and rugged packaging; Portable for field use.
  • Prevents fiber damage and ensures accurate results.

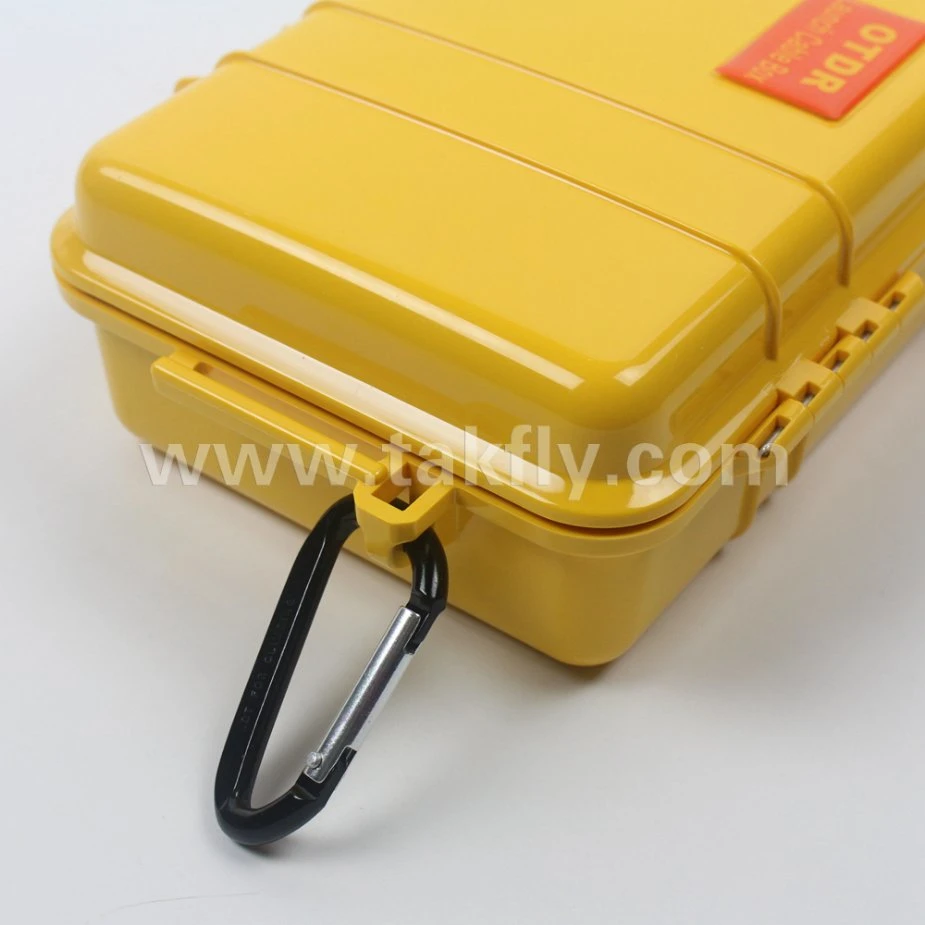

  • Compound latch for positive seal and easy opening with locking features.
  • Water and dustproof, allowing the unit to be taken into almost any environment.
  • Case can house up to 2,000 meters of fiber.
  • Auto Purge Valve for changes in altitude and temperature.
📊 Mechanical & Environmental Characteristics
Technical Parameters
Dimension 23.8CM x 14.1CM x 6.7CM
Material SR Polypropylene
Color Yellow
Weight 0.75kg
Packaging Rugged, hard-shell transit case
Storage Temperature -40 to +85 C
🖼️ Product Gallery

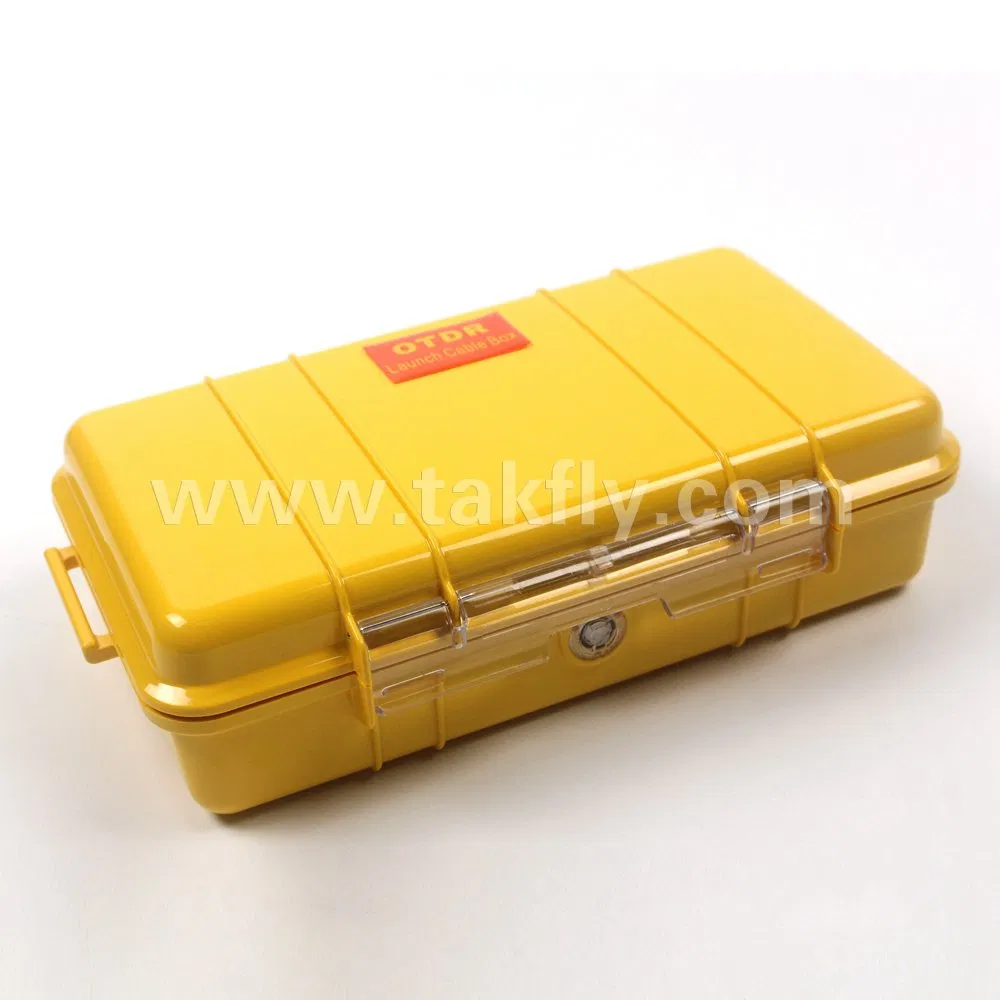

Fiber Optic Test Cable 1

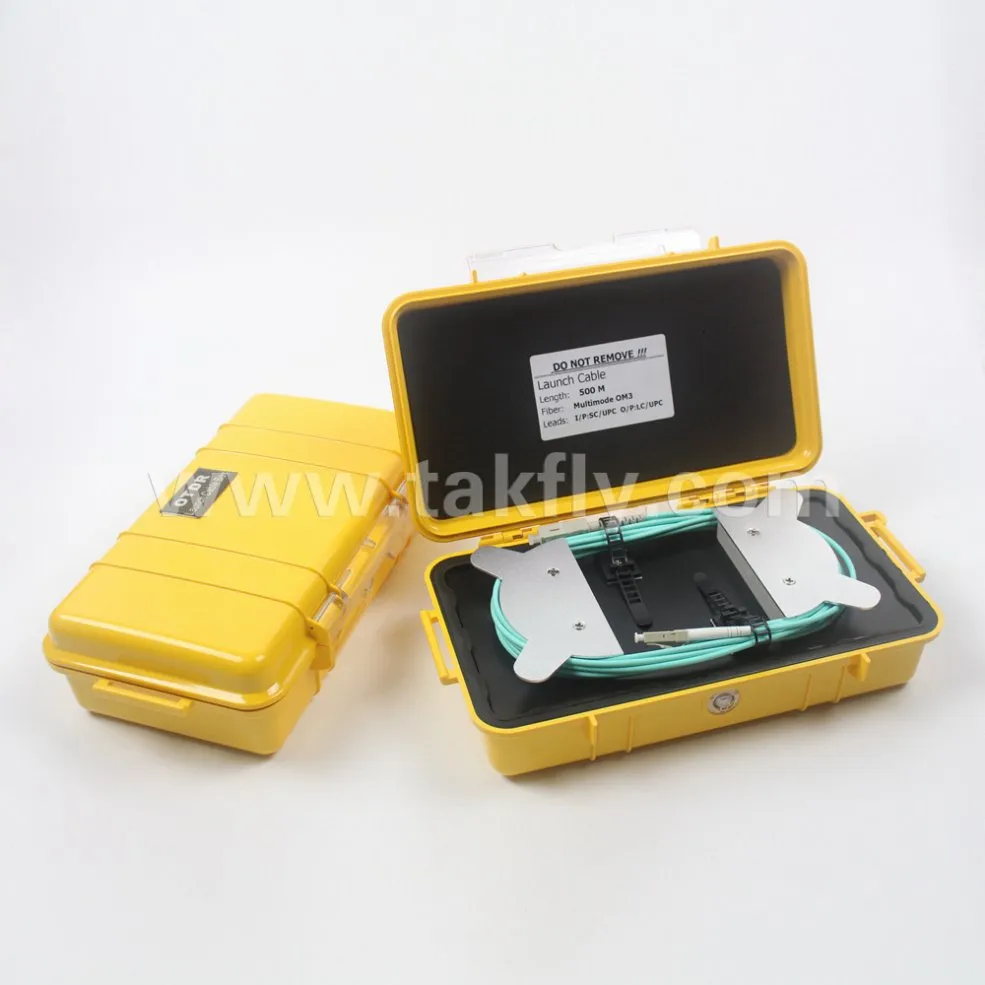

Fiber Optic Test Cable 2
Fiber Optic Test Cable 3
Fiber Optic Test Cable 4
Fiber Optic Test Cable 5
✅ Why Choose Us

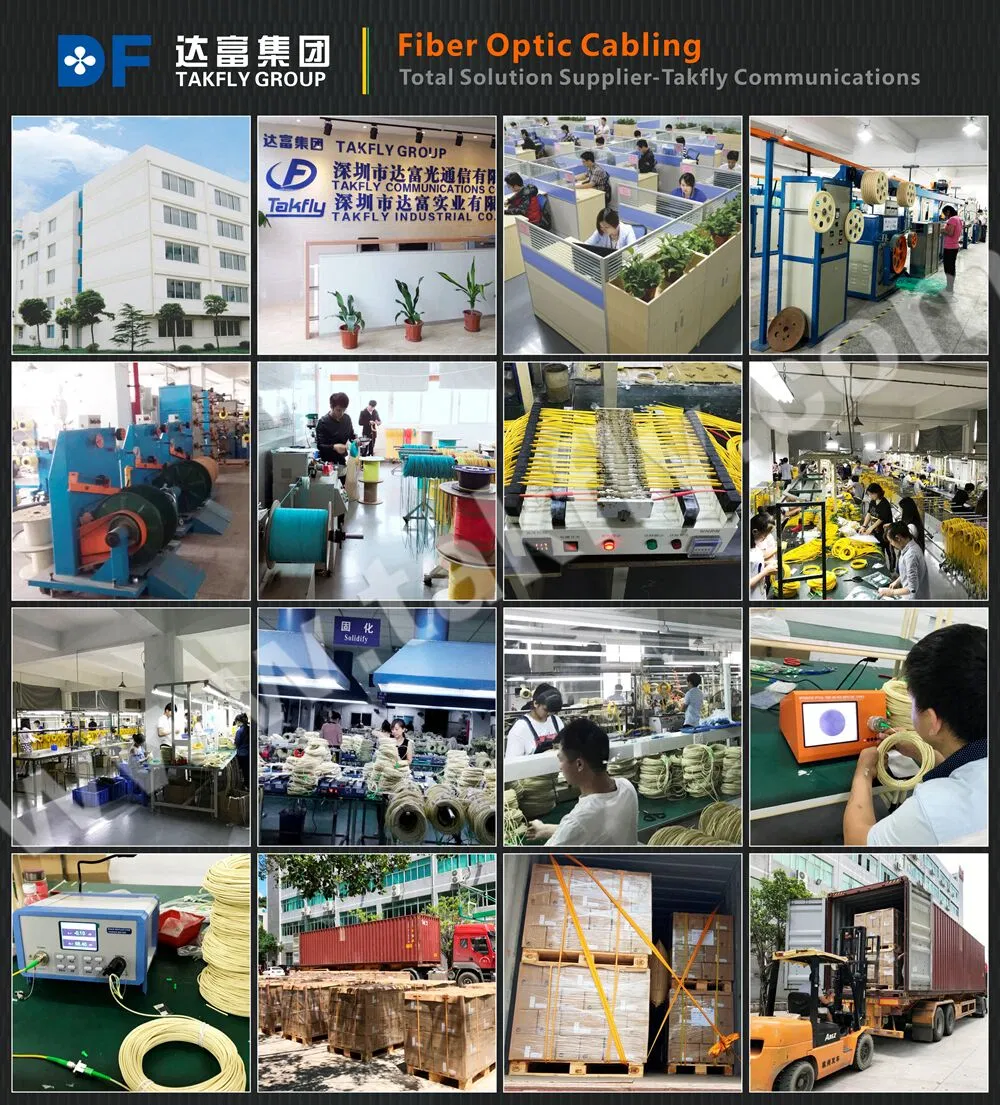

  • More than 18 years manufacturing experience in Fiber optic products.
  • Over 450 assembly workers with extensive experience.
  • More than 26 dedicated R&D Engineers.
  • Equipped with Germany imported Injection Machines and 10+ Cable Production Lines.
  • Advanced Testing: OTDR, 3D, VFL, IL&RL test instruments, tension strength testers, and more.
  • OEM Brand support and global exhibition presence (OFC, ECOC, CommunicAsia).
  • Professional After-sales Services available 24 hours.
🛡️ Quality Control & Delivery

Quality Process:

  • Raw material spot check before production.
  • Full check after every individual process.
  • Full check of semi-finished products.
  • 100% inspection before packing and shipping.

Lead Time:

  • Samples: 1-3 working days.
  • Mass Production: 3-7 working days.
  • Packaging: Plastic Bag, Carton, and Pallets available.
❓ Frequently Asked Questions
What is the main function of an OTDR Launch Cable?
It is used to minimize the dead zone caused by the OTDR's initial launch pulse, allowing for accurate characterization of the first connector in the fiber link.
Can the fiber length be customized?
Yes, we provide standard lengths of 500M, 1000M, and 2000M, and custom lengths are available upon request to fit your specific testing needs.
Is the launch box durable for outdoor use?
Absolutely. The case is constructed from high-quality SR Polypropylene, making it water and dustproof (IP rated) and rugged enough for harsh field environments.
Which connector types do you support?
We support all standard connectors including SC, LC, ST, and FC with both APC and UPC polishing options.
How do you ensure the quality of each launch cable?
Every cable undergoes a rigorous multi-stage inspection process, including raw material checks, in-process testing, and a final 100% performance check before shipping.
What is the typical shipping time?
We usually ship via DHL, UPS, or FEDEX, and delivery typically takes 3-5 working days following the production lead time.
