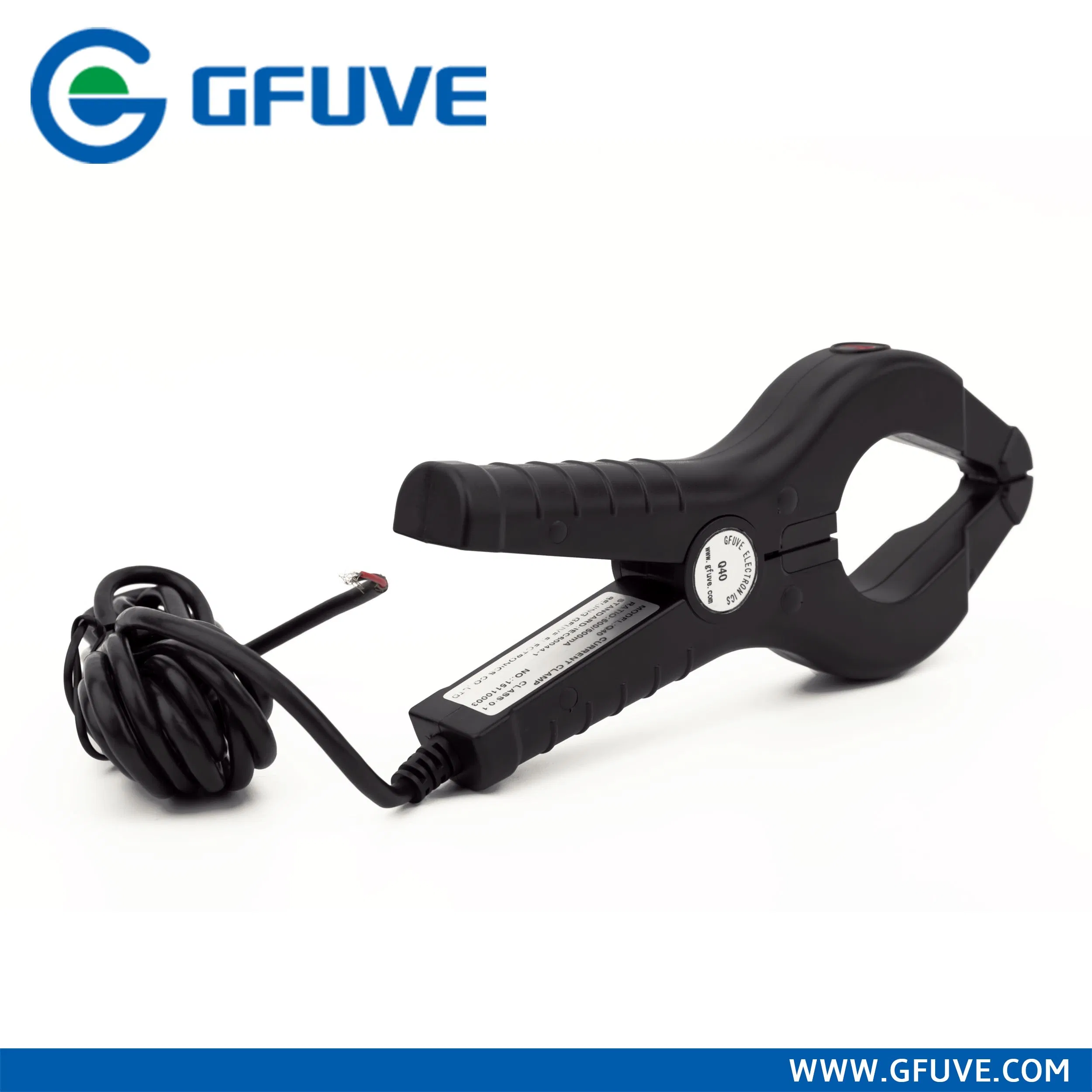

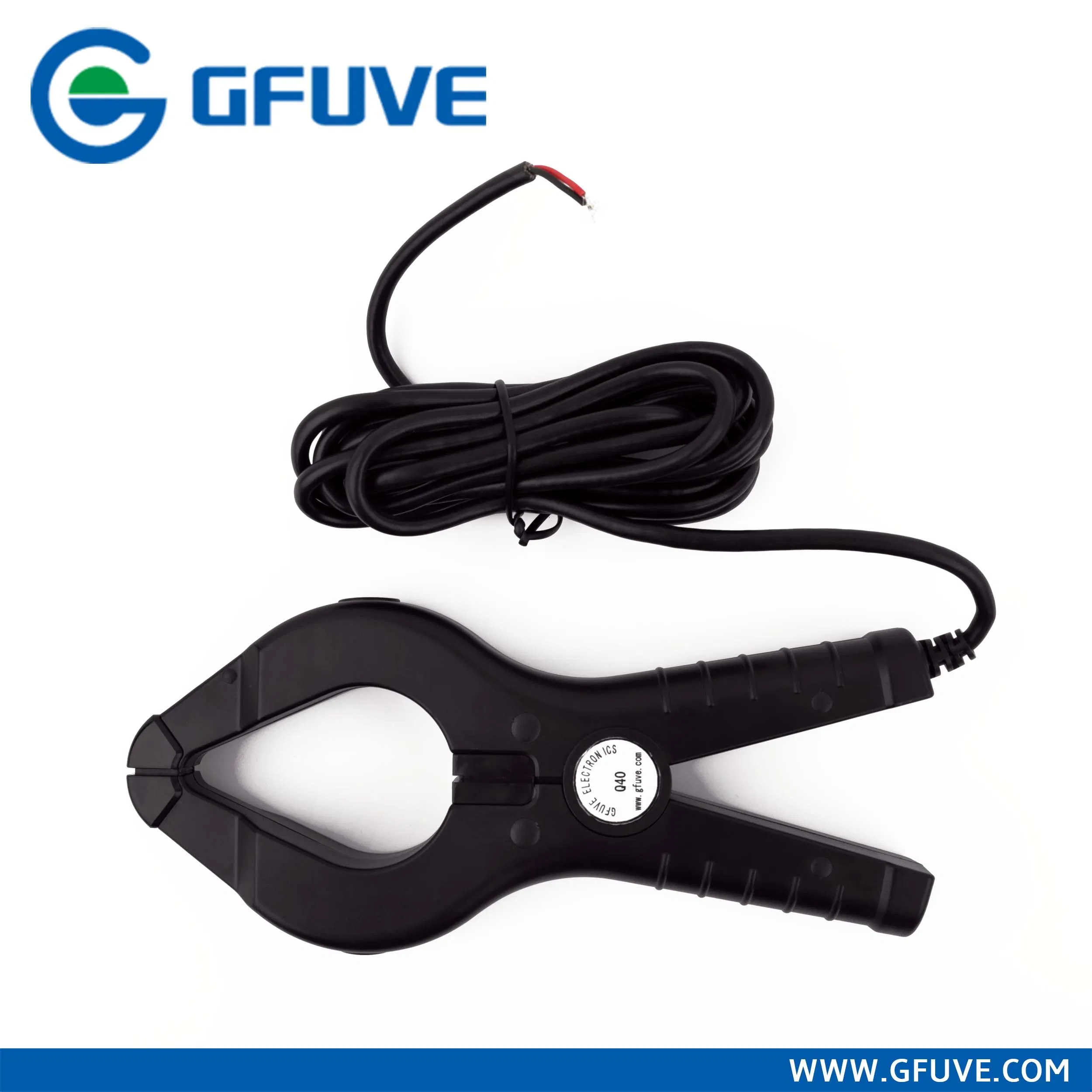

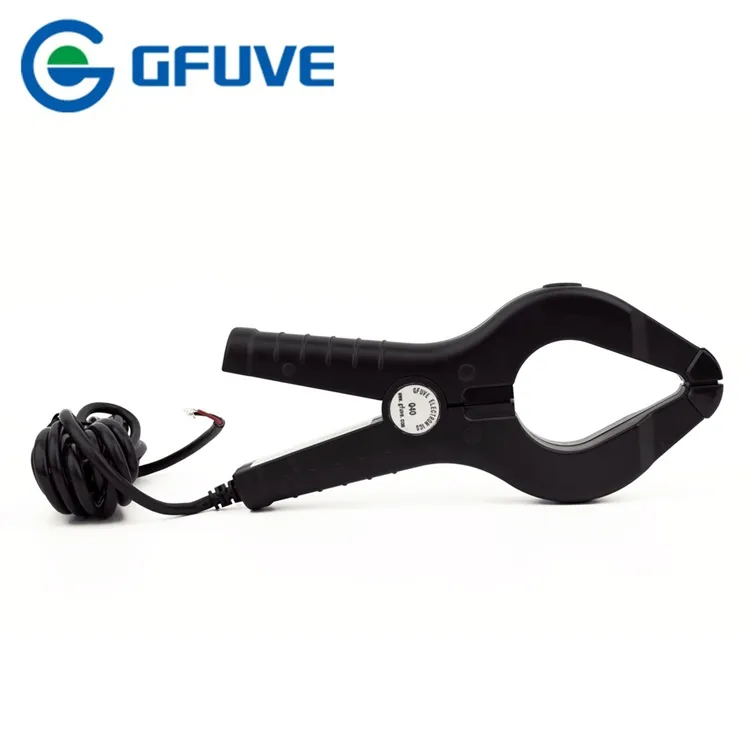

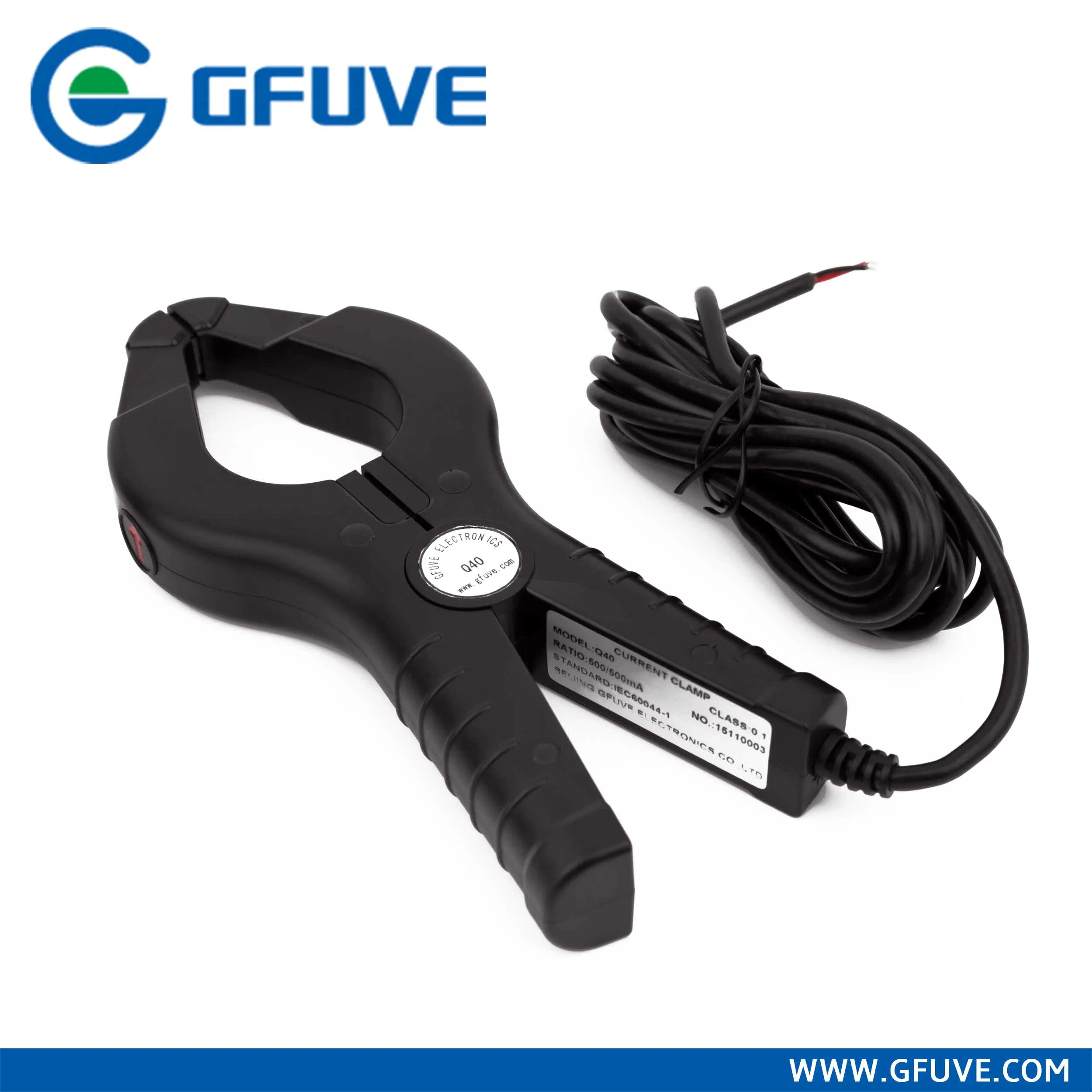

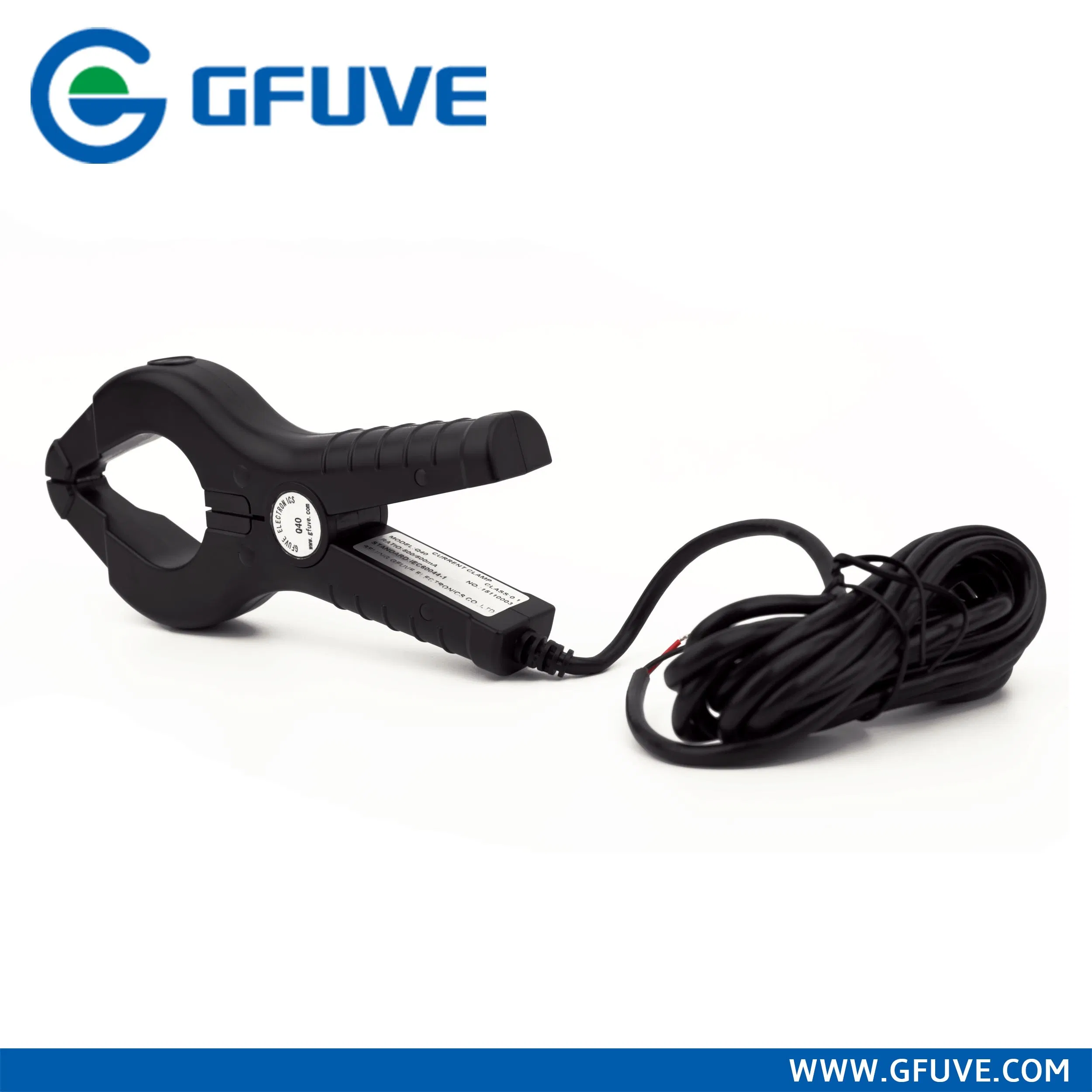

The Q40 Series AC Current Probes are high performance models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Q40 500A UNIVERSAL AC ON CURRENT CLAMP ADAPTOR CT SENSOR is an excellent probe to be used in power and low level current measurement applications detection.
| Electrical Parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy Class | 0.1%, 0.2%, 0.5% |
| Primary Current | 0 - 500A AC |
| Secondary Current | 0 - 1A AC or 0-5V AC (customized) |
| Max. Cont. Input Current | 600A |
| Over Voltage Category | CAT III 600V |
| Frequency Range | 40Hz-2000Hz |
| Dielectric Strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature Range | -20°C to +55°C |
| Output Mode | Lead output (2.5m) with D01 connector |
| Mechanical Parameters | |
|---|---|
| Dimensions (L x W x H) | 82 x 290 x 25.3 mm |
| Weight | 500g |
| Holding Wire Diameter | φ40 mm |
| Max. Jaw Opening | 40 mm |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
