240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
1 / 5
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter
240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter

240W IEC/En 60601-1 Certified Medical Power Supply 48V 4.17A Desktop CE UL Ukca Rcm AC Adapter

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
APM240DE
Certification
TUV, RoHS, ISO9001, CCC, CE, Ukca, UL, Rcm, PSE, Kc
Color
Black or White
Type
OEM
Connection
Desktop
Input
100~240VAC, 50/60Hz
Output Voltage
12V~48V
Rate Power
240W Max
Voltage Tolerance
±5%
HS Code
8504401400
Product Description

240W IEC/EN 60601-1 Certified Medical Power Supply | 48V 4.17A Desktop Adapter

This 240W (48V, 4.17A) desktop medical power supply is engineered to meet the most rigorous global safety and performance standards for use in patient-connected, life-supporting, and high-reliability electromedical equipment. Fully certified to the 3rd edition of IEC/EN 60601-1:2012 + A1:2020, it satisfies critical requirements for electrical isolation, leakage current, and operational stability in hospitals, clinics, and diagnostic laboratories.

🛡️
Advanced Patient Protection: Features 2 MOPP (Means of Patient Protection) isolation and ultra-low patient leakage current (<100 µA). This provides reinforced insulation with a dielectric strength of ≥4,000 VAC, ensuring maximum protection against electric shock as mandated by medical safety standards.
Medical Power Supply Front View

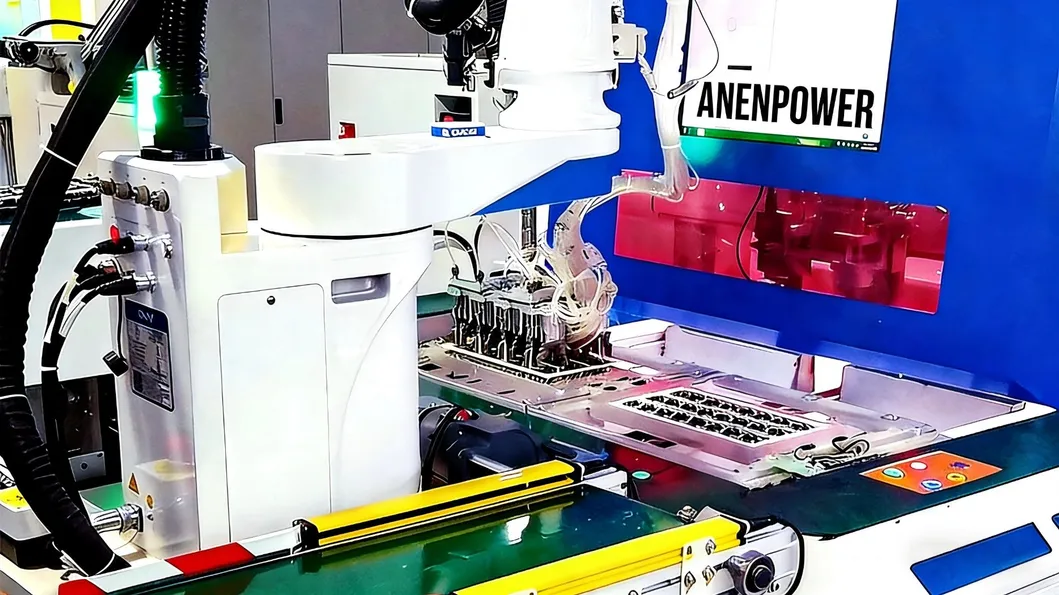

Power Supply Production Line

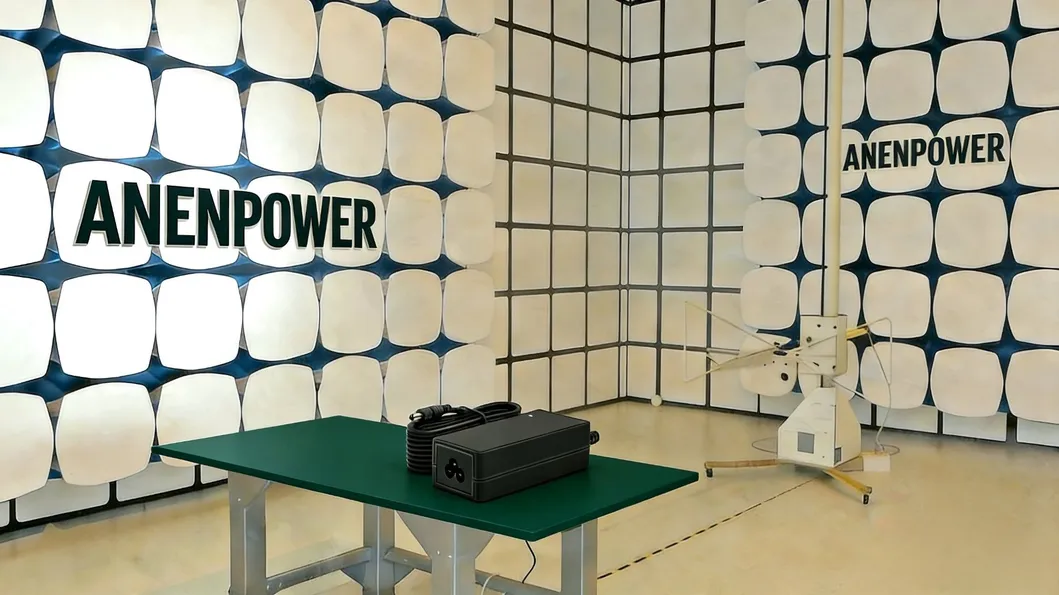

Quality Certification
Technical Specifications
Input Voltage: 90-264V AC (Universal)
Output Voltage: 48V DC ±1%
Output Current: 4.17A Continuous
Efficiency: >90% Peak
Isolation: 2 MOPP, In-to-Out ≥4,000 VAC
Ripple & Noise: <200 mV p-p
Power Factor: >0.95 (Active PFC)
Safety: IEC/EN 60601-1 3rd Ed, UL 60601-1
Model Comparison Chart
Model NO. Max Power Output Voltage Max Load Load Regulation Ripple & Noise
APM240DA200W24V8.33A±5%100mV
APM240DB240W24V10.0A±5%100mV
APM240DC200W36V5.56A±5%100mV
APM240DD240W36V6.67A±5%100mV
APM240DE200W48V4.17A±5%100mV
APM240DF240W48V5.0A±5%100mV
Our Manufacturing Advantages
  • Automated Precision: Manufactured by fully automated production lines operating 24/7, ensuring higher efficiency and significantly shorter delivery cycles.
  • Consistent Quality: High-precision robotic arms and intelligent testing systems eliminate human error, resulting in ultra-low defect rates.
  • Global Compliance: Full-process traceability meeting strict CE, UL, UKCA, and RCM international medical certifications.
  • Thermal Management: Intelligent fan-assisted cooling with quiet-mode algorithms ensures stable operation in clinical environments.
Frequently Asked Questions
Is this power supply safe for direct patient contact?
Yes, it is certified to IEC/EN 60601-1 3rd edition with 2 MOPP (Means of Patient Protection) and ultra-low leakage current (<100 µA), making it suitable for patient-connected equipment.
What global certifications does this adapter hold?
The unit carries full regulatory approval for major international markets, including CE (EU), UL 60601-1 (USA & Canada), UKCA (Great Britain), and RCM (Australia & New Zealand).
What is the warranty period for the AP series?
We offer a 24-month warranty covering defects in materials and workmanship under normal use conditions for all AP series power adapters.
Does it support different regional power cords?
The adapter features a standard IEC C14 AC inlet, which supports interchangeable regional input cords such as US NEMA 5-15, EU Schuko, UK BS 1363, and AU AS/NZS 3112.
What protective mechanisms are built-in?
It includes comprehensive protection for over-voltage (OVP), over-current (OCP), short-circuit (SCP), and over-temperature (OTP) with auto-recovery functionality.
What are the typical medical applications for this 48V unit?
Ideal applications include surgical robotics, advanced ventilators, therapeutic lasers, dental imaging systems, dialysis machines, and laboratory analyzers.
