Customization: Available
Output Type: Single
Warranty: DC Power Supply
Send Inquiry

Product Description

Basic Specifications
Model NO.
N3612-080-060
Output Power
>500W
Input Voltage
110-220V
Connection Mode
Parallel Switching Power Supply
Modulation System
PWM
Certification
CE, ISO
Display
4.3 Inch LCD Screen
Voltage Range
0-1000V
Communication
LAN/RS232
Protection
OCP, OVP, UVP, OTP, OPP

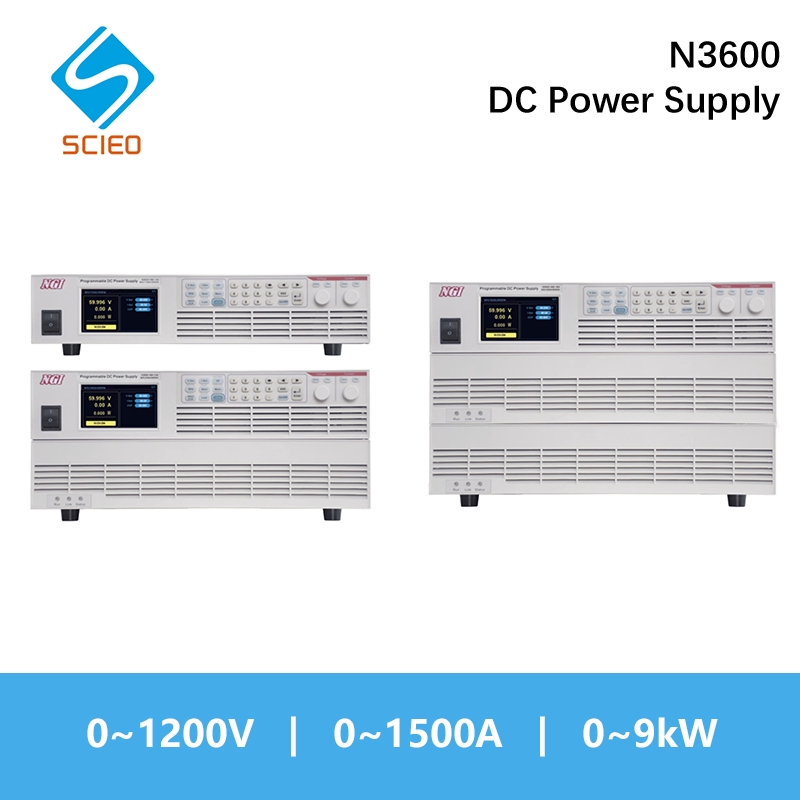

N3600 Series Wide Range Programmable DC Power Supply
The N3600 series is a high-voltage wide-range programmable DC power supply designed for diverse test environments, including laboratory testing, system integration, and mass production lines. It stands as a market leader in reliability, maintainability, and safety.
Application Fields
  • New energy fields: Li-on battery, photovoltaic, hydrogen fuel, energy storage BMS.
  • Civil fields: Home appliances, consumer electronics, communications.
  • Laboratory and production line ATE automatic test systems.
  • Automotive fields: BMS, DC-DC, automotive electronics.
  • Aerospace electronics testing and powering.
  • Industrial automation: Controllers, drives, servers, robots.
Key Features
  • Voltage range: 16V-1200V
  • Current range: 5A-1500A
  • Power range: 800W-9kW
  • Cascade mode up to 90kW
  • CC, CV and CP modes
  • SEQ function: 100 groups, 100 steps each
  • Editable rise/fall slew rate
  • 19-inch standard chassis (2U)
  • Built-in RS232/LAN interfaces
  • Analog programming (APG) interface

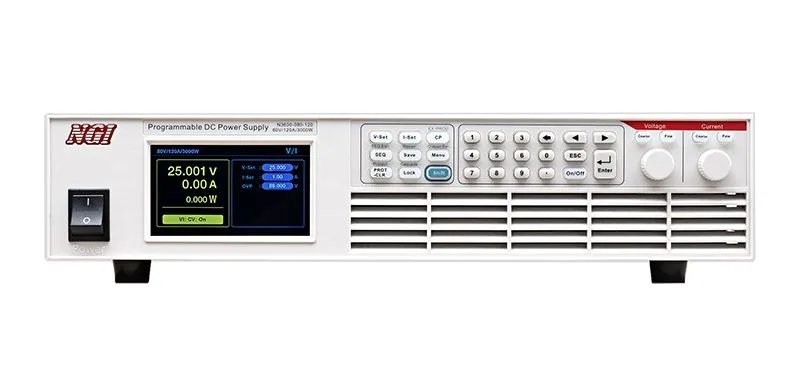

DC Power Supply Unit
Functions & Advantages

SEQ Function: Allows precise setting of output voltage, current, slew rates, and dwell time for complex simulation testing.

High Voltage Security: Supports up to 1200V with specialized safety terminal designs for LED and battery industries.

Wide Range Efficiency: Max power is not limited by simply multiplying max V and max I, allowing one unit to replace multiple standard power supplies.

External Dissipater: Protects the power supply and DUT when powering inductive loads like motors by handling returned voltage.

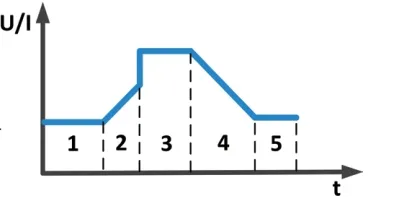

SEQ Function Diagram

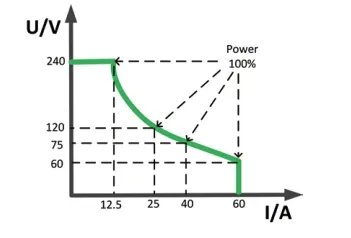

Wide Range Performance

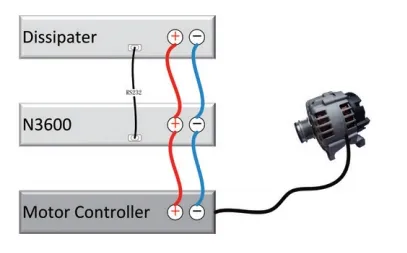

Dissipater Function
Technical Data Sheet
Model Voltage Current Power Accuracy (V/I) Size
N3608-080-060 80V 60A 800W 0.03%+20mV / 0.1%+60mA 2U
N3612-080-060 80V 60A 1200W 0.03%+20mV / 0.1%+60mA 2U
N3612-240-030 240V 30A 1200W 0.03%+60mV / 0.1%+30mA 2U
N3618-080-120 80V 120A 1800W 0.03%+20mV / 0.1%+120mA 2U
N3618-500-020 500V 20A 1800W 0.03%+125mV / 0.1%+20mA 2U

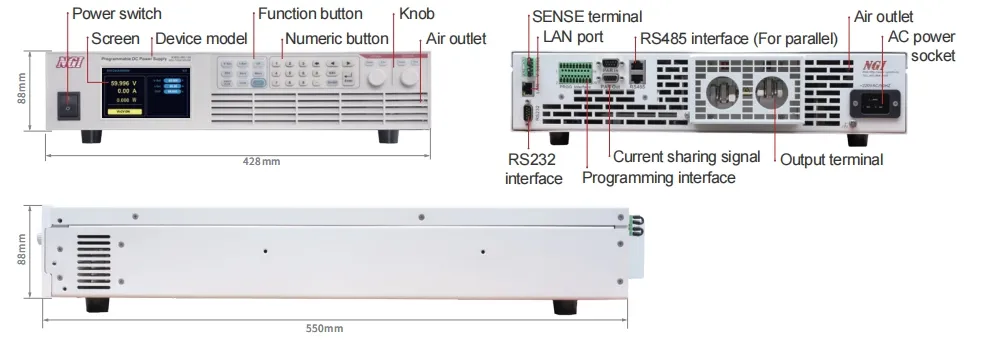

Dimension 1

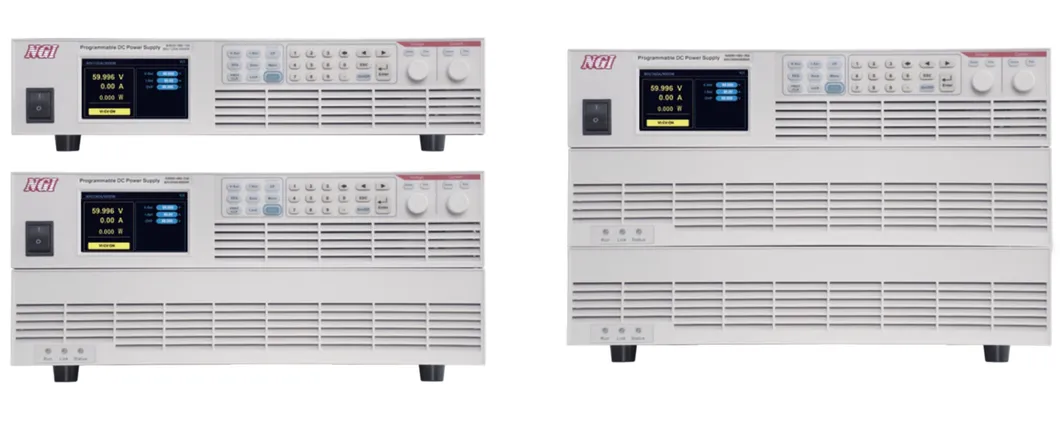

Dimension 2
Frequently Asked Questions
What is the maximum voltage supported by the N3600 series?
The series supports a wide range of voltages, from 16V up to 1200V, making it ideal for high-voltage testing in the LED and battery industries.
Can multiple N3600 devices be used together?
Yes, multiple devices can operate in cascade mode to increase the total power output up to 90kW.
What communication interfaces are included as standard?
The power supply comes standard with RS232 and LAN communication interfaces to support remote operation and system integration.
How does the external dissipater function protect my equipment?
When testing inductive loads like motors, the dissipater absorbs any returned voltage that exceeds the set limit, preventing damage to both the power supply and the motor controller.
What is the SEQ function used for?
The Sequence (SEQ) function allows users to program up to 100 steps in a file, defining voltage, current, and slew rates for automated and complex testing cycles.
Is the N3600 power supply suitable for rack mounting?
Yes, it features a standard 19-inch 2U chassis, which is designed for both benchtop use and easy installation into standard industrial racks.
