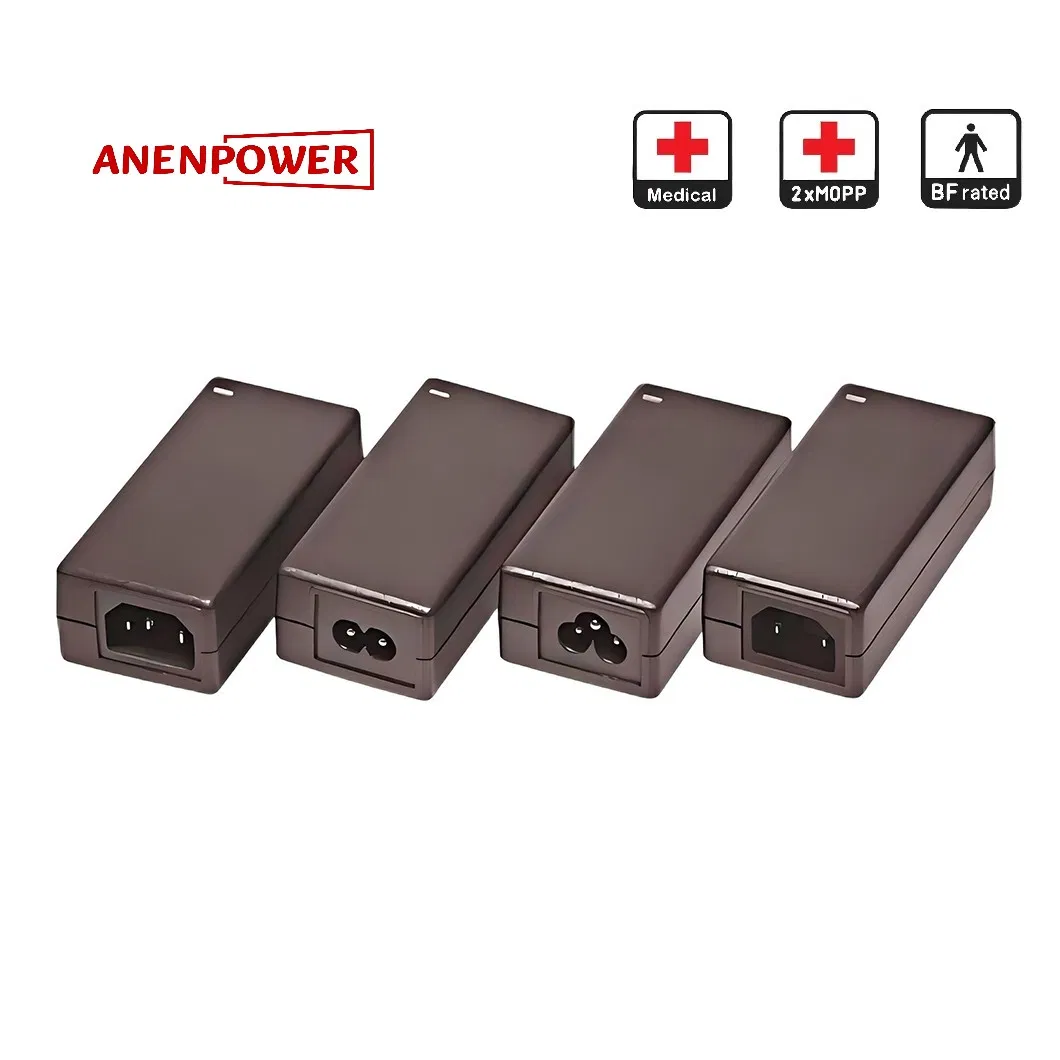

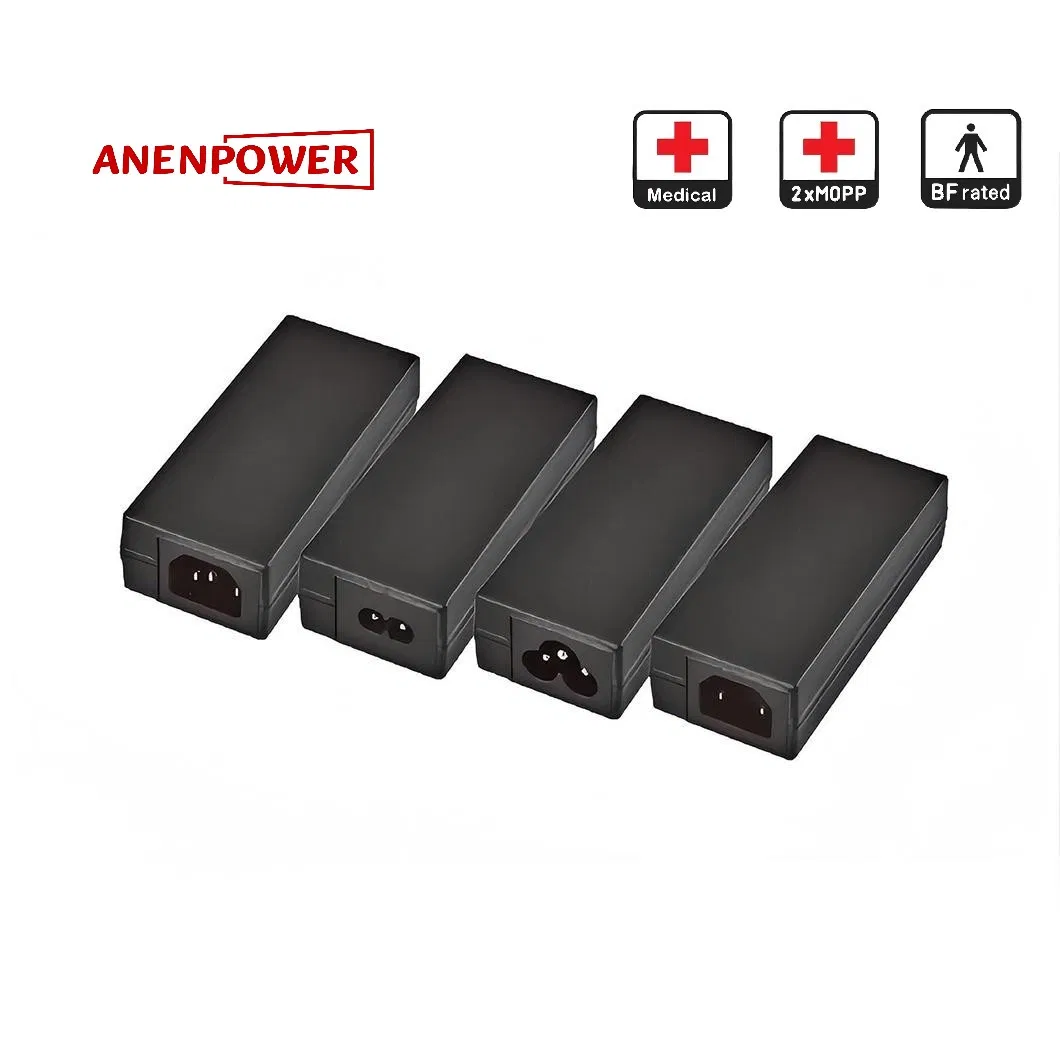

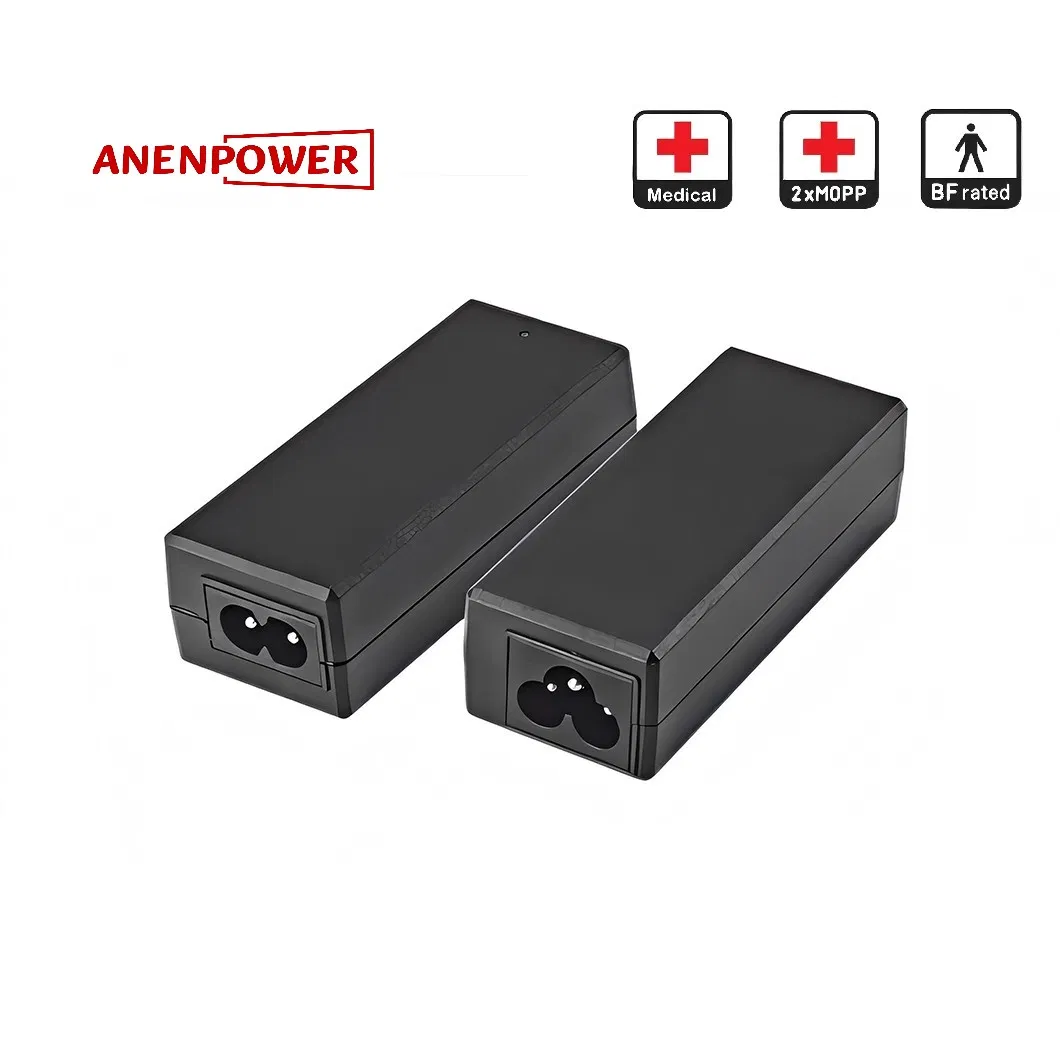

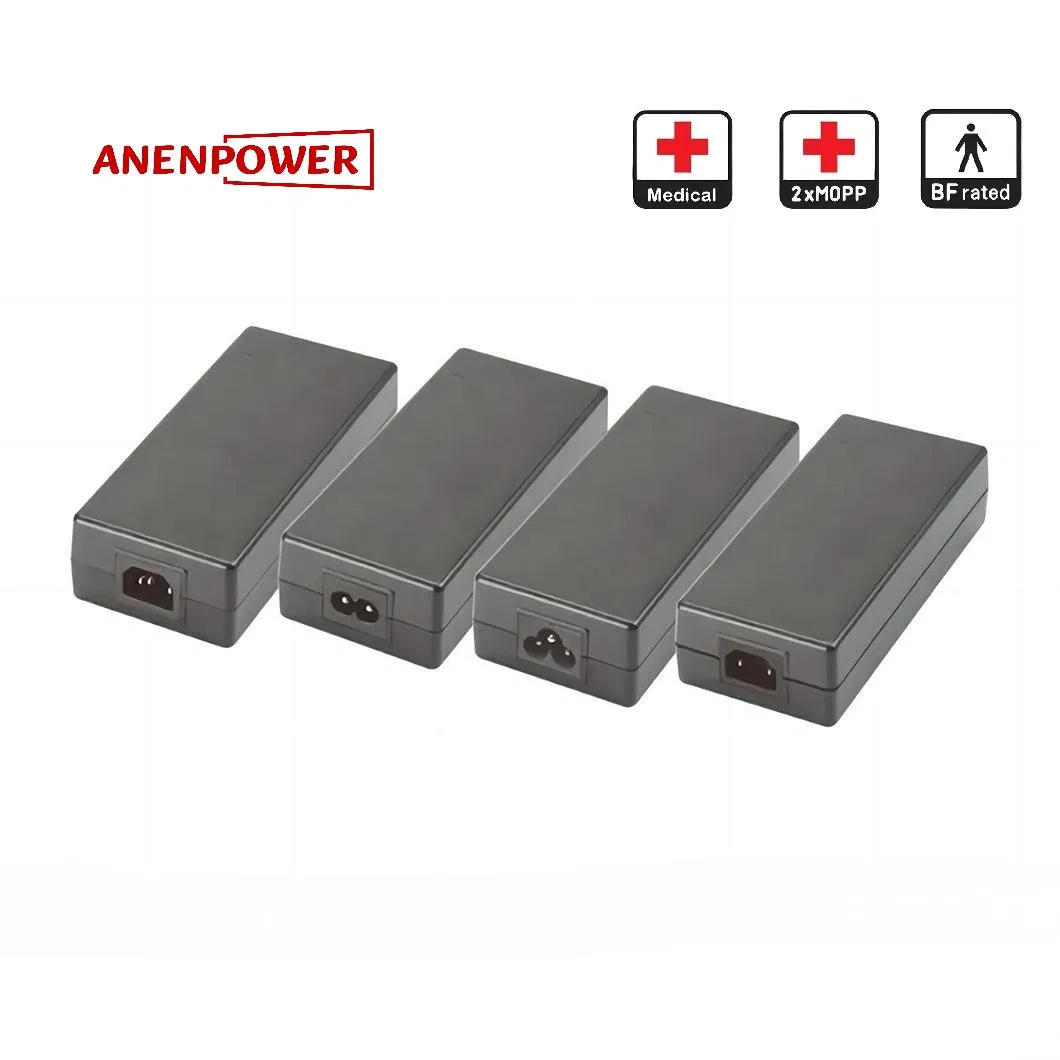

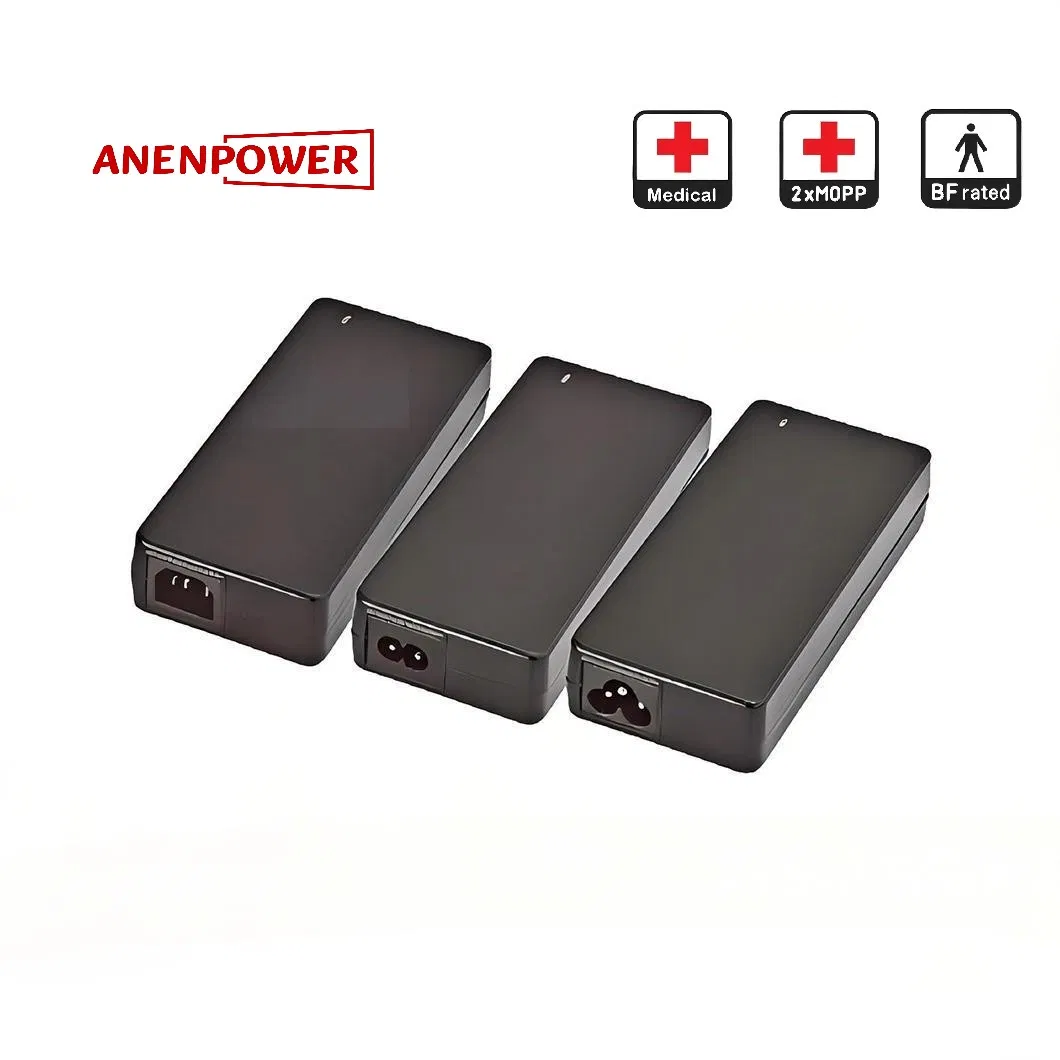

24V 7.5A Desktop Medical Power Adapter | 2×MOPP Isolation | 180W Switching Power Supply | IEC/UL 60601 Certified
This 180W (24V 7.5A) desktop medical power adapter is engineered to meet the most stringent safety requirements for patient-connected equipment, fully compliant with IEC 60601-1:2012 (4th Edition) and its regional derivatives: UL 60601-1, EN 60601-1, BS EN 60601-1, and AS/NZS 60601.1. It features 2×MOPP (Means of Patient Protection) isolation—providing dual independent barriers between hazardous mains voltage and patient-accessible circuits—making it suitable for BF-type applied parts in both clinical and home healthcare environments.
Why 2×MOPP Is Critical: The 2×MOPP requirement ensures that even if one insulation barrier fails, a second independent barrier prevents hazardous current from reaching the patient. This adapter is explicitly designed and tested to meet these criteria without compromising electromagnetic compatibility (EMC).
| Model NO. | Max Power | Output Voltage | Max Load | Min Load | Load Regulation | Line Regulation | Ripple & Noise |
|---|---|---|---|---|---|---|---|
| APM200DA | 180W | 24V | 7.5A | 0A | ±5% | ±1% | 100mV |
| APM200DB | 200W | 24V | 8.33A | 0A | ±5% | ±1% | 100mV |
| APM200DC | 180W | 36V | 5.0A | 0A | ±5% | ±1% | 100mV |
| APM200DD | 200W | 36V | 5.56A | 0A | ±5% | ±1% | 100mV |
| APM200DE | 180W | 48V | 3.75A | 0A | ±5% | ±1% | 100mV |
| APM200DF | 200W | 48V | 4.17A | 0A | ±5% | ±1% | 100mV |

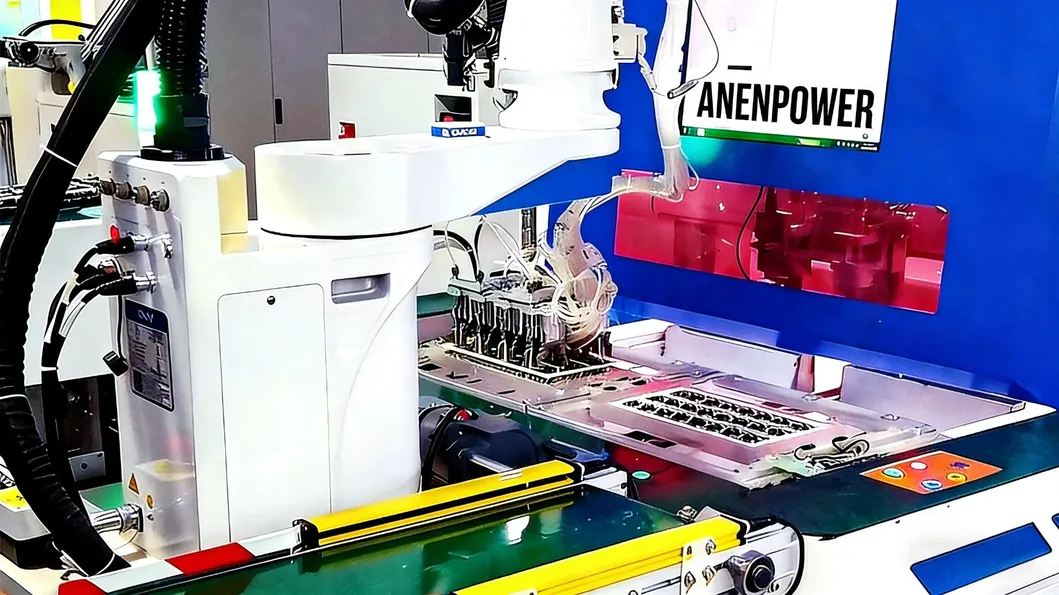

1. Automated Production Efficiency: Our power adapters are manufactured by fully automated production lines, enabling us to handle large-volume orders quickly and shorten delivery cycles significantly.
2. Consistent Premium Quality: Automated production eliminates human operation errors. High-precision robotic arms and intelligent testing systems ensure consistent quality.
3. Strict Compliance: Full-process automated production realizes complete product traceability, meeting strict CE, UL and other international certifications.
We provide a 24-month warranty for all power adapters, covering defects in materials and workmanship. Our medical power adapters are trusted for integration with critical healthcare devices, including ventilators, infusion pumps, and diagnostic imaging systems.
Products cover a power range of 5W to 1000W, backed by global certifications ensuring uncompromising safety across applications. Every unit undergoes rigorous testing to guarantee consistent durability and performance.
