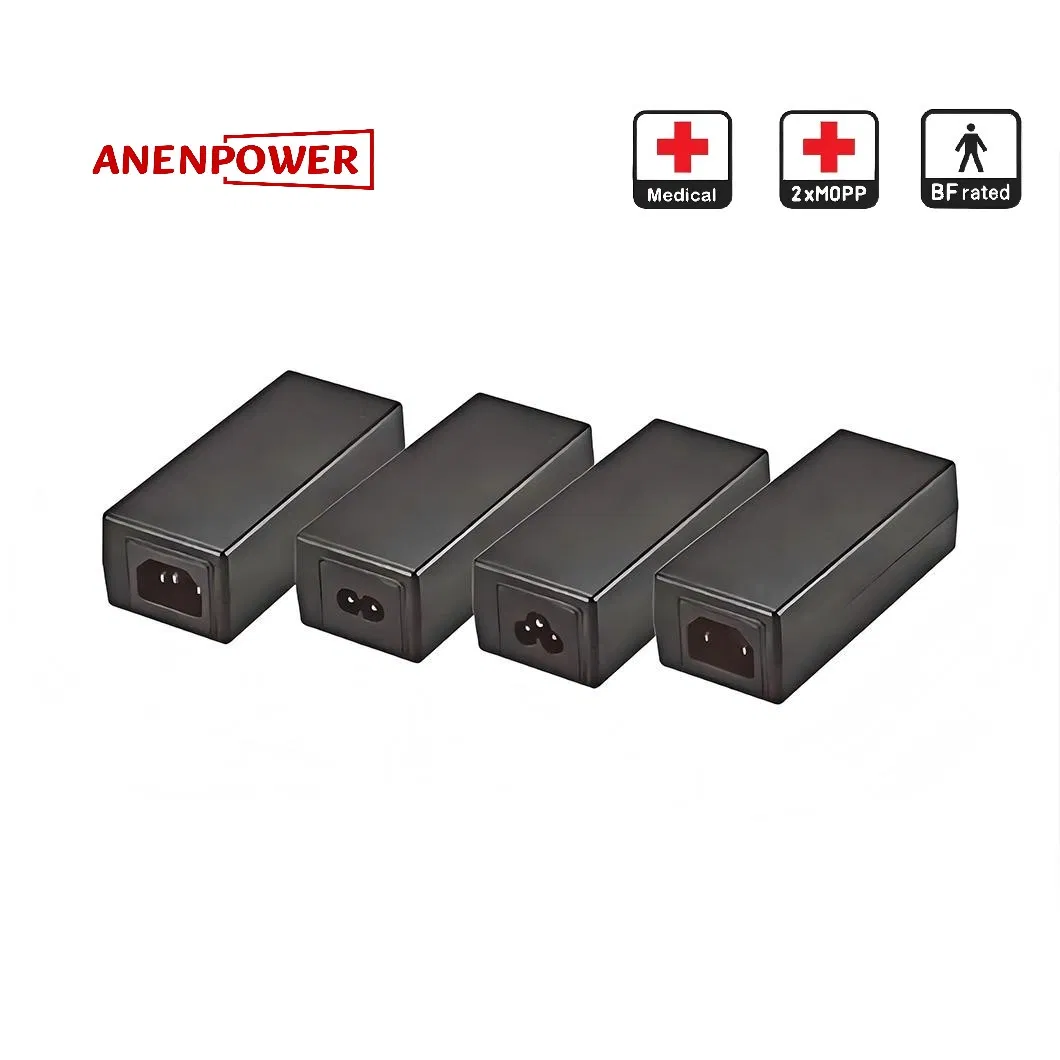

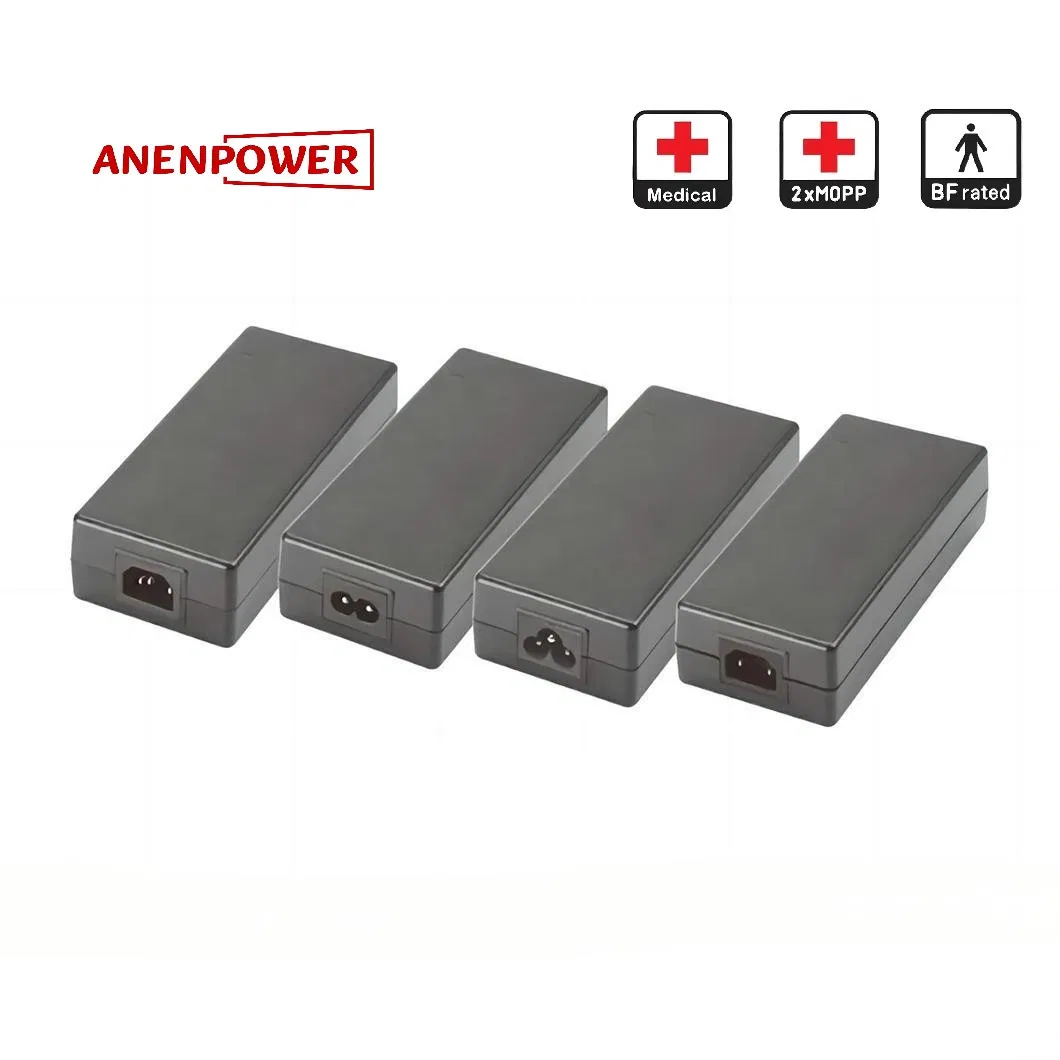

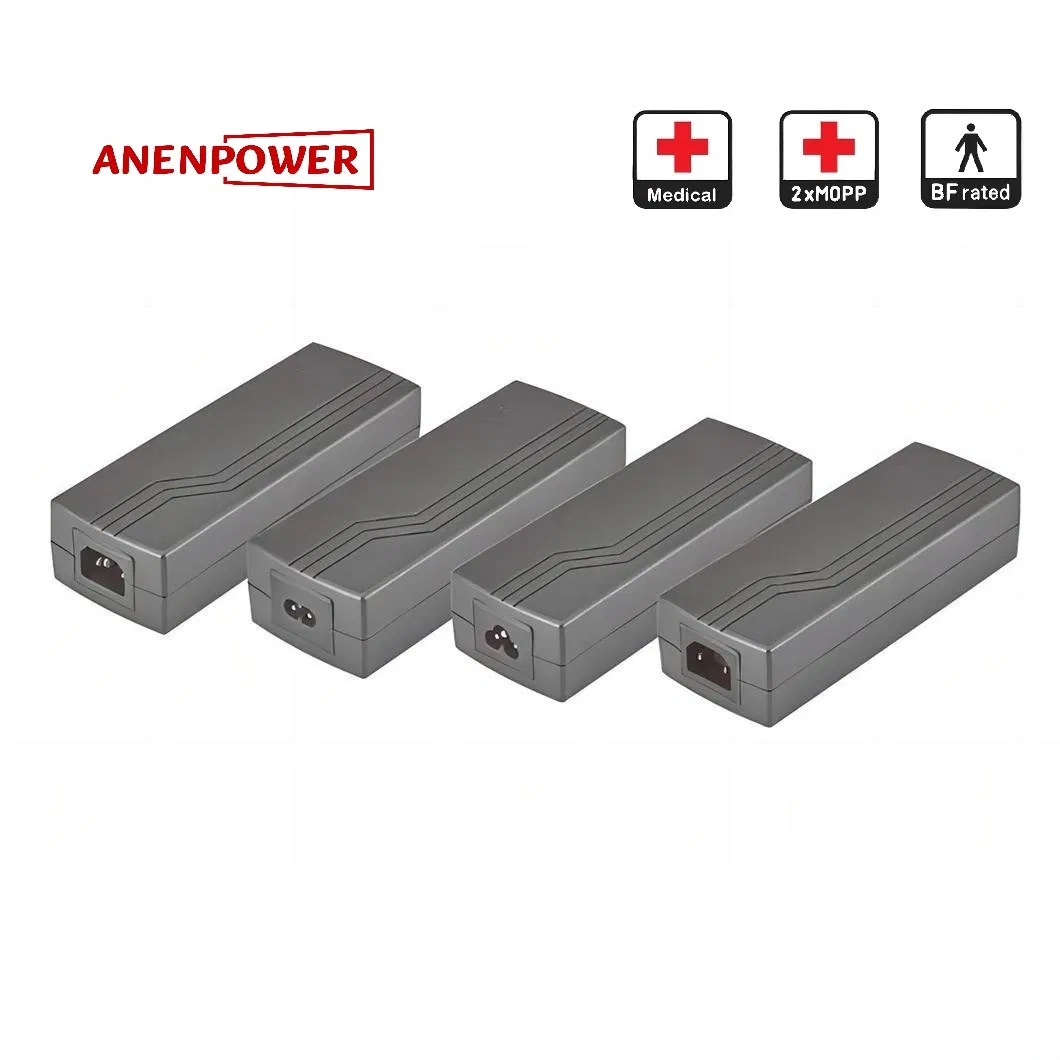

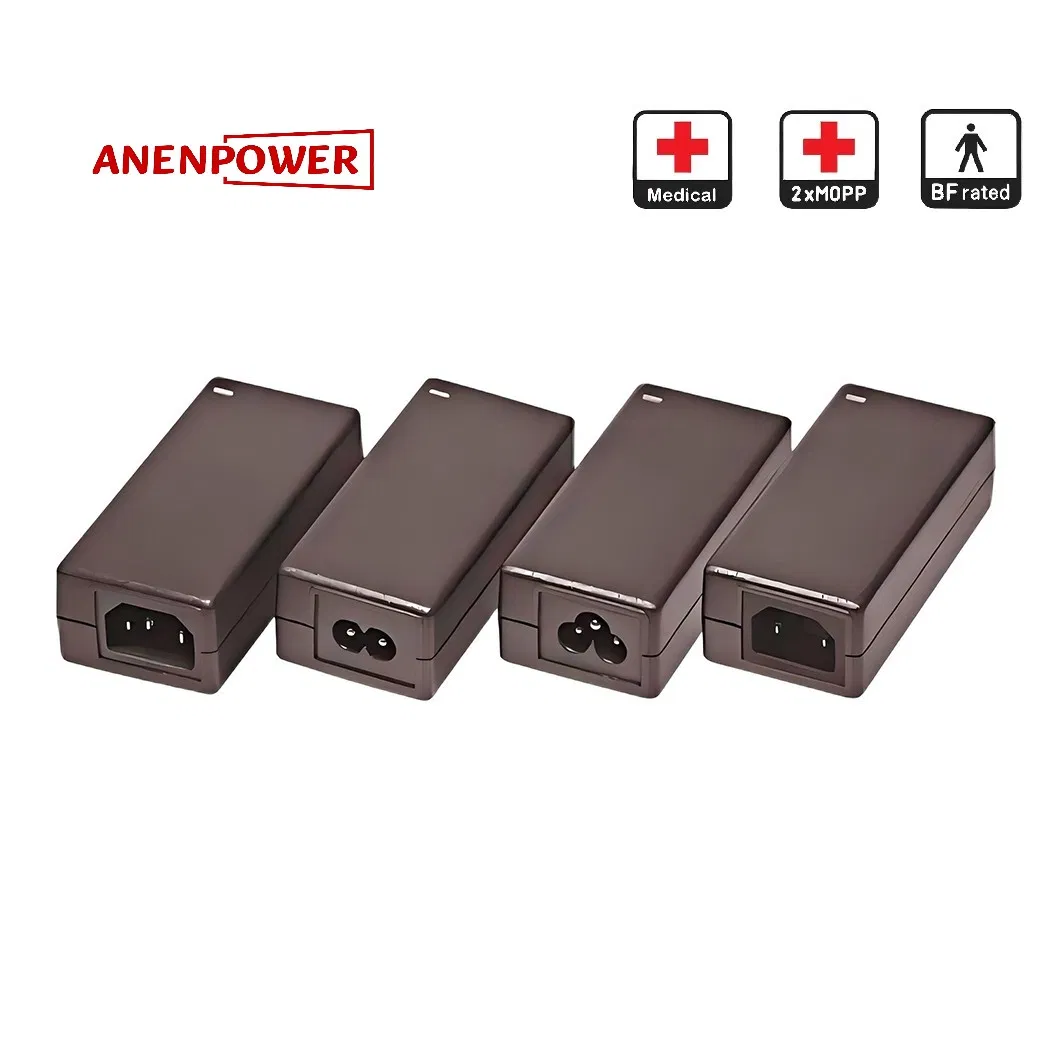

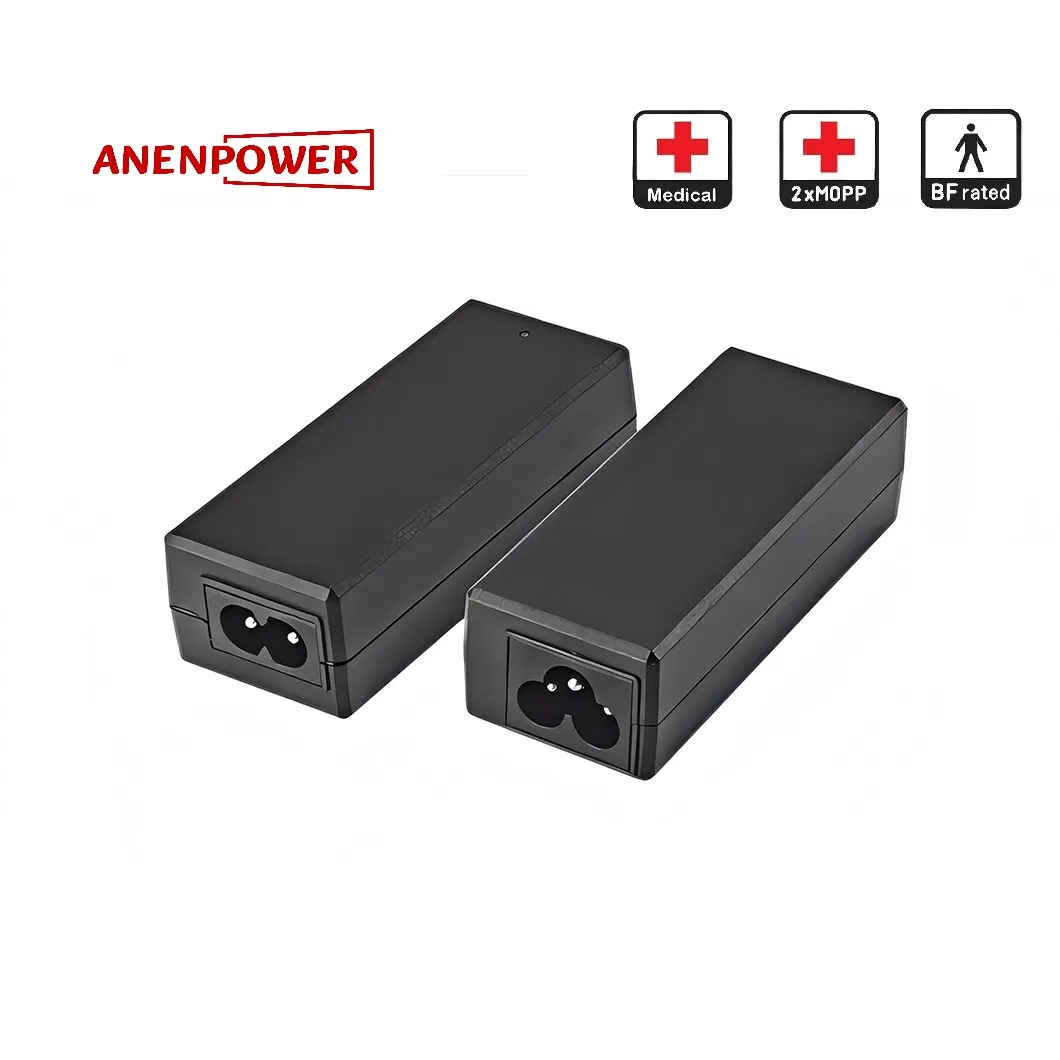

This 360W (36V 10A) desktop medical power adapter is engineered for high-performance clinical and home healthcare systems requiring robust, safe, and reliable power. Fully compliant with IEC 60601-1:2012 (4th Edition) and global regional derivatives, it delivers stable, low-noise power while meeting the most stringent patient safety requirements. Featuring 2×MOPP (Means of Patient Protection) isolation, it provides dual independent insulation barriers, making it suitable for BF-type applied parts.
| Model NO. | Max Power | Voltage | Max Load | Min Load | Load Reg. | Line Reg. | Ripple |
|---|---|---|---|---|---|---|---|
| APM360DA | 300W | 24V | 12.5A | 0A | ±5% | ±1% | 100mV |
| APM360DB | 360W | 24V | 15.0A | 0A | ±5% | ±1% | 100mV |
| APM360DC | 300W | 36V | 8.33A | 0A | ±5% | ±1% | 100mV |
| APM360DD | 360W | 36V | 10.0A | 0A | ±5% | ±1% | 100mV |
| APM360DE | 300W | 48V | 6.25A | 0A | ±5% | ±1% | 100mV |
| APM360DF | 360W | 48V | 7.5A | 0A | ±5% | ±1% | 100mV |
Even within the Safety Extra-Low Voltage range, IEC 60601-1 requires 2×MOPP when circuits are patient-accessible. This ensures redundancy: if one insulation layer fails due to environmental stress, the second barrier prevents hazardous energy transfer. This adapter utilizes triple-insulated transformer windings and series Y-capacitors to maintain the highest safety margins.
We provide a 24-month warranty for all AP series power adapters. Customers may request a return or exchange within 30 days of receipt for unused products in original packaging. Technical support, including installation guidance and troubleshooting, is available through our dedicated support channels.
