| Universal Parameters | |
| Isolate | I/O to internal bus: Optocoupler isolation (3750Vrms) |
| Field power supply | Nominal voltage: 24Vdc |
| Wiring | I/O connection: Max.1.0mm²(AWG 17) |
| Installation mode | 35mm guide rail installation |
| Dimension | 120*15*75mm |
| Weight | 80g |
| Environmental Parameters | |
| Operating temperature | -40~85ºC |
| Ambient humidity | 5%-95% no condensation |
| Class of protection | IP20 |
| Input Parameters | |

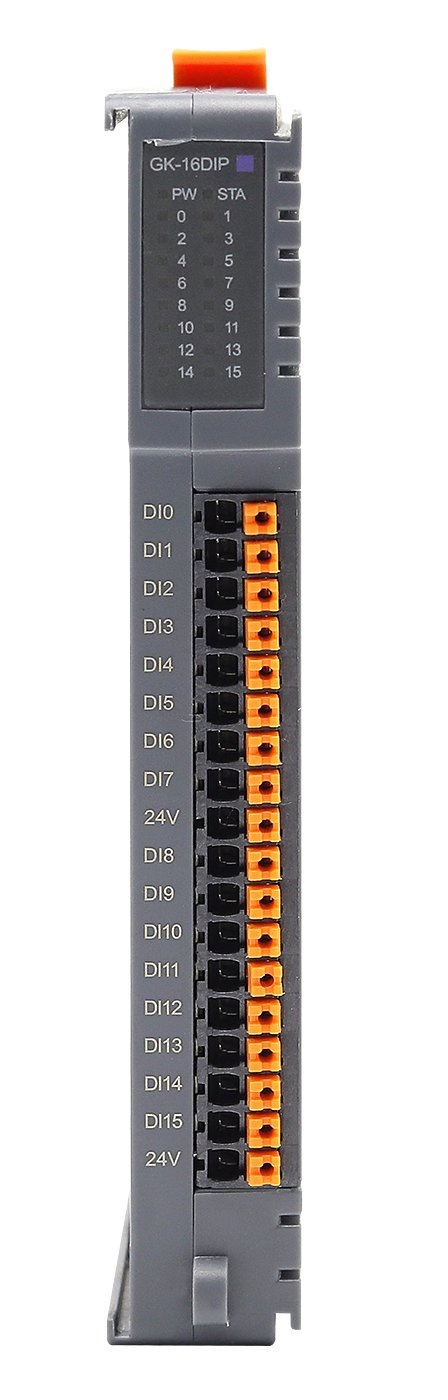

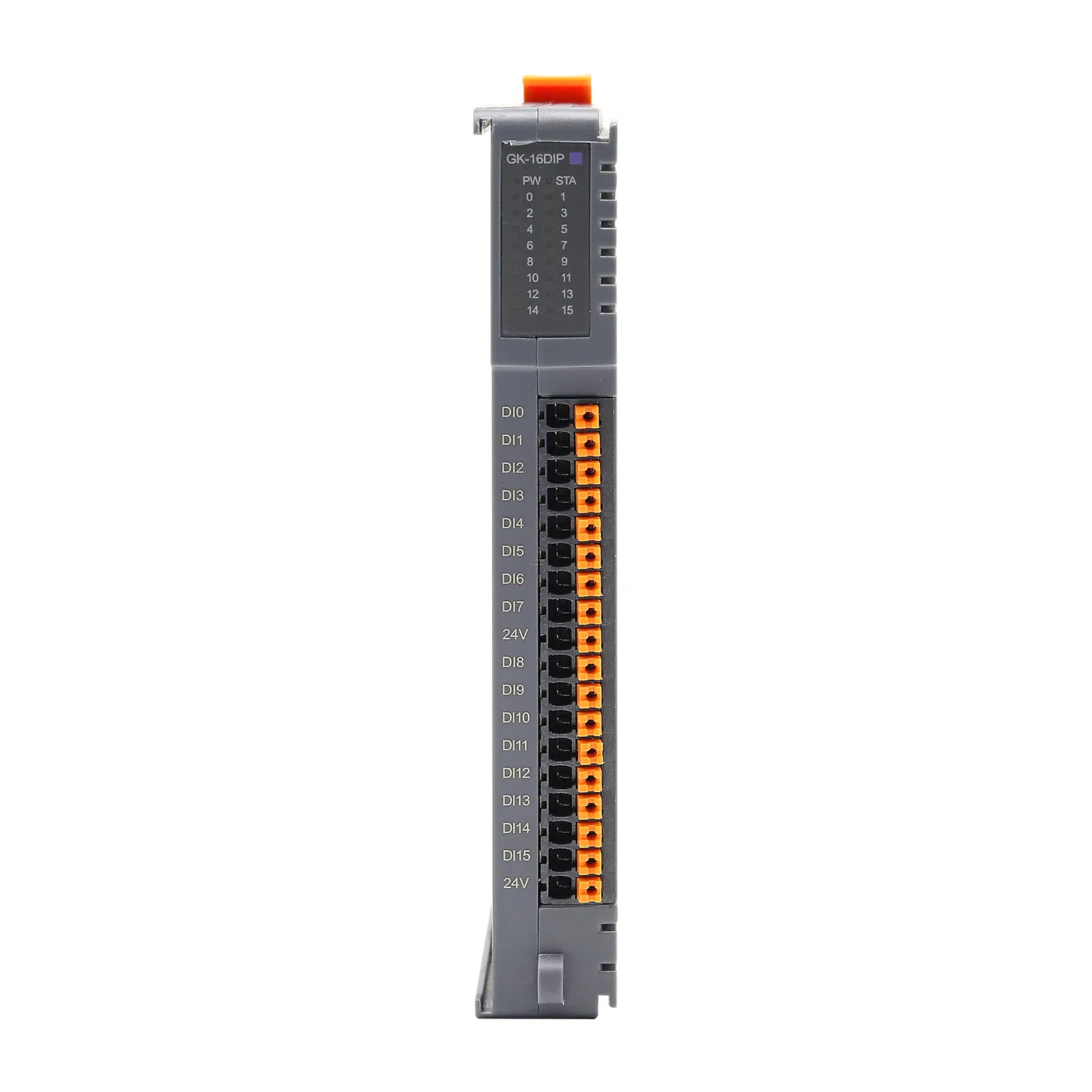

| Number of channels | 16-channel input |
| Pilot lamp | 8 channel input lights |
| Opening voltage | 9~24Vdc |
| Turn-off voltage | 0~3Vdc |
| Opening current | 3mA @24V per channel |
| Input impedance | >7.5kΩ |
| Switching delay | Open: 5us / Off: 3us |
| Filtering time | Default 10ms |
| Sampling frequency | 500Hz |

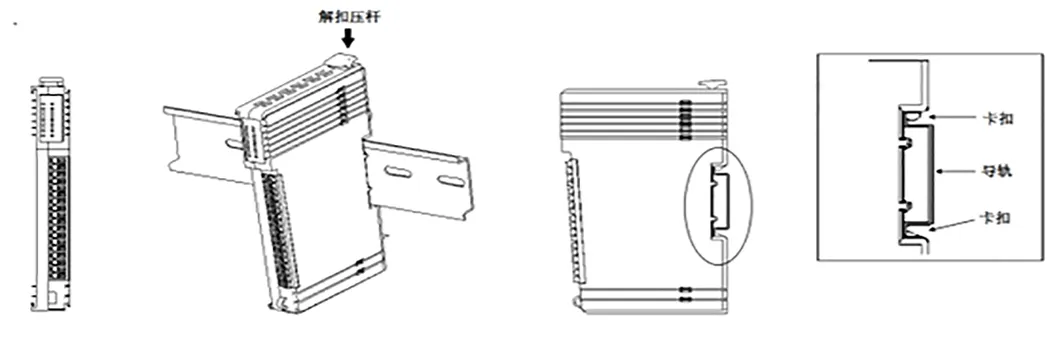

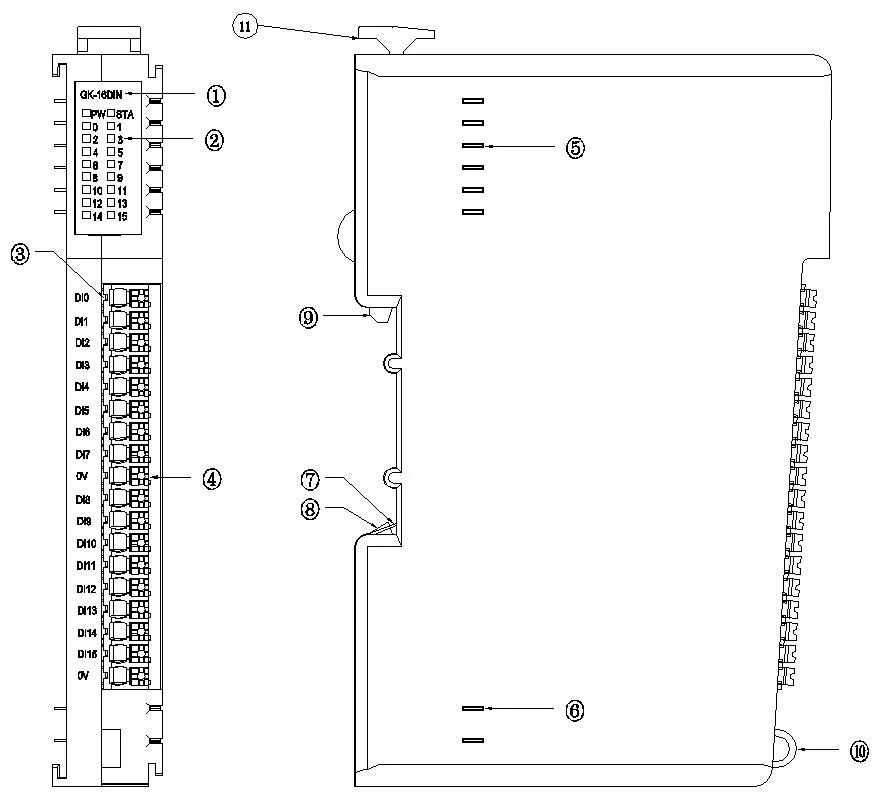

1. Module type | 2. Status light | 3. No field channel indicator | 4. Terminal identification | 5. Internal bus | 6. Field power supply | 7. Ground shrapnel | 8,9. Clasp | 10. Harness fixing | 11. Release rod
Smart Control for the Future, Customized Possibilities Unlimited! We specialize in intelligent control systems, delivering end-to-end customized services—from solution design and product development to precision manufacturing and operational maintenance—to meet diverse automation needs across industrial sectors.
We provide comprehensive digital solutions including smart factory planning, industrial IoT, and industrial cloud deployment. Our expertise serves clients across industries including steel, metallurgy, petroleum, chemicals, water treatment, power, construction, and food & beverage.
| Serial number | Description | Model |
|---|---|---|
| 1 | PROFINET adapter | GK-100-PNRT |
| 2 | EtherCAT adapter | GK-100-ECTRT |
| 3 | 8-channel digital input module PNP type | GK-100-08DIP |
| 4 | 8-channel digital input module NPN type | GK-100-08DIN |
| 5 | 16-channel digital input module PNP type | GK-100-16DIP |
| 6 | 16 channel digital input module NPN type | GK-100-16DIN |
| 7 | 16-channel digital output module PNP type | GK-100-16DOP |
