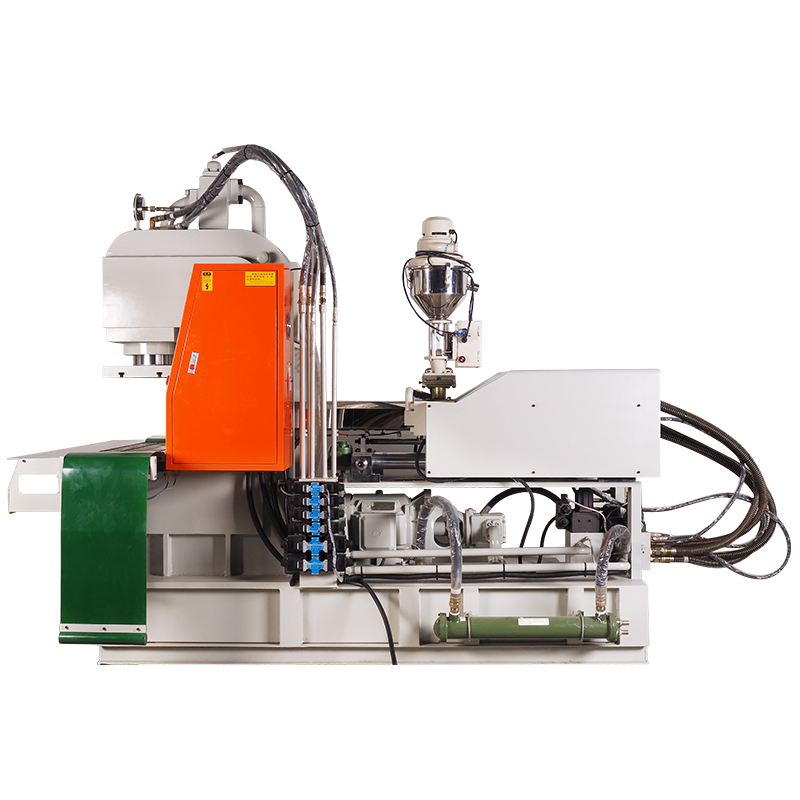

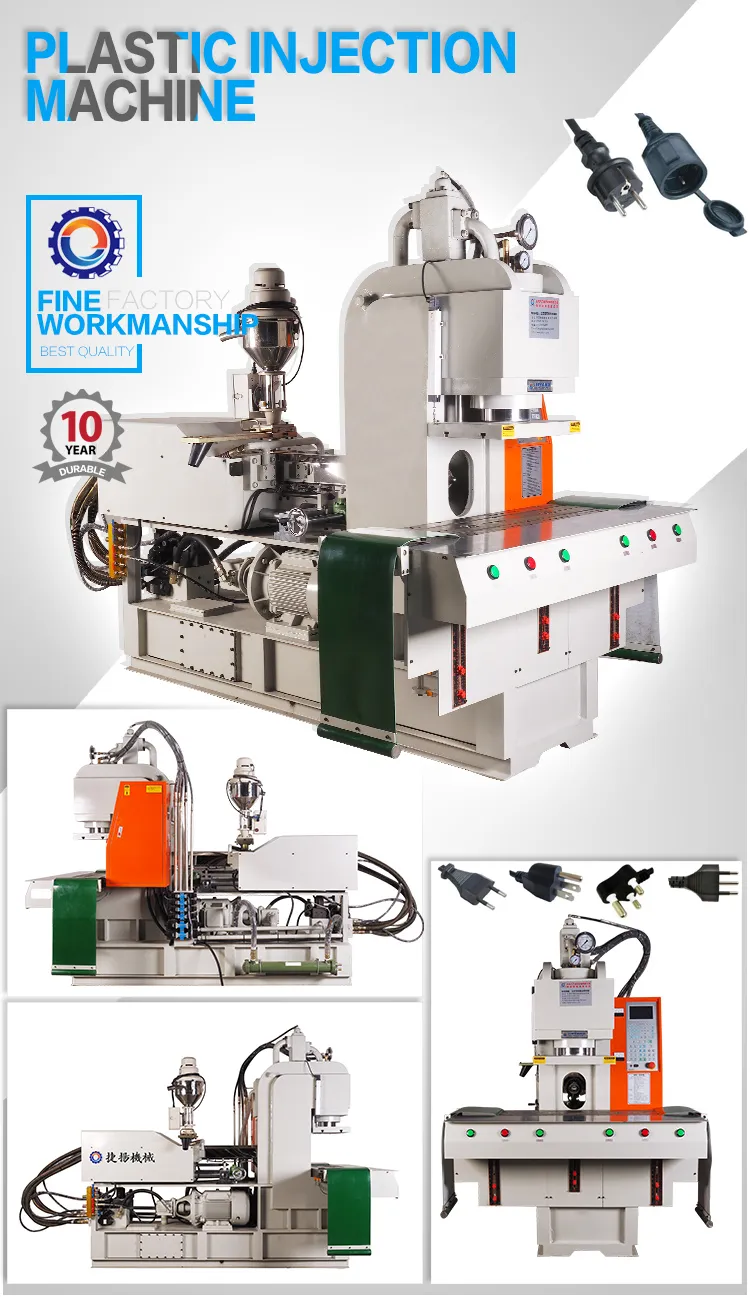

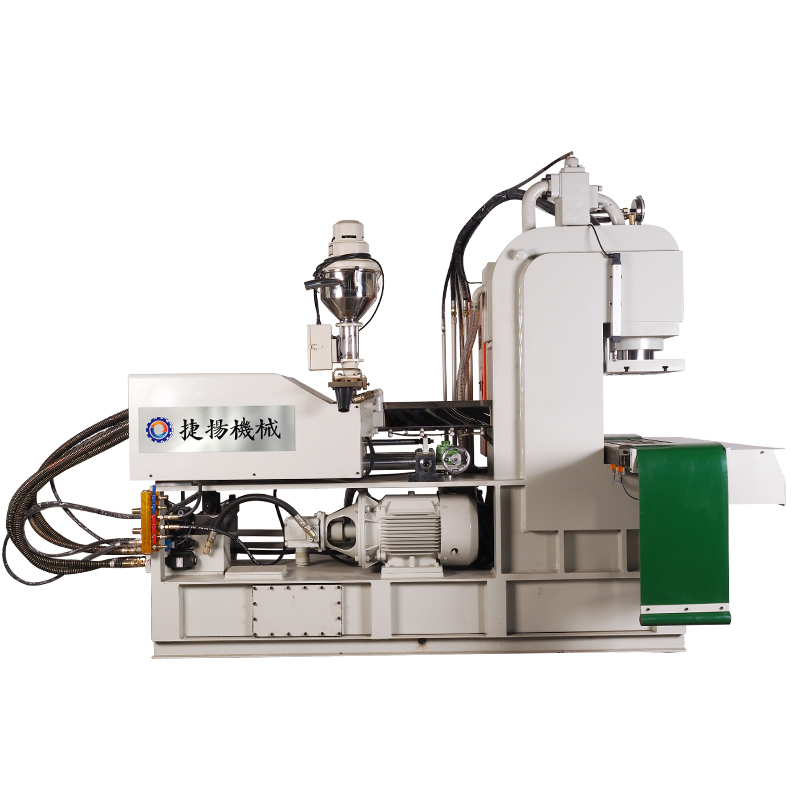

C type electric plugs vertical injection moulding machine factory
Key Functions:

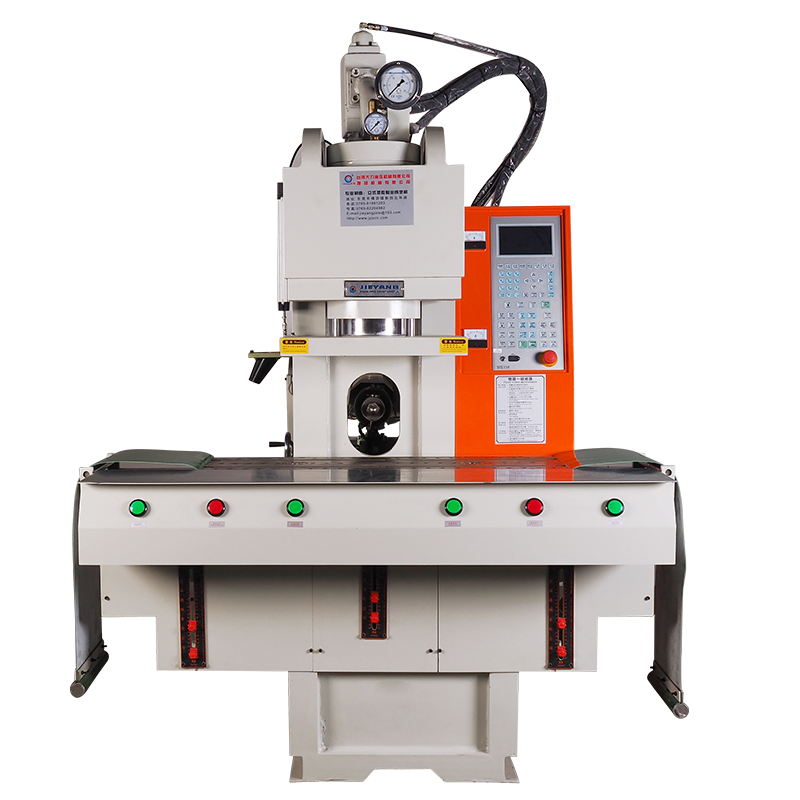

Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding. With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production.
High precision mold platen (Parallelism/flatness: 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend machine & mold life.
Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and provide superior acid/alkaline resistance. Heavy-duty double cylinder injection unit is maintenance friendly and free of oil leaks.
All series adapted Variable pump + PQ valves enable energy savings of 30~50%.
Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Technical Specifications
JY-500C / JY-850C Technique Specification
Model
Units
JY-500C
JY-850C
Injection System
Screw Diameter
mm
Φ32
Φ38
Φ40
Φ45
Injection Pressure
Kg/cm²
1506
1063
2396
1842
Max. Shot Weight (P.S)
g/Oz
139/4.89
196/6.9
228/8
283/10.2
Injection Rate
mm
190
190
Clamping System
Clamping Force
T
55
85
Platen Size
mm
480*280
580*330
Opening Stroke
mm
200
280
Ejector stroke
mm
135
135
Power / Others
Pump Motor Power
Kw
7.5/10HP
11/15HP
Machine Dimensions
m
3*1.2*2.1
3.4*1.4*2.5
Machine Weight
T
4.4
5.8
Special Offer: 18 Months Total Warranty
Send an inquiry now and receive an additional six-month free warranty on top of our standard term.

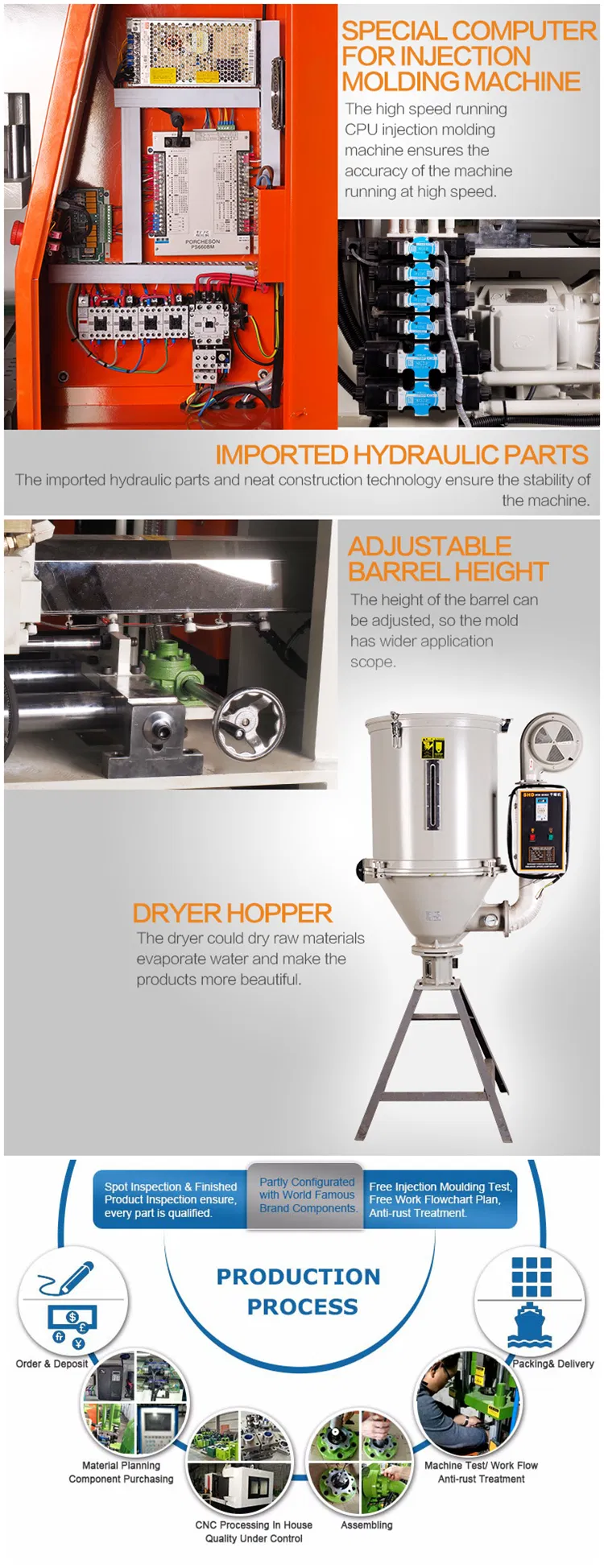

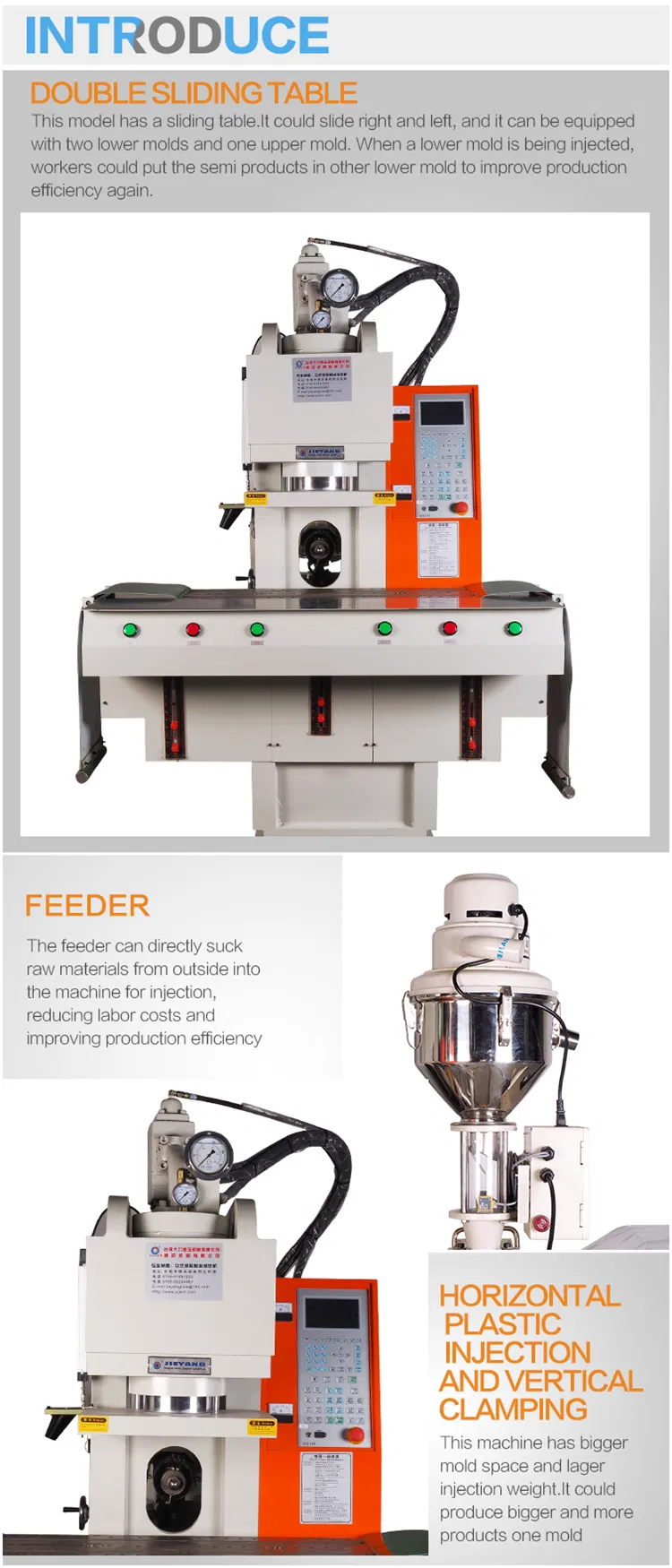

Machine Details & Components

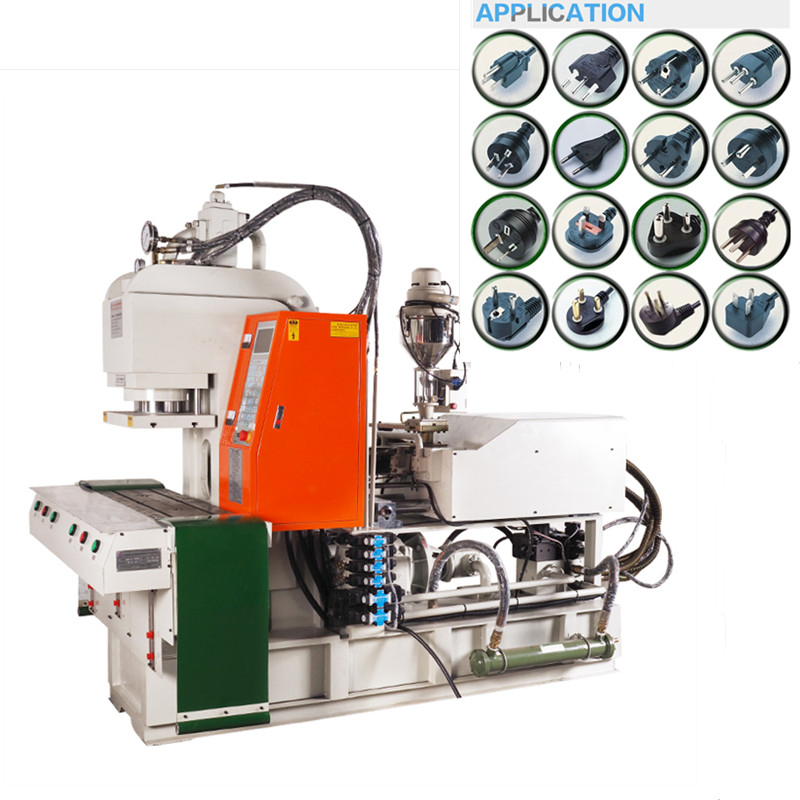

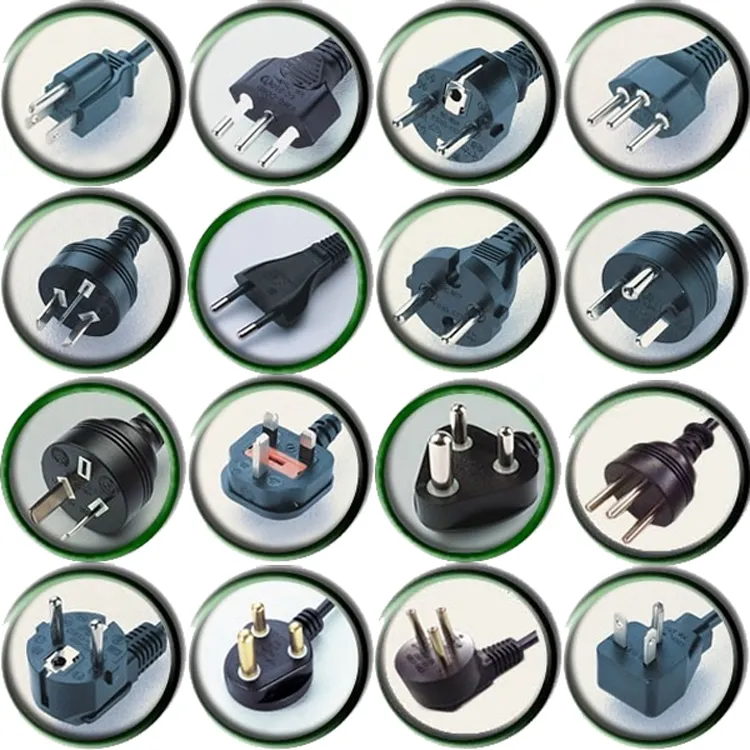

Application & Finished Products
We provide customization services based on your specific production requirements.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory and all machines are manufactured in-house. We also offer customization services to meet your specific requirements.
What is the warranty period for your injection moulding machines?
We offer a standard one-year warranty where all parts can be replaced free of charge (excluding man-made damage), plus life-time maintenance. Inquiries made now may qualify for a total of 18 months warranty.
What is the typical delivery time for an order?
If the machine is in stock, delivery typically takes 3-5 days. For non-stock items, delivery is between 10-25 days depending on the quantity and current production season.
Is it possible to visit the manufacturing facility?
Yes, our facility is conveniently located near major transport hubs. We can provide transportation from nearby railway or bus stations upon your arrival.
How energy-efficient are these vertical injection machines?
Our machines utilize a variable pump and PQ valve system, which allows for energy savings of between 30% and 50% compared to standard models.
What materials can these machines process?
These machines are designed for various thermoplastics and are particularly efficient for insert molding processes, such as electric plug production.
