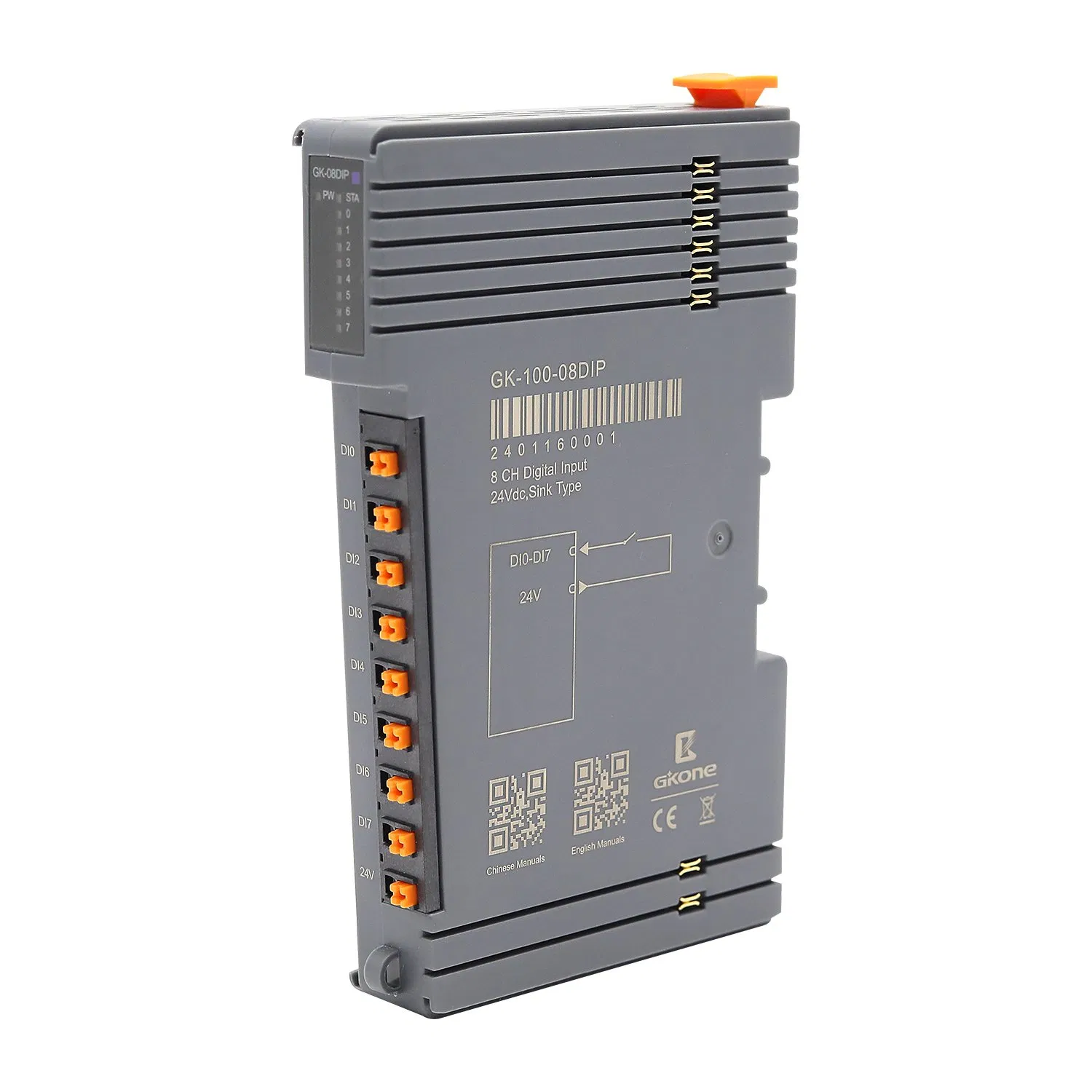

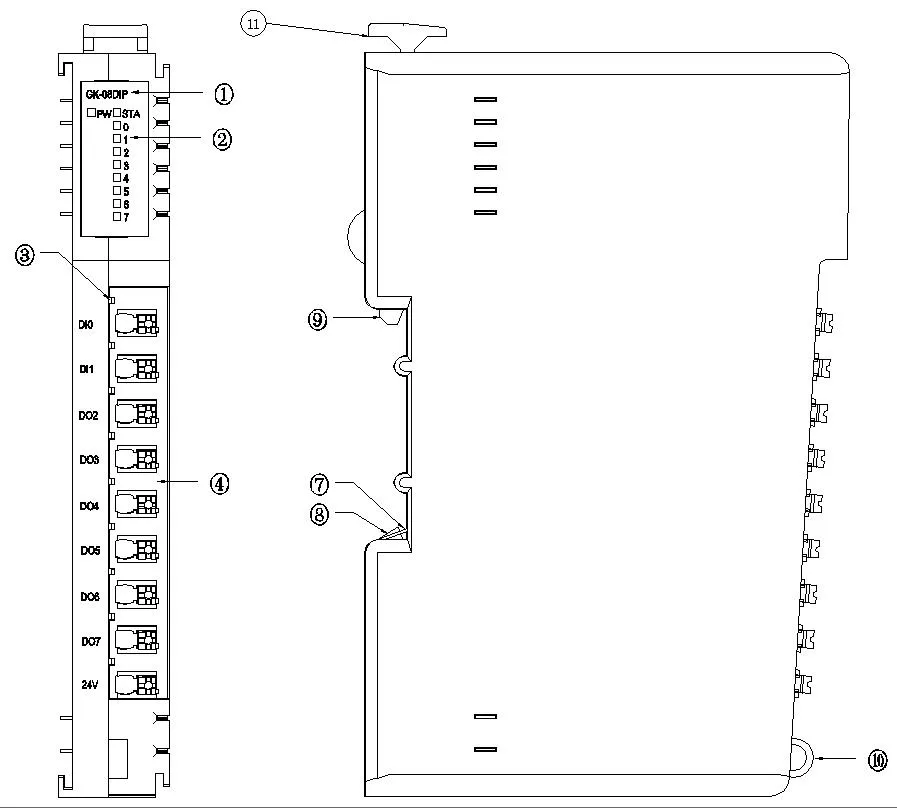

1. Module type | 2. Status light | 3. No field channel indicator | 4. Terminal and identification | 5. Internal bus | 6. Field power supply | 8,9. Clasp | 7. Ground shrapnel | 10. Harness fixing | 11. Release the gripping rod
Solution Features
Smart Control for the Future, Customized Possibilities Unlimited! Delivering end-to-end customized services—from solution design and product development to precision manufacturing and operational maintenance—to meet diverse automation needs across industrial sectors.
- Efficient adaptation to cross-industry scenarios
- Strict compliance with global industry standards
- Full-process traceability for quality assurance
- Rapid-response delivery timelines
- Professional expertise in industrial IoT and industrial cloud deployment
Frequently Asked Questions

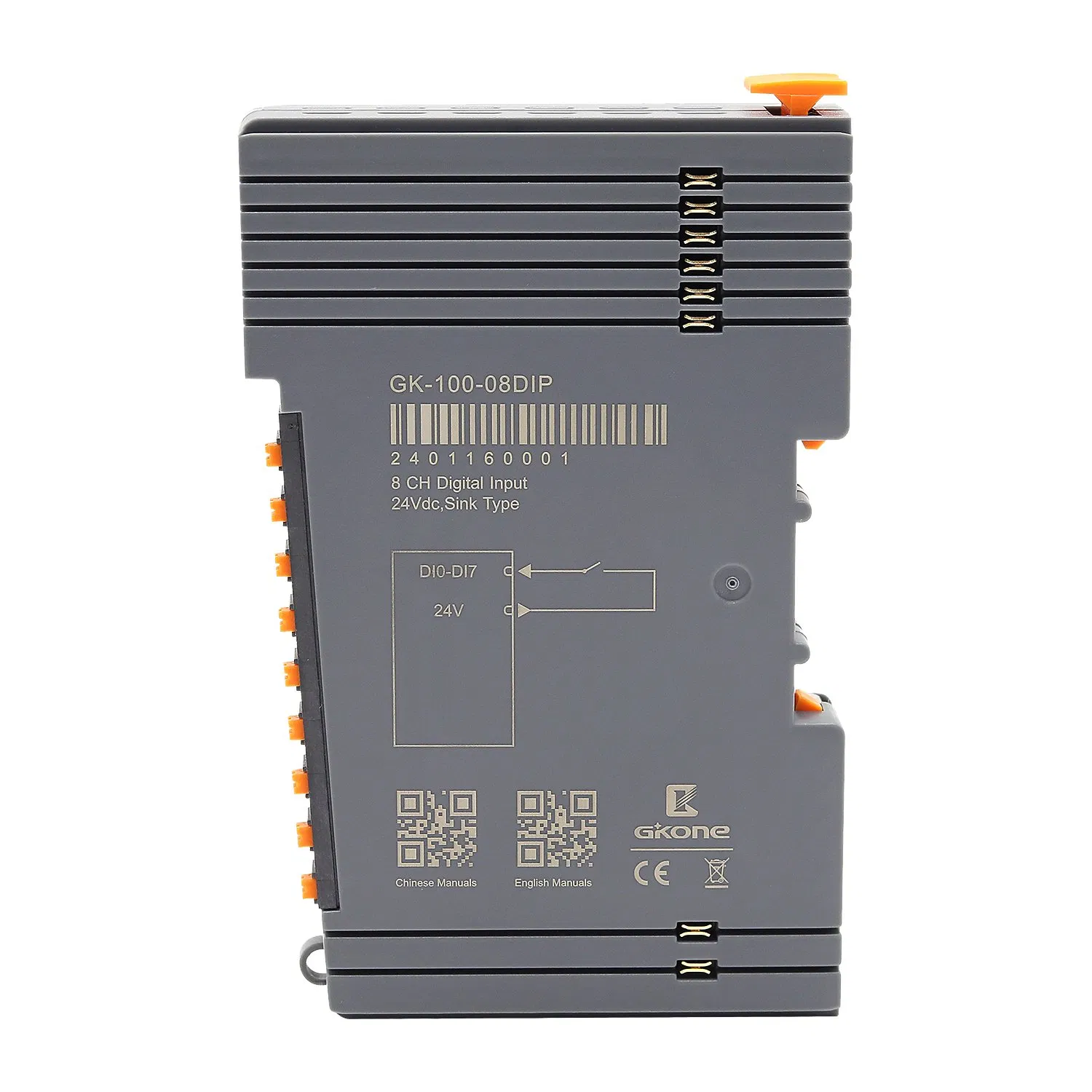

What is the operating voltage range for the GK-100-08DIP module?
The module operates with a nominal field power supply of 24VDC, with an opening voltage range of 9~24Vdc.
Does this module support optocoupler isolation?
Yes, it features optocoupler isolation from I/O to the internal bus, rated at 3750Vrms for high safety and reliability.
What are the environmental requirements for installation?
The module is designed for industrial environments with an operating temperature of -40 to 85ºC and a protection class of IP20.

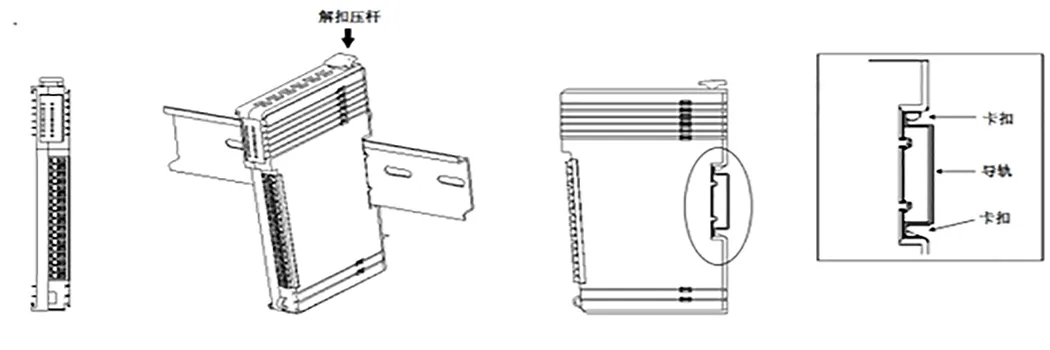

How is the module installed in a control cabinet?
It uses a standard 35mm guide rail installation (DIN rail), making it easy to integrate into most industrial control systems.
What is the sampling frequency and input impedance?
The module features a 500Hz sampling frequency and an input impedance of greater than 7.5kΩ.
Can I use this module for high-speed switching applications?
Yes, the switching delay is extremely low, with an "Open" time of 5us and an "Off" time of 3us.
