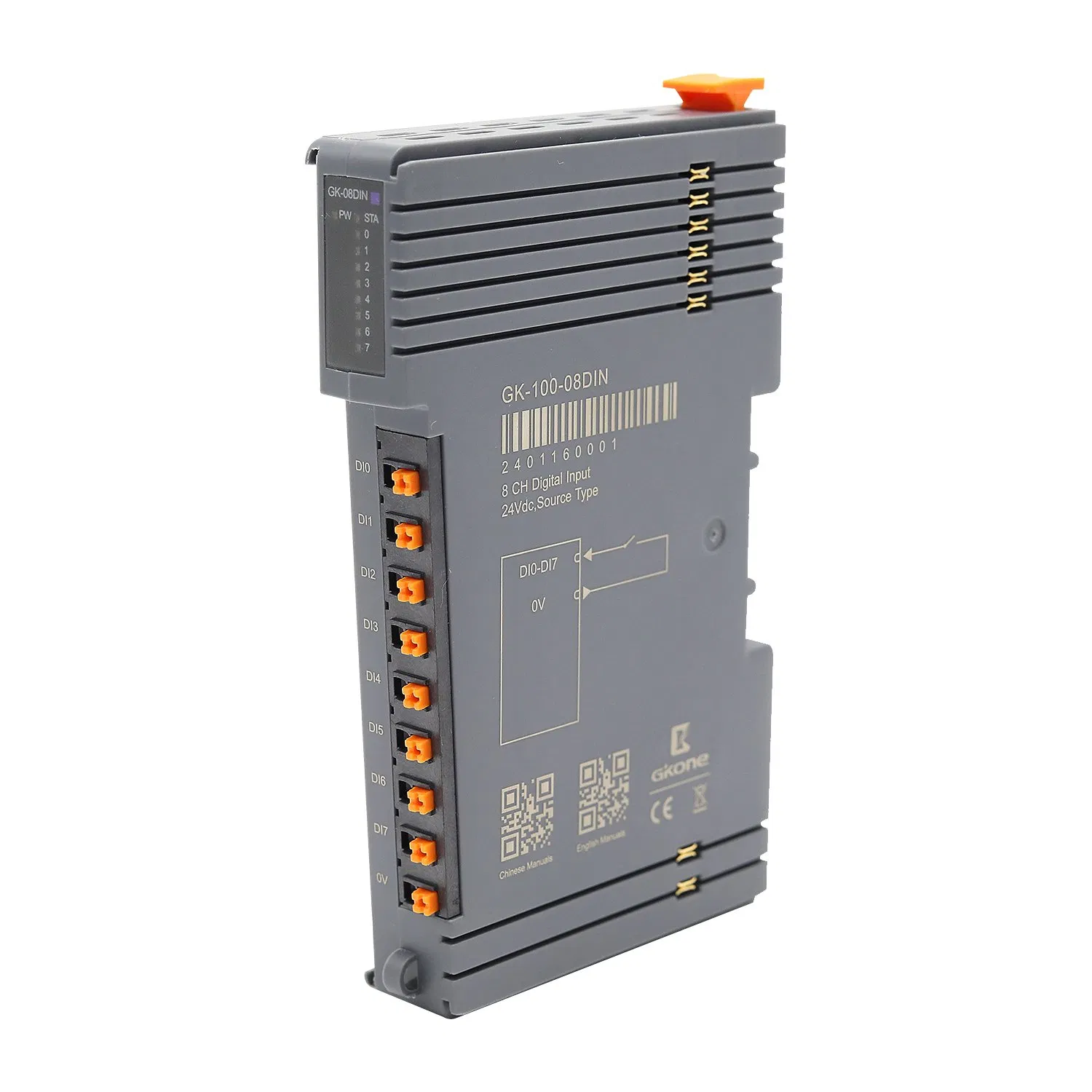

| Parameter Item | Specifications |
|---|---|
| Universal Parameter | |
| Power | Low Consumption Design |
| Isolate | I/O to internal bus: Optocoupler isolation (3750Vrms) |
| Field power supply | Nominal voltage: 24Vdc |

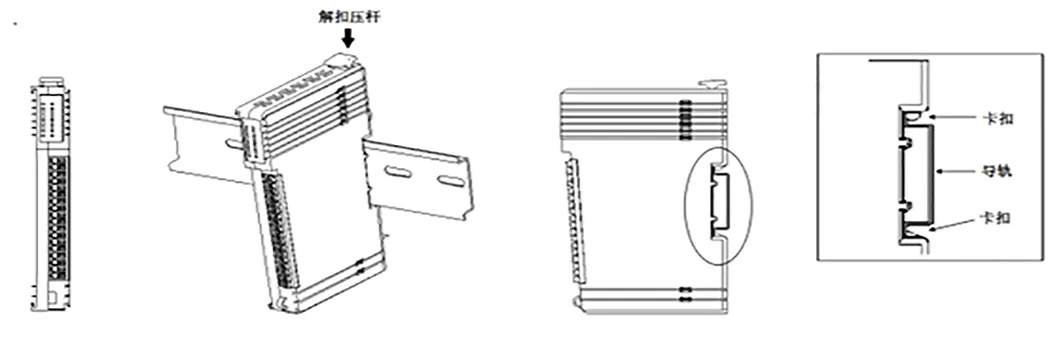

| Installation mode | 35mm guide rail installation |
| Dimension | 120*15*75mm |
| Weight | 80g |
| Environmental Parameter | |
| Operating temperature | -40~85ºC |
| Ambient humidity | 5%-95% no condensation |
| Class of protection | IP20 |
| Input Parameter | |
| Number of channels | 16-channel input |
| Pilot lamp | 8 channel input lights |
| Opening voltage | 9~24Vdc |
| Turn-off voltage | 0~3Vdc |
| Input impedance | >7.5kΩ |
| Sampling frequency | 500Hz |
Smart Control for the Future, Customized Possibilities Unlimited! We specialize in industrial intelligent control solutions, delivering end-to-end customized services—from solution design and product development to precision manufacturing and operational maintenance.
Strict compliance with global industry standards
Rapid-response delivery timelines
Full-process traceability for quality assurance
We provide comprehensive digital solutions including smart factory planning, industrial IoT, and industrial cloud deployment. Our solutions are precision-engineered to match unique requirements across industries like steel, metallurgy, petroleum, chemicals, water treatment, and power.

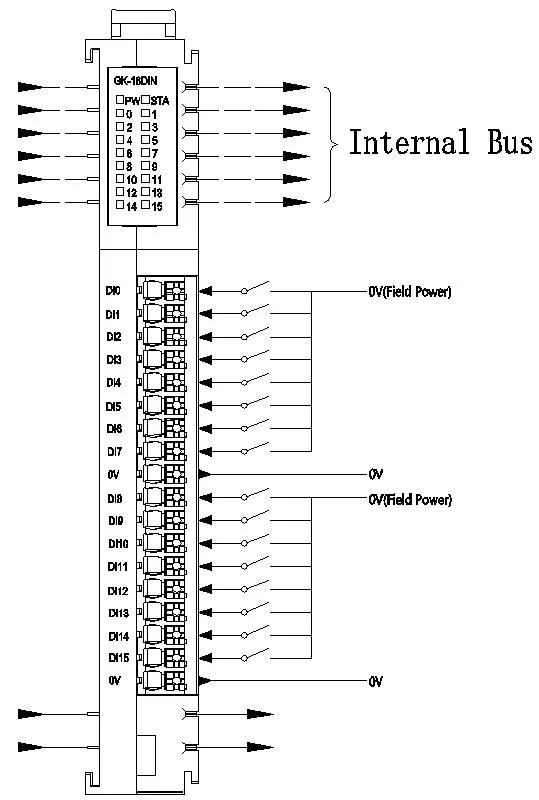

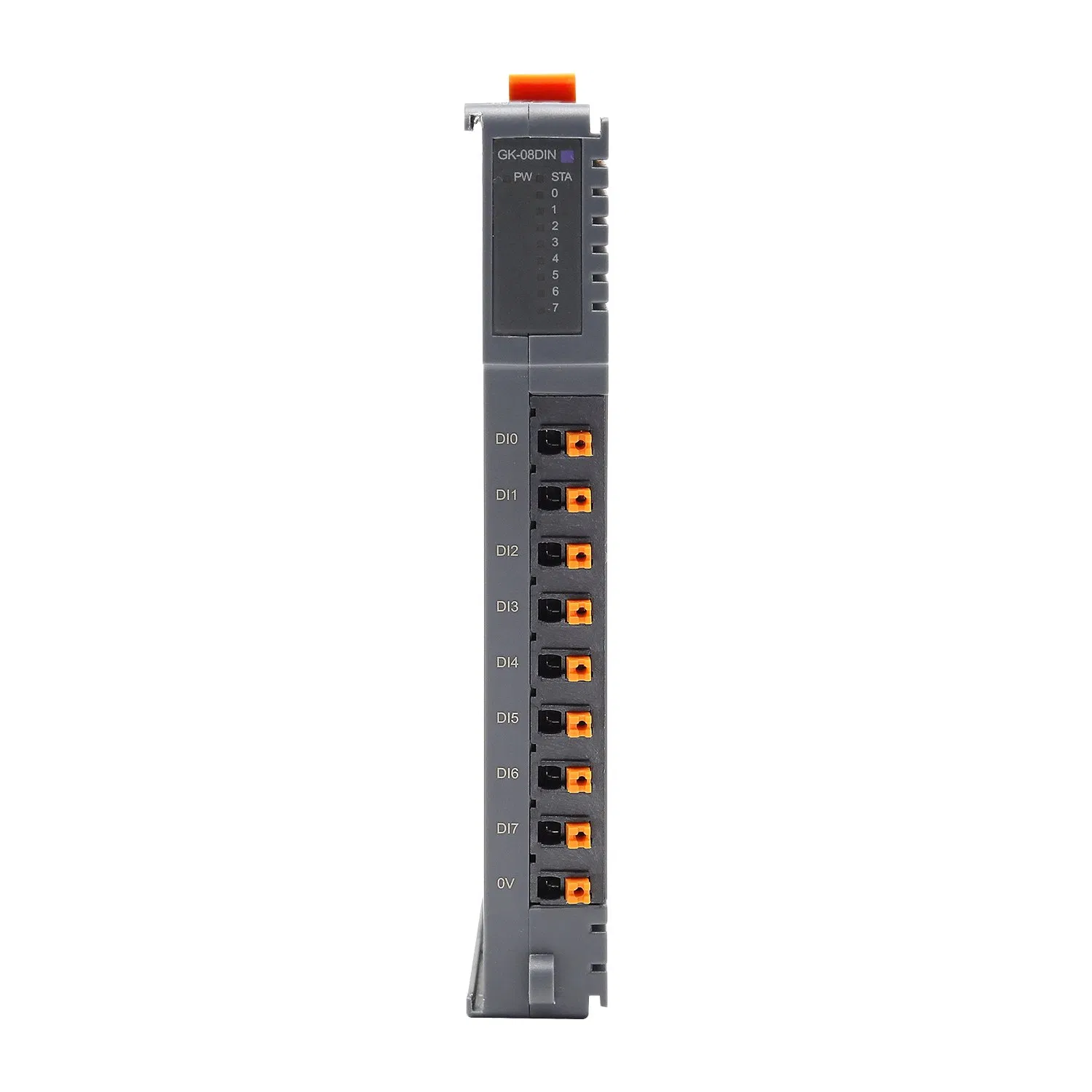

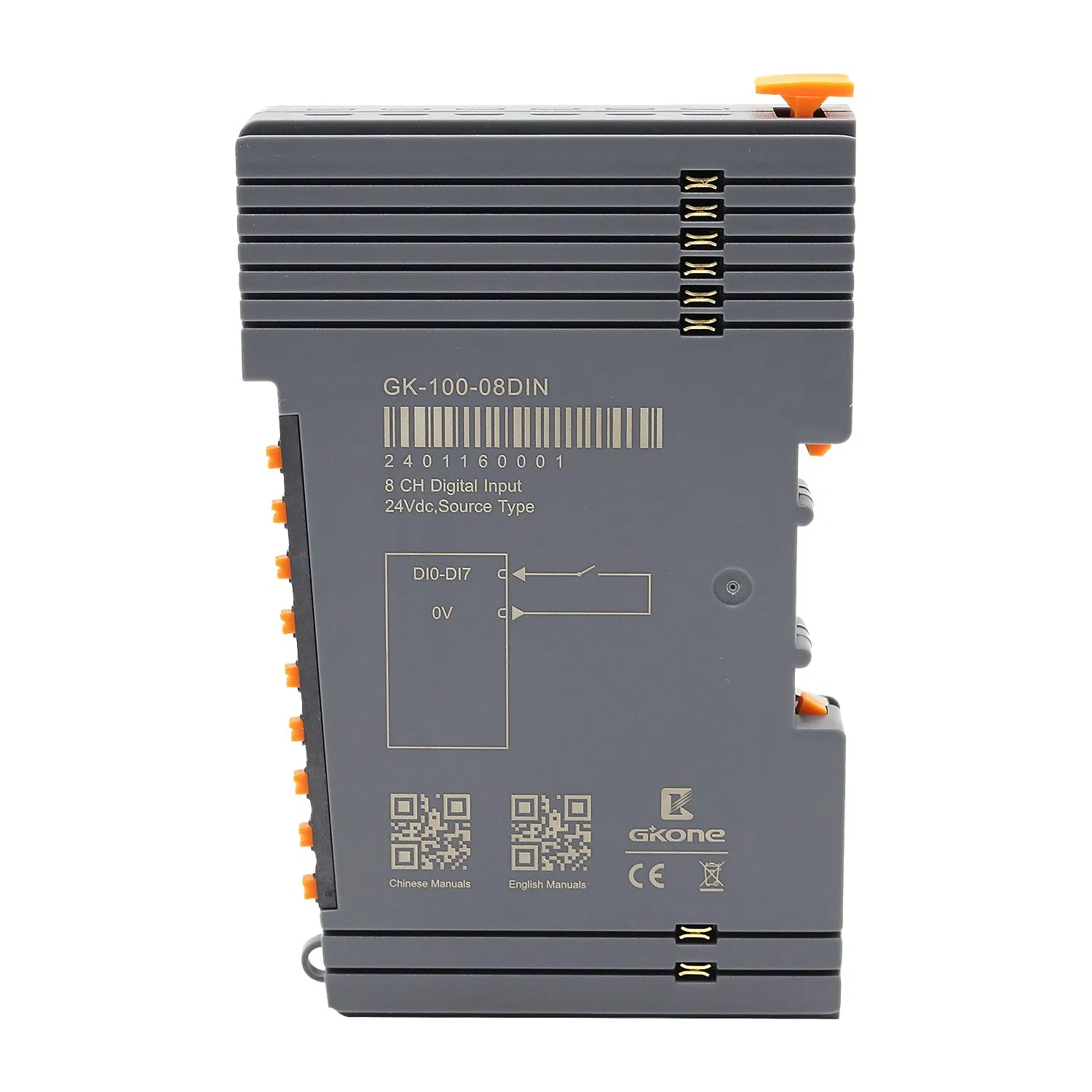

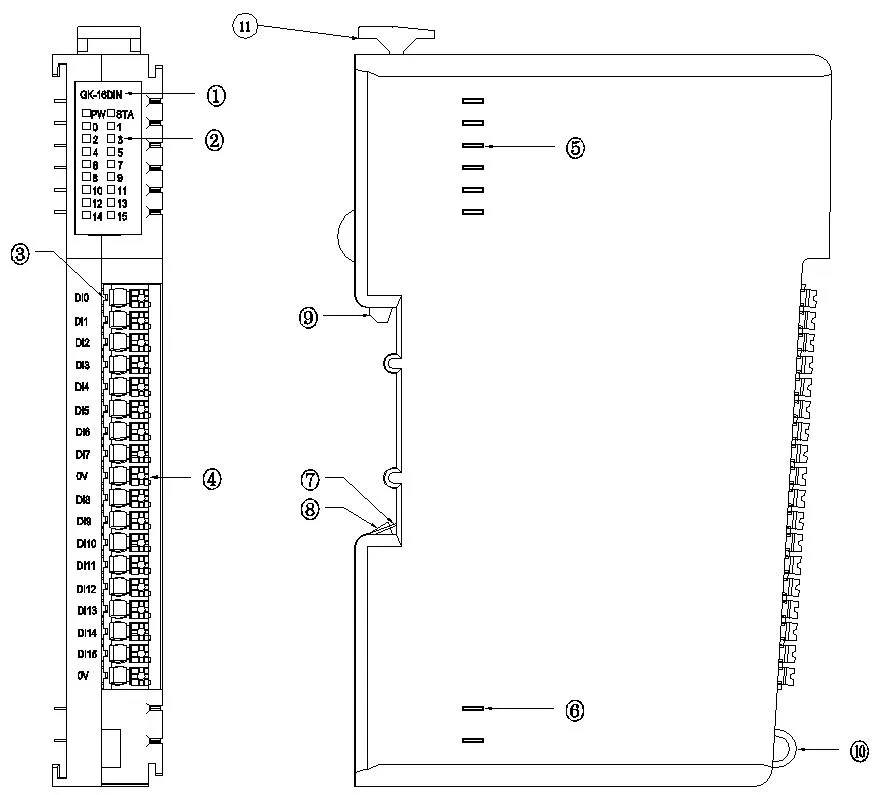

1. Module type | 2. Status light | 3. Channel indicator | 4. Terminal | 5. Internal bus | 6. Field power | 7. Ground shrapnel
