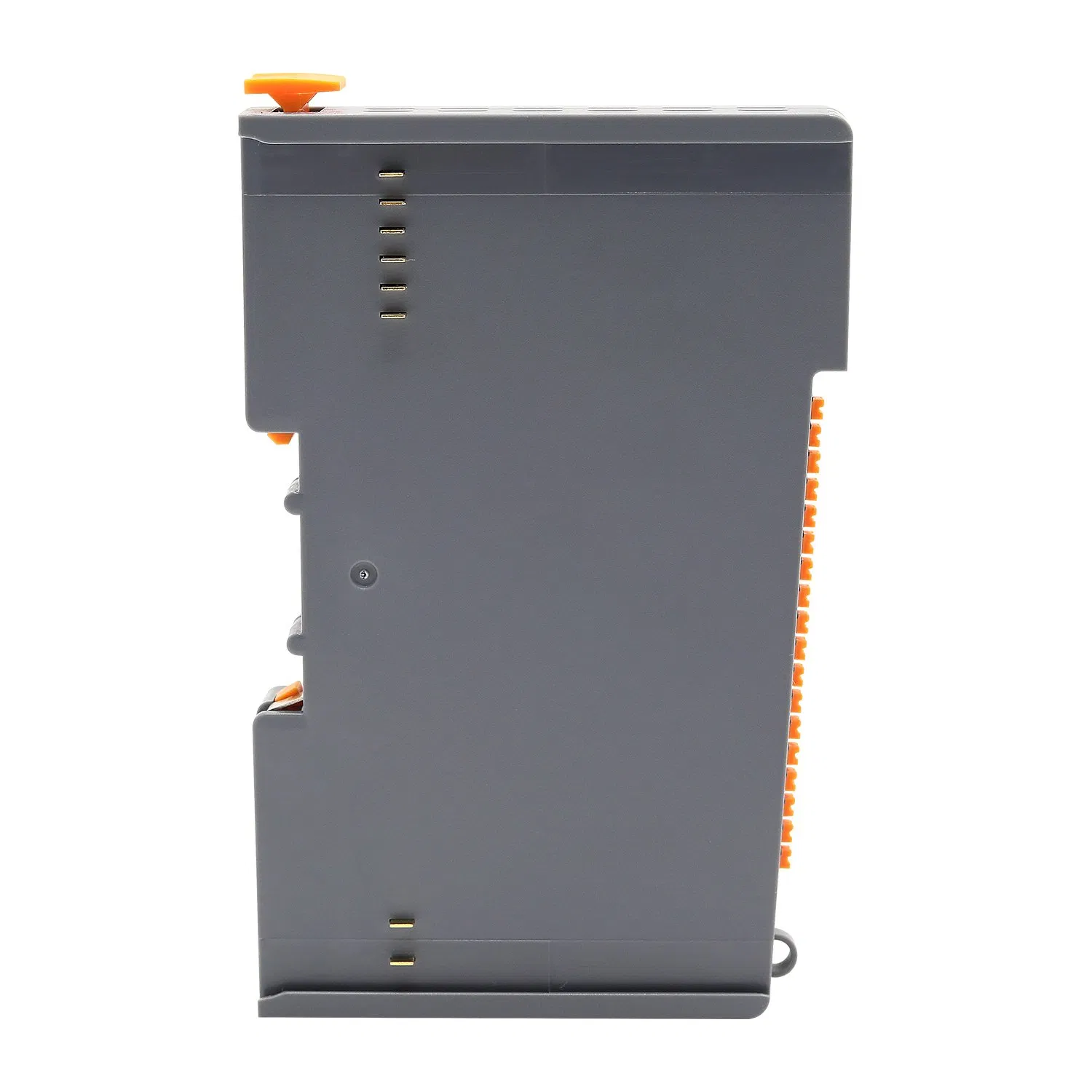

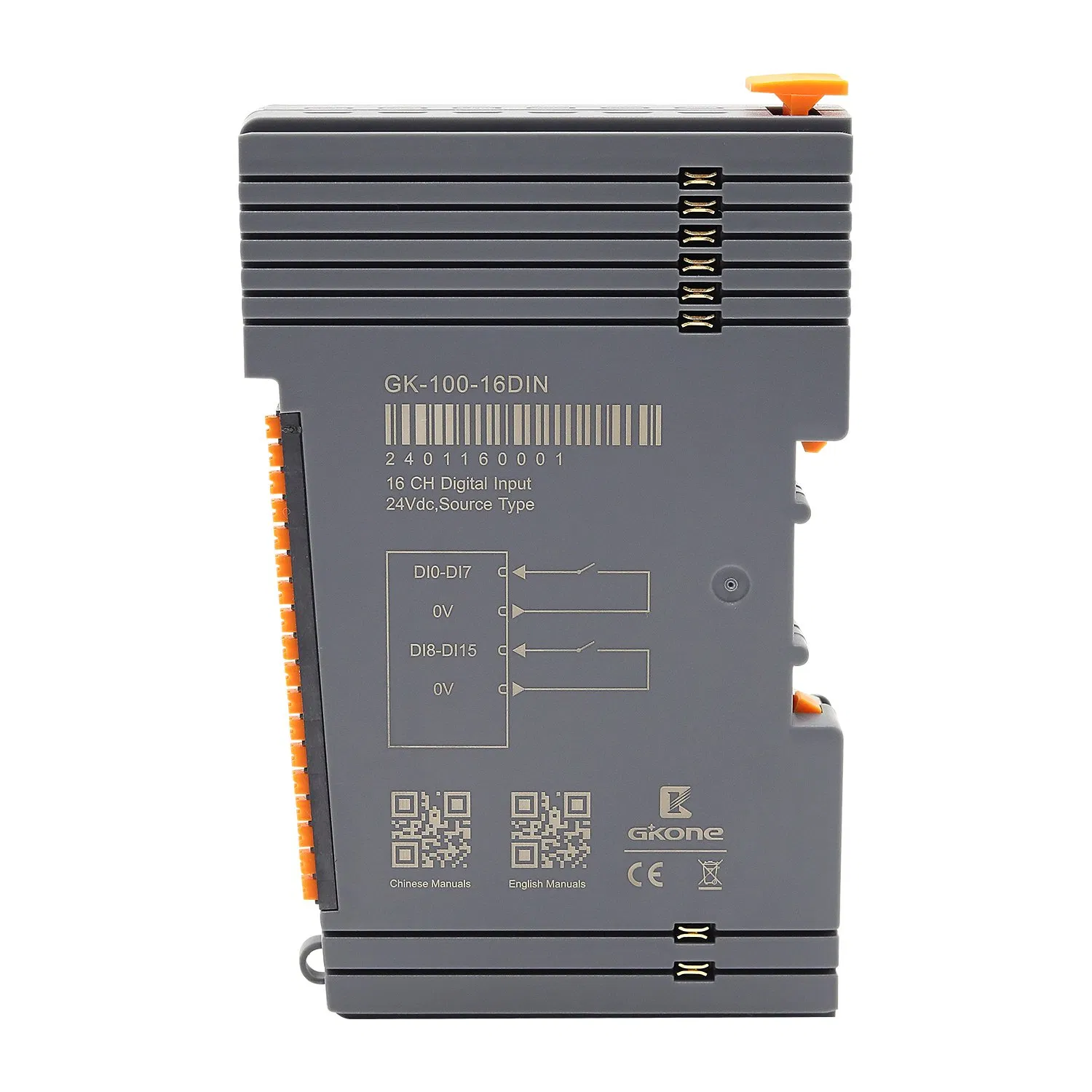

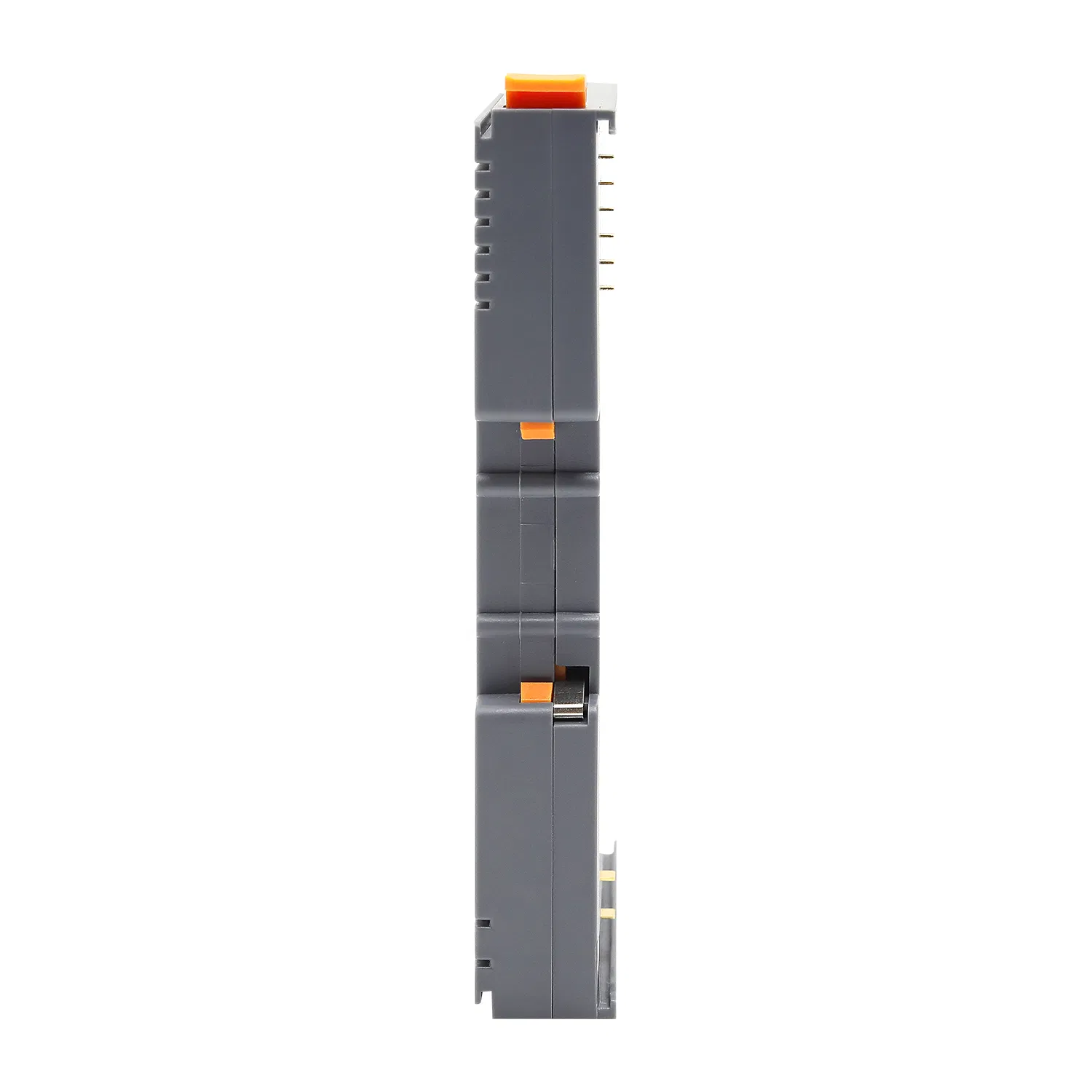

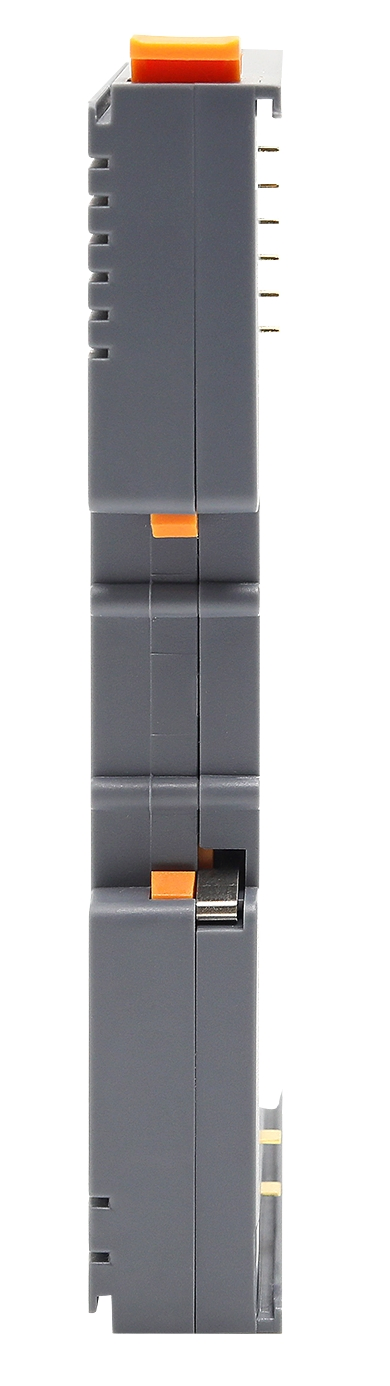

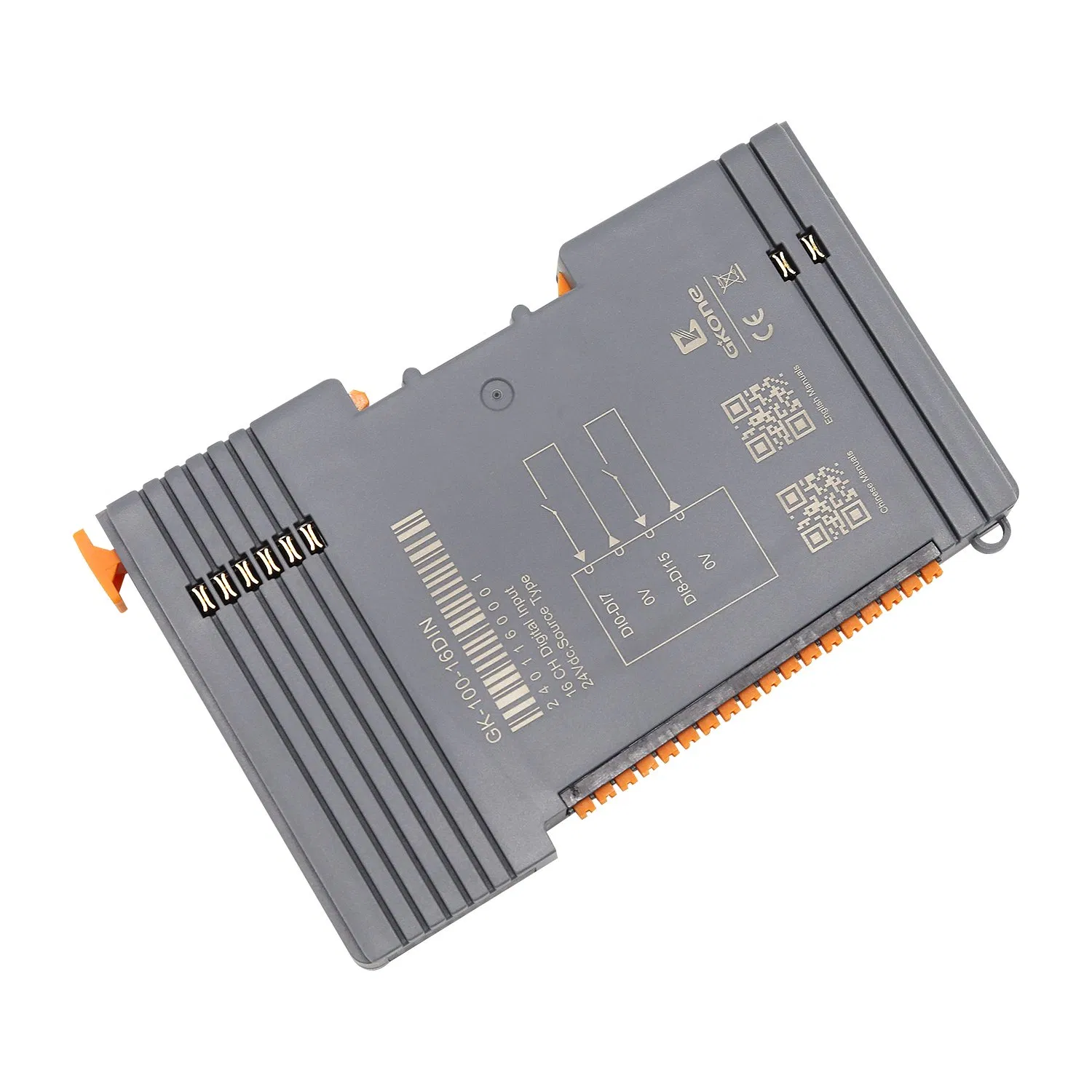

Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
1 / 5
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type
Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type

Gkone Remote Lo Module Gk-100-16DIN With16 Di Digital Input/0VDC/Source Type

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Information

Model NO.
GK-100-16DIN
Mathematical Model
Data Collect
Signal
Continuous
Function
Automatic Control, Protection, Monitoring, Measurement
Certification
CCC, ISO: 9001, CE
Condition
New
Material
Stainless Steel
Origin
China
📦

Packaging & Delivery

Package Size
12.00cm * 5.00cm * 8.00cm
Gross Weight
0.200kg
⚙️

Product Description & Technical Parameters

Universal Parameters
IsolateI/O to internal bus: Optocoupler isolation (3750Vrms)
Field power supplyNominal voltage: 24Vdc
WiringI/O connection: Max.1.0mm²(AWG 17)
Installation mode35mm guide rail installation
Dimension120*15*75mm / Weight: 80g
Environmental Parameters
Operating temperature-40~85ºC
Ambient humidity5%-95% no condensation
Class of protectionIP20
Input Parameters
Number of channels16-channel input
Pilot lamp8 channel input lights
Opening voltage0~15Vdc
Turn-off voltage21~24Vdc
Input impedance>7.5kΩ
Switching delayOpen: 5us / Off: 3us
Sampling frequency500Hz
Smart Control for the Future, Customized Possibilities Unlimited!

Industrial Intelligent Control Solutions specialize in intelligent control systems, delivering end-to-end customized services—from solution design and product development to precision manufacturing and operational maintenance—to meet diverse automation needs across industrial sectors.

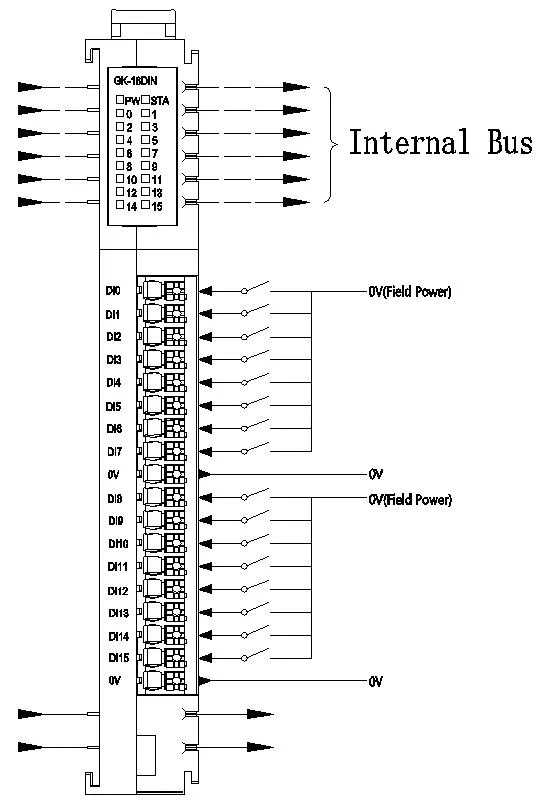

Remote I/O Module Detail

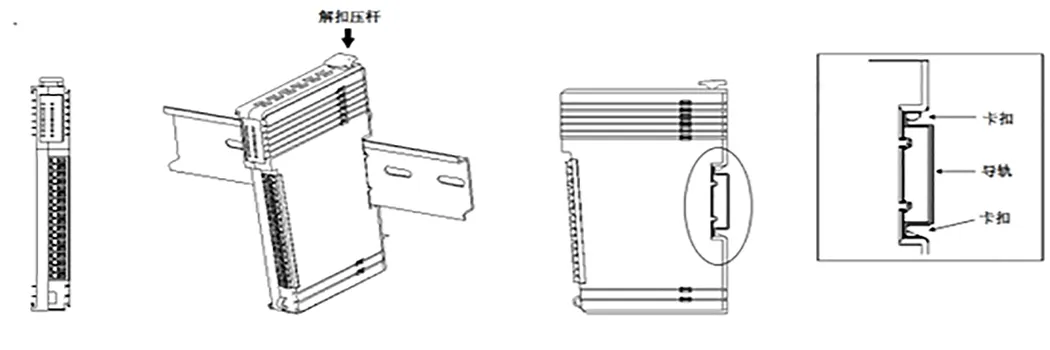

Remote I/O Module Interface

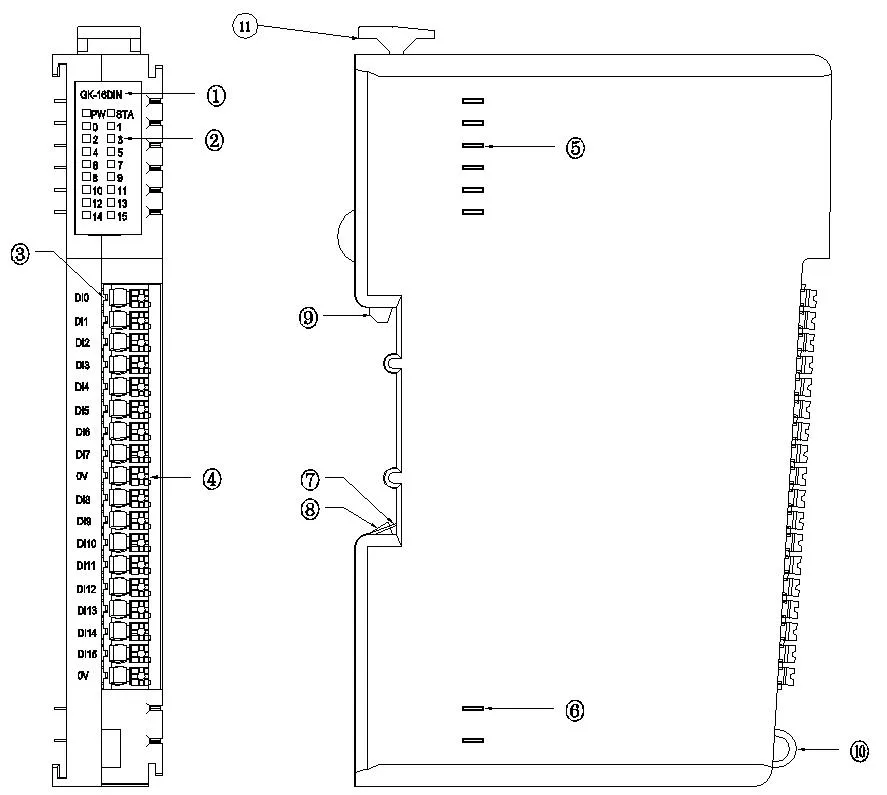

Module Structure
1. Module type | 2. Status light | 3. No field channel indicator | 4. Terminal and identification | 5. Internal bus | 6. Field power supply | 8, 9. Clasp | 7. Ground shrapnel | 10. Harness fixing | 11. Release the gripping rod
Empowering industrial automation through intelligent technology ensures:
  • Efficient adaptation to cross-industry scenarios
  • Strict compliance with global industry standards
  • Full-process traceability for quality assurance
  • Rapid-response delivery timelines
🔗

Related Products

Serial number Description Model
1PROFINET adapterGK-100-PNRT
2EtherCAT adapterGK-100-ECTRT
38-channel digital input module PNP typeGK-100-08DIP
48-channel digital input module NPN typeGK-100-08DIN
516-channel digital input module PNP typeGK-100-16DIP
616 channel digital input module NPN typeGK-100-16DIN
716-channel digital output module PNP typeGK-100-16DOP
816 channel digital output module NPN typeGK-100-16DON
Application 1
Application 2
Application 3
Application 4
Application 5
Application 6
Full System View
Certification 1
Certification 2
❓

Frequently Asked Questions

What is the main function of the GK-100-16DIN module?
It is designed for data collection, automatic control, protection, monitoring, and measurement in industrial automation environments.
What is the operating temperature range for this module?
The module is built for industrial durability and can operate reliably between -40ºC and 85ºC.
How is the module installed in a control cabinet?
The module supports standard 35mm guide rail installation, making it compatible with most industrial enclosures.
Does the module provide electrical isolation?
Yes, it features optocoupler isolation between the I/O and the internal bus with a rating of 3750Vrms.
What is the protection rating for the GK-100-16DIN?
The module has an IP20 protection class, suitable for use in protected industrial environments.
