Product Description

Basic Specifications

Model NO.

APM150DB

Certification

TUV, RoHS, ISO9001, CCC, CE, Ukca, UL, Rcm, PSE, Kc

Color

Black or White

Output Voltage

12V~48V

Output Current

3.0A~14.0A

Rate Power

168W Max

Input

100~240VAC, 50/60Hz

Safety Spec

IEC/EN/UL 60601-1

Product Overview

IEC/UL 60601 Compliant 24V 7A Desktop Medical Power Adapter & Switching Power Supply | 2×MOPP Isolation | UL CE UKCA RCM

This 168W (24V 7A) desktop medical power adapter is engineered to the highest safety standards for patient-connected equipment, fully compliant with IEC 60601-1:2012 (4th Edition) and its regional equivalents. It features 2×MOPP (Means of Patient Protection) isolation—providing two independent layers of protection between the mains input and the patient-accessible output—making it suitable for BF-type applied parts in direct or indirect contact with patients.

Key Features & Benefits

2×MOPP Isolation - Provides dual patient protection per IEC 60601-1 Clause 8.5
BF-Type Applied Part Ready - Designed for equipment with conductive contact with a patient's body
Multi-Market Certified - Valid UL, CE, UKCA, and RCM certifications under 4th Ed standards
Ultra-Low Leakage Current - Patient leakage: <10 µA (normal), <50 µA (single-fault)
Reinforced Insulation - Primary-to-secondary isolation tested at 4000 VAC
Low Ripple (<150 mV p-p) - Ensures signal integrity in sensitive analog medical equipment

Model Comparison & Technical Parameters

Model	Max Power	Voltage	Max Load	Regulation	Ripple & Noise

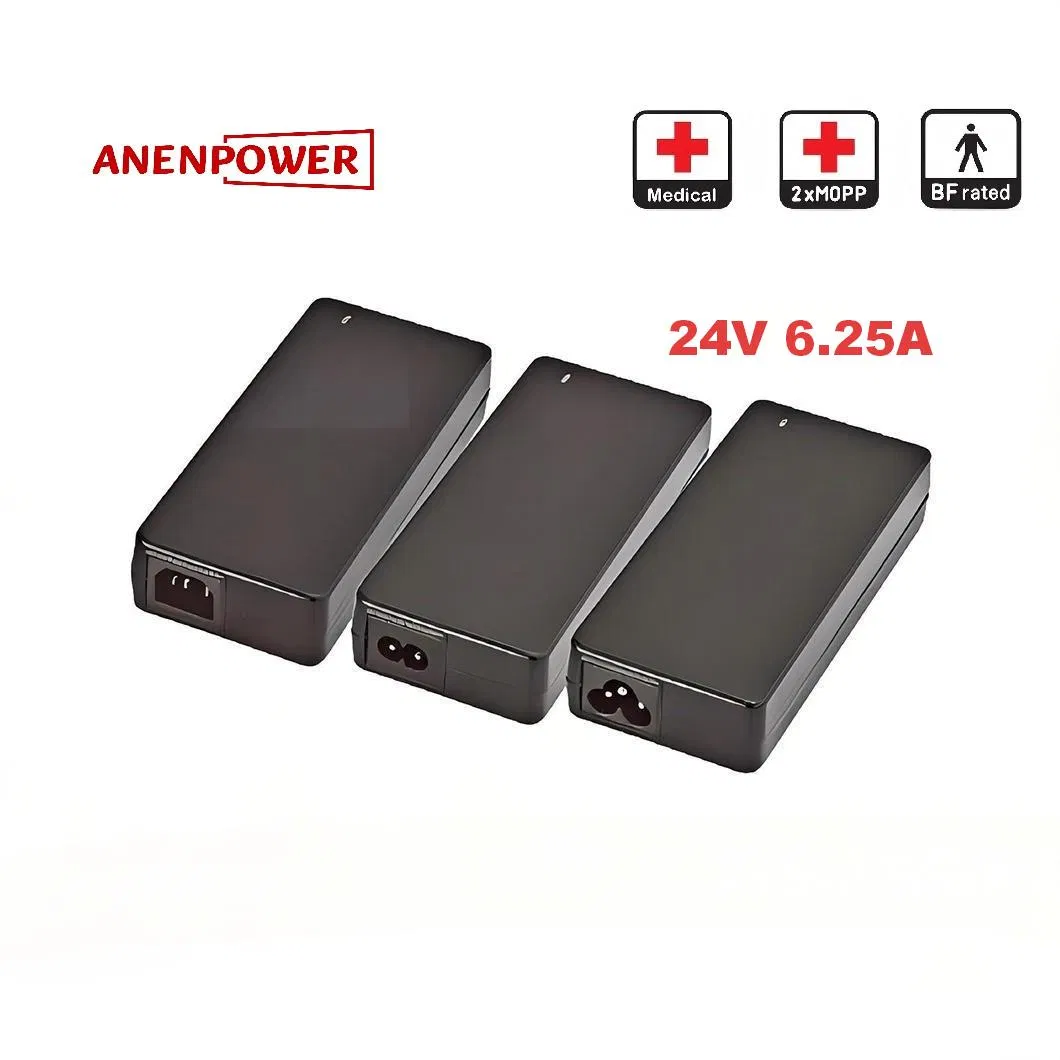

APM150DA	150W	24V	6.25A	±5%	100mV
APM150DB	168W	24V	7.0A	±5%	100mV
APM150DC	150W	36V	4.17A	±5%	100mV
APM150DD	168W	36V	4.67A	±5%	100mV
APM150DE	150W	48V	3.13A	±5%	100mV

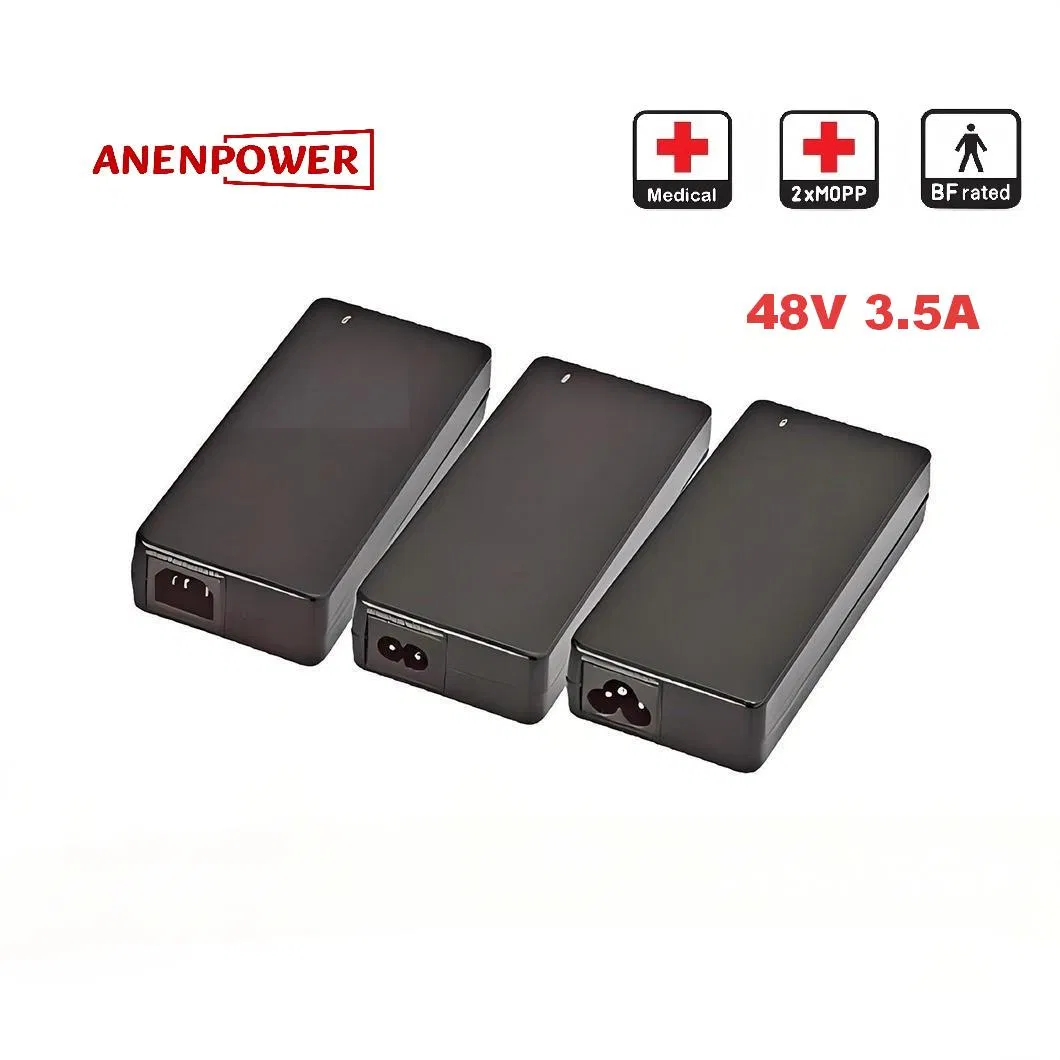

APM150DF	168W	48V	3.5A	±5%	100mV

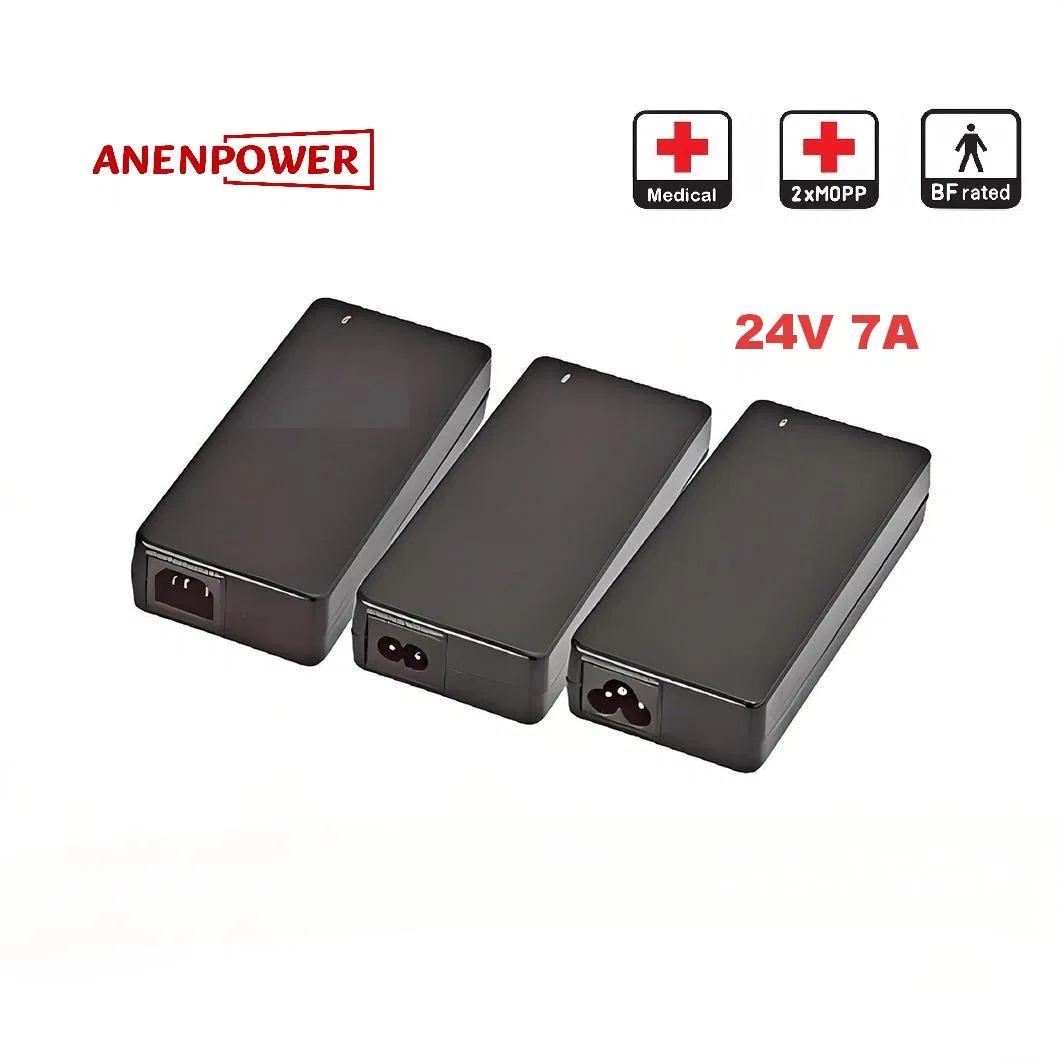

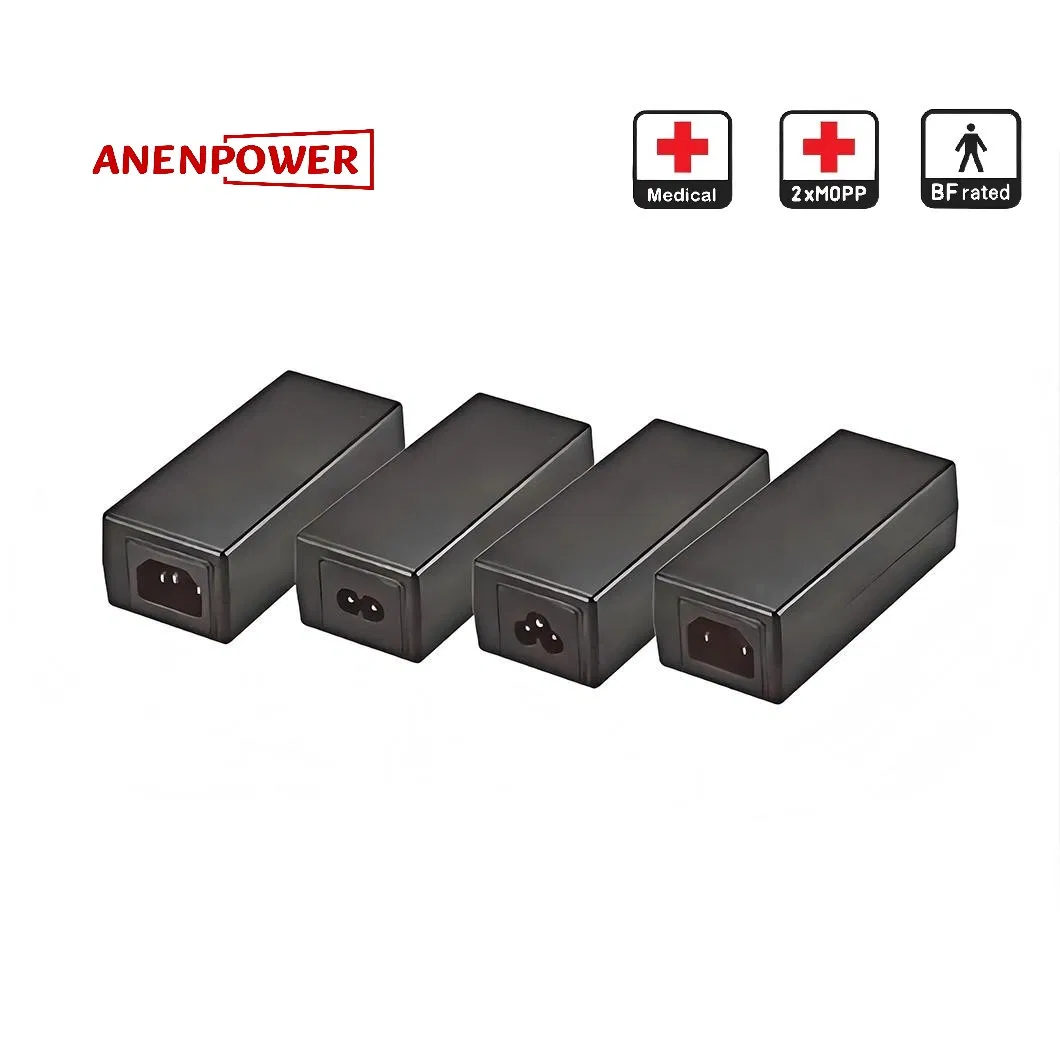

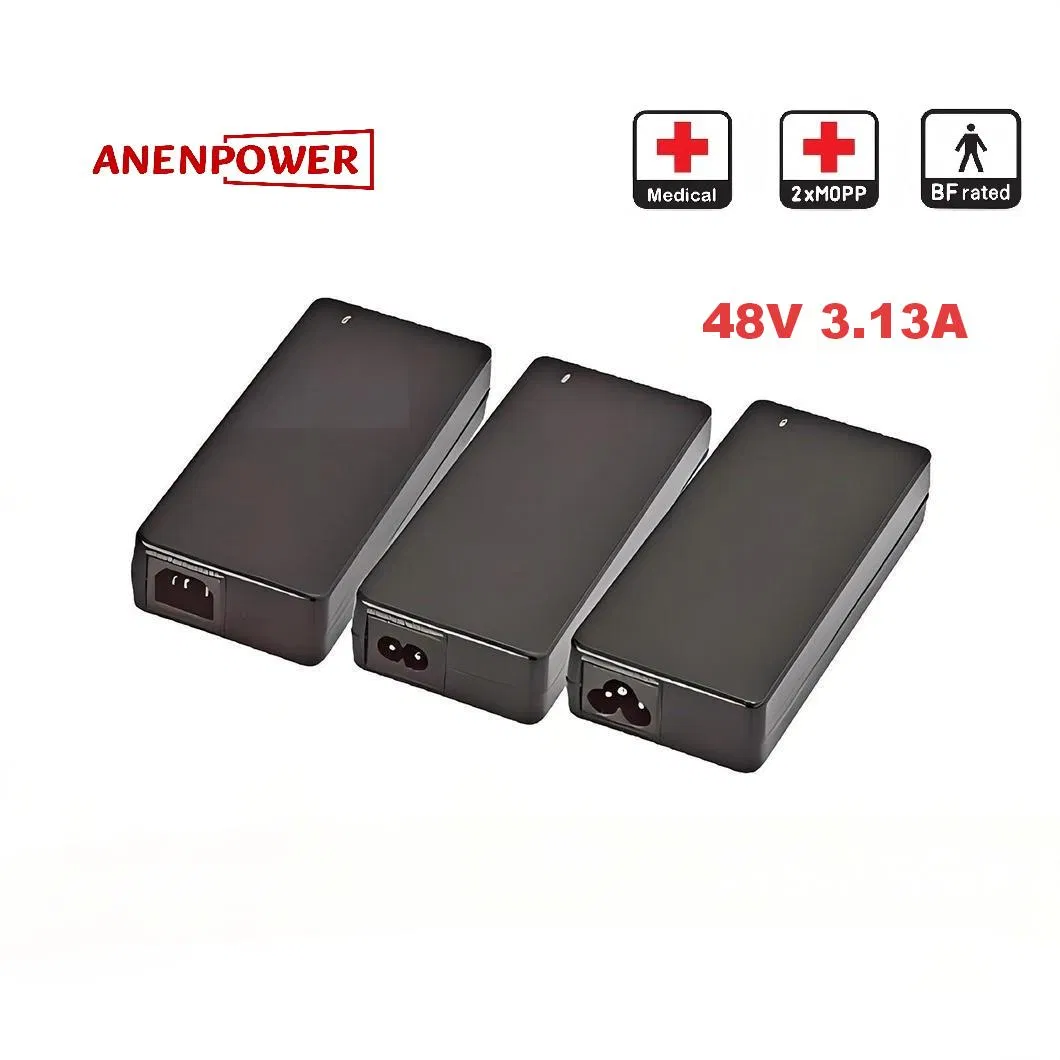

Product Gallery

Manufacturing Excellence

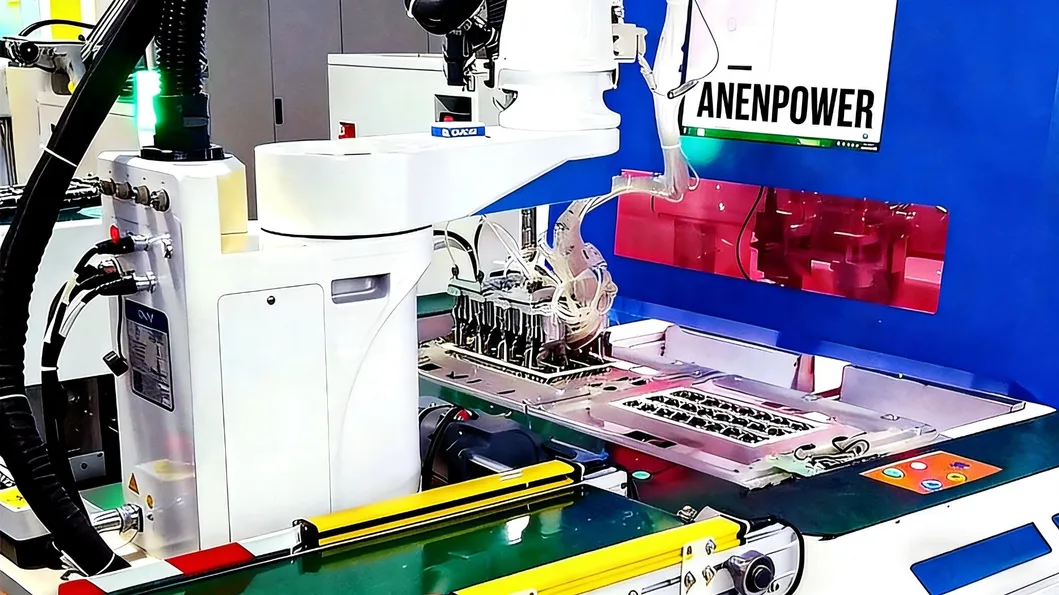

Automated Production

Manufactured by fully automated lines operating 24/7, ensuring ultra-high efficiency and fast delivery cycles for large orders.

Consistent Quality

Robotic precision eliminates human error, providing stable voltage and current output with ultra-low defect rates.

Cost Efficiency

Automation reduces labor costs by 80%, allowing us to offer premium medical-grade power solutions at competitive prices.

Ideal Applications

Home-use patient monitors and telehealth devices
Infusion pumps and respiratory therapy equipment (CPAP, ventilators)
Portable ultrasound and diagnostic imaging systems
Dental chairs and surgical workstations

After-sales & Warranty

24-Month Warranty: Coverage for materials and workmanship under normal use.

30-Day Return/Exchange: Available for unused products in original packaging.

Technical Support: Free consultation for installation and troubleshooting.

Frequently Asked Questions

What does 2×MOPP mean for medical safety?

2×MOPP (Means of Patient Protection) indicates the power supply has two independent insulation barriers. This ensures that even if one protection layer fails, the patient remains safe from electrical hazards, meeting the strict requirements of IEC 60601-1.

Is this power supply suitable for BF-type medical devices?

Yes, it is specifically designed for BF (Body Floating) type applied parts, which are medical devices that may have conductive contact with the patient, such as ventilators or monitors.

Does this adapter support global voltage standards?

Yes, it features a universal input range of 100-240V AC at 50/60Hz, making it compatible with power grids worldwide.

What is the leakage current of this medical adapter?

The adapter features ultra-low patient leakage current: less than 10 µA under normal conditions and less than 50 µA during single-fault conditions, ensuring maximum patient safety.

What certifications are provided for international markets?

The product is fully certified with UL, CE, UKCA, RCM, TUV, RoHS, and PSE, ensuring compliance for North America, Europe, UK, Australia, and Japan.

Can this be used for cardiac floating (CF) applications?

This adapter is designed for BF-type applications. It is not intended for CF-type (cardiac floating) applications unless further validated by the end-device manufacturer as part of a complete risk management process.
