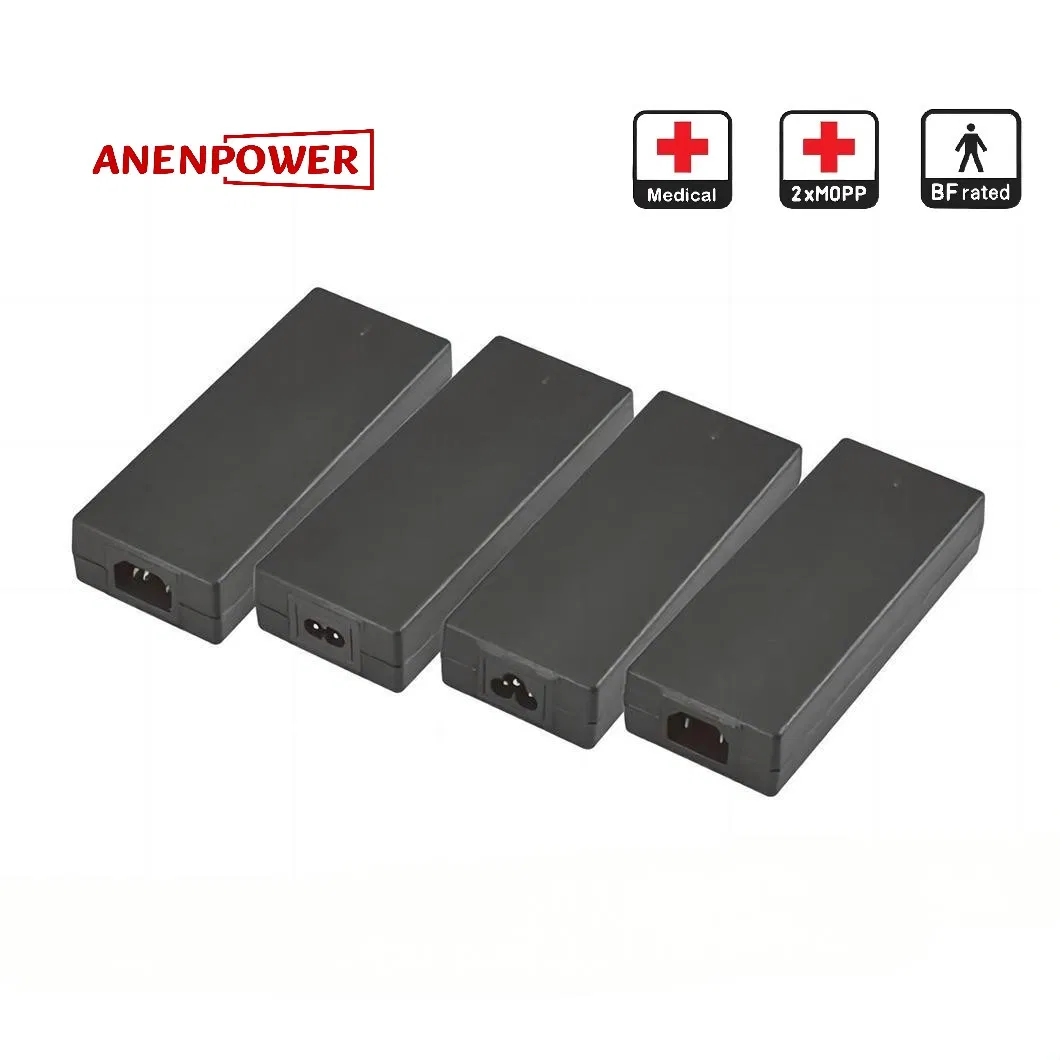

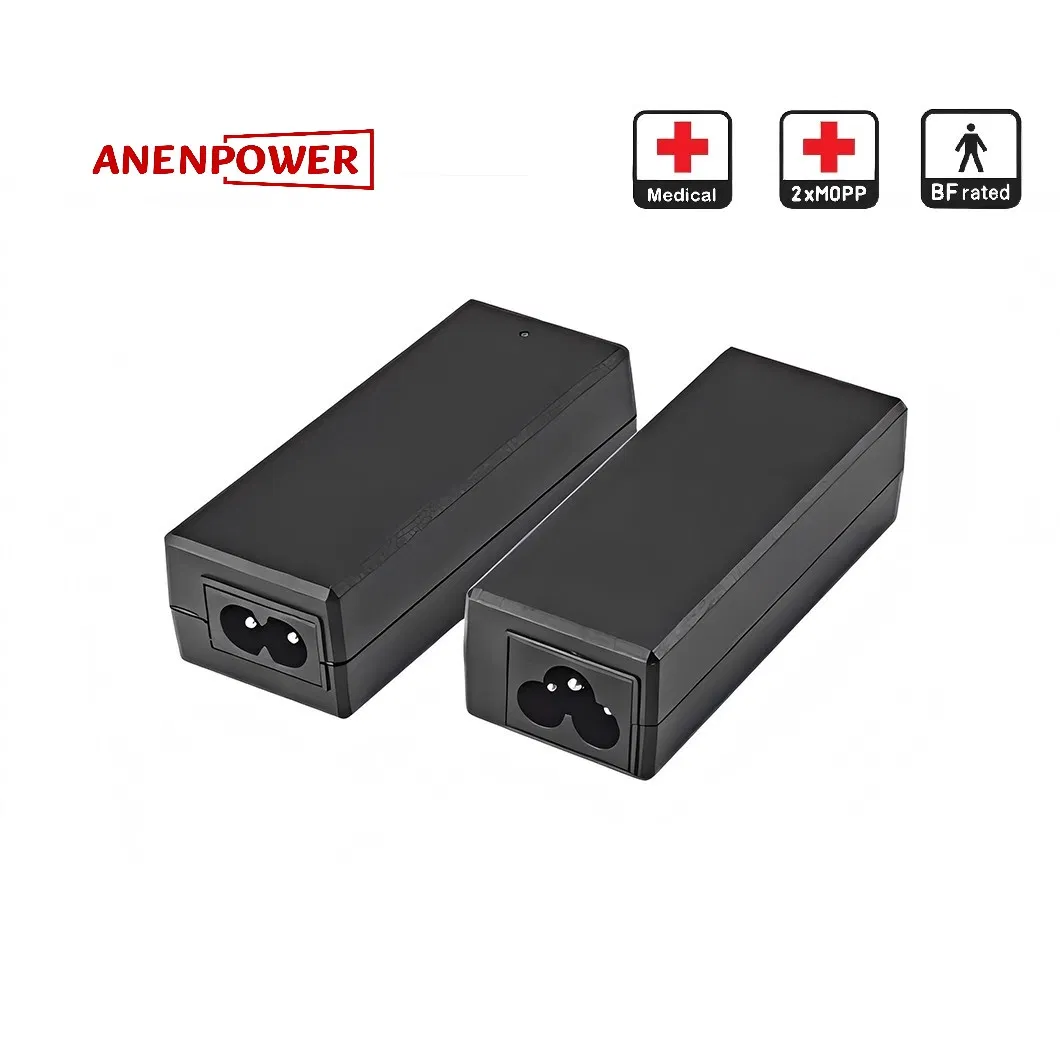

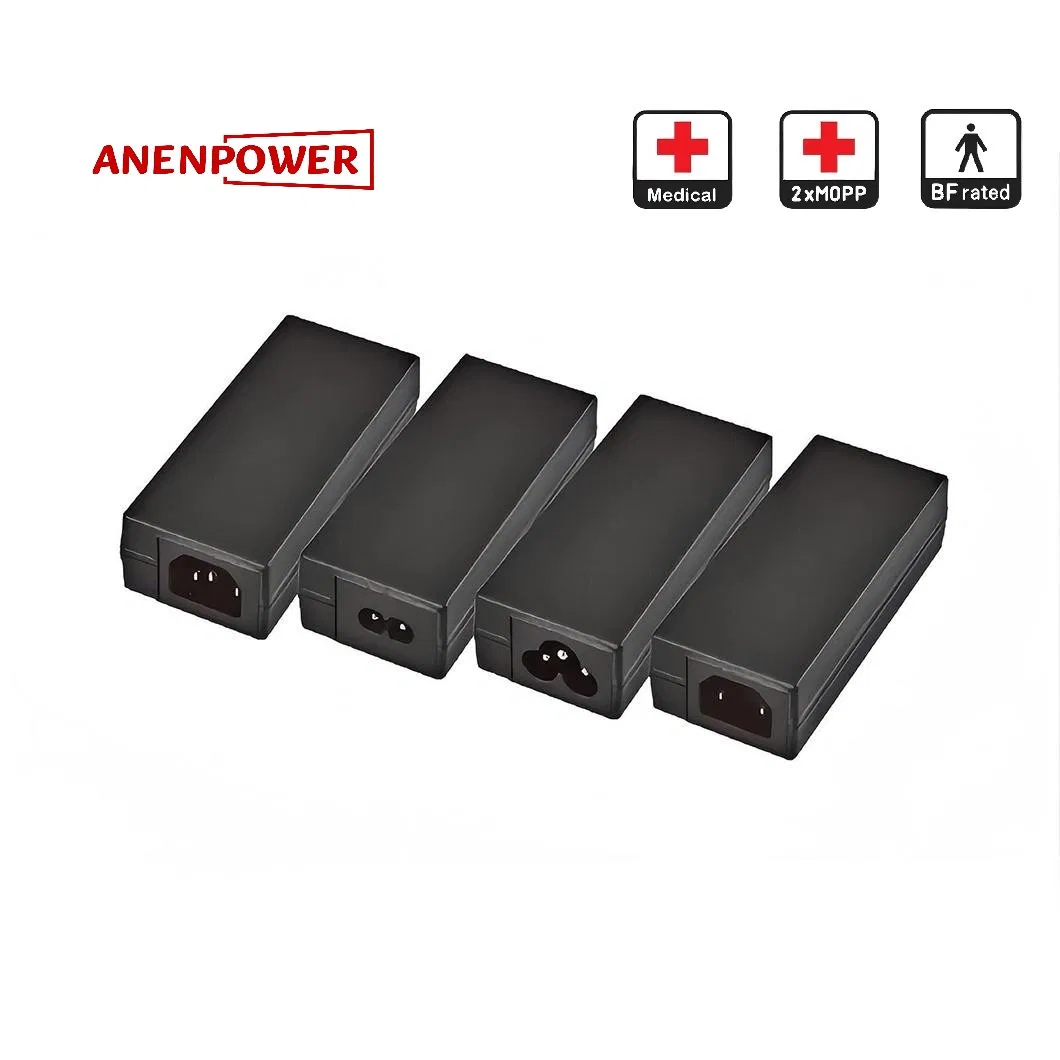

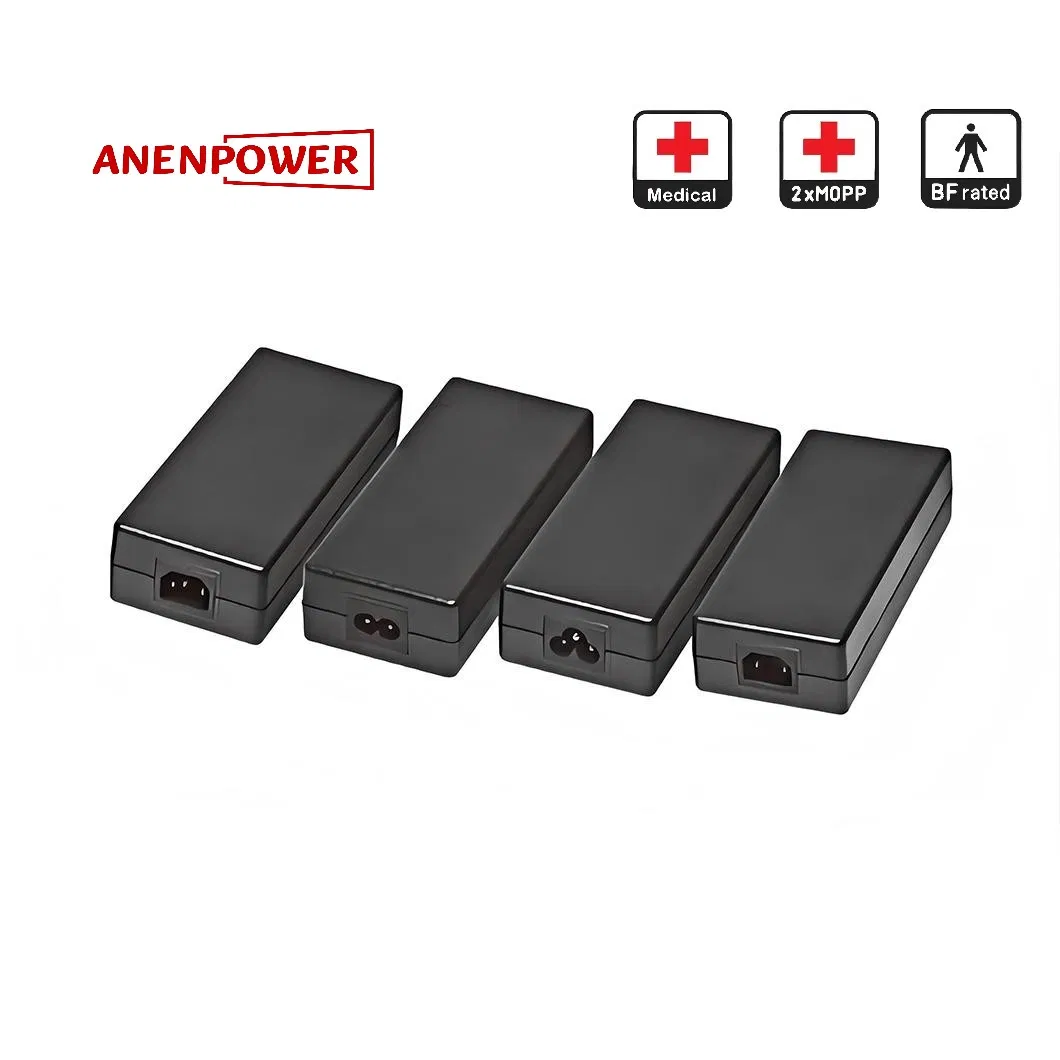

IEC/UL 60601 Compliant 24V 10A Desktop Medical Power Adapter & Switching Power Supply 2*Mopp UL CE Ukca Rcm

1 / 5

IEC/UL 60601 Compliant 24V 10A Desktop Medical Power Adapter & Switching Power Supply 2*Mopp UL CE Ukca Rcm

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.APM240DB

CertificationTUV, RoHS, ISO9001, CCC, CE, Ukca, UL, Rcm, PSE, Kc

ColorBlack or White

TypeOEM

Internal StructureOn-Off Type

Power SourceSingle End Type

ConnectionPlug In

Input100~240VAC, 50/60Hz

Output Voltage12V~48V

Output Current4.0A~10.0A

Rate Power240W Max

Ripple & Noise100mv~350mv

Voltage Tolerance±5%

Transport PackagePE Bag + Divider + Outer Carton

SpecificationIEC/EN/UL 60601-1

OriginShenzhen

HS Code8504401400

Production Capacity300,000PCS/Months

★

Product Description

IEC/UL 60601 Compliant 24V 10A Desktop Medical Power Adapter & Switching Power Supply | 2×MOPP Isolation | UL CE UKCA RCM Certified

This 240W (24V 10A) desktop medical power adapter is engineered to the highest safety and reliability standards for demanding patient-connected applications. Fully compliant with IEC 60601-1:2012 (4th Edition) and its regional derivatives-UL 60601-1 (USA/Canada), EN 60601-1 (EU), BS EN 60601-1 (UK), and AS/NZS 60601.1 (Australia/New Zealand)-it delivers robust, low-noise power for high-performance medical systems.

2×MOPP Certified

Dual patient protection per IEC 60601-1 Clause 8.5, exceeding basic safety requirements for direct or indirect patient contact.

Ultra-Low Leakage

<10 µA (normal), <50 µA (single-fault) - well below the 100 µA BF limit specified in IEC 60601-1.

Key Features and Benefits

240W High-Power Output - Stable 24V / 10A continuous power for surgical robots and dialysis machines.
BF-Type Applied Part Ready - Designed for equipment with conductive patient contact.
4 kV Reinforced Insulation - Tested at 4000 VAC for 1 minute for maximum safety.
Global Compliance - Valid UL, CE, UKCA, and RCM marks under IEC 60601-1:2012.
Low Signal Interference - ≤180 mV peak-to-peak ripple ensuring signal integrity in biosensors.

📋

Technical Specifications

Model NO.	Max Power	Output Voltage	Max Load	Min Load	Load Reg.	Line Reg.	Ripple & Noise
APM240DA	200W	24V	8.33A	0A	±5%	±1%	100mV
APM240DB	240W	24V	10.0A	0A	±5%	±1%	100mV
APM240DC	200W	36V	5.56A	0A	±5%	±1%	100mV
APM240DD	240W	36V	6.67A	0A	±5%	±1%	100mV
APM240DE	200W	48V	4.17A	0A	±5%	±1%	100mV
APM240DF	240W	48V	5.0A	0A	±5%	±1%	100mV

⚙

Our Manufacturing Advantages

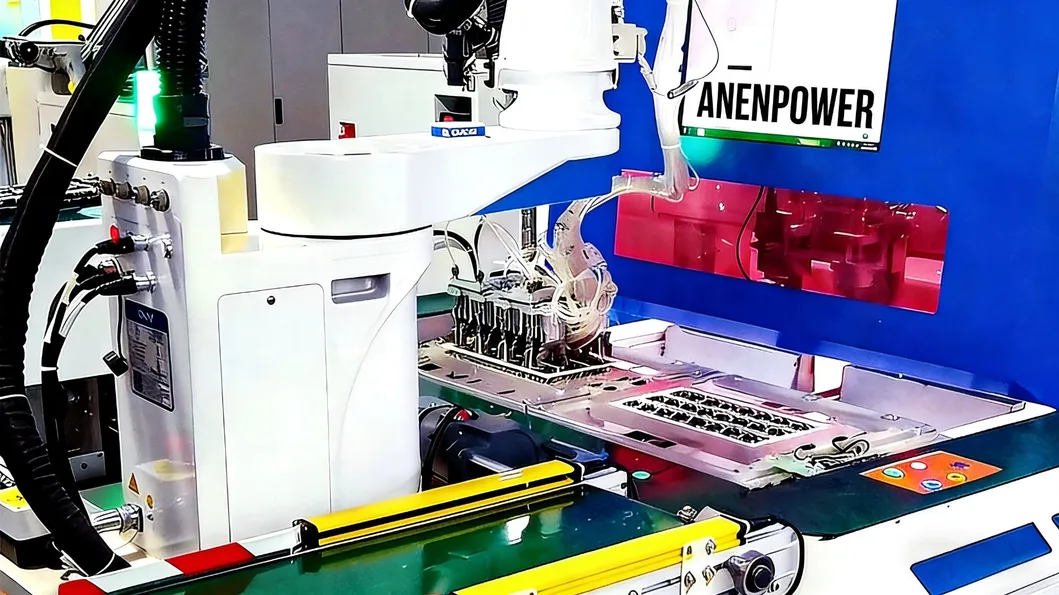

Automated Efficiency

Manufactured by fully automated production lines operating 24/7, significantly shortening delivery cycles for large orders.

Consistent Quality

High-precision robotic arms eliminate human error, ensuring stable voltage output and ultra-low defect rates.

Cost-Effective

Automation reduces 80% of repetitive labor costs, allowing us to offer competitive pricing without sacrificing performance.

🛡

Service & Warranty

24-Month Warranty: Covering defects in materials and workmanship under normal use.
30-Day Exchange: Hassle-free return/exchange for unused products in original packaging.
Technical Support: Free consultation for installation, parameter matching, and troubleshooting.

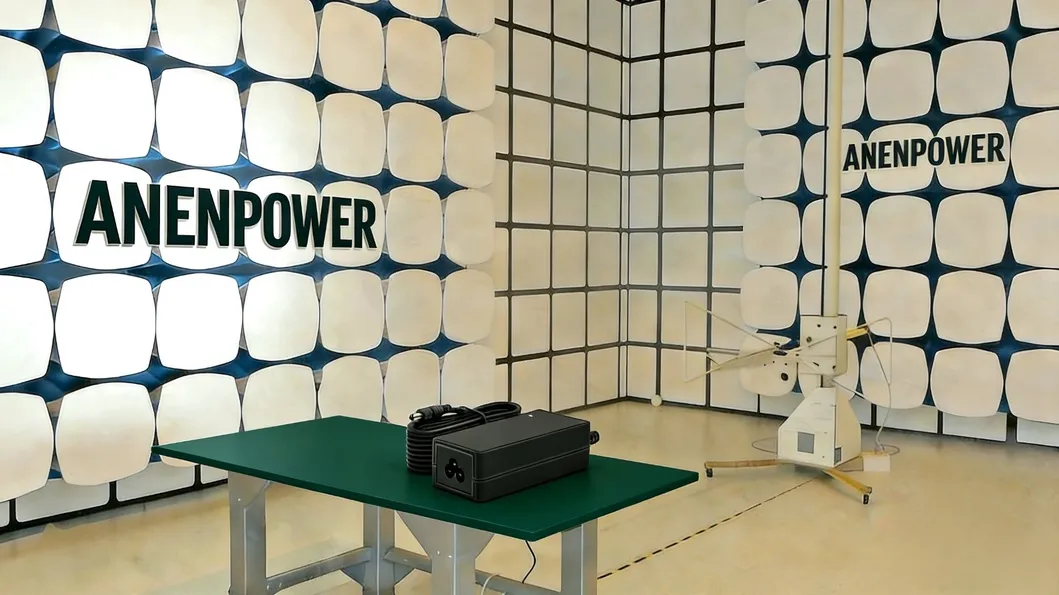

Rigorous Testing: Every unit undergoes strict evaluation with state-of-the-art equipment.

Frequently Asked Questions

Q1: What does 2×MOPP isolation mean for medical safety? A1: 2×MOPP (Means of Patient Protection) indicates the power supply has dual independent insulation barriers. This ensures that even if one protection layer fails, the patient remains safe from hazardous voltages.

Q2: Can this adapter be used globally? A2: Yes, it supports a universal input range of 100-240V AC, 50/60Hz, making it compatible with power grids worldwide.

Q3: Is this power supply suitable for BF-type applied parts? A3: Absolutely. It is designed with ultra-low leakage current (<10 µA normal), meeting the strict requirements for medical equipment that comes into contact with patients.

Q4: What specific medical devices can this power? A4: It is ideal for hemodialysis systems, ICU workstations, portable X-ray peripherals, surgical robots, and home-use respiratory devices requiring up to 240W.

Q5: What certifications does the product carry? A5: The product is fully certified with UL (North America), CE (Europe), UKCA (UK), and RCM (Australia/New Zealand) under the IEC 60601-1 4th Edition standards.

Q6: Is it possible to get a custom DC output connector? A6: Yes, we support custom OEM interfaces including medical-grade locking connectors or specific DIN/circular pins to match your device requirements.
