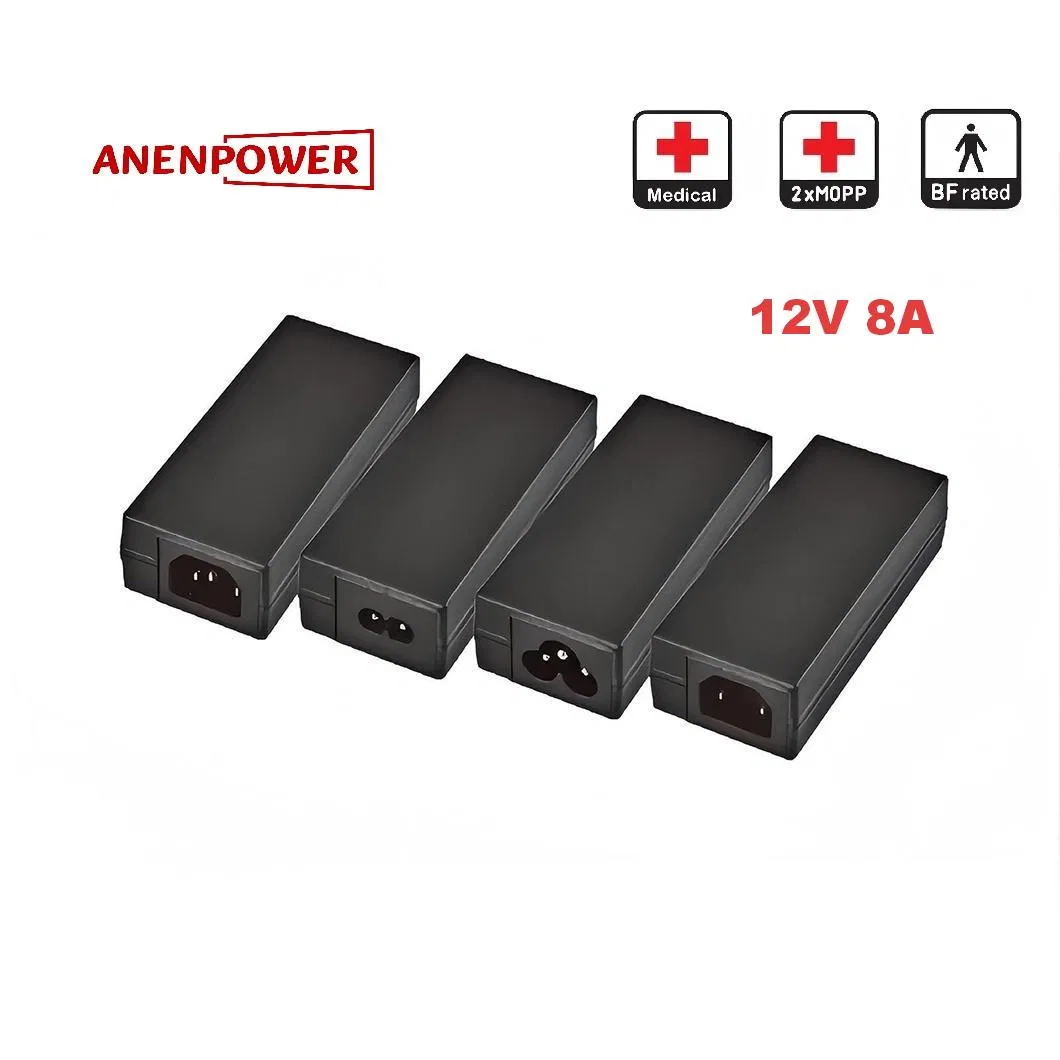

2*Mopp Switching Power Supply 12V 8A 100W Max Desktop IEC/UL 60601-1 Medical Power Adapter

1 / 5

2*Mopp Switching Power Supply 12V 8A 100W Max Desktop IEC/UL 60601-1 Medical Power Adapter

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

APM096DB

Certification

TUV, RoHS, ISO9001, CCC, CE, Ukca, UL, Rcm, PSE, Kc

Color

Black or White

Type

OEM

Internal Structure

On-Off Type

Power Source

Single End Type

Connection

Plug In

Input

100~240VAC, 50/60Hz

Outpur Voltage

12V~48V

Output Current

3.0A~7.0A

Rate Power

100W Max

Ripple & Noise

100mv~350mv

Voltage Tolerance

±5%

Transport Package

PE Bag + Divider + Outer Carton

Specification

IEC/EN/UL 60601-1

HS Code

8504401400

Production Capacity

300, 000PCS/Months

Product Description

2×MOPP Switching Power Supply | 12V 8A 100W Max Desktop IEC/UL 60601-1 Medical Power Adapter

🛡️ Product Overview
This 100W (12V, 8A) desktop medical-grade switching power adapter is engineered for high-current, low-voltage applications where patient safety and regulatory compliance are paramount. Fully certified to IEC 60601-1:2012 (4th Edition) and ANSI/AAMI/UL 60601-1, it provides 2×MOPP (Means of Patient Protection) isolation—making it suitable for BF-type (Body Floating) medical devices that make direct electrical contact with patients.

⚙️ Technical Specifications

Input Voltage: 100-240V AC, 50/60Hz (universal input)
Output Voltage: 12V DC ±2%
Output Current: 8A continuous (100W maximum)
Efficiency: ≥90% (meets Level VI / ErP Lot 9)
Patient Leakage Current: < 10 µA (normal), < 25 µA (single fault)
Isolation Rating: 2×MOPP per IEC 60601-1 Clause 8.5
Protections: OVP, OCP, SCP, OTP
Safety Standards: IEC 60601-1:2012 (Ed. 4), UL 60601-1, EN 60601-1

🏥 Ideal Applications

High-Current Infusion & Enteral Feeding Pumps
Advanced Multi-Parameter Patient Monitors
In-Vitro Diagnostic (IVD) Platforms: Blood gas and chemistry analyzers
Portable Therapeutic Devices: Nebulizers, wearable drug delivery systems
Home Healthcare Equipment requiring reliable 12V/8A power

Model NO.	Max Power	Voltage	Max Load	Min Load	Load Reg.	Line Reg.	Ripple & Noise
APM096DA	84W	12V	7.0A	0A	±5%	±1%	100mV
APM096DB	96W	12V	8.0A	0A	±5%	±1%	100mV
APM096DC	84W	24V	3.5A	0A	±5%	±1%	100mV
APM096DD	96W	24V	4.0A	0A	±5%	±1%	100mV
APM096DE	90W	36V	2.5A	0A	±5%	±1%	100mV
APM096DF	96W	36V	2.67A	0A	±5%	±1%	100mV
APM096DG	84W	48V	1.75A	0A	±5%	±1%	100mV
APM096DH	96W	48V	2.0A	0A	±5%	±1%	100mV

Our Advantages

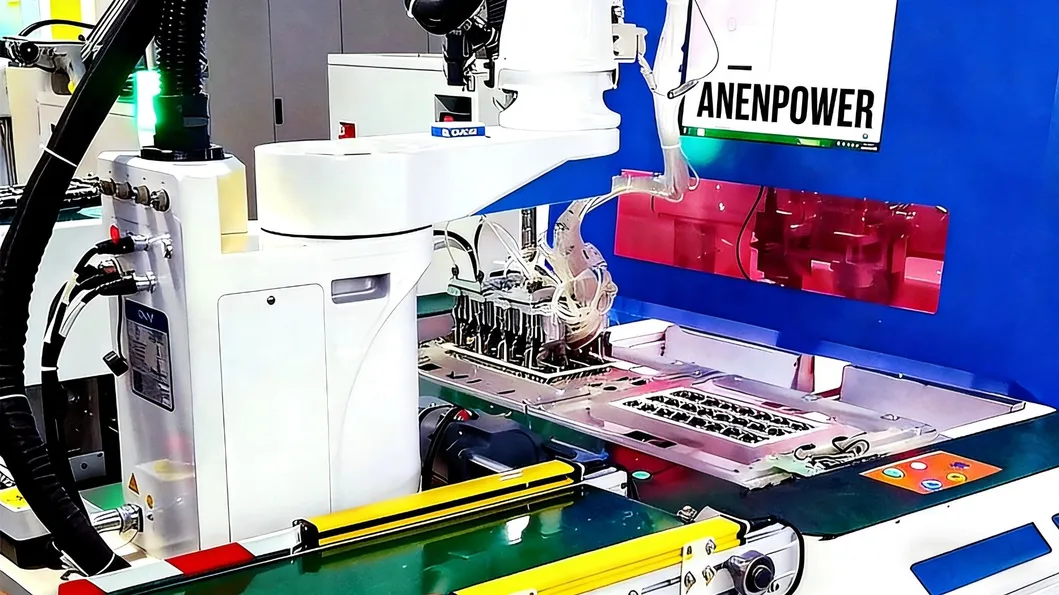

Automated Production

Manufacturing by fully automated lines operating 24/7, ensuring significantly higher efficiency and shorter delivery cycles for large-volume orders.

Premium Quality

Robotic precision eliminates human error. High-precision testing systems ensure stable output and ultra-low defect rates.

Flexible Delivery

Fast model switchover capabilities allow for flexible capacity adjustment to meet peak-season demands and urgent delivery requirements.

Cost-Effective

Automation reduces repetitive labor costs by 80%, allowing us to offer high-quality adapters at competitive market prices.

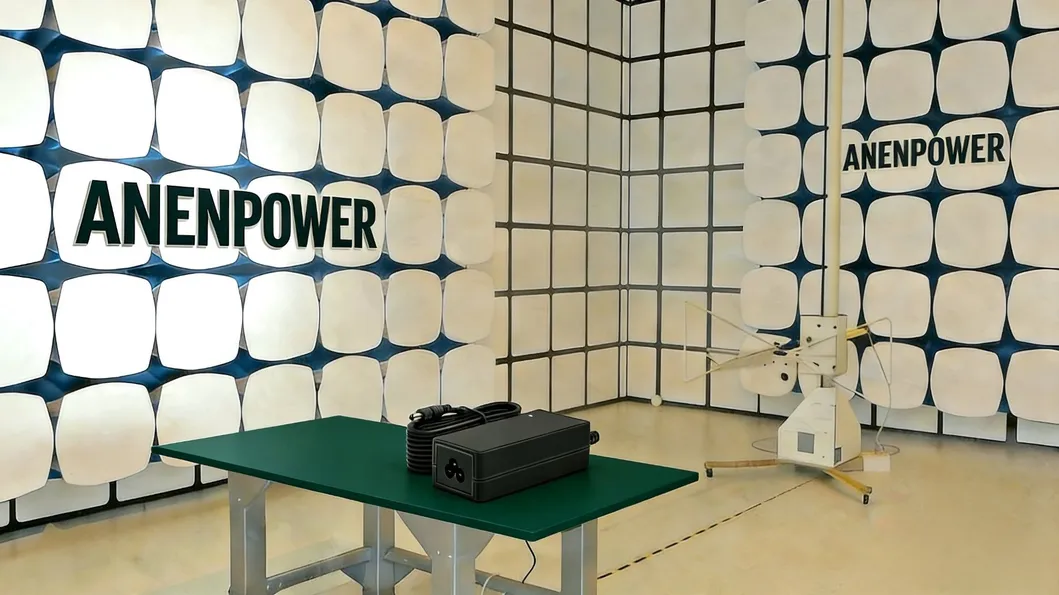

Service & Warranty

24-Month Warranty: Covers all defects in materials and workmanship under normal use.
Return Policy: Request return or exchange within 30 days if products are unused and in original packaging.
Technical Support: Free technical consultation including installation guidance and troubleshooting.

About Our Expertise

Our focus is on high-performance Medical Power Adapters compliant with IEC 60601, as well as solutions for IEC 62368 and IEC 61558 standards. Covering a power range of 5W to 1000W, our products are backed by global certifications including UL, CE, FCC, TÜV, UKCA, RCM, PSE, and KC.

Every unit undergoes rigorous testing with state-of-the-art equipment to guarantee durability. We are committed to sustainability, designing energy-efficient solutions that minimize environmental impact while supporting tailored customized designs.

Frequently Asked Questions

What does 2×MOPP safety certification mean?

2×MOPP (Means of Patient Protection) is a medical safety standard ensuring reinforced insulation between the input and output. It provides the highest level of protection for devices that come into direct electrical contact with patients.

Is this power supply suitable for BF-type medical equipment?

Yes, with ultra-low leakage current (<10 µA) and 4,000 VAC isolation, it is specifically designed for BF-type (Body Floating) applications.

What is the efficiency level of these adapters?

Our adapters achieve ≥90% efficiency, meeting the strict energy requirements of Level VI and ErP Lot 9 standards.

Does the power supply include safety protections?

Yes, it features integrated over-voltage (OVP), over-current (OCP), short-circuit (SCP), and over-temperature (OTP) protections with auto-recovery features.

Can I get a custom output connector for my medical device?

Yes, while standard models use 4-pin locking or terminal blocks, we offer custom medical-grade interfaces to meet specific device requirements.

What is the standard warranty period?

We provide a comprehensive 24-month warranty covering materials and workmanship for all AP series power adapters.
