Compatible with various access control components including E/M locks, controllers, exit buttons, and RFID readers.
Includes automatic protection against overload, over voltage, and short circuit conditions for device longevity.
Relay control circuit allows adjustment of lock opening time from 0 to 15 seconds to suit different lock types.
Offers the flexibility to set outputs to either Normally Closed (NC) or Normally Open (NO) configurations.
| Detail | Specification |
|---|---|
| Input Voltage | AC 110-240V (Worldwide voltage) |
| Input Frequency | 50-60Hz |
| Output Voltage | DC 12V |
| Output Current | 5A |
| Power Output | 50W |
| Operating Temp | -20°C to 65°C |
| Adjustable Delay | 0-15 seconds |
| Dimensions | 210L x 166W x 70H (mm) |
| Weight | 1.0KG |

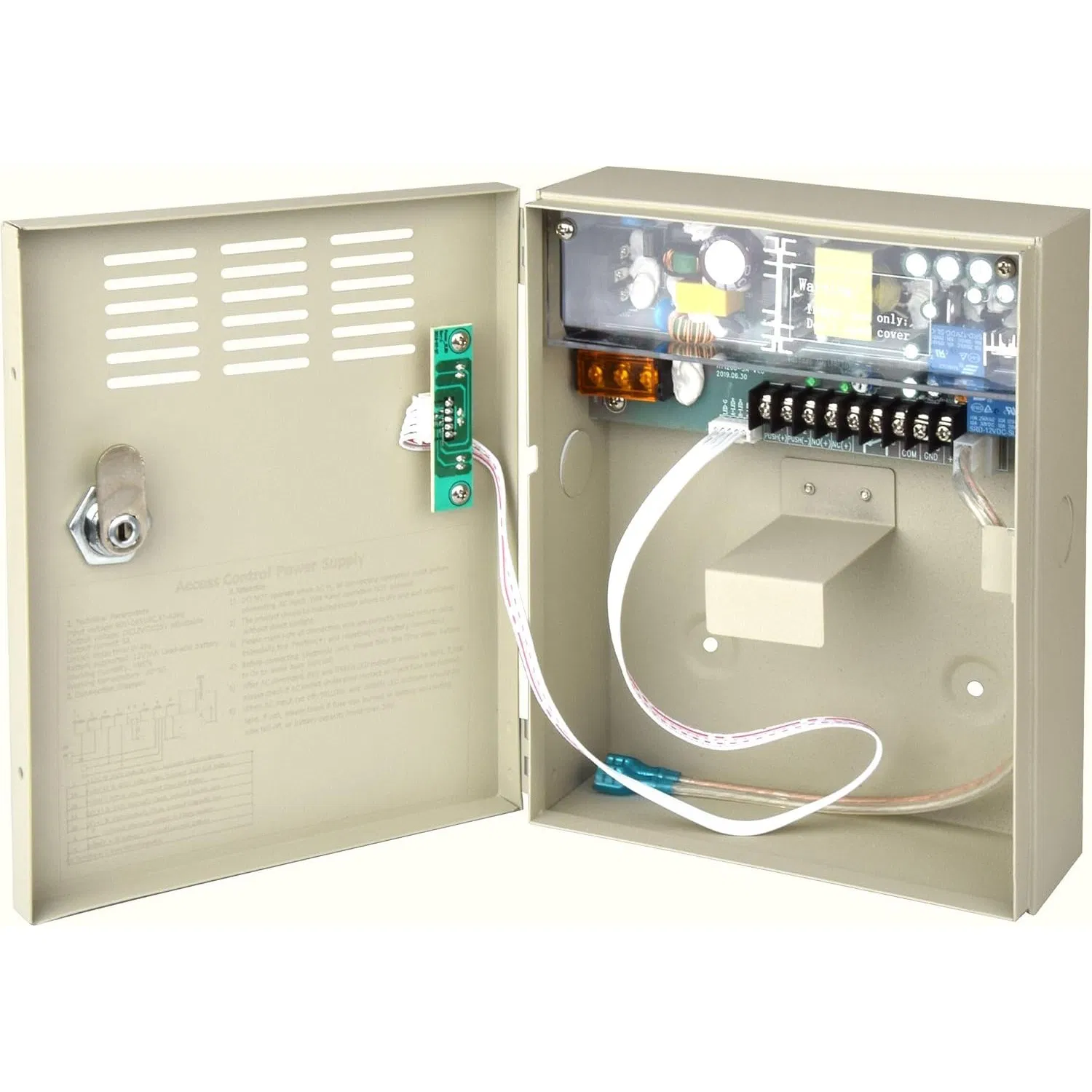

This UPS Power Supply is designed specifically for door access entry systems, offering a universal voltage input ranging from AC 110V to 240V. It efficiently converts power to a stable DC 12V, 5A output, which is ideal for powering electronic magnetic locks and other security peripherals.
A key feature is the integrated battery link, which allows for an uninterrupted power supply. By connecting an external 12V 7AH backup battery (not included), the system remains fully functional even during local power outages. The unit is ideal for building intercom systems and managing access across multiple entry points.
