12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
1 / 5
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply
12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply

12V Single Output 100W Mdr-100-12 Mini DIN Rail Plastic Case Switching Power Supply

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Information

Model NO.:MDR-100-12
Output Power:51 - 100W
Input Voltage:110-220V
Connection Mode:Series Switching Power Supply
Starting Mode:Self-excited Switching Power Supply
Voltage Regulating:Frequency Modulation Type
Certification:CE, RoHS, ISO, CCC
Application:LED Lighting, Electrical Equipment, Industrial Control
Protections:Short Circuit / Overload / Over Voltage
Efficiency:83%
Output Current:7.5A
Dimension:55*90*100mm(W*H*D)
P

Packaging & Delivery

Package Size:44.00cm * 24.00cm * 33.00cm
Gross Weight:18.800kg
Production Capacity:6000PCS/Month
D

Product Description

12V Single Output Switch Power 100W MDR-100-12 Mini DIN Rail Plastic Case Switching Power Supply

100W Single Output Industrial DIN Rail Power Supply MDR-100 series.

Universal AC input / Full range
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
DC OK relay contact
LED indicator for power on
100% full load burn-in test
No load power consumption < 1W
2 years warranty
S

Specifications

Model MDR-100-12 MDR-100-24 MDR-100-48
DC Voltage12V24V48V
Rated Current7.5A4A2A
Rated Power90W96W96W
Ripple & Noise120mVp-p120mVp-p150mVp-p
Voltage Range12-15V24-30V48-56V
Efficiency83%86%87%
Voltage Range85~264VAC 47~63 Hz; 120~370VDC
Working Temp.-10ºC~+60ºC; 20%~90% RH non-condensing
Safety StandardDesign refer to UL508, TUV EN60950-1
G

Product Gallery

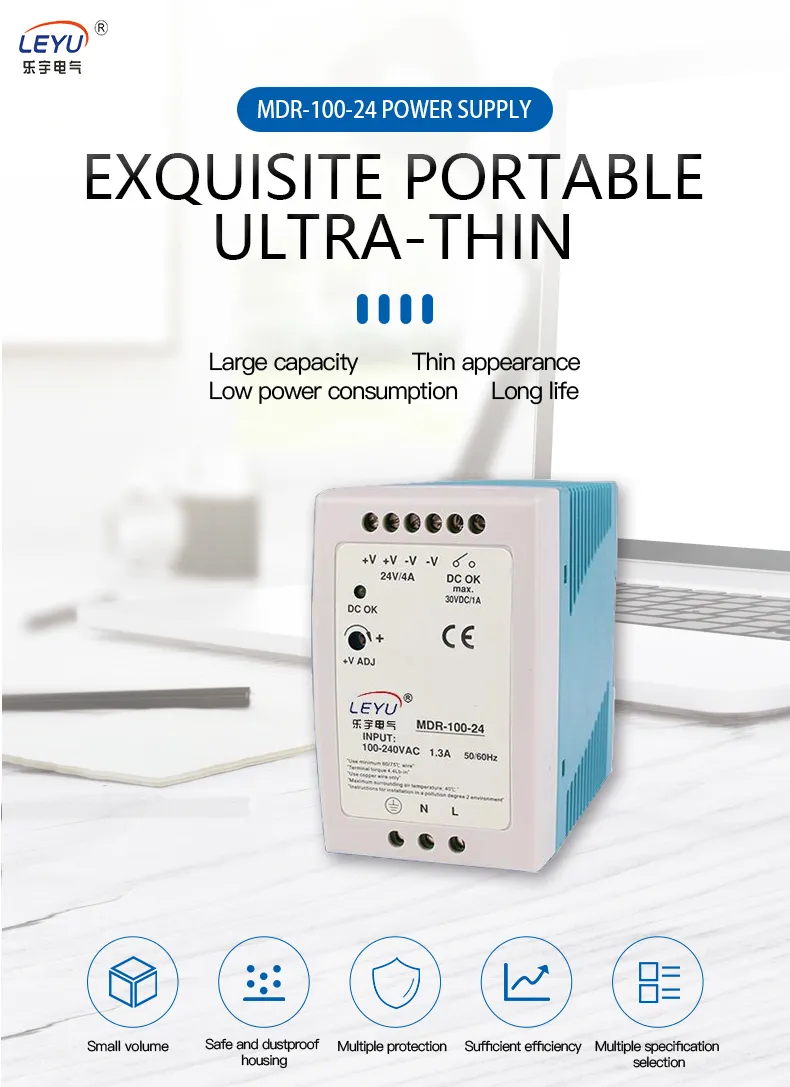

DIN Rail Power Supply View 1

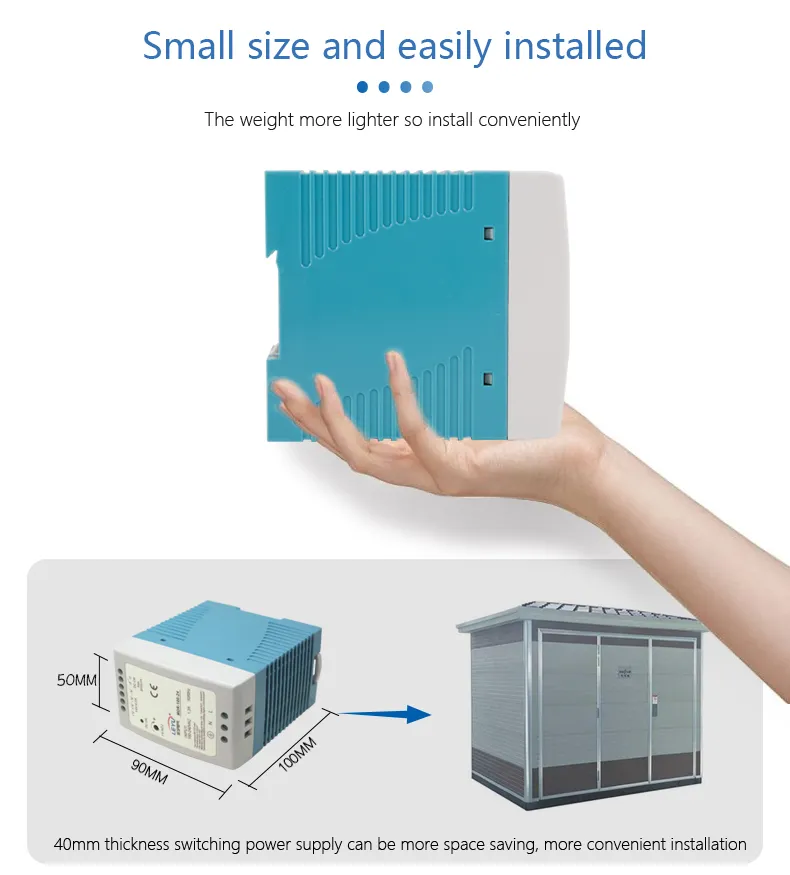

DIN Rail Power Supply View 2

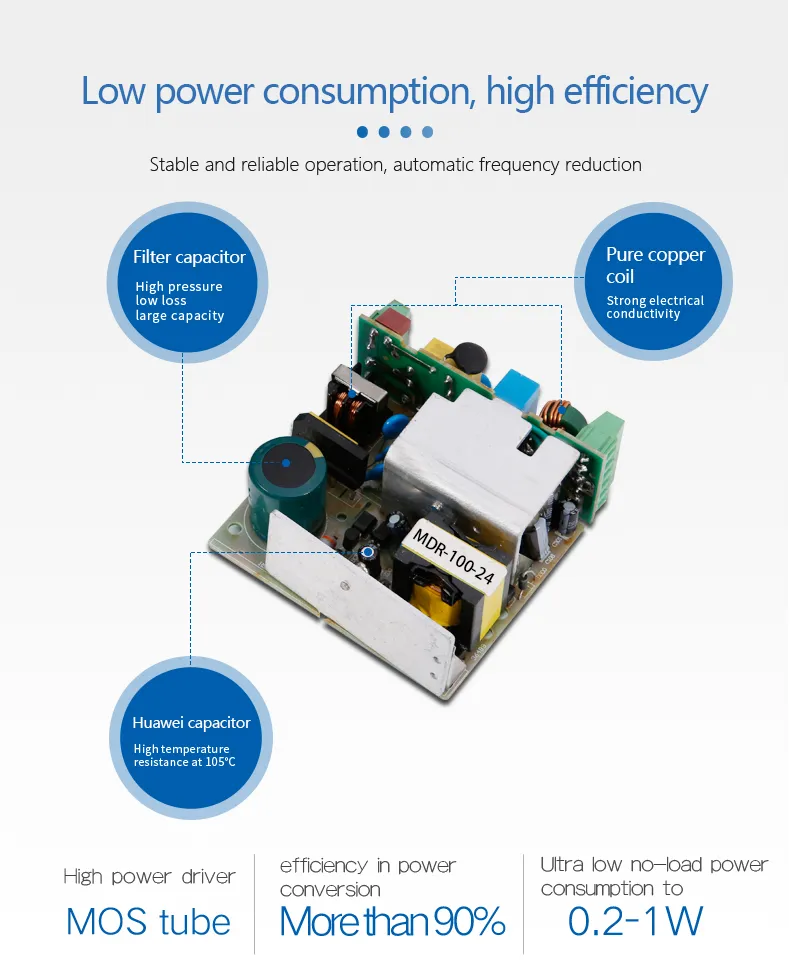

DIN Rail Power Supply View 3
DIN Rail Power Supply View 4

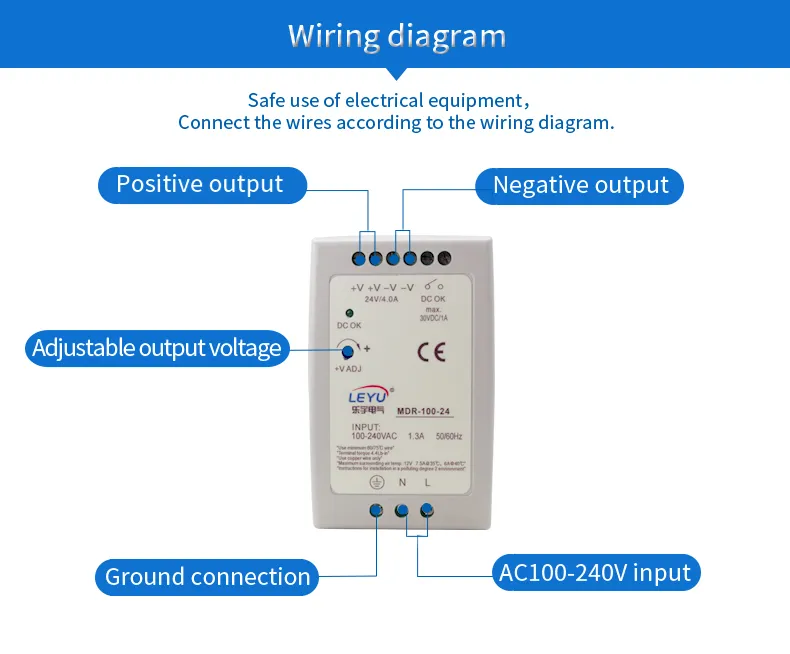

DIN Rail Power Supply View 5
DIN Rail Power Supply View 6
DIN Rail Power Supply View 7
DIN Rail Power Supply View 8
DIN Rail Power Supply View 9
DIN Rail Power Supply View 10
DIN Rail Power Supply View 11
?

Frequently Asked Questions

What type of DIN rail is compatible with this power supply?
The MDR-100 series is designed to be installed on standard DIN rail TS-35/7.5 or TS-35/15.
What safety protections are included?
It features comprehensive protections against short circuits, overloads, overvoltage, and over-temperature.
Does this unit require an external fan for cooling?
No, it is designed for cooling by free air convection, making it silent and reliable for industrial environments.
What does the LED indicator signify?
The LED indicator provides a clear visual signal for power-on status, allowing for easy monitoring.
Is there a warranty provided for the MDR-100-12?
Yes, this power supply comes with a 2-year warranty from the date of manufacture.
Can it be used globally?
Yes, it features a universal AC input with a full range of 85~264VAC, suitable for various international power standards.
