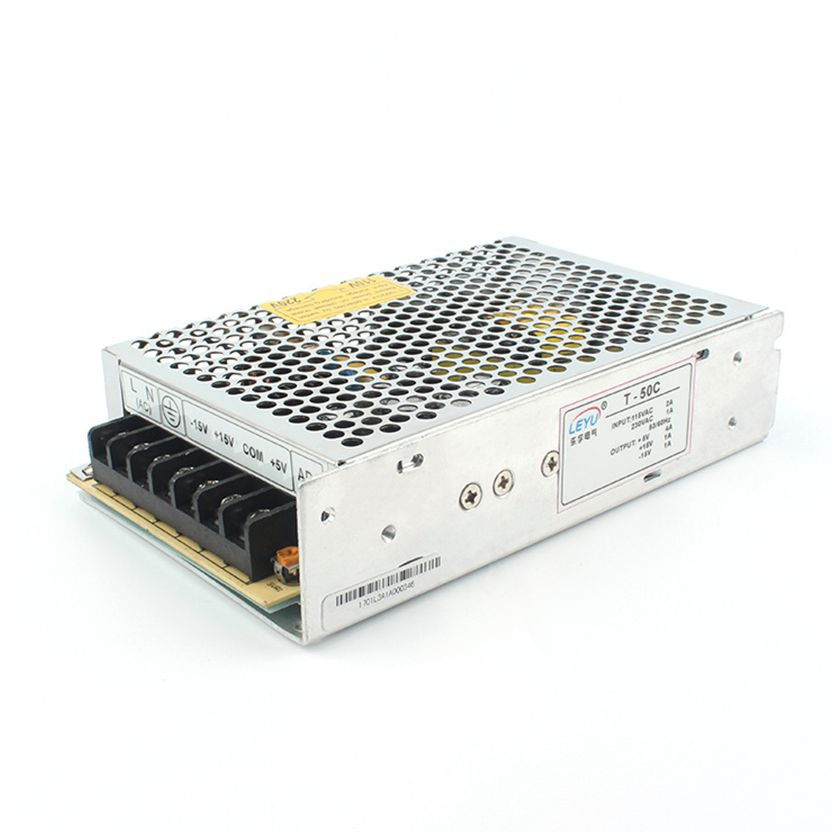

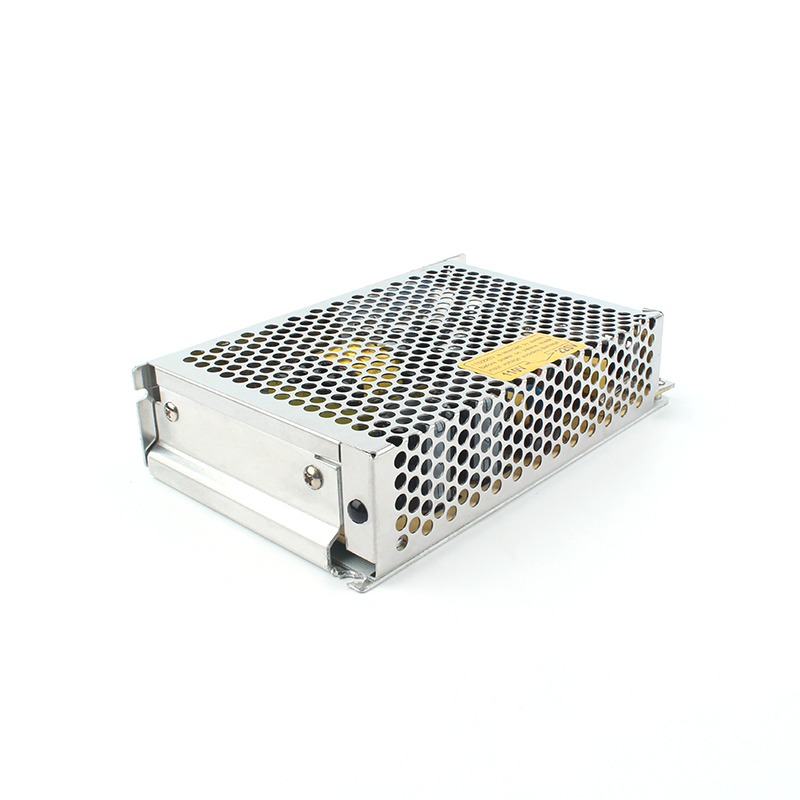

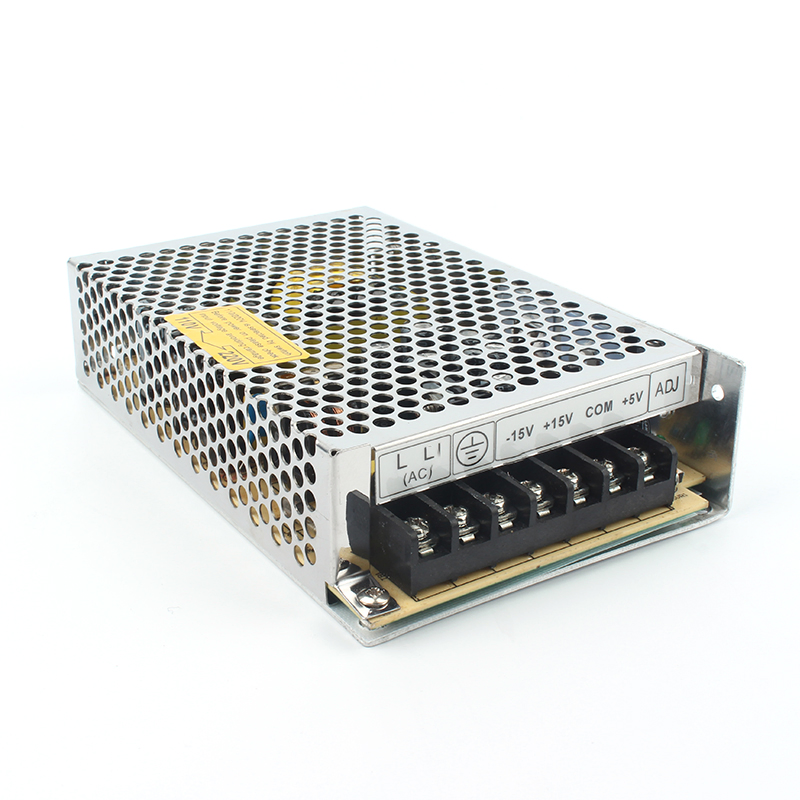

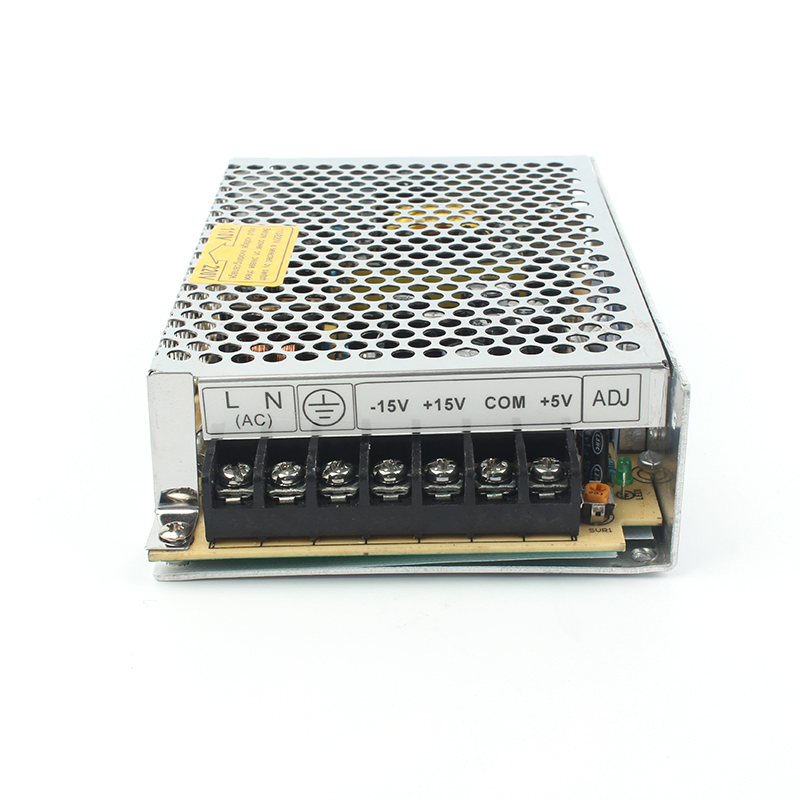

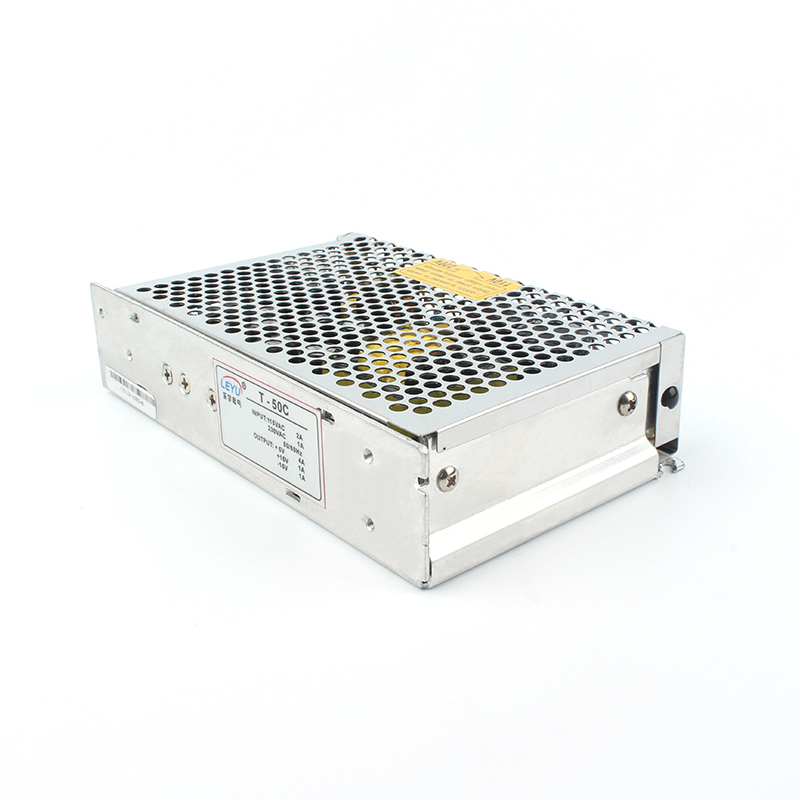

50W 5V 15V -15V Mini SMPS Triple Output Switching Power Supply
| SPECIFICATIONS | T-50A | T-50B | T-50C | T-50D | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Output Number | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 | CH1 | CH2 | CH3 |
| DC Voltage | 5V | 12V | -5V | 5V | 12V | -12V | 5V | 15V | -15V | 5V | 12V | 24V |
| Rated Current | 7A | 1A | 1A | 5A | 1A | 1A | 4A | 1A | 1A | 3A | 1A | 1A |
| Rated Power | 52W | 49W | 50W | 51W | ||||||||
| Efficiency | 66% | 69% | 71% | 72% | ||||||||
| Voltage Range | 85~132VAC/170~264VAC selected by switch; 47-63Hz; 240~370VDC | |||||||||||
| Over Load Protection | 105%~150% shut down o/p voltage, recovers automatically | |||||||||||
| Withstand Voltage | I/P-O/P: 1.5KVAC, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC | |||||||||||
