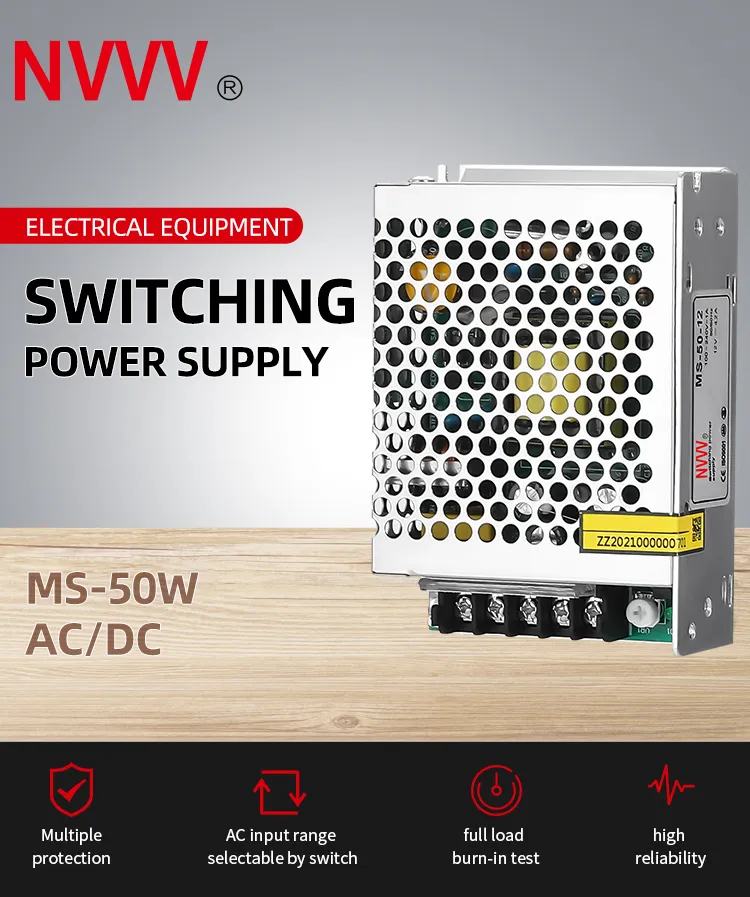

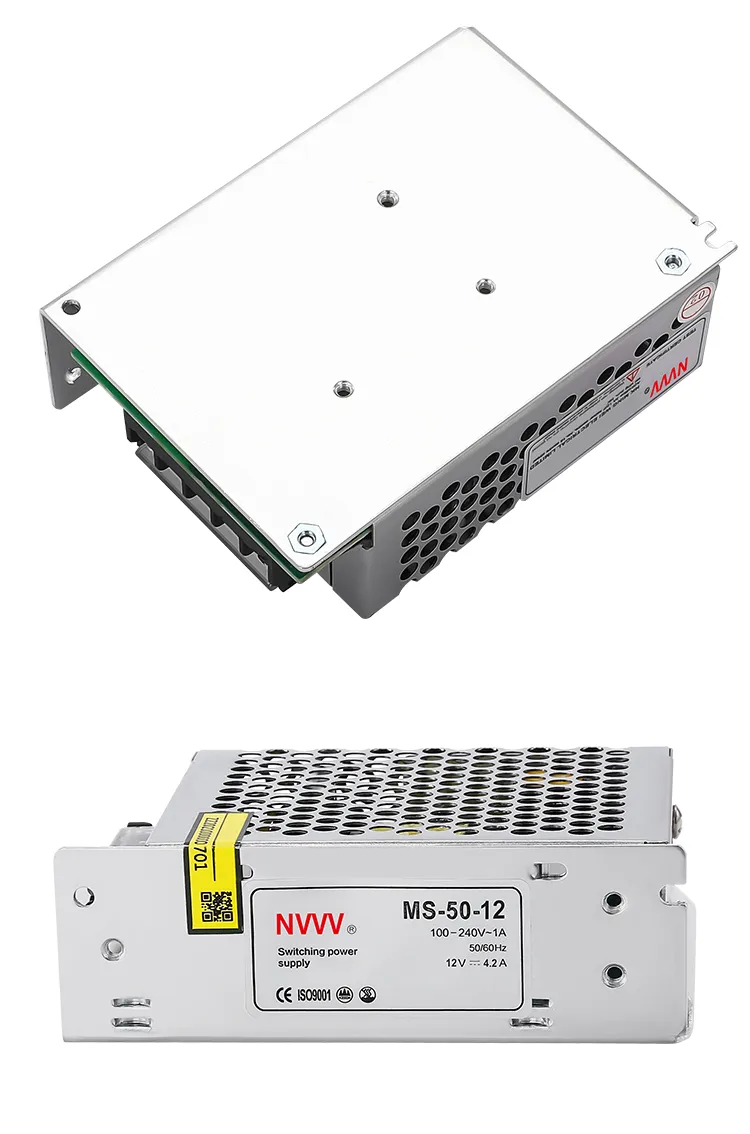

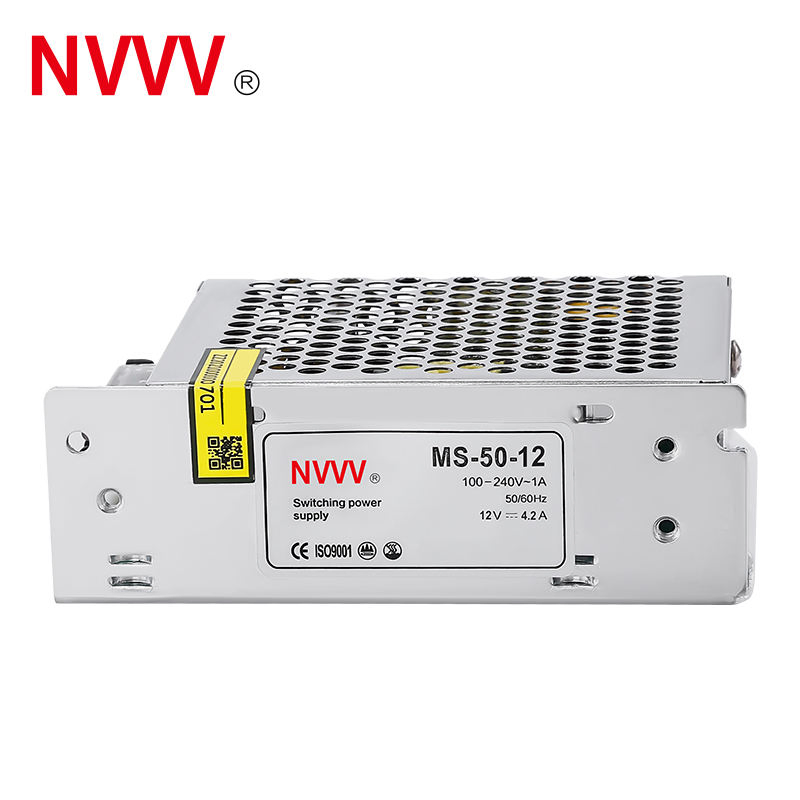

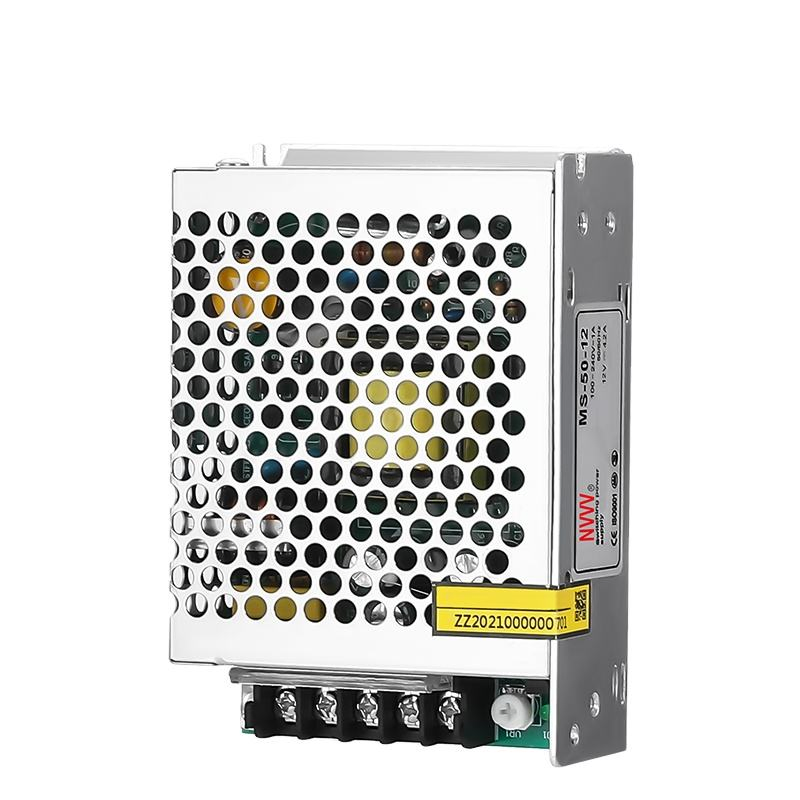

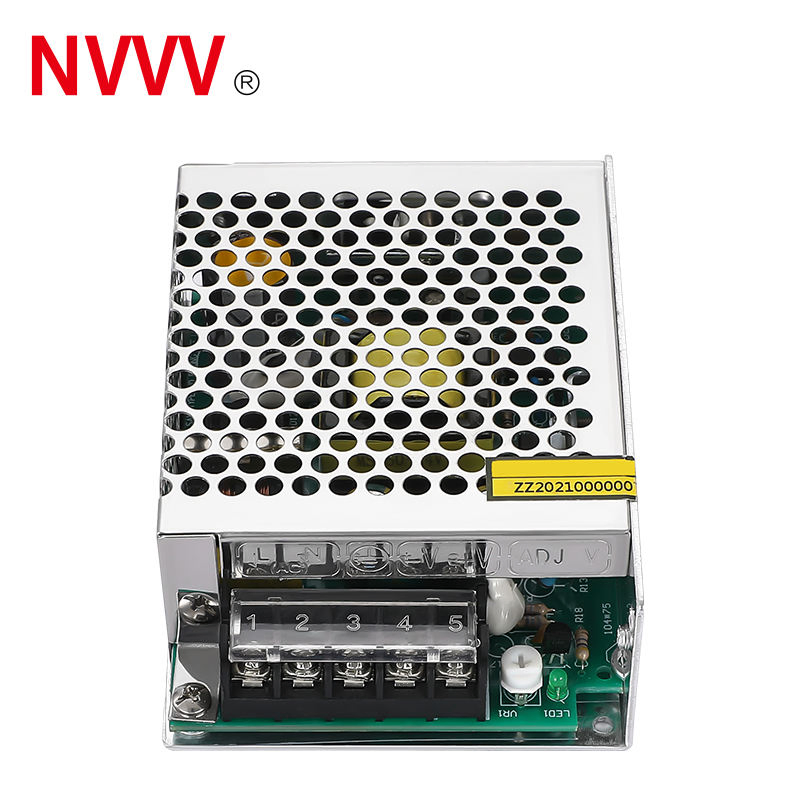

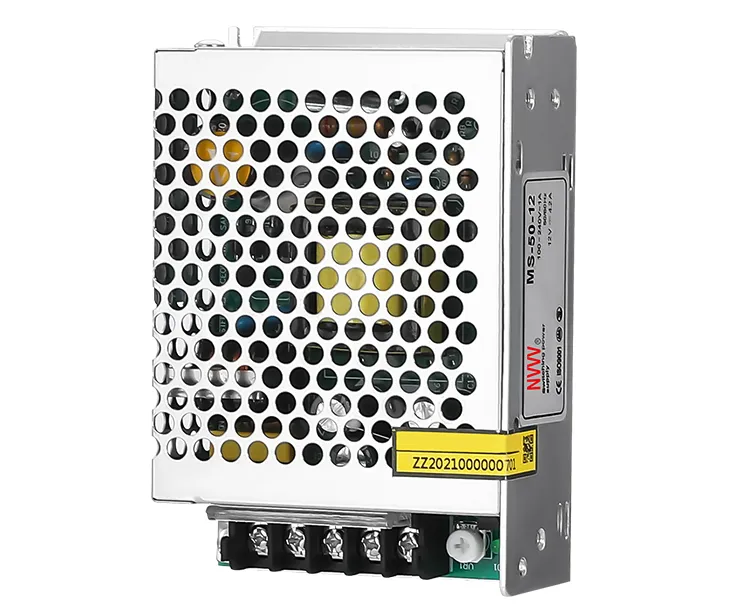

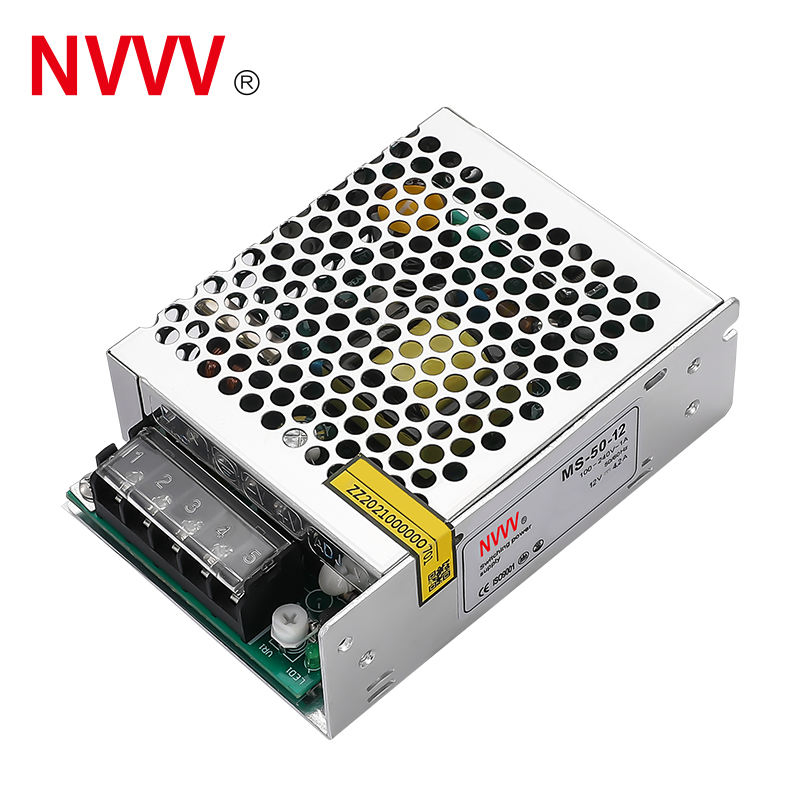

50W 12V Ms-50-12 Mini Switching Power Supply

1 / 5

50W 12V Ms-50-12 Mini Switching Power Supply

Customization:	Available
Output Type:	Single
Warranty:	3 Years

Send Inquiry

Product Description

📋 Basic Information

Model NO.

MS-50-12

Output Power

50W

Input Voltage

85~264VAC

Output Voltage

12V

Output Current

4.2A

Product Name

Ms-50-12

Modulation

PWM

Certification

CE, RoHS, ISO, CCC, Bis

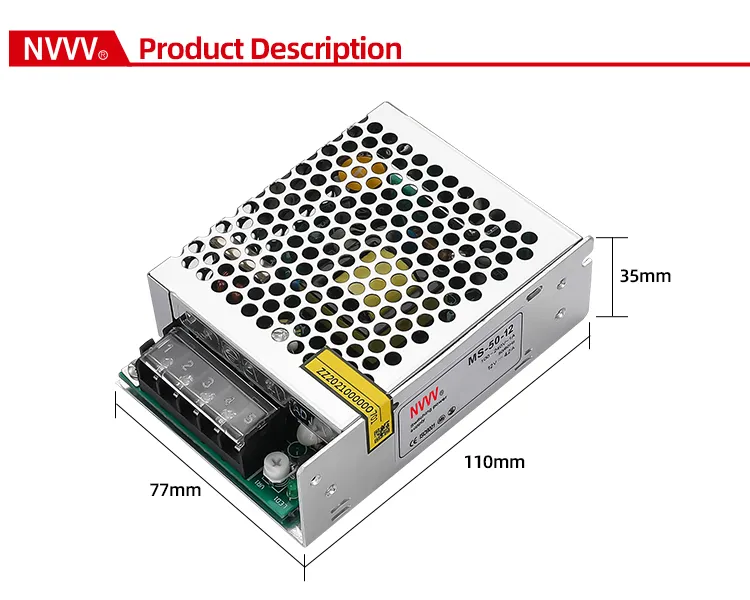

Dimensions

111*78*36mm

Application

LED Lighting Driver

Efficiency

>82%

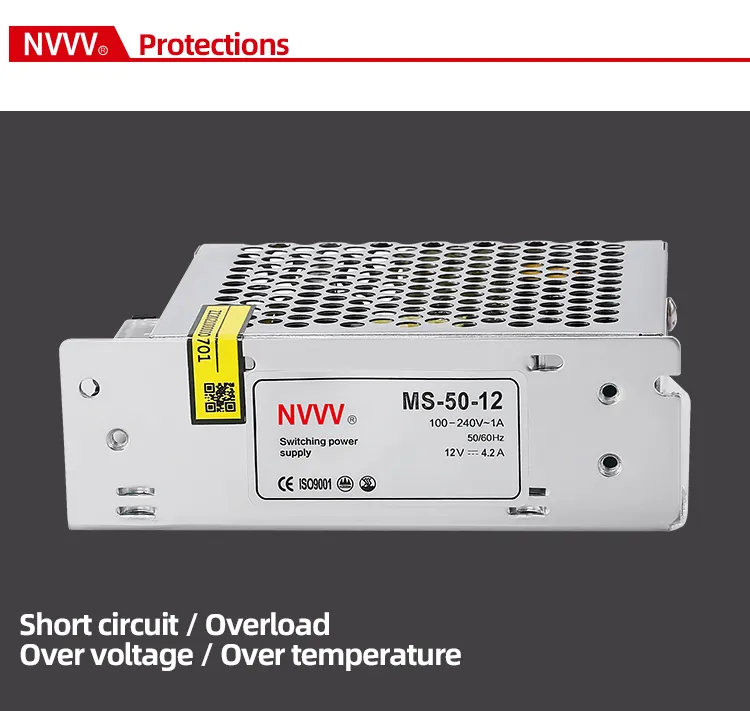

Protection

Short-circuit / Overload

🔍 Product Gallery

⚙ Technical Specifications

Project		5V	12V	24V
Output	DC voltage	5V	12V	24V
	Rated current	8A	4.2A	2.1A
	Ripple and noise	<50mV	<120mV	<150mV
	Voltage Adj.	±10%
Input	Voltage range	85-264VAC (120-370VDC)
Input	Efficiency	>78%	>82%	>84%
Protection	Overload	105% - 150% constant current output
Protection	Short Circuit	VO drop to undervoltage point to close

🏭 Production & Packing

Packing Method: Safety Packaging for worldwide transport.

❓ Frequently Asked Questions

1 What is the input voltage range for this power supply?

The MS-50-12 supports a wide input voltage range from 85~264VAC or 120~373VDC, making it suitable for global power standards.

2 Does this product come with safety protections?

Yes, it features integrated overload and short-circuit protection. The system will cut off output or reset when an undervoltage point is reached to ensure device safety.

3 Can the output voltage be adjusted?

Yes, the output voltage has a regulation range of ±10%, allowing you to fine-tune the 12V output to your specific application requirements.

4 What are the certifications for the MS-50 series?

This power supply is fully certified with CE, RoHS, ISO, CCC, and Bis, ensuring it meets international quality and environmental standards.

5 Is this suitable for industrial LED lighting?

Absolutely. It is designed specifically as an LED Lighting Driver and is also widely used in industrial automation, security systems, and infrastructure.

6 How is the product cooled?

The MS-50-12 features a perforated metal housing designed for natural air convection cooling, allowing it to operate efficiently between -10ºC and +50ºC.
