Specification
99mm*82mm*30mm
Product Description

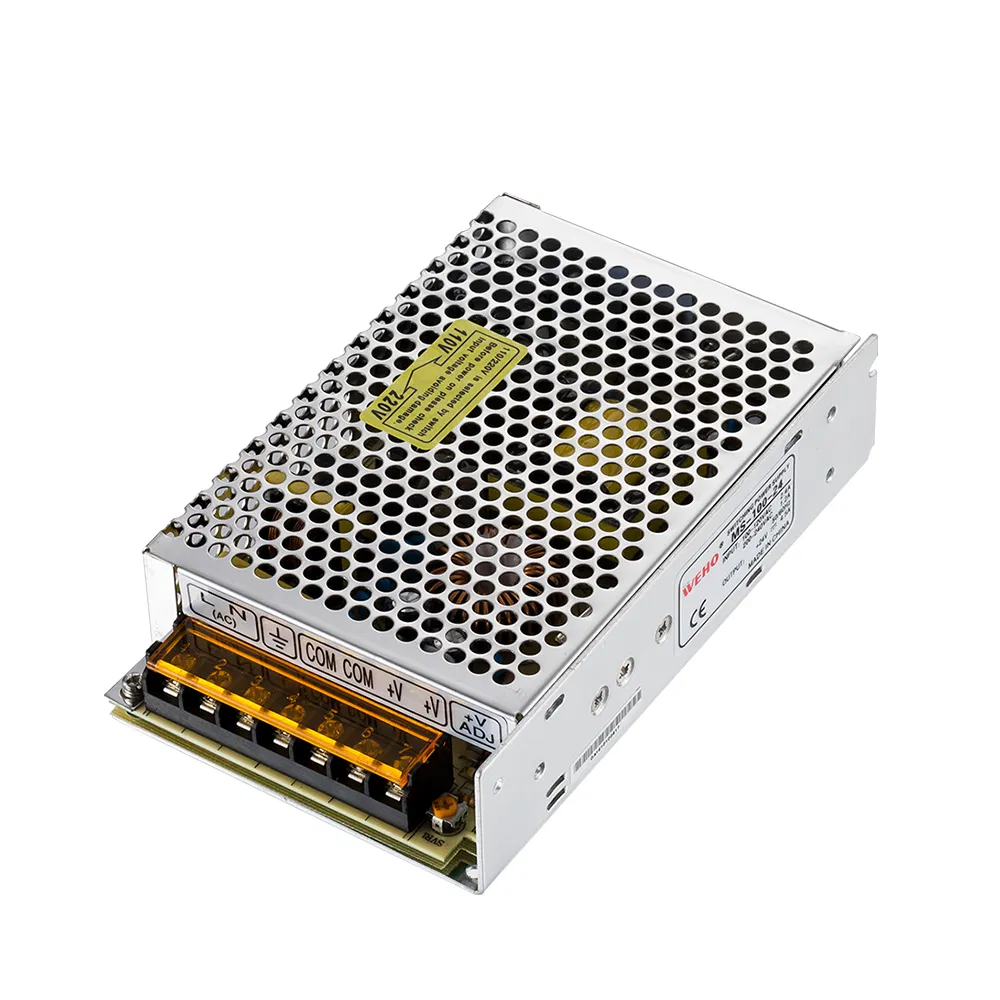

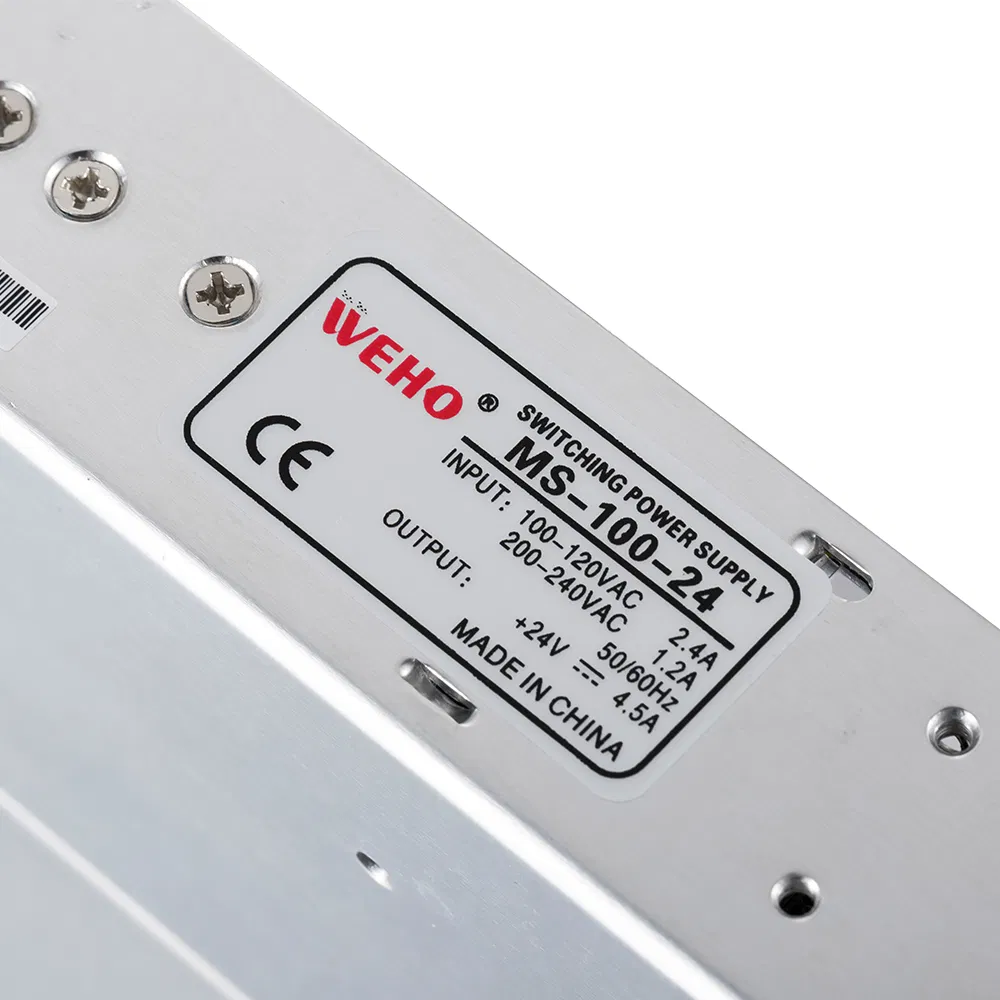

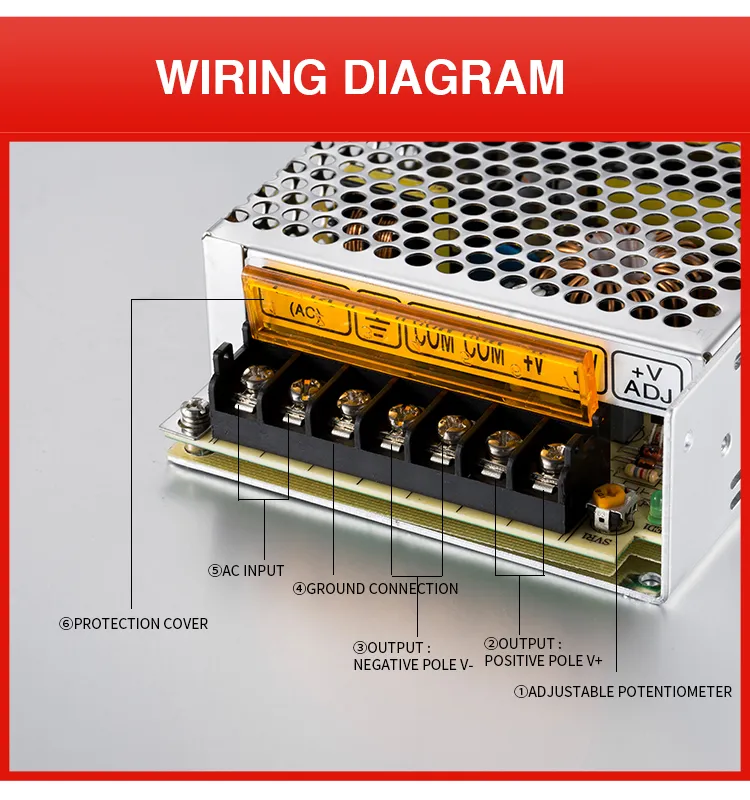

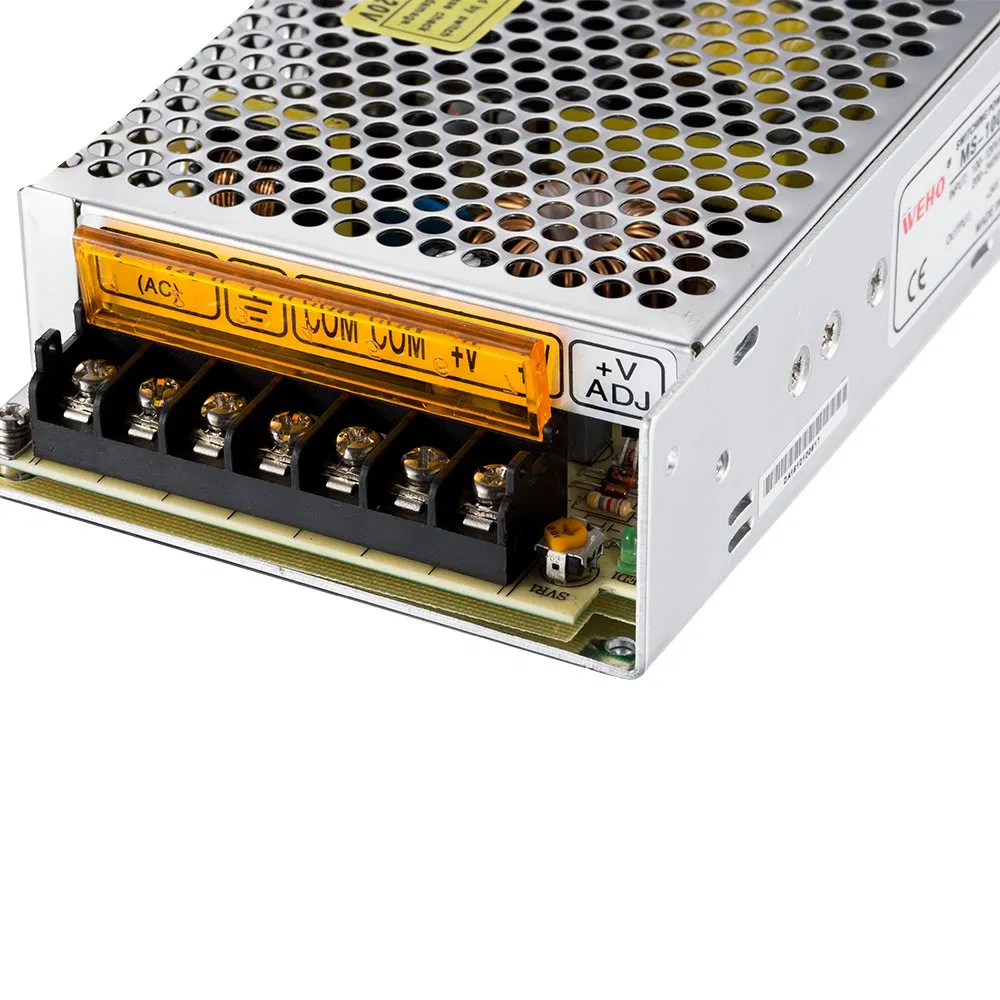

High Efficiency Switching Power Supply MS-100 5V 100W 20A Mini SMPS
✓
Full range AC 85-264V Input
✓
Protections: Short circuit / Overload / Over voltage / Over temperature
✓
100% full load burn-in test
✓
Low cost, high reliability
| Model |
MS-100-5 |
MS-100-12 |
MS-100-24 |
MS-100-48 |
| DC output voltage |
5V 0~20A |
12V 0~8.5A |
24V 0~4.5A |
48V 0~2.08A |
| Wave and noise |
100mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
| Inlet wire stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
| Efficiency |
80% |
83% |
86% |
86% |
| Input voltage range |

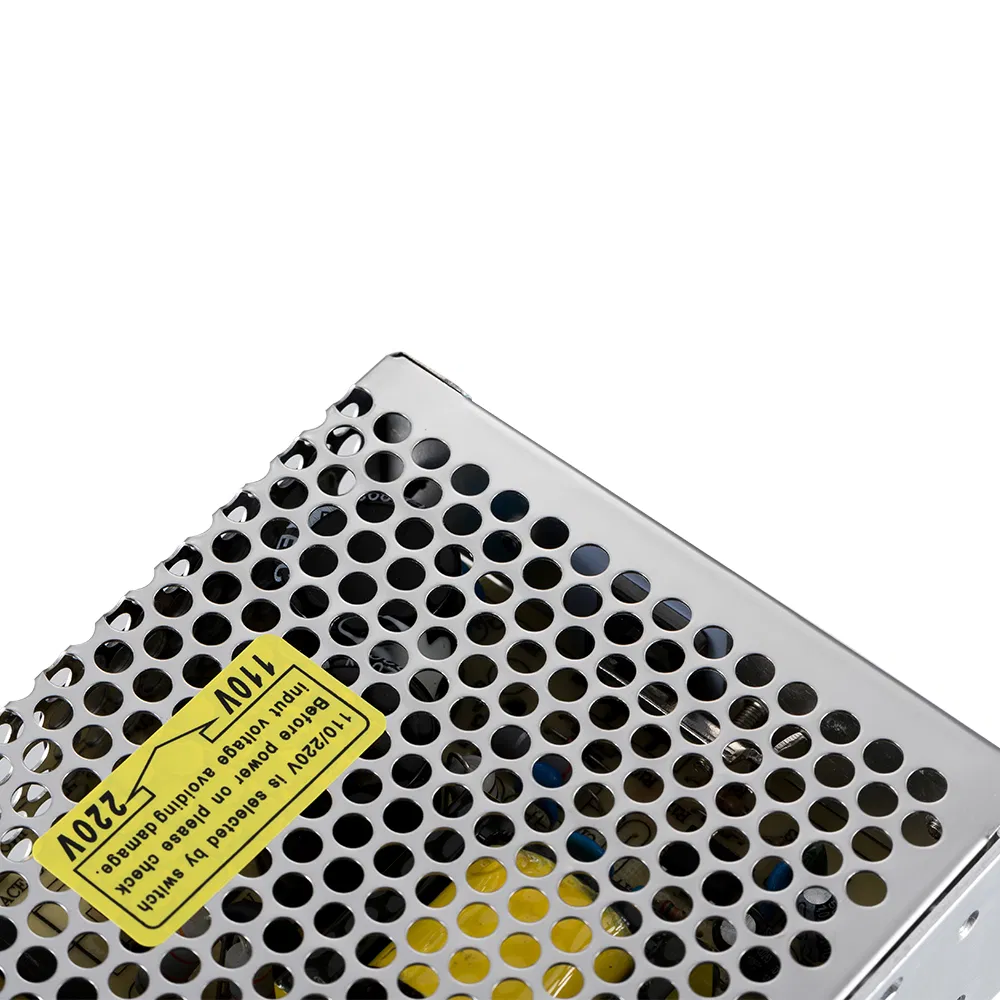

90~132VAC/180~264VAC by switch; 254~370VDC; 47~63Hz |
| Overload protection |
105% -135% cut off the output, automatic recovery |
| Working temp. |
-10ºC~+50ºC |
| Dimension |
159 x 98 x 38mm |
Frequently Asked Questions
What is the input voltage range for this power supply?
The unit supports a full range AC input from 85V to 264V (or 90-132VAC/180-264VAC selectable by switch), making it compatible with various regional power standards.
What kind of protection features are included?
The MS-100 series is equipped with multiple protections, including Short circuit, Overload, Over voltage, and Over temperature protection with automatic recovery.
What is the warranty period for the MS-100-5?
This product comes with a 24-month warranty, ensuring long-term reliability and peace of mind for your applications.
Are these units tested before they are shipped?
Yes, every unit undergoes a 100% full load burn-in test to ensure high reliability and stable performance under actual working conditions.
Is the output voltage adjustable?
Yes, the DC voltage has an adjustable range of approximately ±10% to fine-tune the output according to your specific requirements.
What certifications does this product hold?
The switching power supply is CE and RoHS certified, meeting international safety and environmental protection standards.
