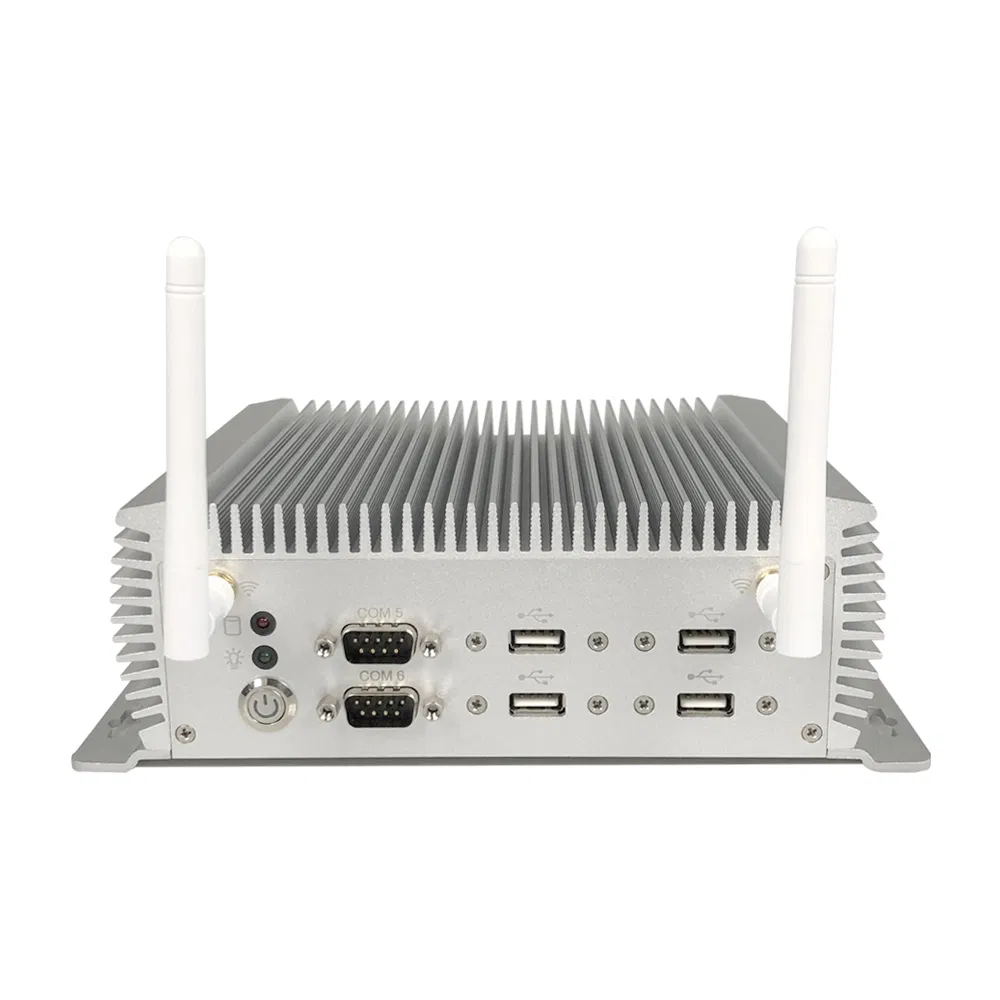

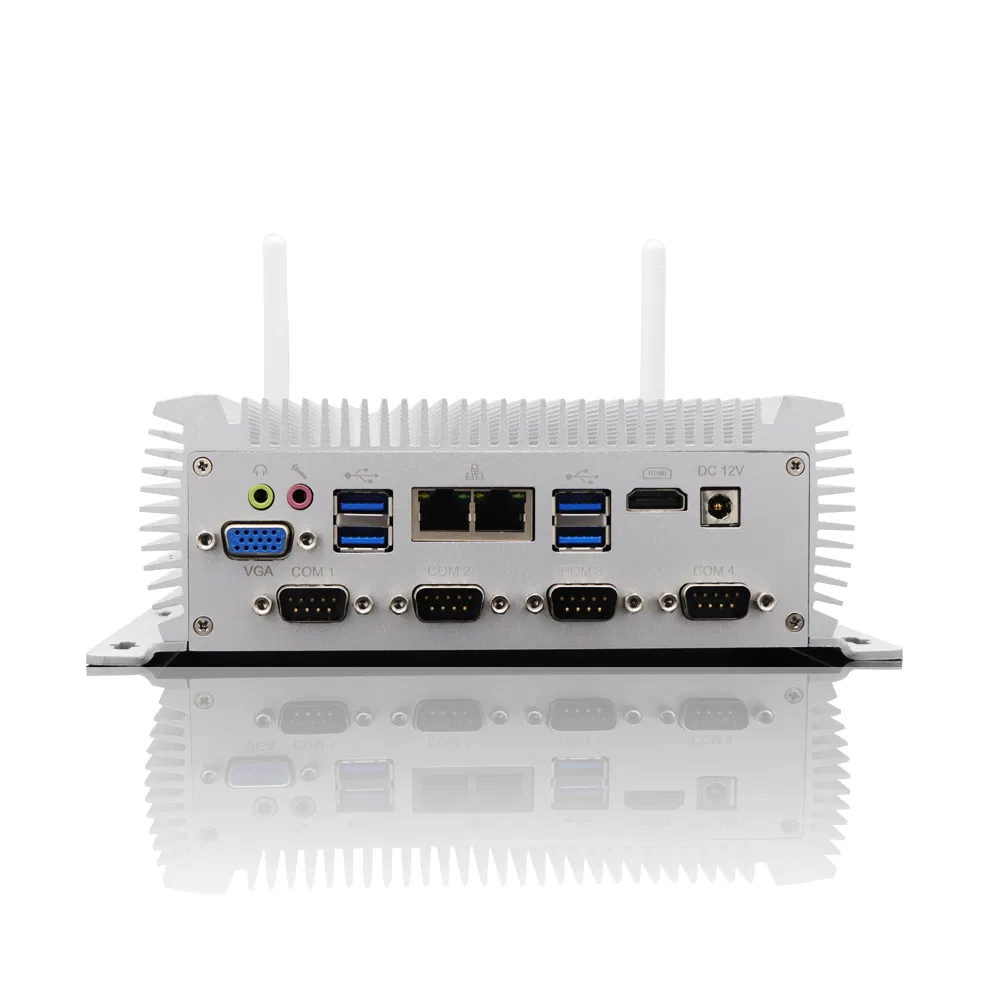

Powerful Industrial Computer Intel Core I7-4500u 6COM 8 USB 2RJ45 LAN VGA HD Win10PRO for Cash Machine Mini PC

i

Basic Specifications

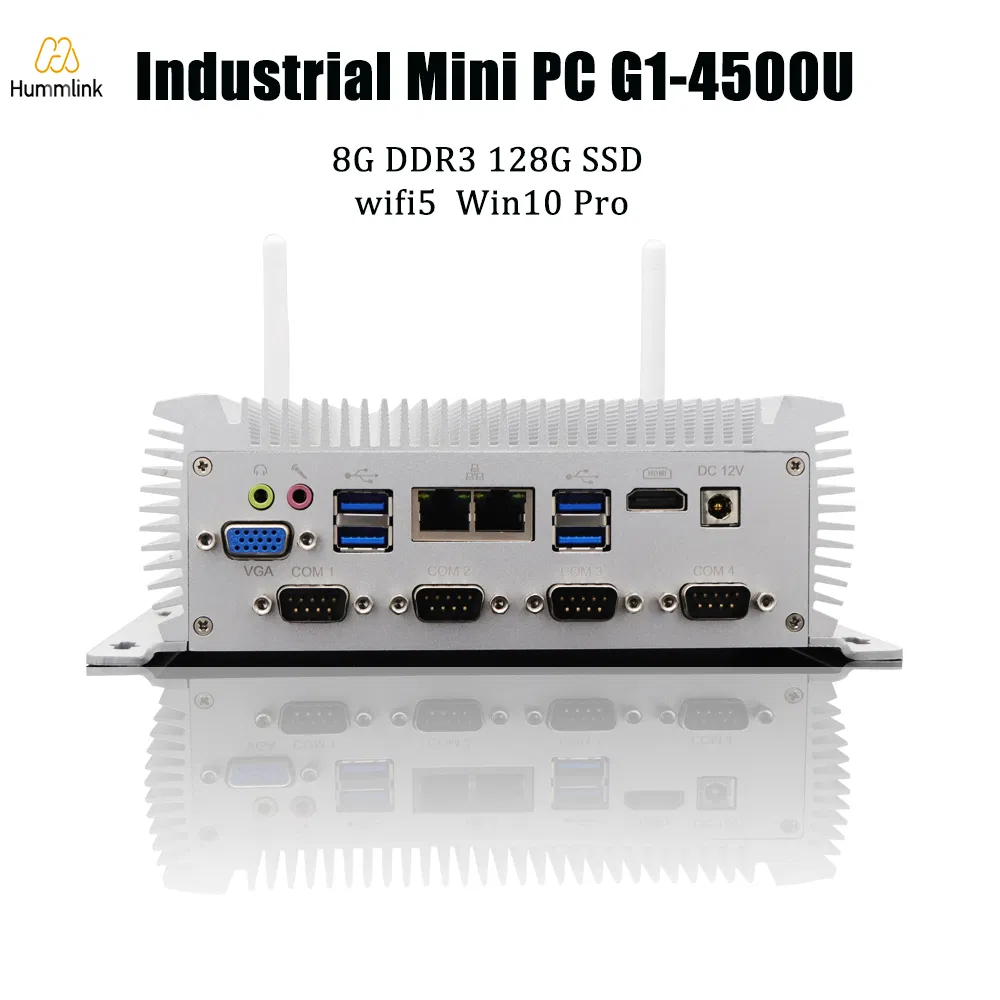

Model:G1-4500U

CPU Type:Intel Core i7

RAM:8GB

Storage:128GB SSD

Operating Temp:-20℃ to 60℃

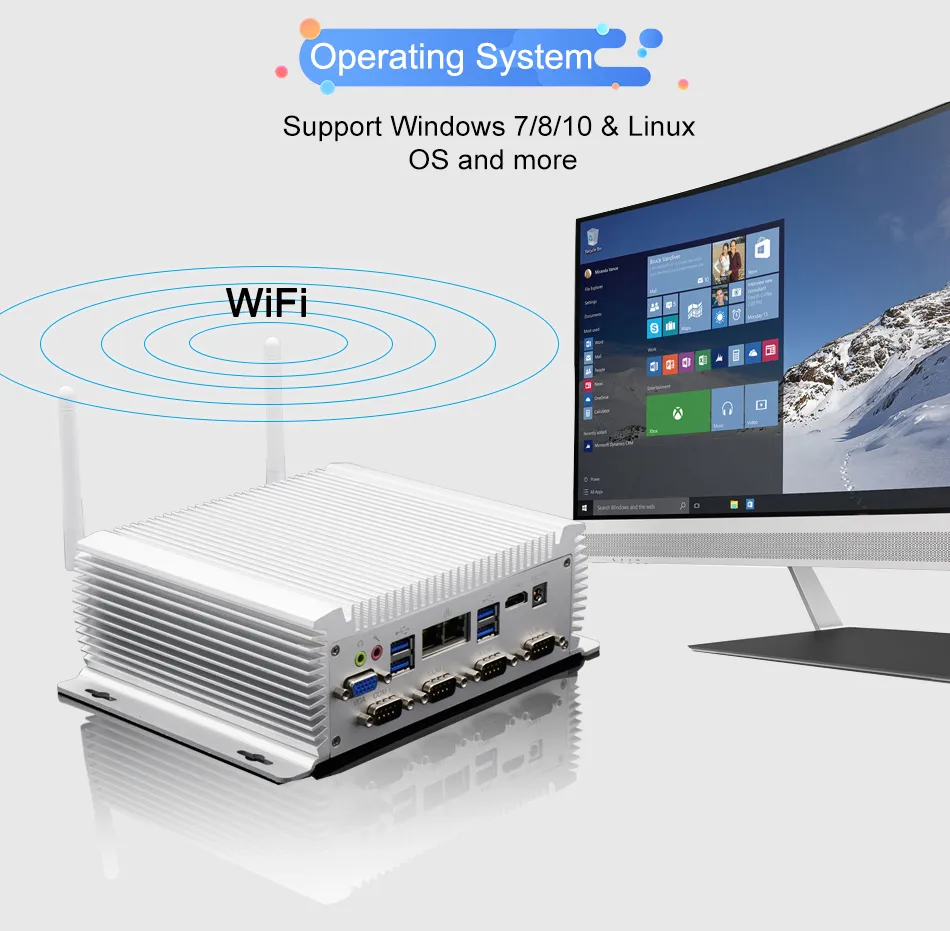

OS Support:Windows 7/10, Linux

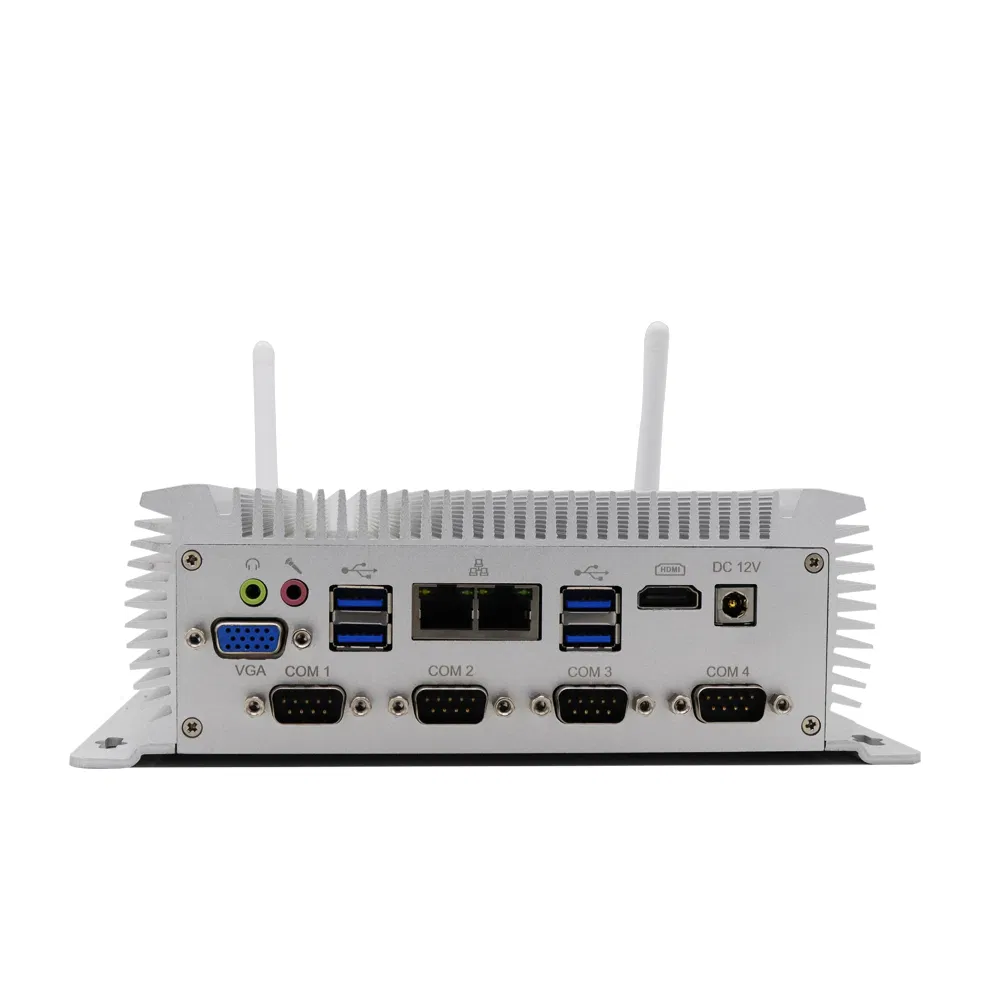

LAN:2 x RJ45 Intel Giga LAN

USB:4 x USB2.0, 4 x USB3.0

COM:6 x COM (RS232/422/485)

Cooling:Fanless System

★

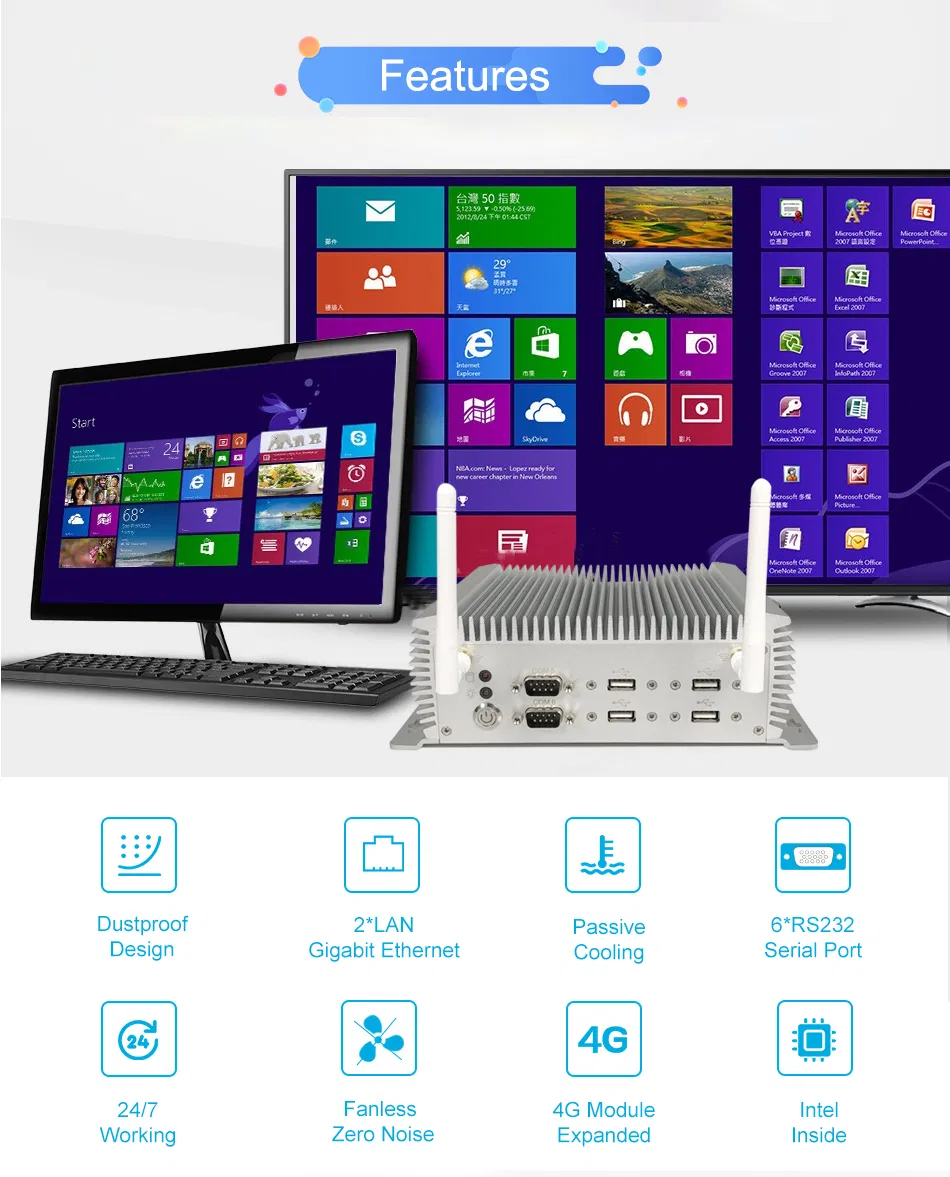

Product Highlights

Dual Gigabit LAN & 6 COM Ports: Supports Intel i211 Gigabit RJ45 and BIOS-adjustable RS232/422/485 interfaces.
Wireless Connectivity: Includes one embedded SIM card slot for 3G/4G modules.

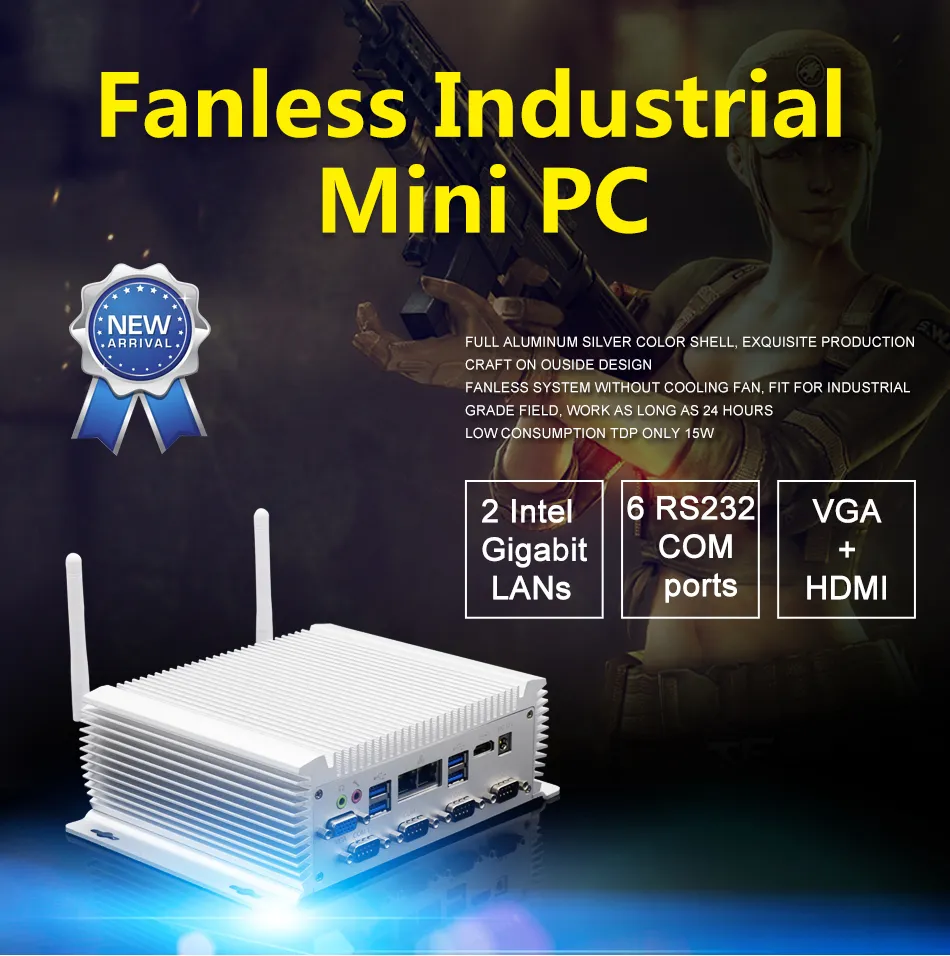

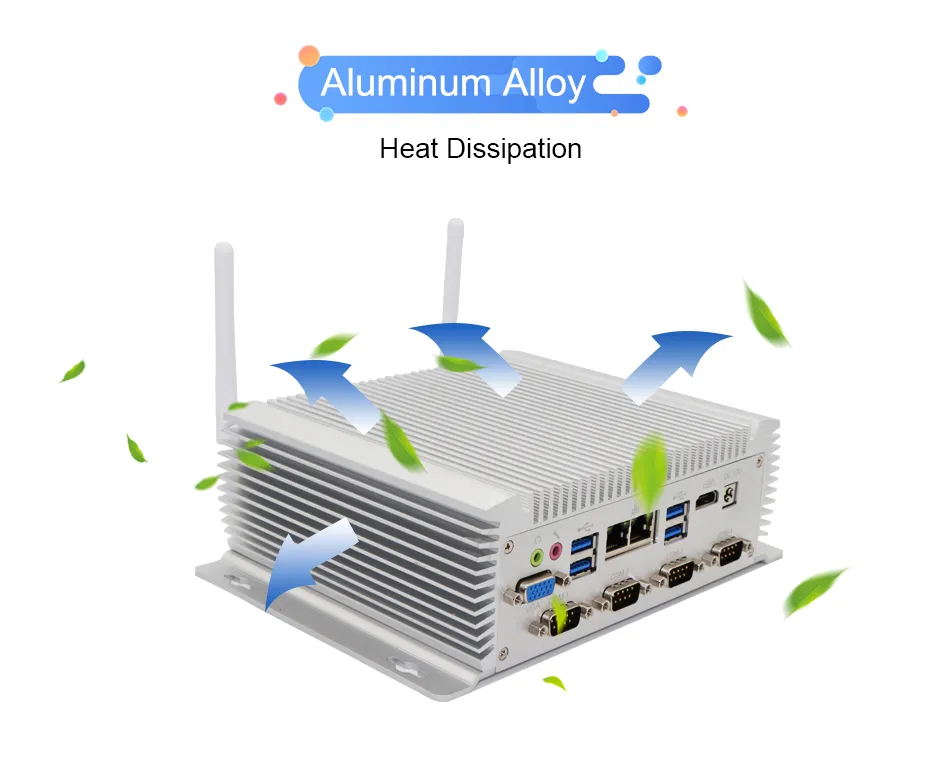

Industrial Design: Full Aluminum Alloy shell for superior heat dissipation and durability.
24/7 Fanless Operation: Silent, fanless system suitable for industrial-grade fields, capable of continuous 24-hour operation.
Advanced Functions: Supports Watchdog, Auto power on, RTC Wake Up, and Non-disk boot.
Energy Efficient: Low power consumption (TDP 15W) with wall-mount capability.

⚙

Technical Parameters

Feature	Detailed Description
Processor	Intel Core i5-4200u / Intel Core i7-4500u (Turbo boost Technology)
Graphics	Intel HD Graphics 4400
Memory	1 x SO-DIMM DDR3L Slot (Support 2GB/4GB/8GB)
Audio	ALC662 HD Audio (Line-in, Line-out, Mic-in)
Display Output	1 x VGA, 1 x HDMI 1.4
Storage Interface	1 x M-SATA3.0 slot, 1 x SATA3.0 slot
Case Material	Black/Silver aluminum alloy

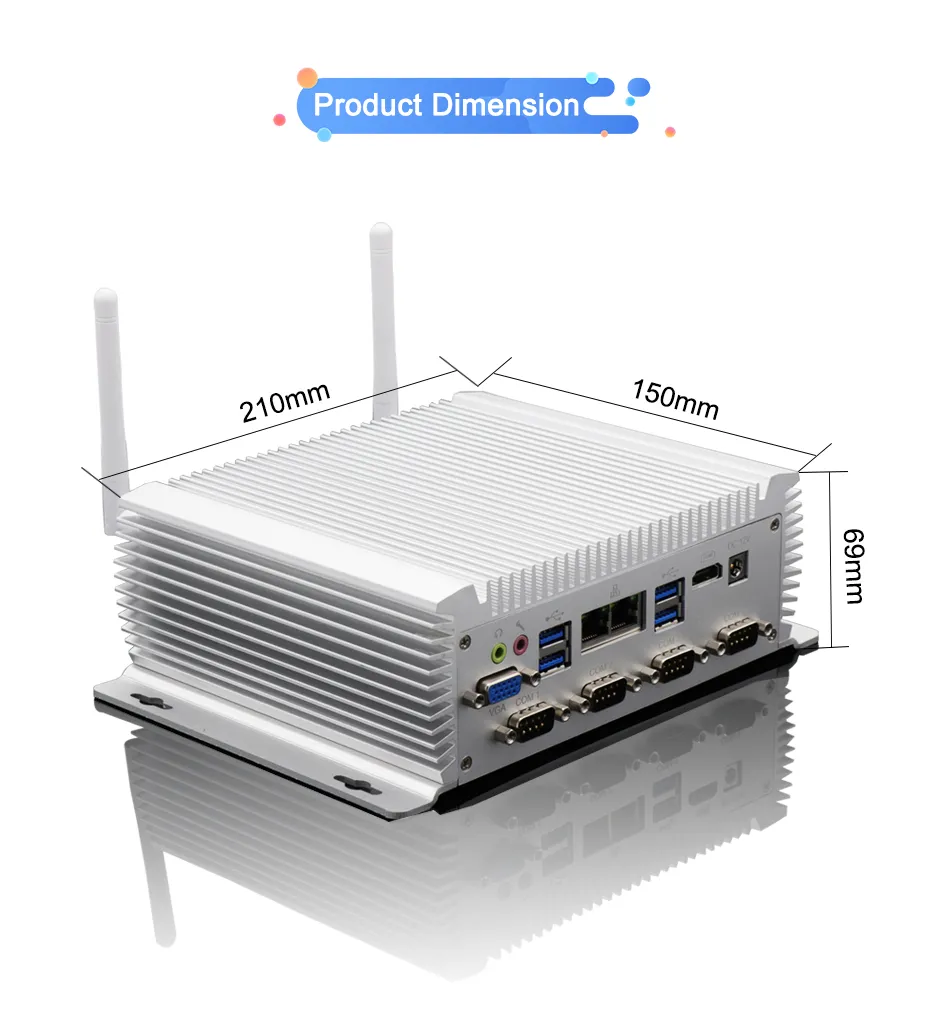

Dimensions	PC: 21015069mm \| Package: 34028090mm
Weight	Net 1.6kg, Gross 2.5kg

📷

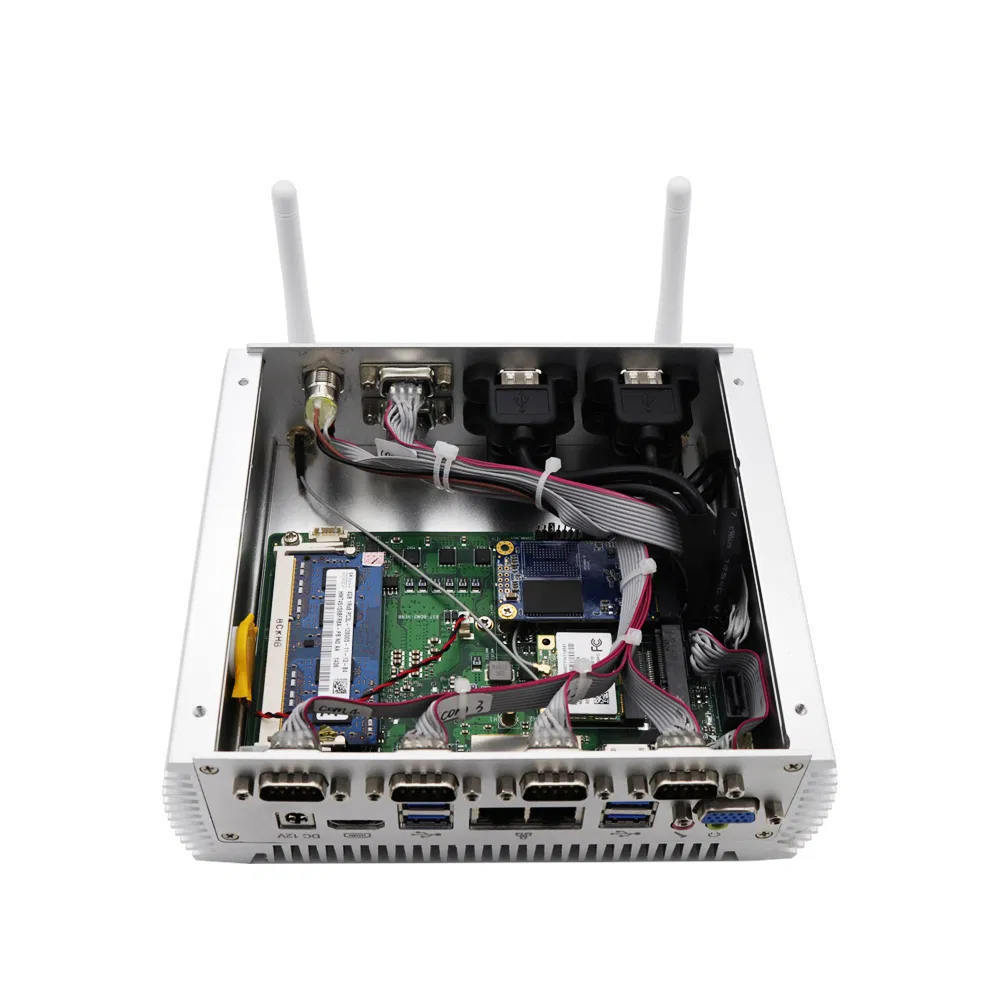

Detailed Photos

✈

Packaging & Shipping

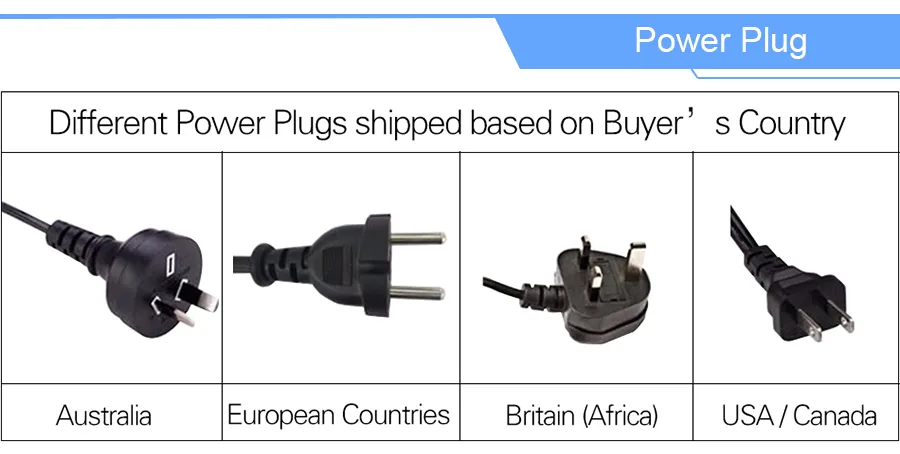

Package Content: 1x Mini PC, 1x Power Adapter, 1x Power Cord, 1x Screws Bag. Optional: Wi-Fi antennas, HDMI cable, User Manual.

✔

Quality Assurance

🛡

Warranty & Return Policy

We provide a 3-year product warranty backed by a professional technical team. Our industrial failure rate is less than 1%. Within 10 days of receipt, products can be returned; exchanges are supported within 30 days for quality issues.

Category	Description	Support	Shipping Charge
Quality Problem	Valid detection proof required	10 Days Return/Replacement	Seller
Damaged Goods	Appearance damage or missing parts	10 Days Return/Replacement	Seller
Wrong Items	Model or color mismatch	10 Days Return/Replacement	Seller
Personal Reasons	Subjective choice (not liked)	10 Days Return/Replacement	Buyer

?

Frequently Asked Questions

What Operating System is installed on this Mini PC?

The system comes with a trial version of Windows 10 Pro English by default. We also support selections like Linux, Ubuntu, and other languages (Spanish, French, German, etc.) upon request.

What brands of RAM and SSD are used?

We use high-quality, famous brands such as Samsung, Micron, SanDisk, Toshiba, and Kingston. The specific brand depends on our current stock and rigorous performance testing.

Can I order samples before a bulk purchase?

Yes, we offer samples for quality checks. The Minimum Order Quantity (MOQ) is 1 set. We also provide free OEM services for sample orders.

How is quality control managed at the factory?

Quality is our top priority. We implement strict quality control from the start of manufacturing through to final testing, providing a 3-year warranty for peace of mind.

Are there special prices for bulk orders?

Absolutely. We offer competitive pricing based on your order quantity. Please send an inquiry regarding bulk orders to receive specialized OEM/ODM service quotes.
