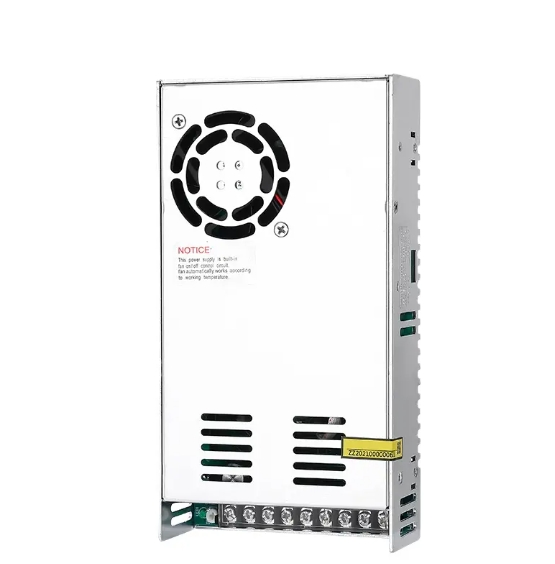

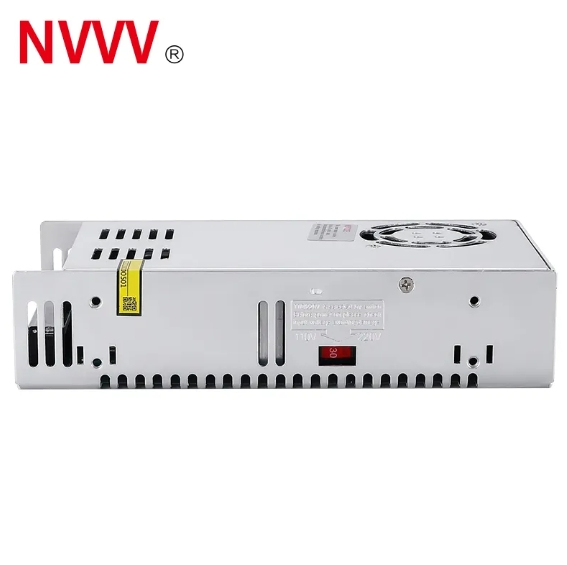

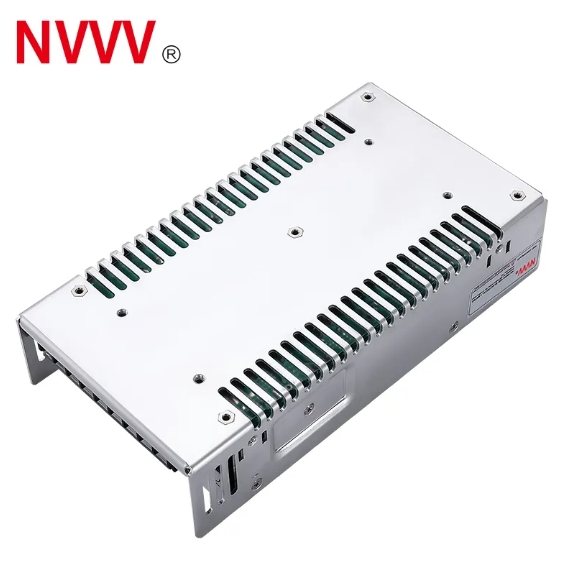

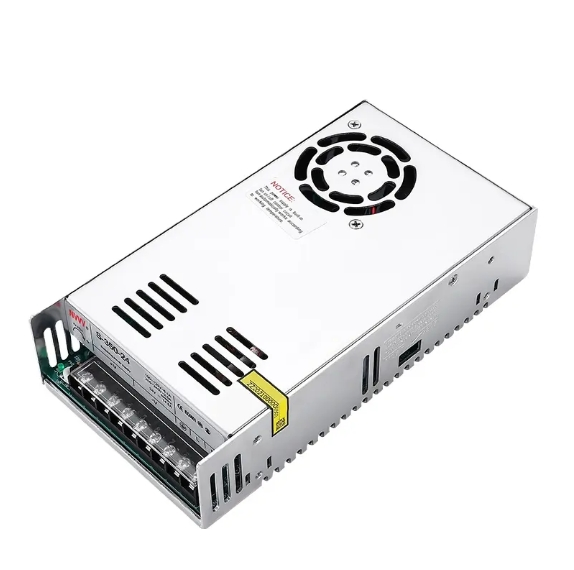

Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
1 / 5
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS
Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS

Nvvv Ms-500-12/24/36/48V Small Volume Switching Power Supply 12V 24V 36V 48V AC to DC Mini Size Output for LED Strips SMPS

Customization: Available
Output Type: Single
Warranty: 3 Years
Send Inquiry

Product Description

Switching Power Supply

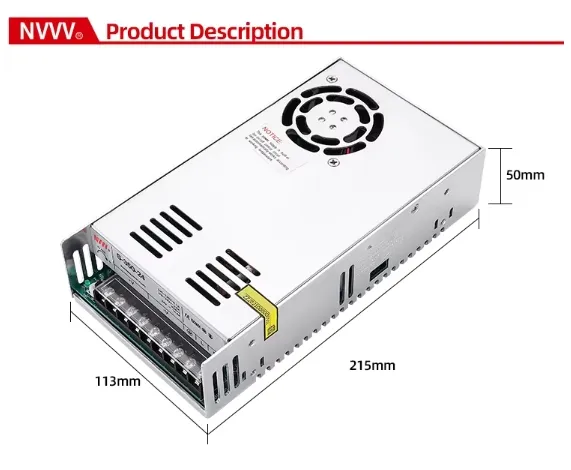

Power Supply Back View

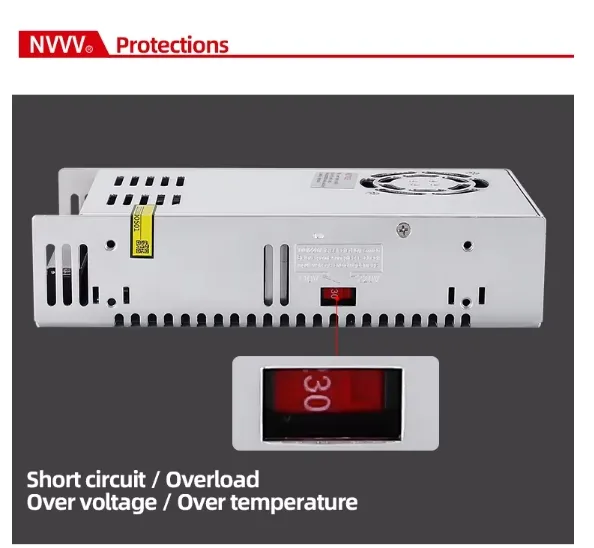

Internal Components
Basic Information
Model NO.
MS-500-12/24/36/48V
Output Power
500W
Input Voltage
90-132/180-264VAC
Connection Mode
Series Switching
Regulating Mode
Frequency Modulation
Certification
CE, RoHS, ISO, CCC
Specification
214*114*50mm
Capacity
10000 piece/Month
Product Features & Specification
Dimensions
Terminal Details
MS-500 Technical Parameters
Project Technical Indicators
Output DC Voltage 12V 24V 36V 48V
Rated Current 41.6A 20.8A 13.8A 10.4A
Ripple & Noise <150MV <150MV <240MV <240MV
Accuracy ±1%
Input Voltage Range 90-132VAC/180-264VAC 47Hz~63Hz; 254VDC-370VDC
Efficiency >82% >84% >86% >86%
Impulse Current 110VAC: 25A, 220VAC: 50A
Protection Overload ≥105%-135% type: constant current output
Environment Operating Temp -10ºC ~ 50ºC; 20% ~ 90RH
Safety Withstand Voltage I/P-O/P: 1.5KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
Production & Delivery

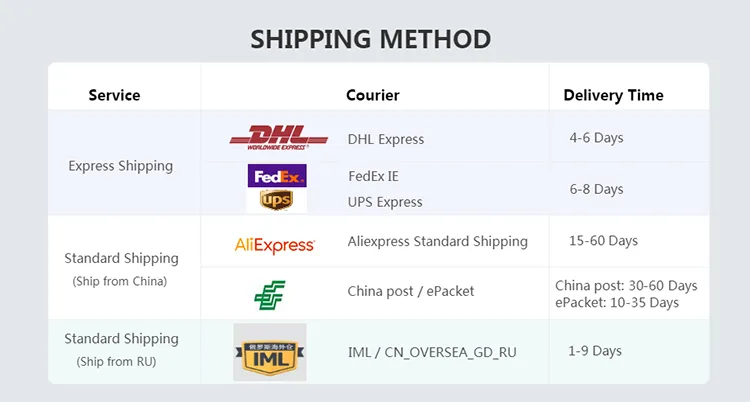

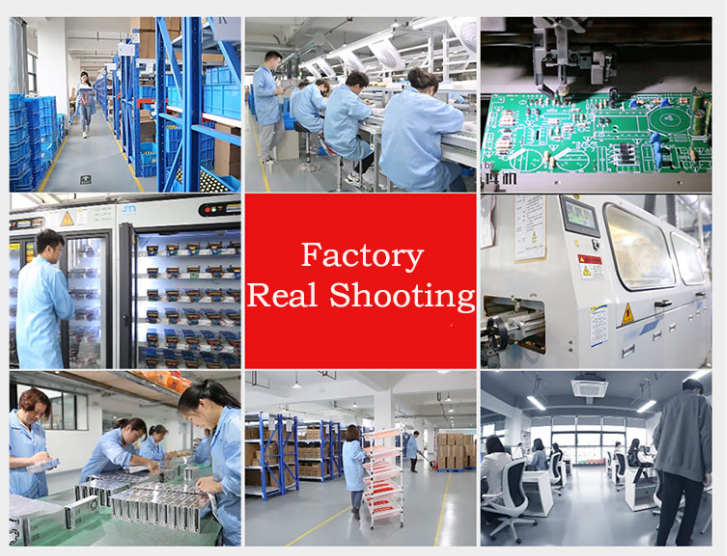

Workshop Production Line Our Team Packaging Shipping Methods
Frequently Asked Questions
What output voltages can you supply?
We provide 12V, 24V, and 48V options depending on the specific model requirements.
Can I request a sample order for testing?
Yes, we welcome sample orders to test and check the quality. Mixed samples are also acceptable for evaluation.
Is there a minimum order quantity (MOQ)?
We offer a low MOQ; even 1pc for sample checking is available to help you start your project.
What are the typical shipping methods and delivery times?
We usually ship via DHL, UPS, FedEx, or EMS. Arrival typically takes 3-5 days. Airline and sea shipping options are also available.
What is your policy for handling faulty products?
Our products are produced under a strict quality control system. During the guarantee period, we will send new replacements or repair defective units depending on the specific situation.
Do your products come with a warranty?
Yes, all our power supply products include a standard warranty to ensure long-term reliability and customer satisfaction.
