Industrial 240W Switching Power Supply for 12V, 24V, 48V Systems

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

NDR-240-24

Output Power

201 - 300W

Input Voltage

90-264VAC; 127-370VDC

Connection Mode

Series Switching Power Supply

Starting Mode

Separate-excited Switching

Voltage Mode

Width Modulation Type

Output Voltage

24V, 12V

Installation

35mm DIN Rail Mounted

Certification

HS Code

8504401990

Product Description

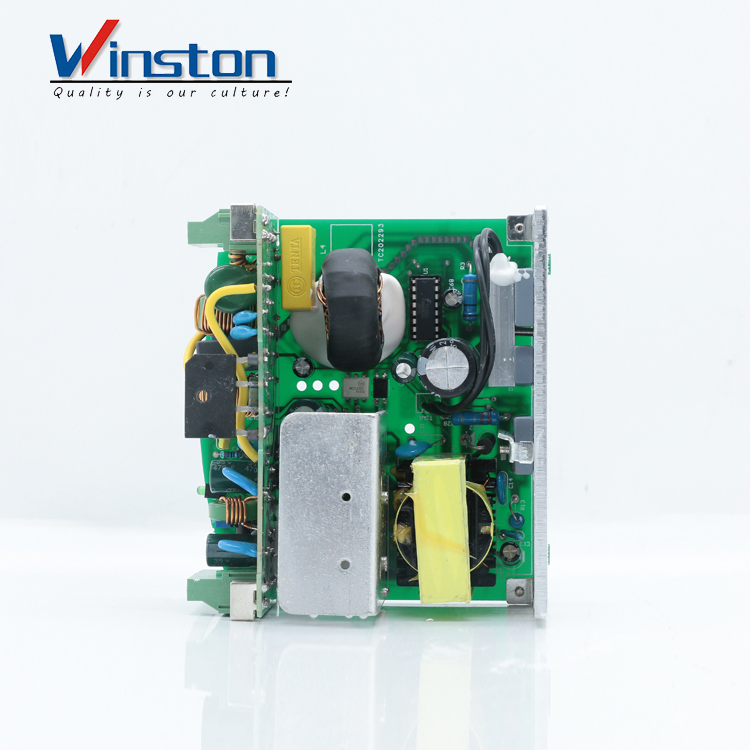

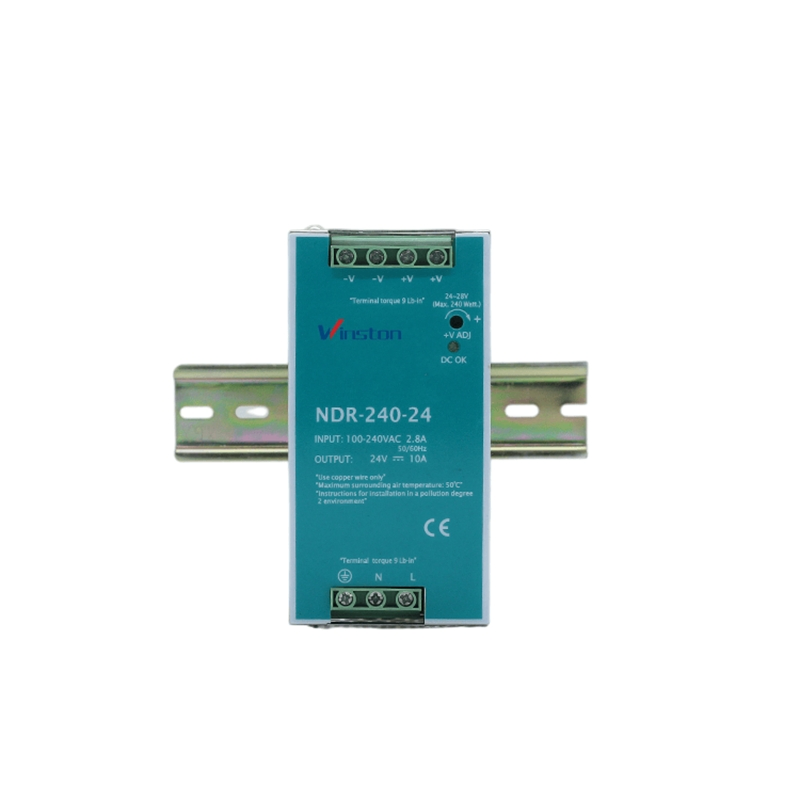

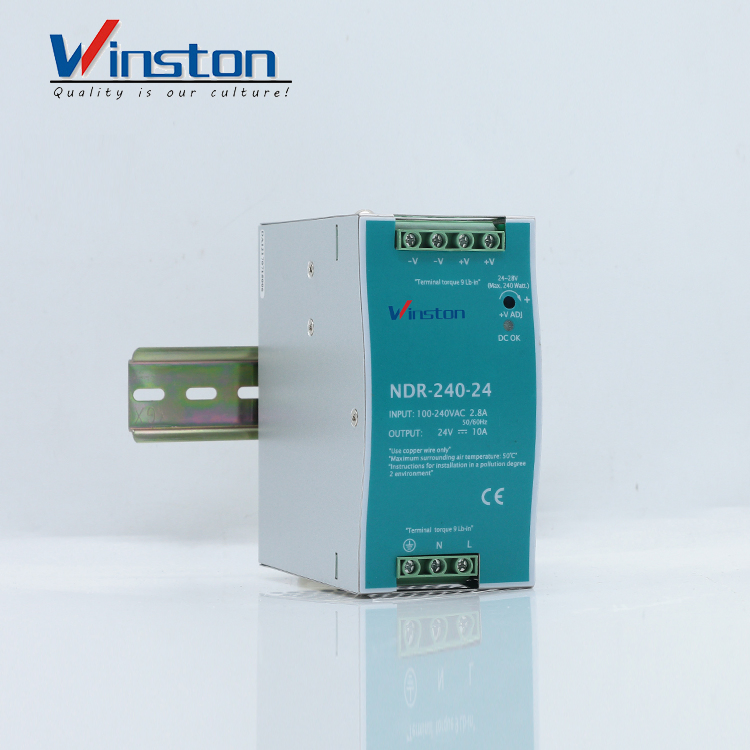

NDR-240 240W DIN Rail Switching Power Supply

🛡️

Comprehensive Protection: Equipped with short-circuit, over-load, and over-voltage safeguards, ensuring uninterrupted operation for industrial applications.

❄️

Efficient Cooling: Designed with advanced air cooling technology to maintain optimal temperature levels and extend device lifespan.

✅

Reliability Guaranteed: Undergoes 100% full load burn-in testing to ensure performance consistency and quality endurance.

🌍

Global Compatibility: Ultra-wide 90-264VAC input range with a selector switch allows for seamless adaptation to various power requirements worldwide.

⚡

Active PFC Function: Features built-in Active Power Factor Correction (PF > 0.95), meeting strict energy harmonic standards (EN61000-3-2).

Technical Parameters

Feature	NDR-240-24	NDR-240-48
DC Output Voltage	24V	48V
Rated Current	10A	5A
Current Range	0-10A	0-5A
Rated Power	240W	240W
Ripple & Noise	150mVp-p	150mVp-p
Efficiency	88.50%	90%
Voltage Range	90-264VAC	90-264VAC
Operating Temp.	-20ºC ~ +70ºC
Dimensions	63 * 125.2 * 113.5mm

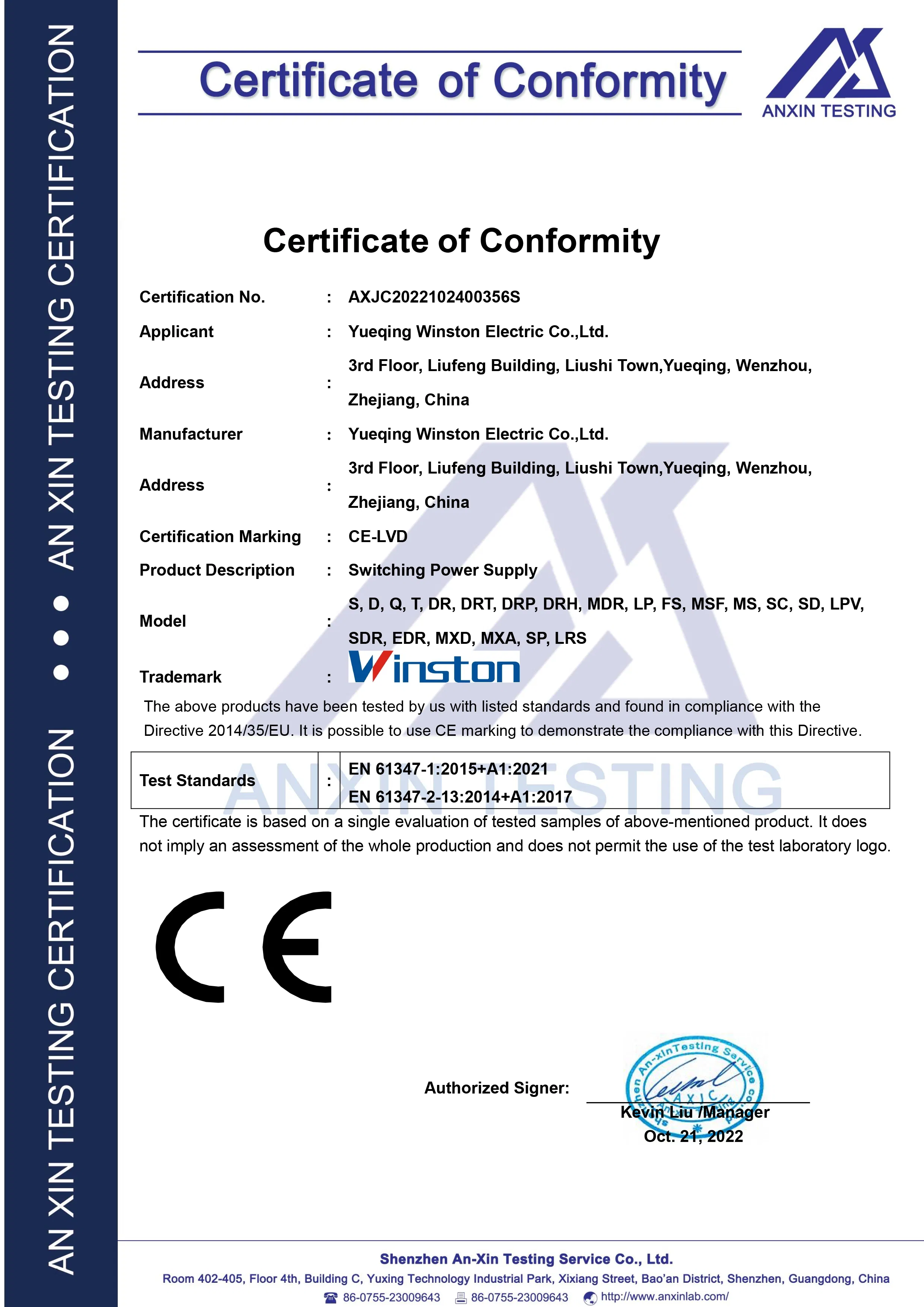

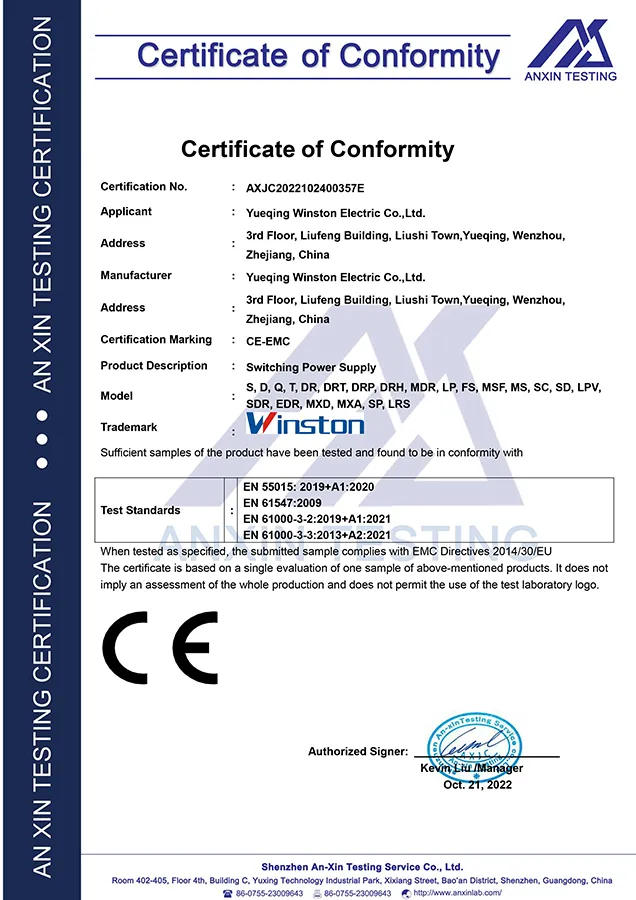

Certifications

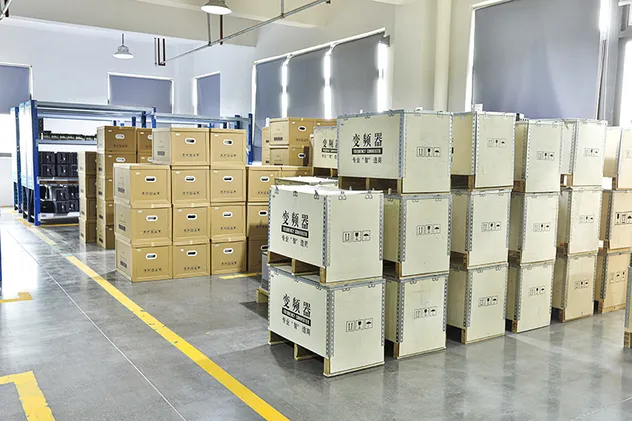

Packaging & Shipping

Professional Industrial Solution

Frequently Asked Questions

What is the input voltage range for this power supply?

The NDR-240 supports a universal AC input range of 90-264VAC and a DC input range of 127-370VDC.

What kind of protection does the NDR-240 provide?

It includes a quad-protection suite: Short-Circuit, Over-Load (105-130% with auto-recovery), Over-Voltage, and Over-Temperature protection.

How is the unit cooled during operation?

The unit utilizes efficient free air convection cooling technology, allowing it to operate in temperatures ranging from -20°C to +70°C.

Is this power supply suitable for DIN rail mounting?

Yes, it is specifically designed to be installed on standard DIN rail TS-35/7.5 or 15 systems.

Does this model feature Power Factor Correction (PFC)?

Yes, the NDR-240 includes a built-in active PFC function with a power factor greater than 0.95 at full load.

Has the product been tested for reliability?

Every unit undergoes a rigorous 100% full load burn-in test before shipment and has an MTBF rating of over 230,000 hours.
