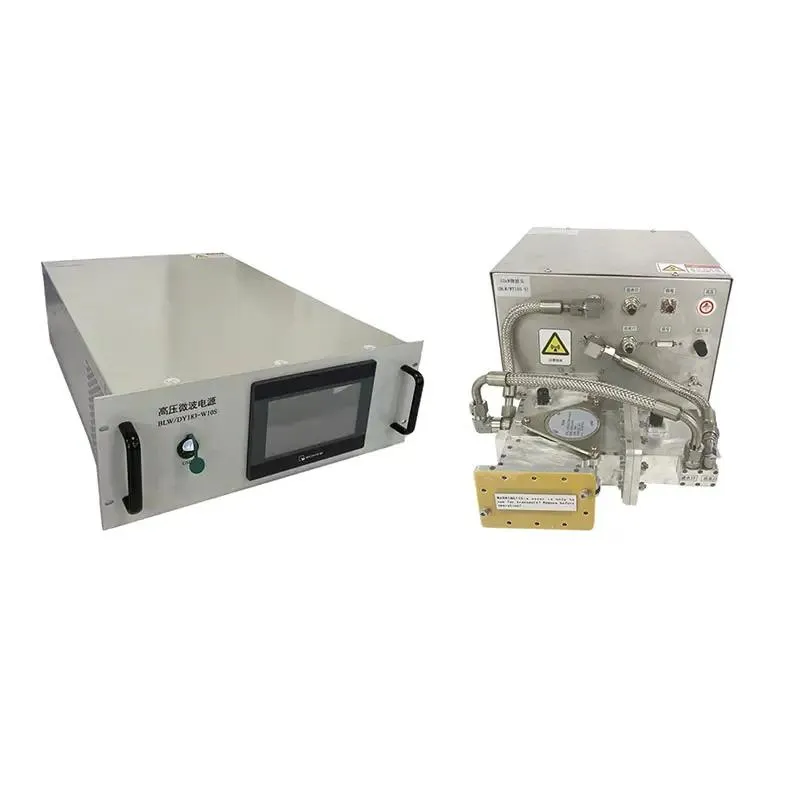

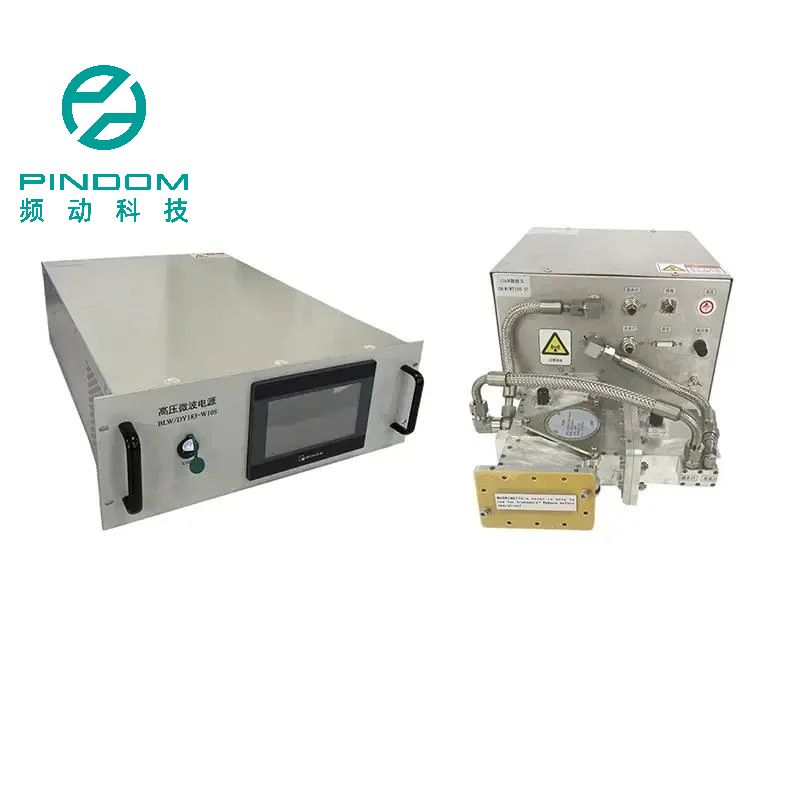

This high-performance product utilizes a continuous wave magnetron to realize a microwave generator with 6kW power. The system integrates an anode high-voltage power supply, filament power supply, magnetic field power supply, and an advanced control system. The microwave head includes the magnetron and excitation cavity, while the system is supported by a high-efficiency circulator.
| Technical Item | Specifications |
|---|---|
| Microwave Power | ≥ 6KW (10%~100% continuous adjustment) |
| Frequency Range | 2450MHz ± 15MHz |
| Microwave Conversion Rate | ≥ 65% |
| Control Method | Local touch screen / RS485 Communication |

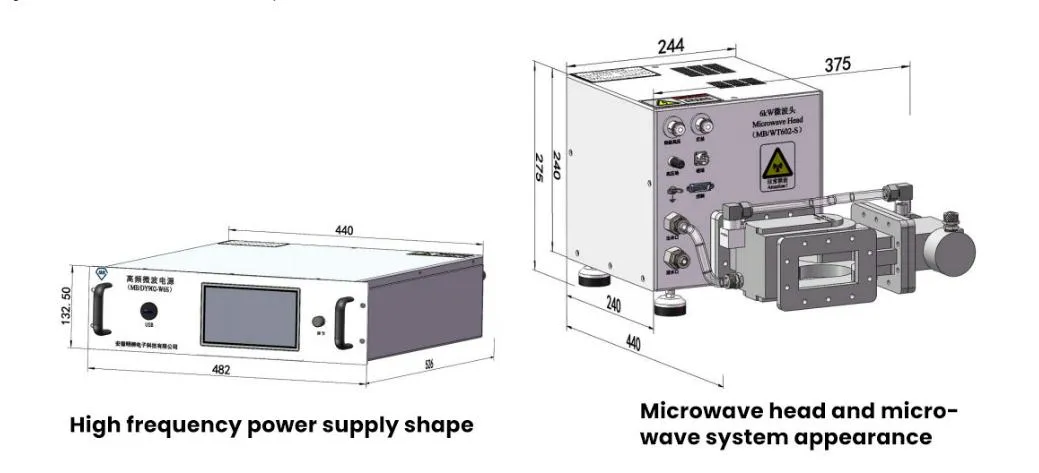

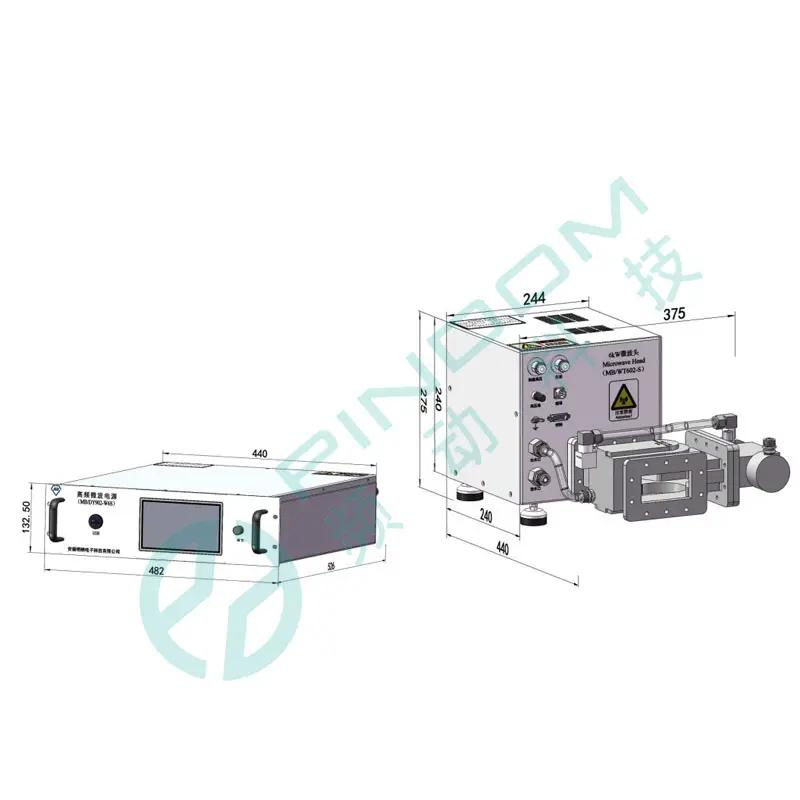

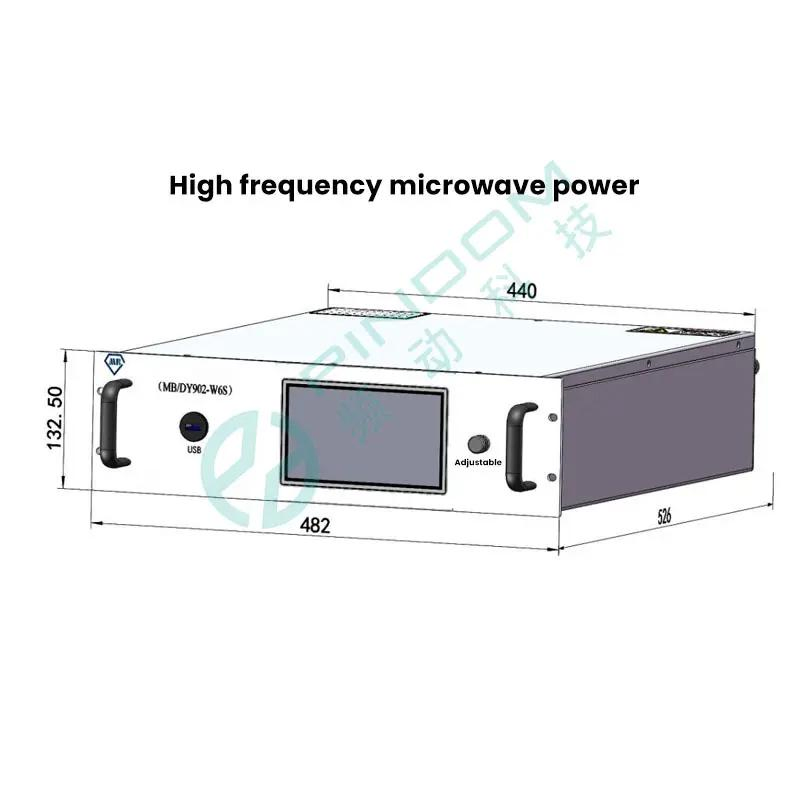

| Power Supply Volume | 482mm * 132.5mm * 526mm |

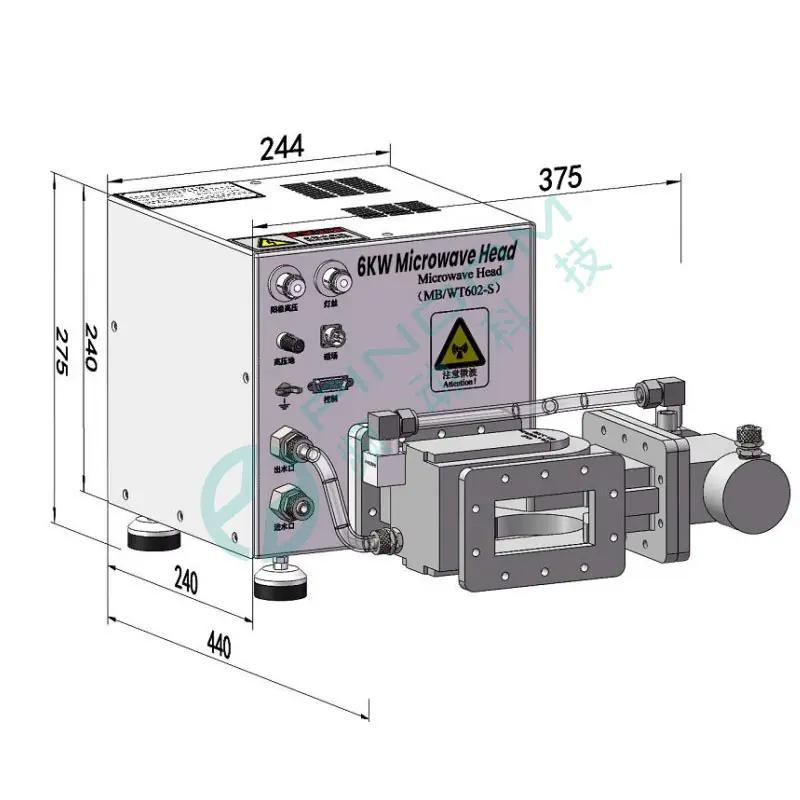

| Microwave Head Volume | 375mm * 275mm * 440mm |
| Protection Features | Ignition, Over-temp, Water flow, Over-voltage, Over-current |

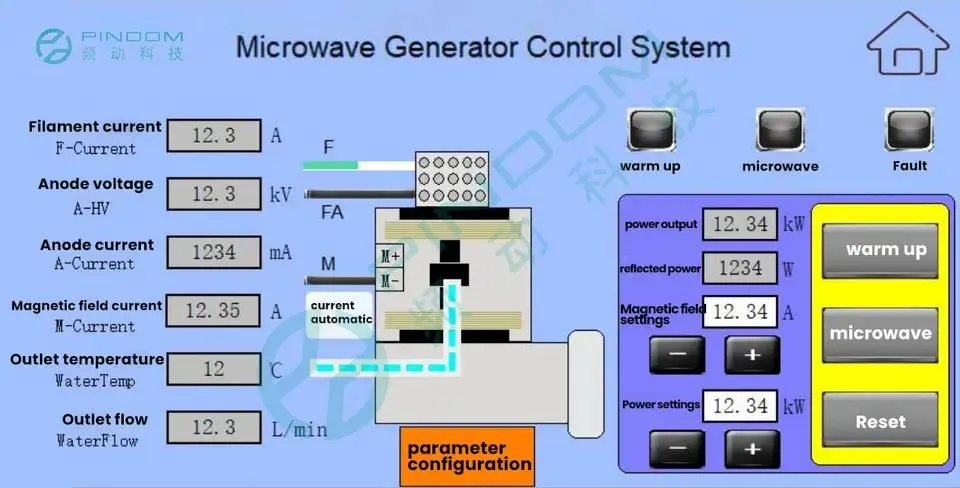

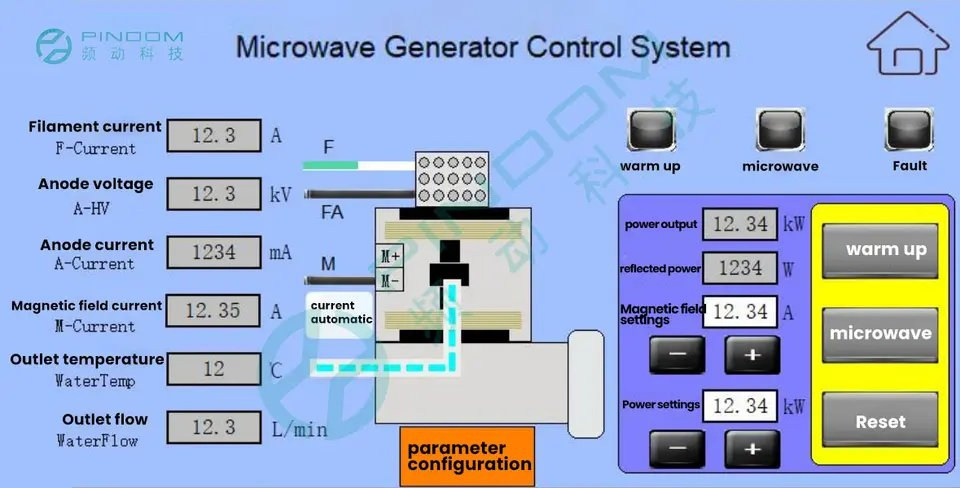

Supports local touch screen operation and remote RS485 communication, offering flexibility for different industrial environments.
The system stores parameters in real-time, allowing users to view historical records for failure analysis and troubleshooting.
Full hardware high-speed protection cuts power within 50μs for general faults and 5μs for ignition protection.
Features a microwave conversion efficiency of up to 65.9%, reducing system loss and extending the equipment's service life.
Our enterprise focuses on solid-state microwave and radio frequency technology, committed to providing commercial and industrial-grade smart products with high reliability and stability.
