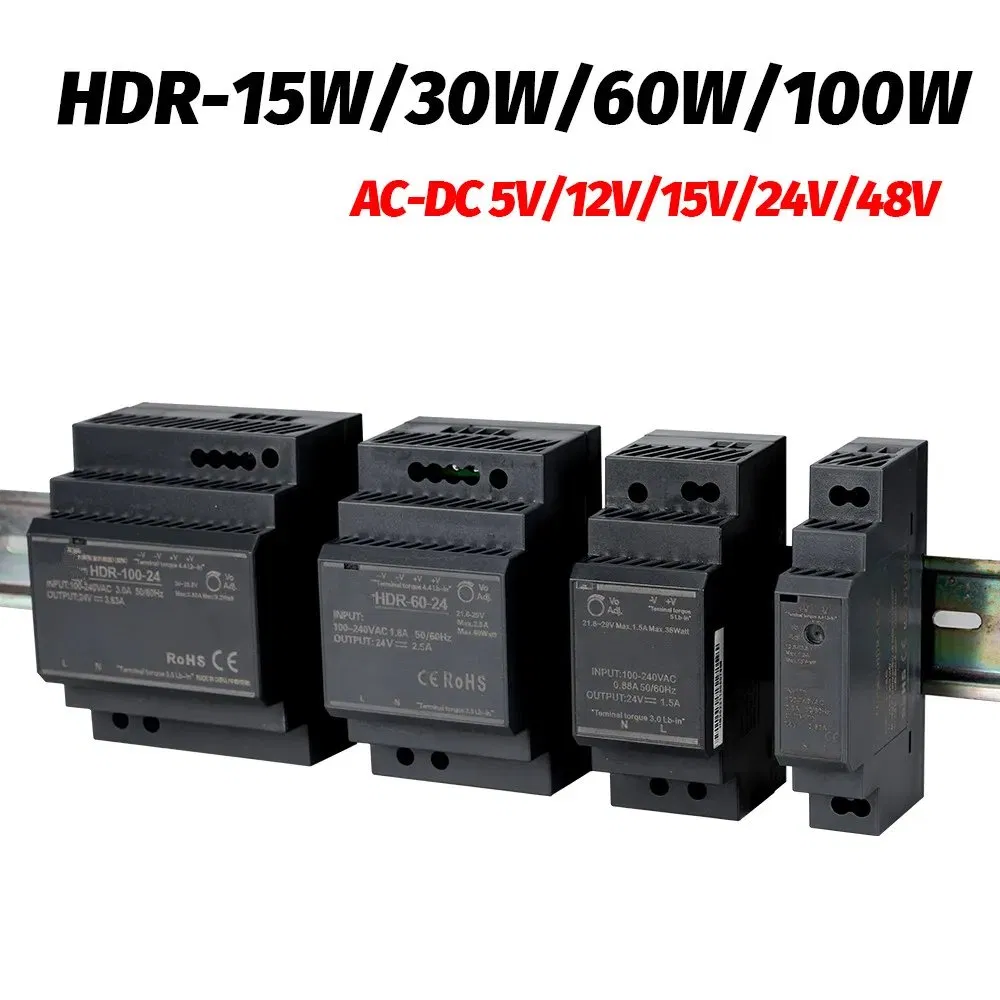

Hdr Series Switching Power Supply DIN Rail 15W 30W 60W 100W 150W AC/DC 12V 24V Industrial Ultra-Thin SMPS

Customization:	Available
Output Type:	Single
Warranty:	1 Year

Basic Information

Model NO.

HDR

Output Power

101 - 200W

Input Voltage

110-220V

Connection Mode

Series Switching Power Supply

Starting Mode

Self-excited Switching

Voltage Mode

Width Modulation Type

Modulation

PWM

Certification

CE, RoHS

Output Voltage

5V 12V 15V 24V 36V 48V

Walt Options

15W 30W 60W 100W 150W

HS Code

8504401990

Capacity

100,000 PCS/Year

Product Overview

HDR Series DIN Rail Switching Power Supply 15W-150W AC/DC Industrial Ultra-thin SMPS Transformer

Key Features

Universal AC input / Full range

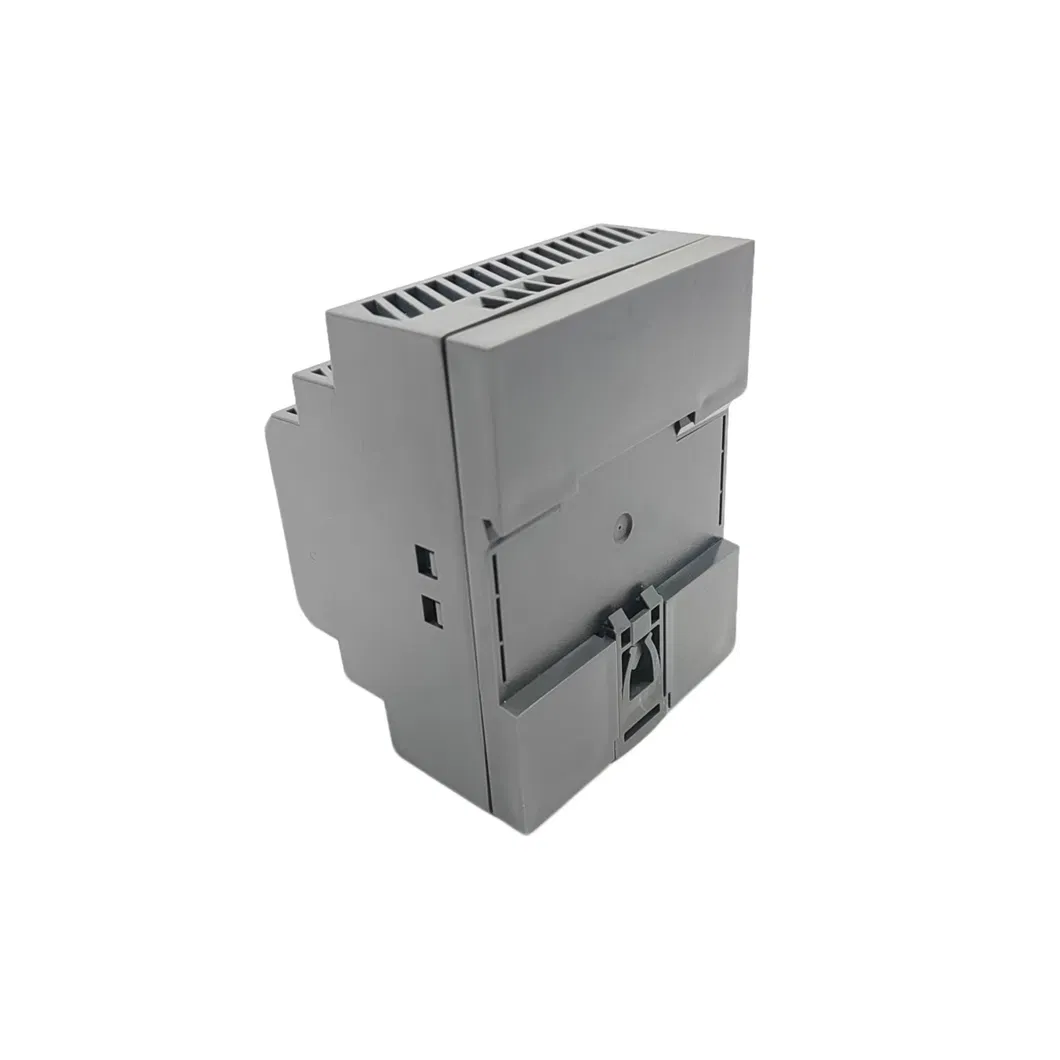

Installed on DIN rail TS35/ 7.5 OR 15
Short circuit / Over-load / Over-voltage protection
No load power consumption < 0.75W
LED indicator for power on
DC OK signal output (10W models)
DC OK relay contact (40W & 60W models)
Cooling by free air convection
100% full load burn-in test
2 Years standard warranty

Technical Specifications (HDR-30 Series)

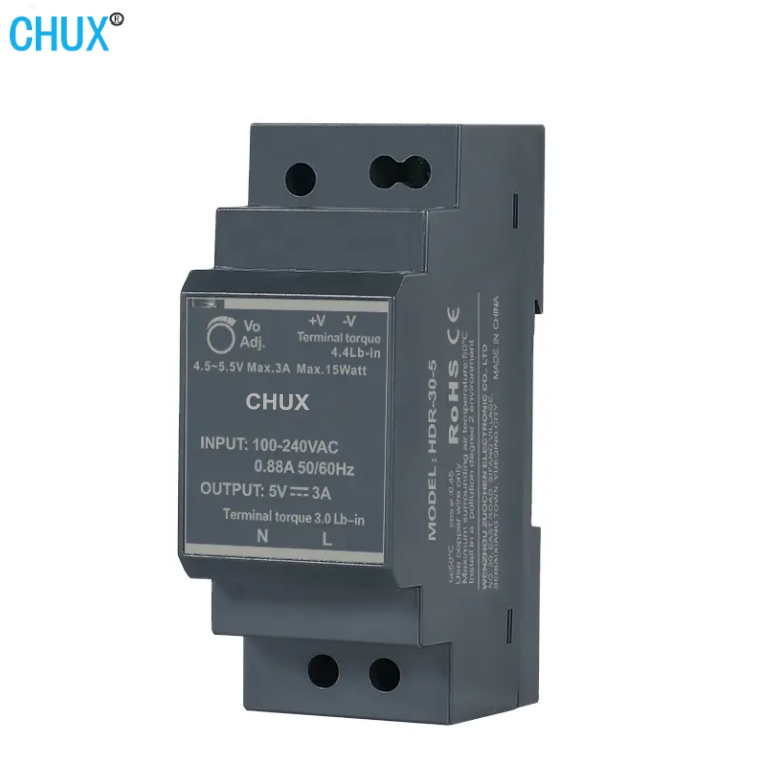

Model	HDR-30-5	HDR-30-12	HDR-30-15	HDR-30-24
DC Voltage	5V	12V	15V	24V
Rated Current	3A	2A	2A	1.5A
Rated Power	15W	24W	30W	36W
Ripple & Noise	80mVp-p	120mVp-p	120mVp-p	150mVp-p
Voltage Adj.	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
Efficiency	74%	81%	82%	83%

Technical Specifications (HDR-60 Series)

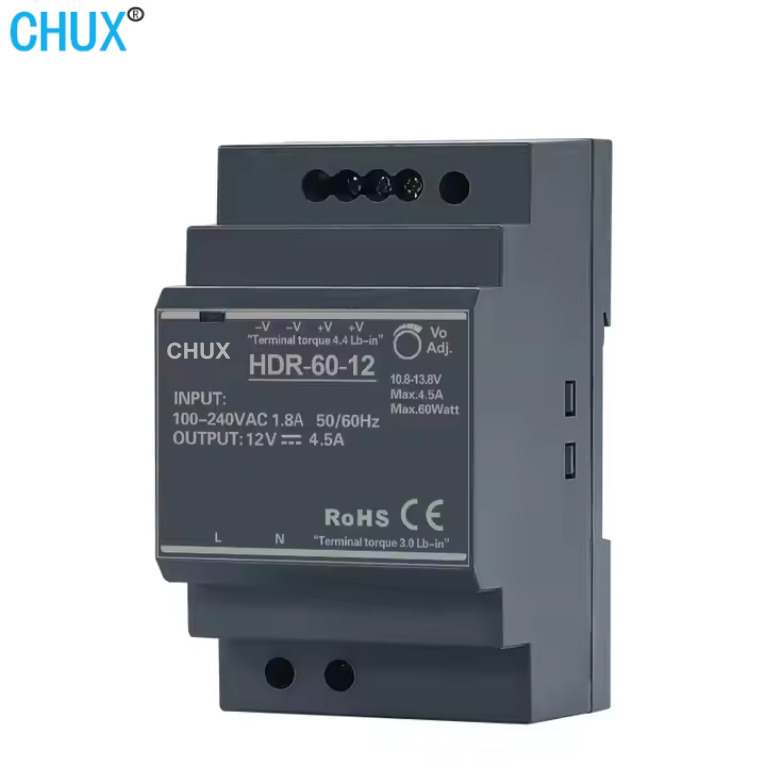

Model	HDR-60-5	HDR-60-12	HDR-60-15	HDR-60-24	HDR-60-48
DC Voltage	5V	12V	15V	24V	48V
Rated Current	6.5A	4.5A	4A	2.5A	1.25A
Rated Power	32.5W	54W	60W	60W	60W
Efficiency	85%	88%	89%	90%	91%
Dimensions	52.59054.5mm (WHD)				52.5mm

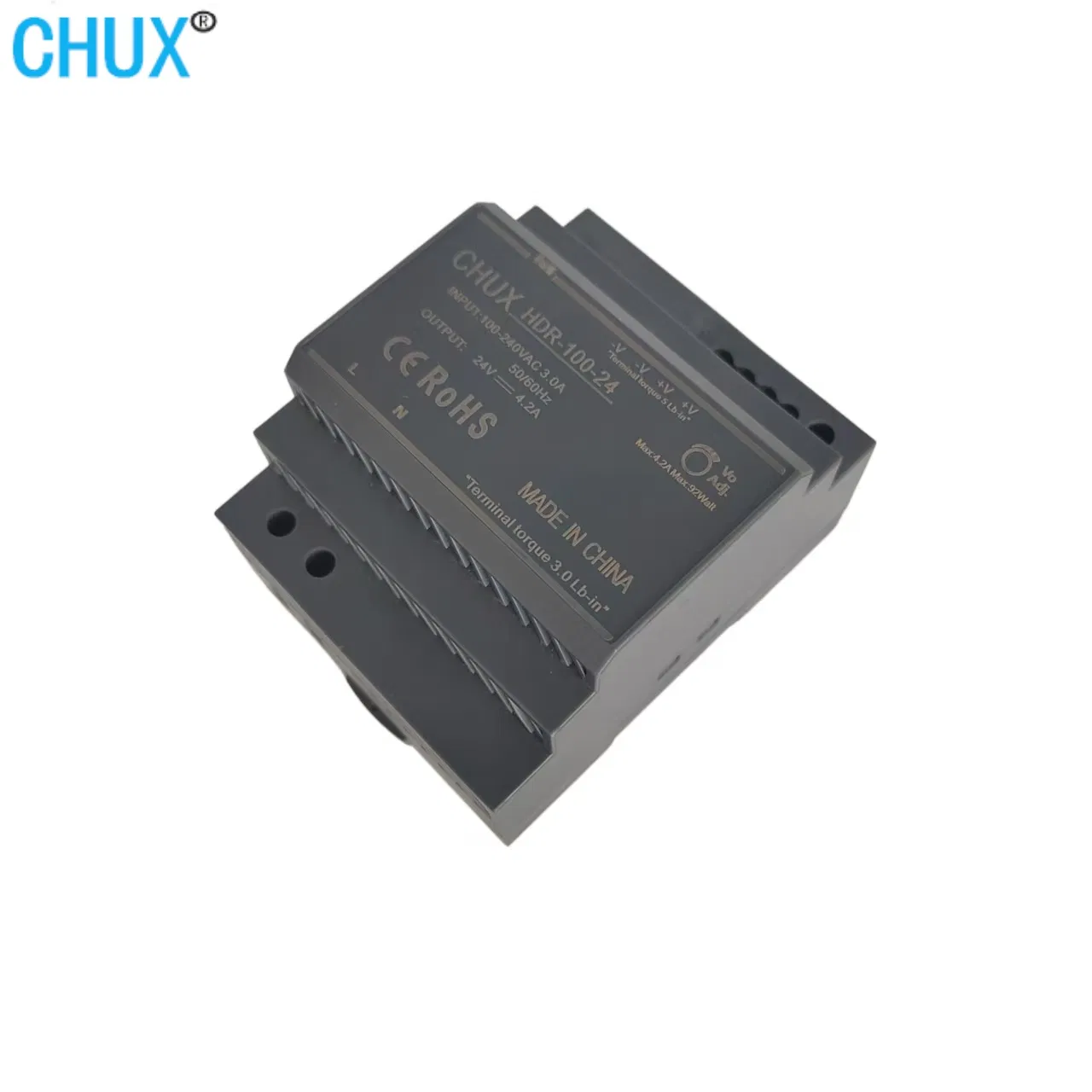

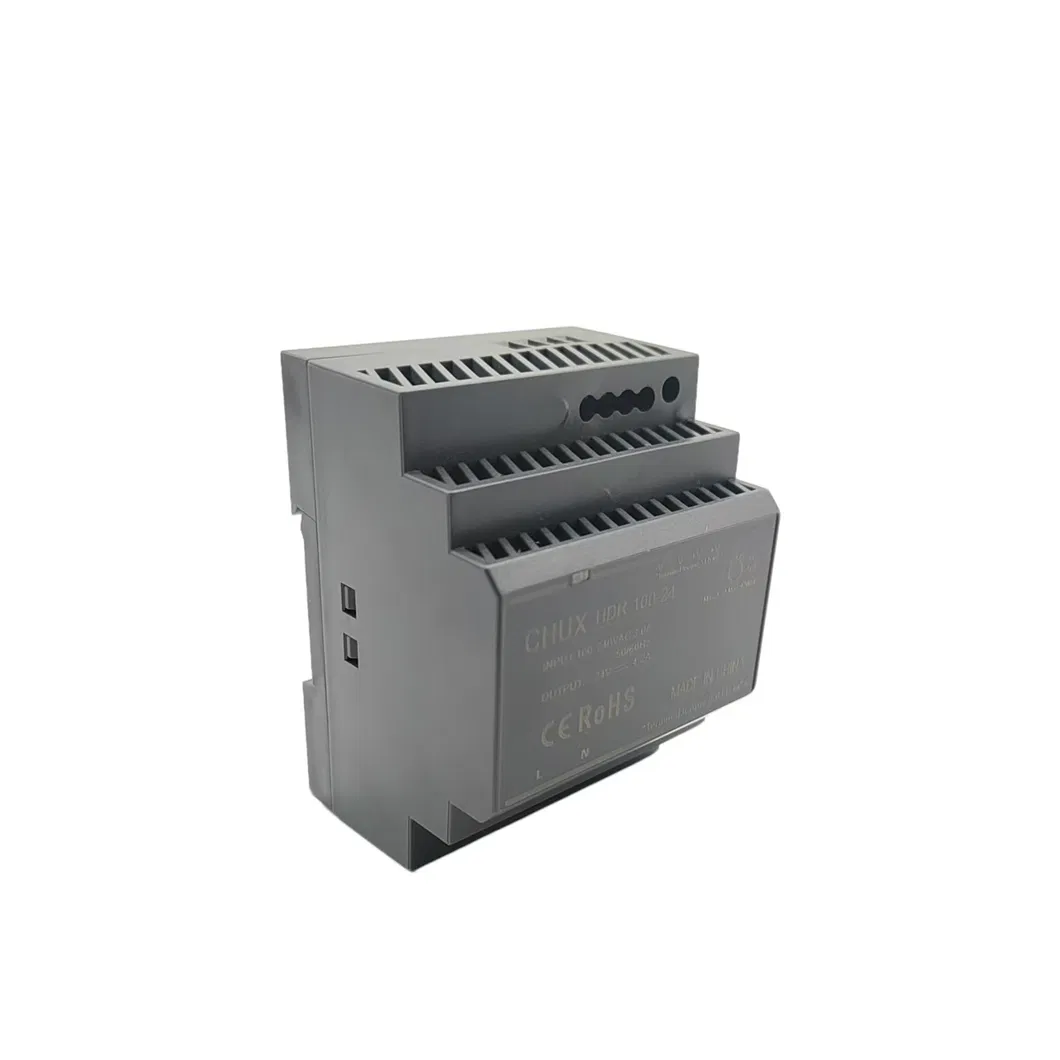

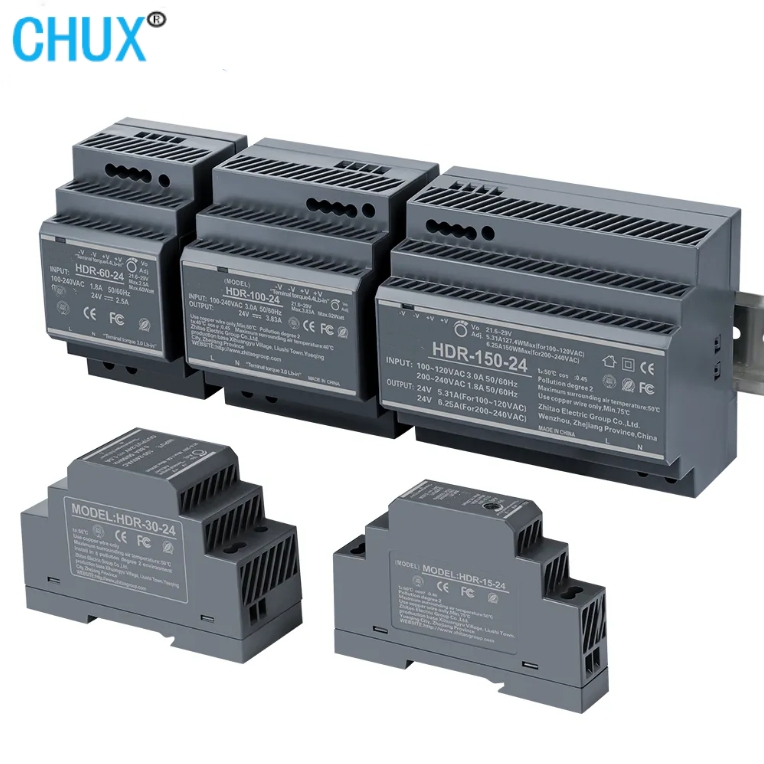

Product Gallery

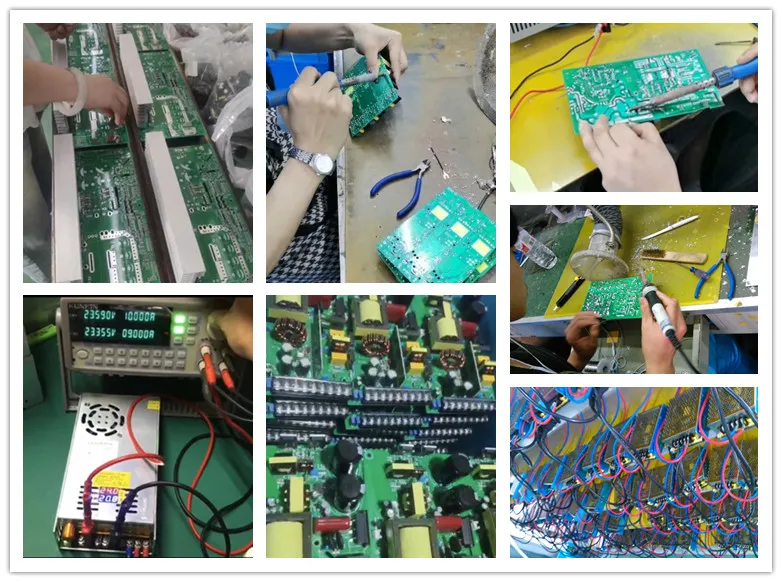

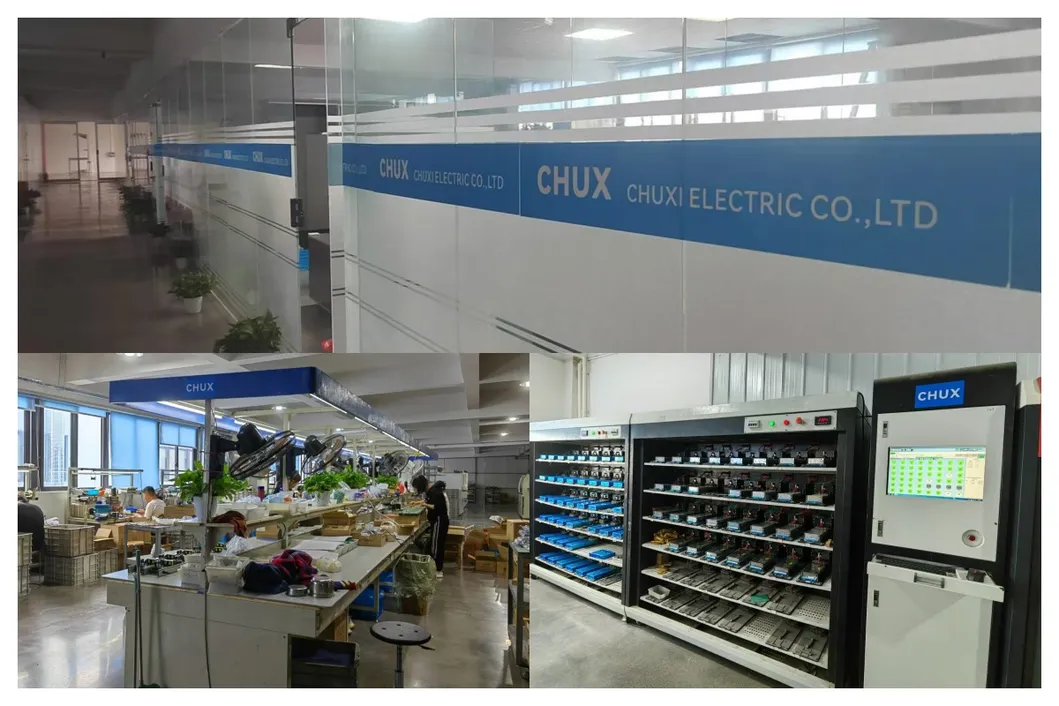

Manufacturing & Facility

Frequently Asked Questions

How do you ensure product quality?

We perform a rigorous aging test for 12 hours on all units before they are released to the market to ensure long-term reliability.

Do you provide samples for testing?

Yes, we welcome sample orders for testing and quality verification before placing large-scale bulk orders.

What is the typical production lead time?

Sample orders (under 100pcs) usually take 4 days. General orders up to 10,000pcs are typically completed within 7-15 days.

Are OEM and ODM services available?

Yes, we fully support OEM and ODM requirements and can provide customized products based on your specific industrial needs.

How do you manage large order delivery times?

We operate specialized production lines: one dedicated to sample and small orders, and another for high-volume production, ensuring we meet contract deadlines.

What kind of warranty do you offer?

All our industrial switching power supply products come with a standard 2-year warranty service.
