Product Overview
The switching power supply with the PFC function has power correction factors and features high efficiency and low consumption. Most of the products in this series are used in industrial distribution boxes, control boxes, and equipment in the machinery industry.

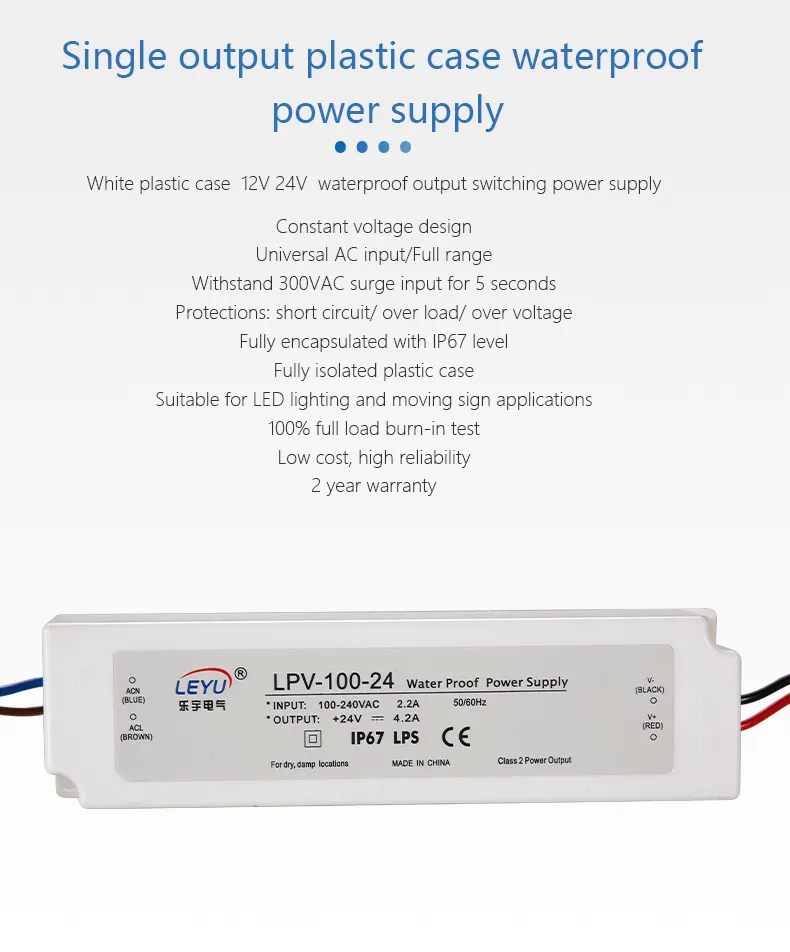

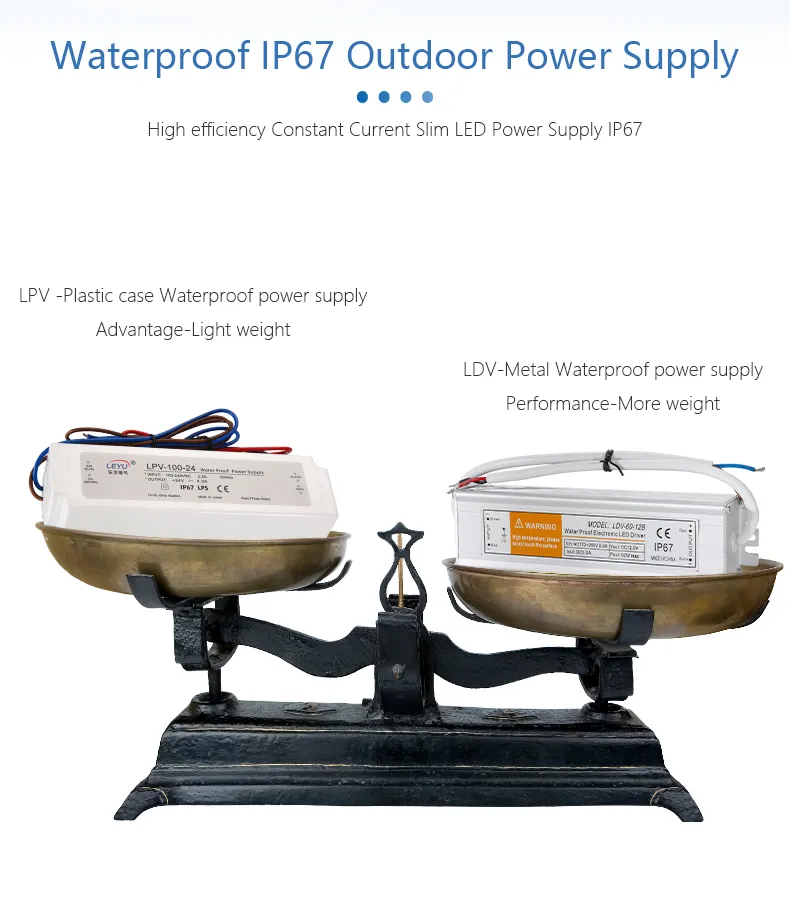

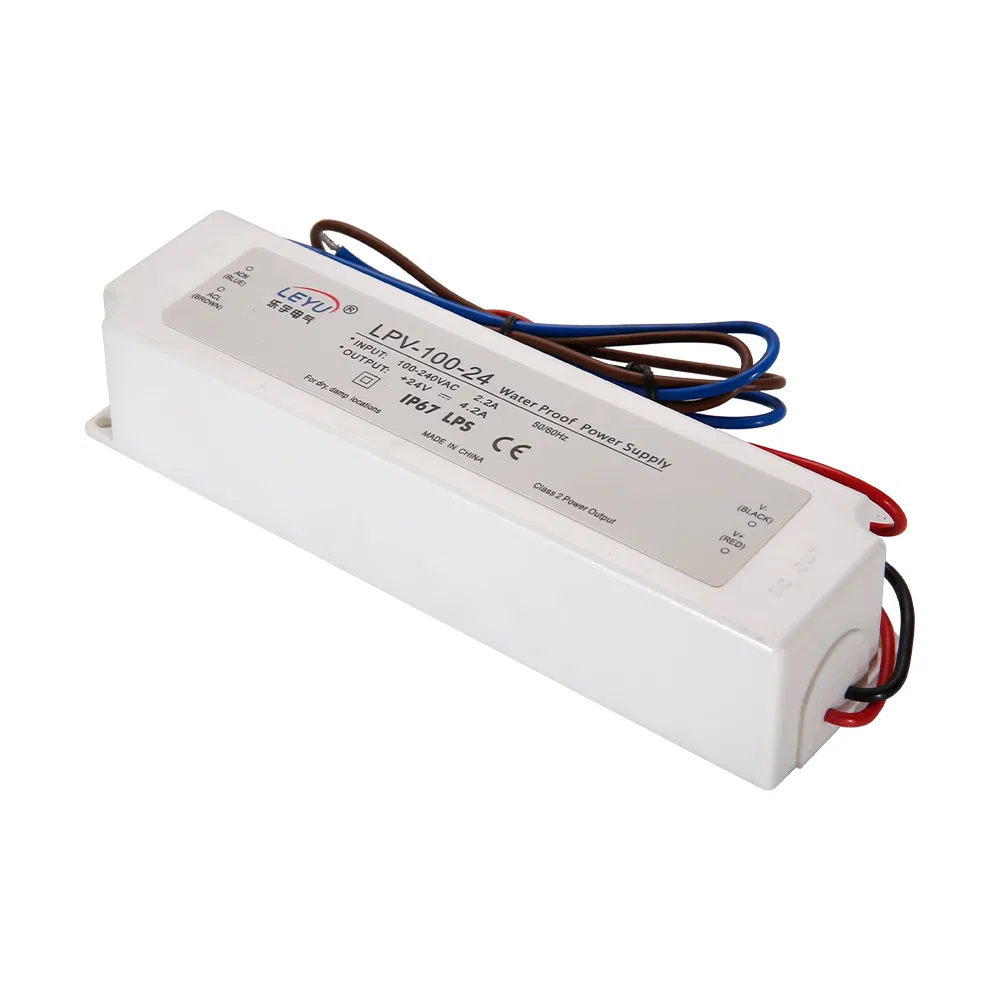

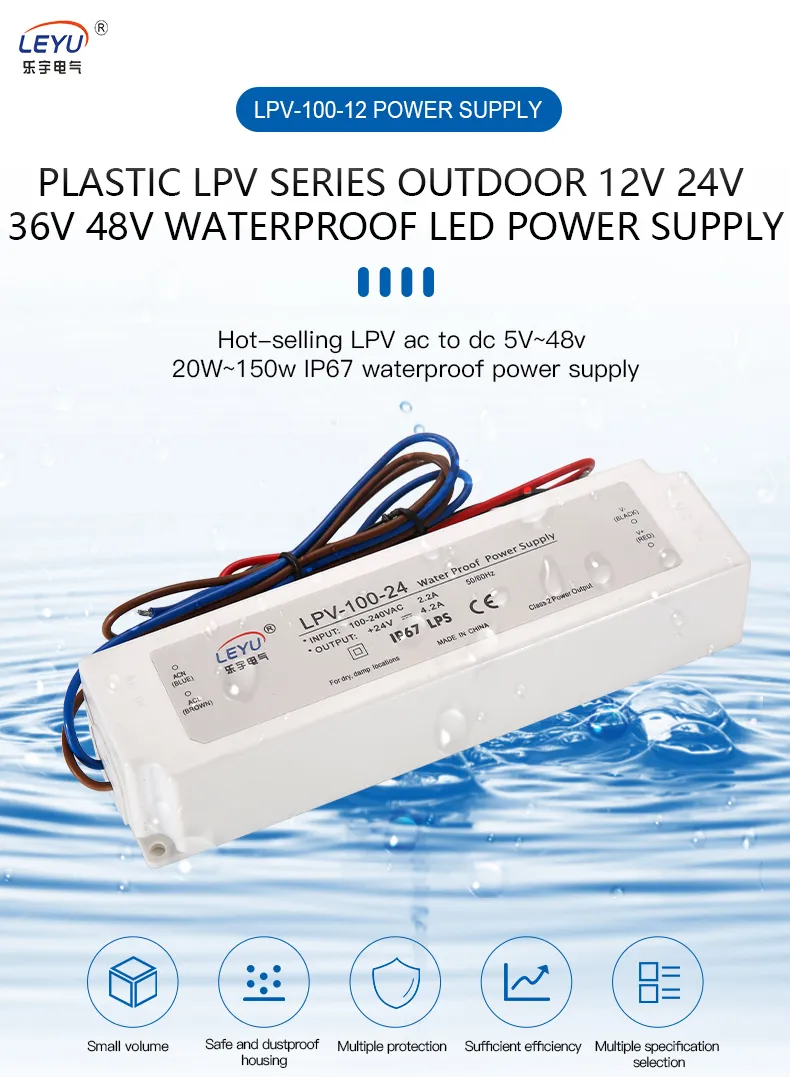

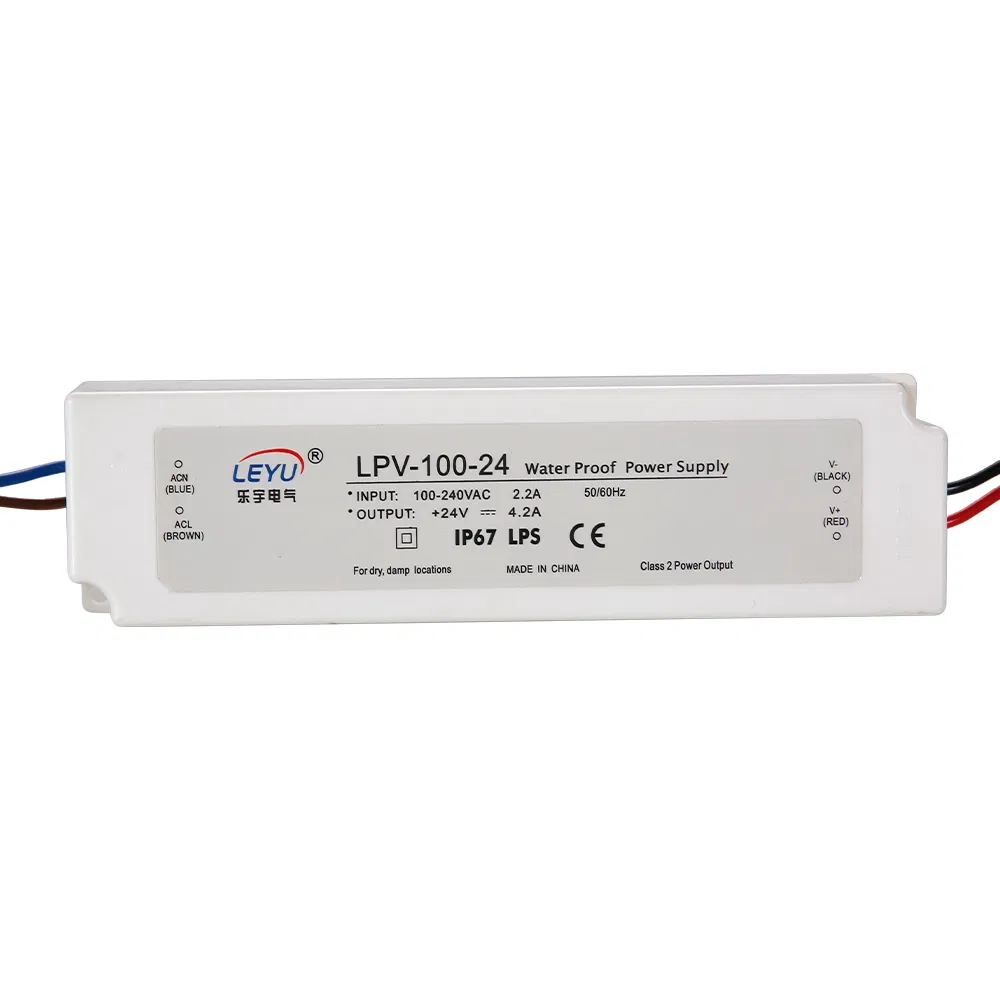

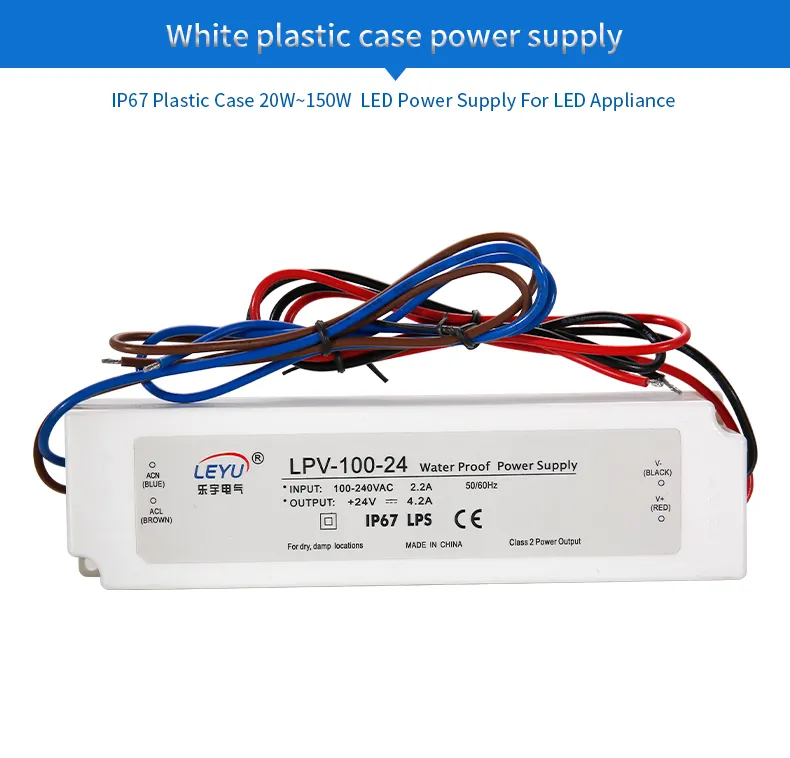

The waterproof switching power supply features a durable hard shell and a high waterproof rating of IP67, providing excellent protection against water and dust. This ensures optimal heat dissipation and reliability in challenging environments. This product is ideal for urban greening, fountains, landscape lighting, and other outdoor installations.
Technical Parameters
| Model |
LPV-100-5 |
LPV-100-12 |
LPV-100-15 |
LPV-100-24 |
LPV-100-36 |
LPV-100-48 |
| DC Voltage |
5V |
12V |
15V |
24V |
36V |
48V |
| Rated Current |
12A |
8.5A |
6.7A |
4.2A |
2.8A |
2.1A |
| Rated Power |
60W |
102W |
100.5W |
100.8W |
100.8W |
100.8W |
| Efficiency |
80% |
85% |
87% |
88% |
88% |
89% |
| Ripple & Noise |
80mVp-p |
120mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
150mVp-p |
Notes:
1. All parameters measured at 230VAC input, rated load, and 25ºC ambient temperature.
2. Ripple & noise measured at 20MHz bandwidth.
3. Protection type: Hiccup mode, recovers automatically after fault condition is removed.
Frequently Asked Questions
What is the waterproof rating for the LPV-100 series?
The LPV-100 series is IP67 approved, making it completely dust-tight and protected against the effects of immersion in water.
What kind of protections does this power supply offer?
It includes overload and over voltage protection. Overload protection uses hiccup mode and recovers automatically once the fault is removed.
What are the primary applications for this LED driver?

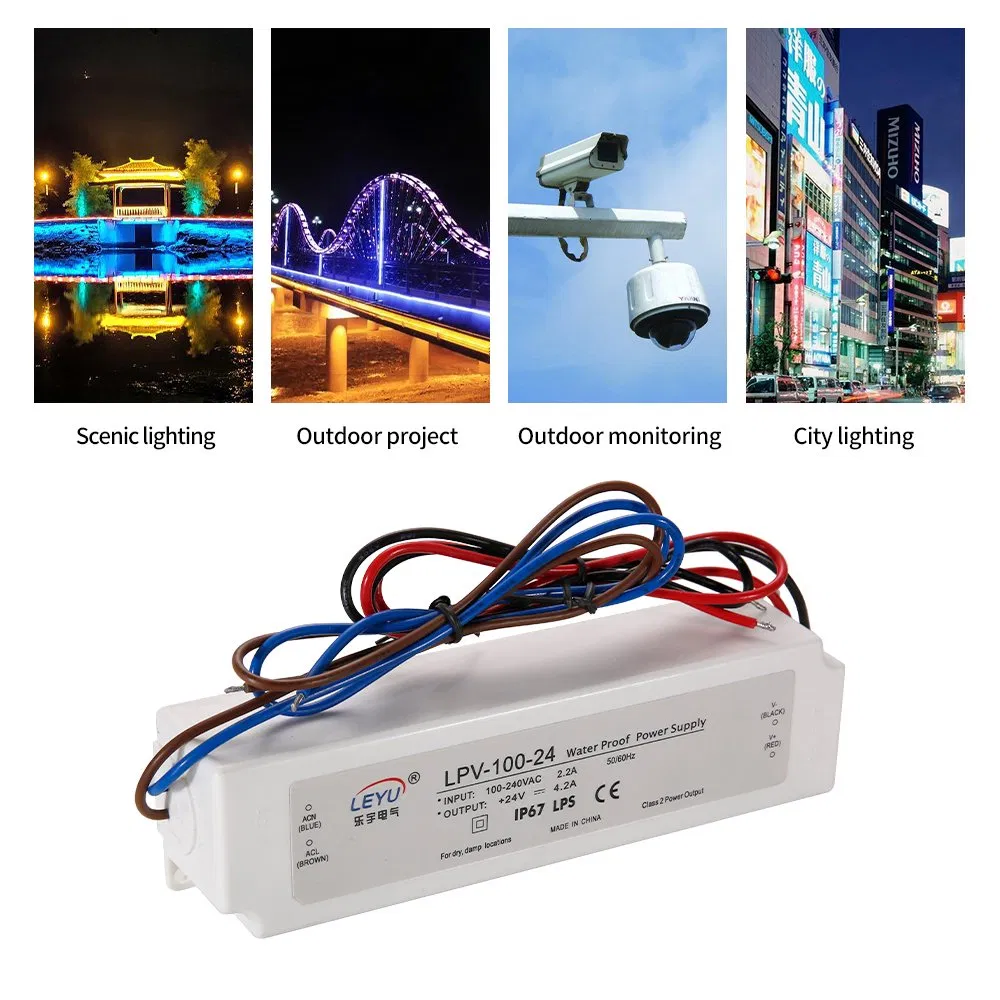

It is commonly used in industrial control systems, urban greening projects, fountains, and landscape lighting due to its rugged, waterproof design.
What is the input voltage range?
The unit supports a wide input range of 90~264VAC (47-63Hz) or 127~370VDC.
Does this unit have a high energy efficiency?
Yes, depending on the specific model, the efficiency ranges from 80% up to 89%, featuring high power correction factors.
What temperatures can the LPV-100 withstand during storage?
The storage temperature range is -40ºC to +80ºC with a humidity range of 10% to 95% RH.
