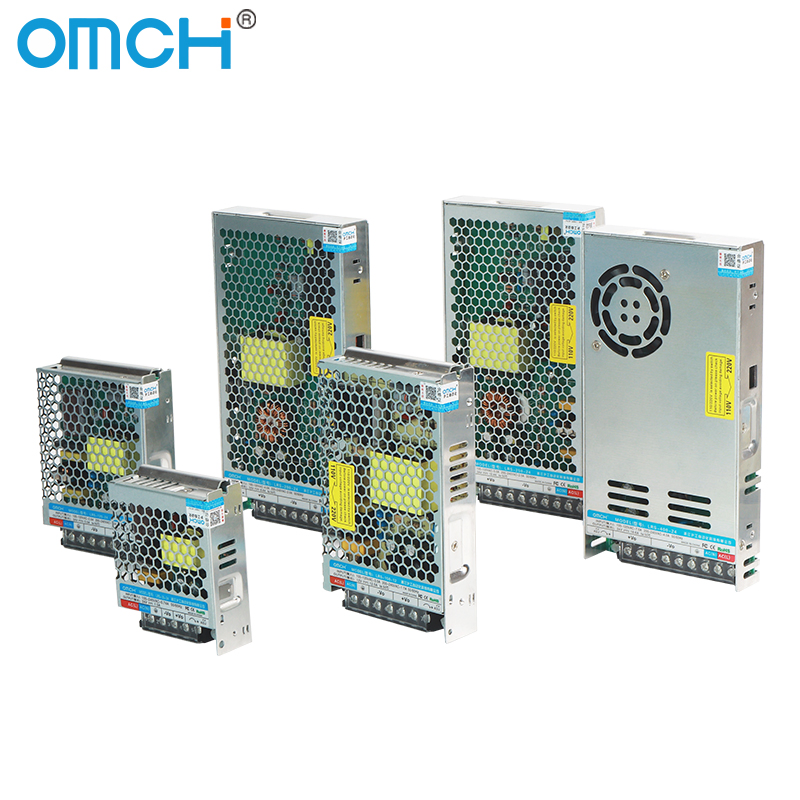

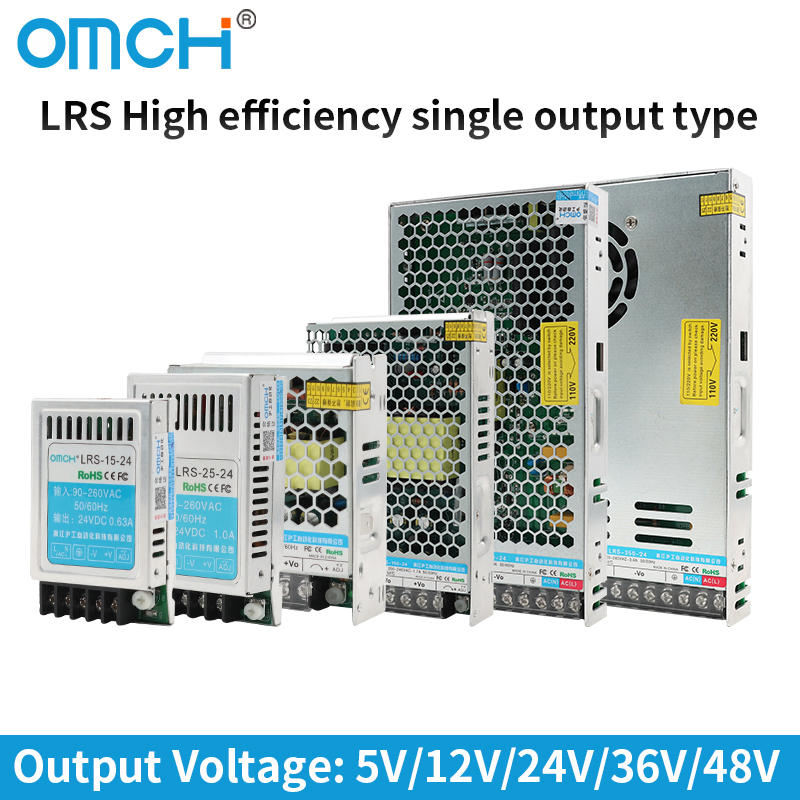

Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
1 / 5
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics
Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics

Omch Lrs Series Ultra-Thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics

Customization: Available
Warranty: Less Than 2 Years
Output Power: 35-400W
Send Inquiry

Product Description

Basic Info.

Model NO.
LRS Series
Input Voltage
100~240VAC; 240~340VDC
Connection Mode
Series Switching Power Supply
Certification
CE, RoHS, ISO, FCC
Brand
Omch
Installation
Rail Mount
Operating Temp.
-10%℃-+60%℃
Humidity
20%-90%Rh
Production Capacity
100000 Piece/Pieces Per Month

Packaging & Delivery

Package Size
22.00cm * 15.00cm * 5.00cm
Gross Weight
0.750kg

Product Description

OMCH LRS Series Ultra-thin Switching Power Supply AC DC 35W-400W 5V 12V 24V 48V Single Output Industrial Electronics

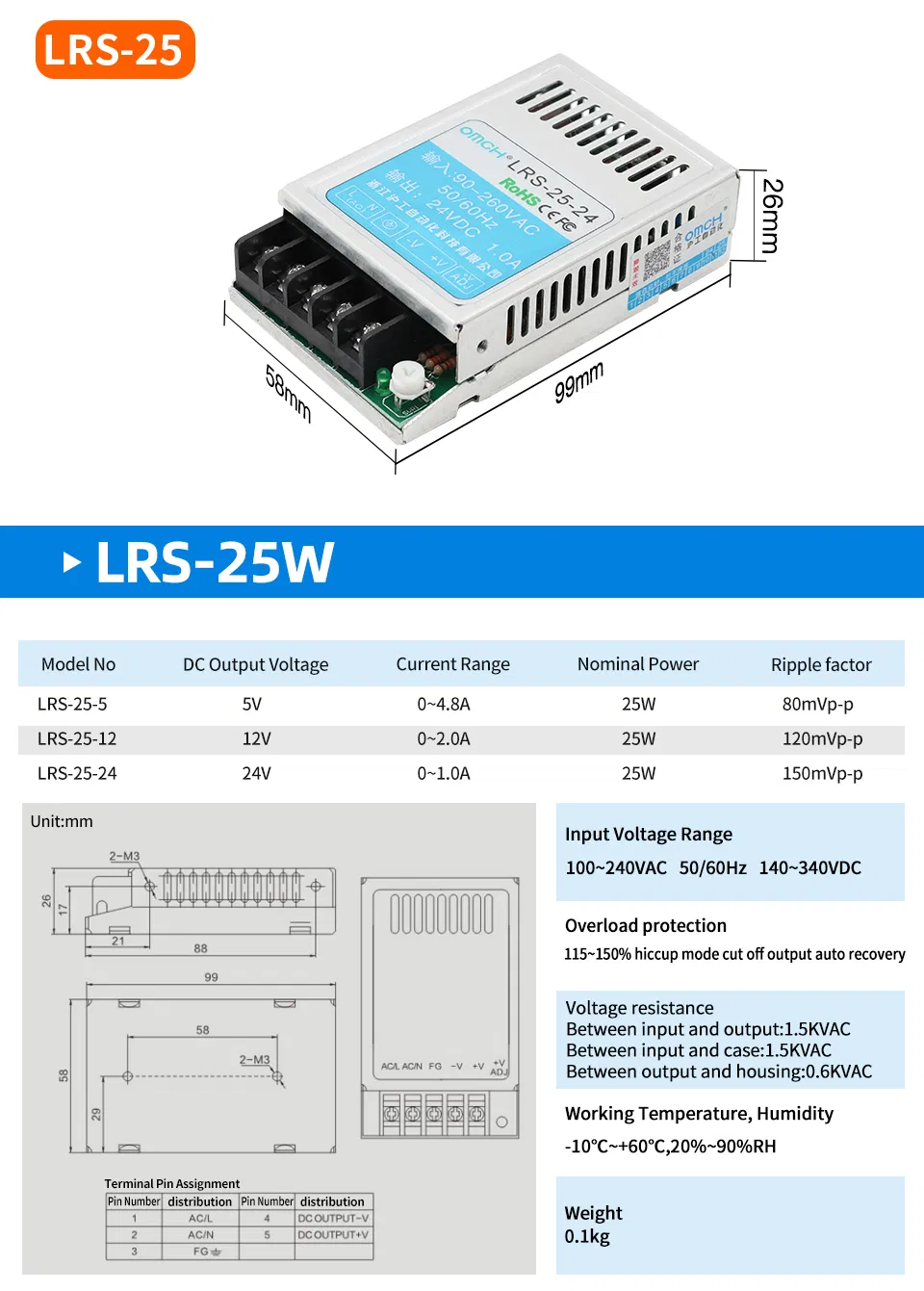

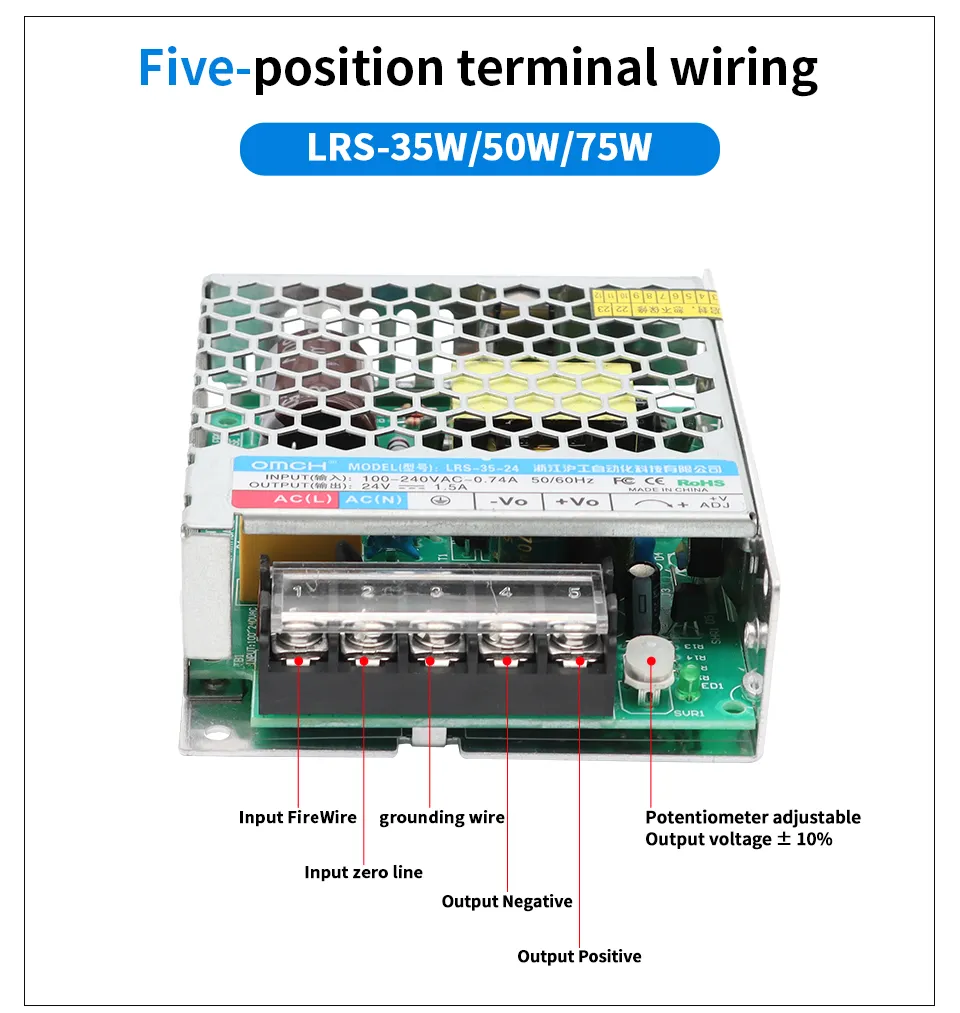

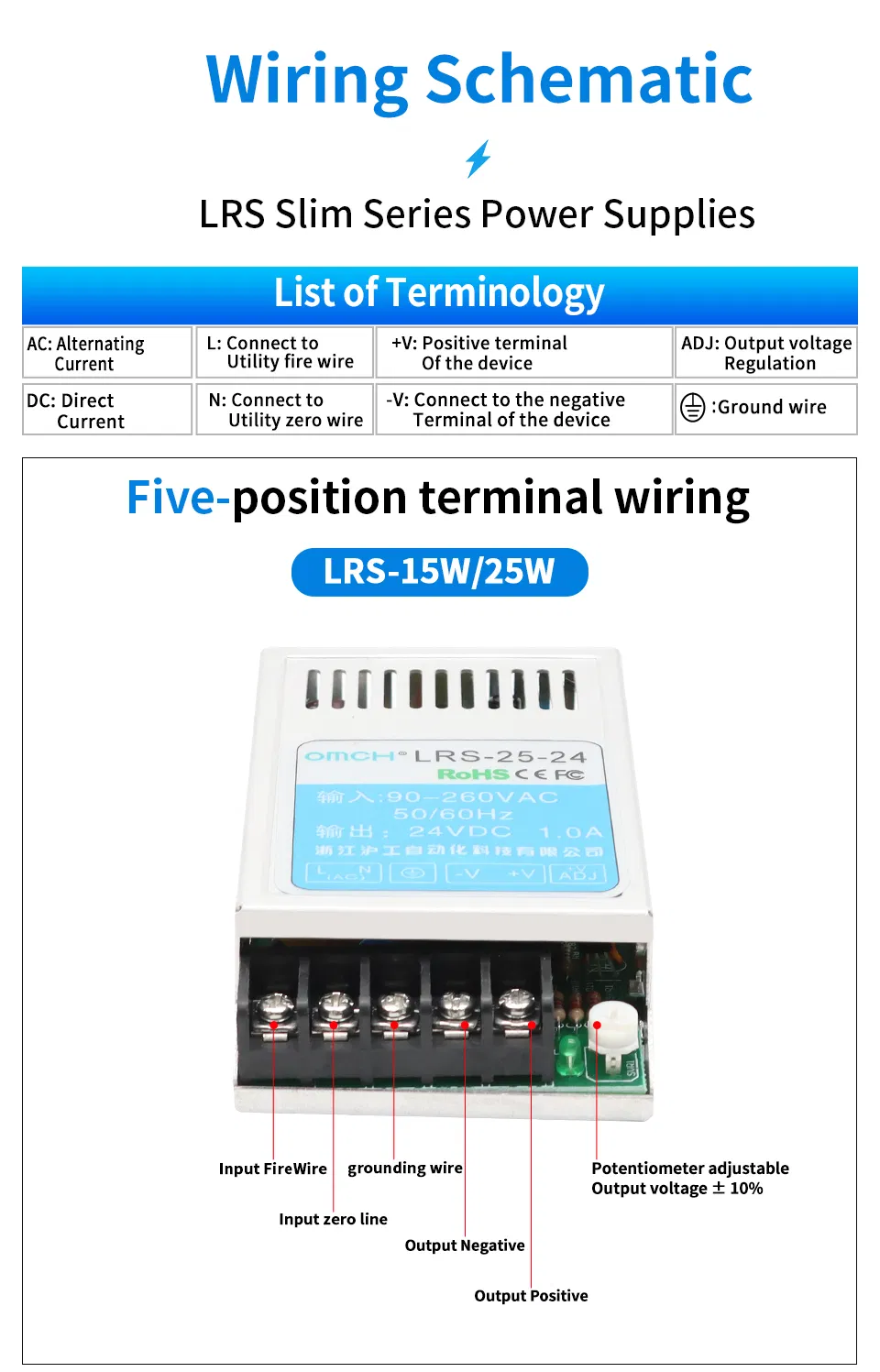

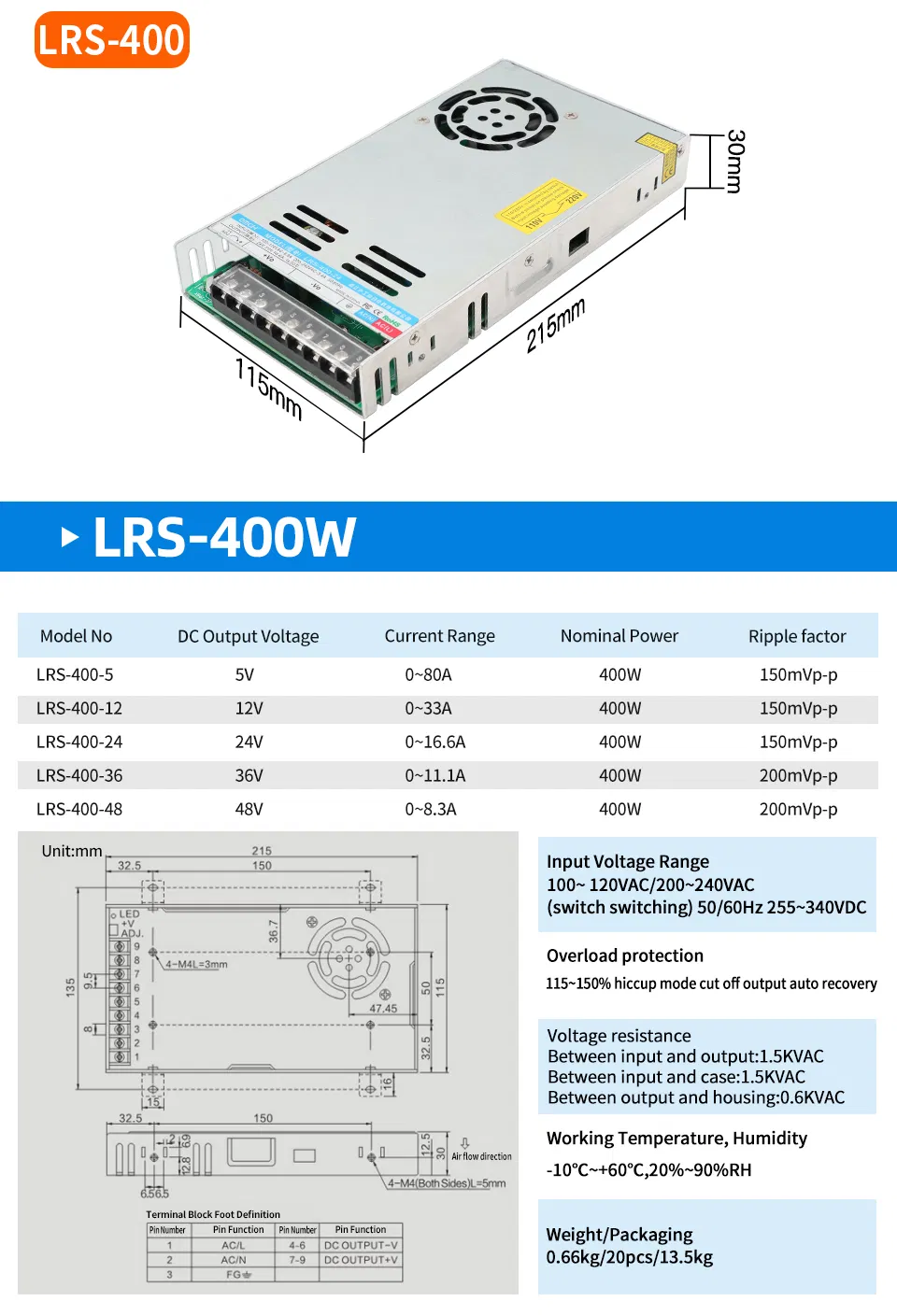

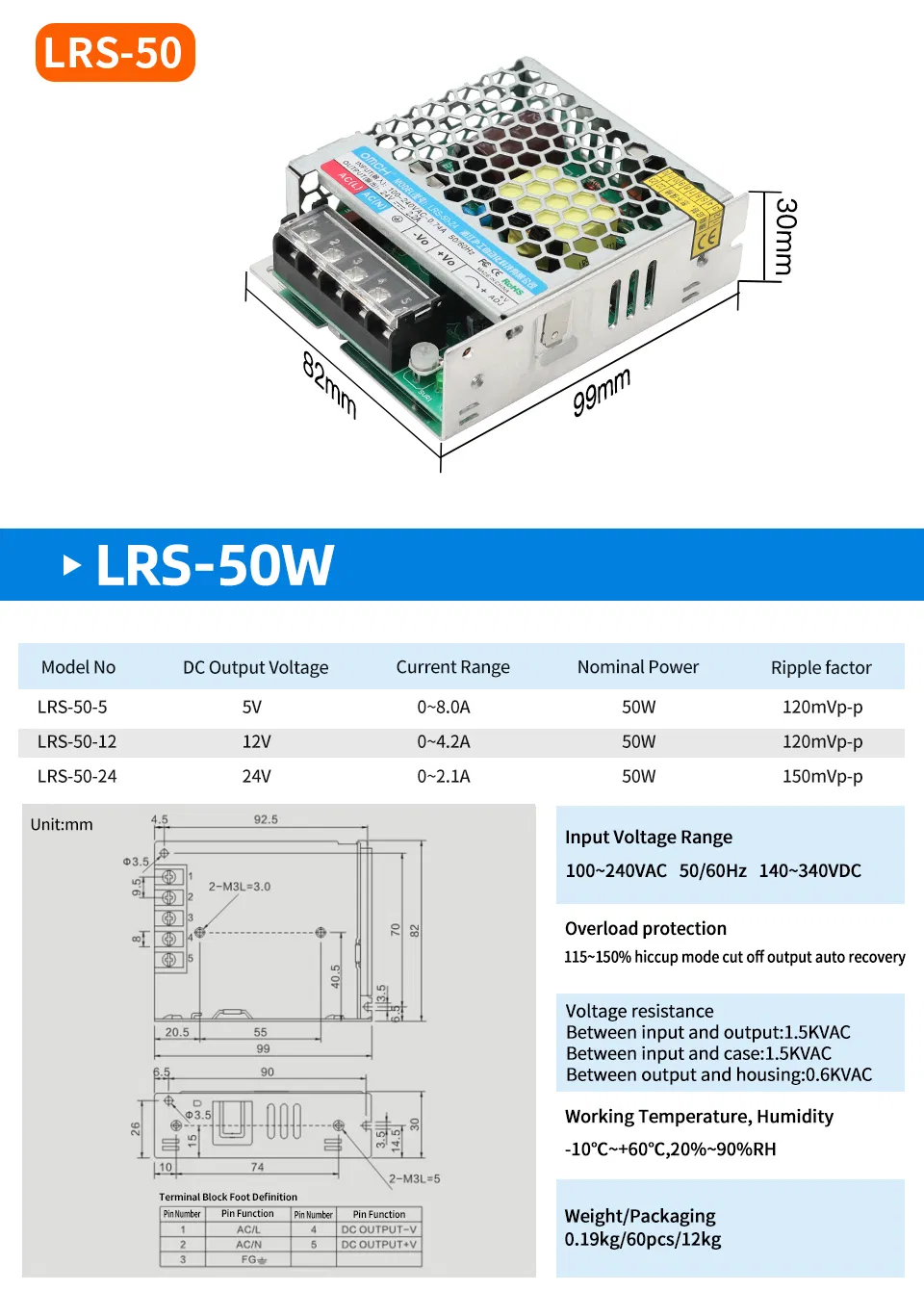

Power Supply 1
Power Supply 2
Power Supply 3
Power Supply 4
Power Supply 5

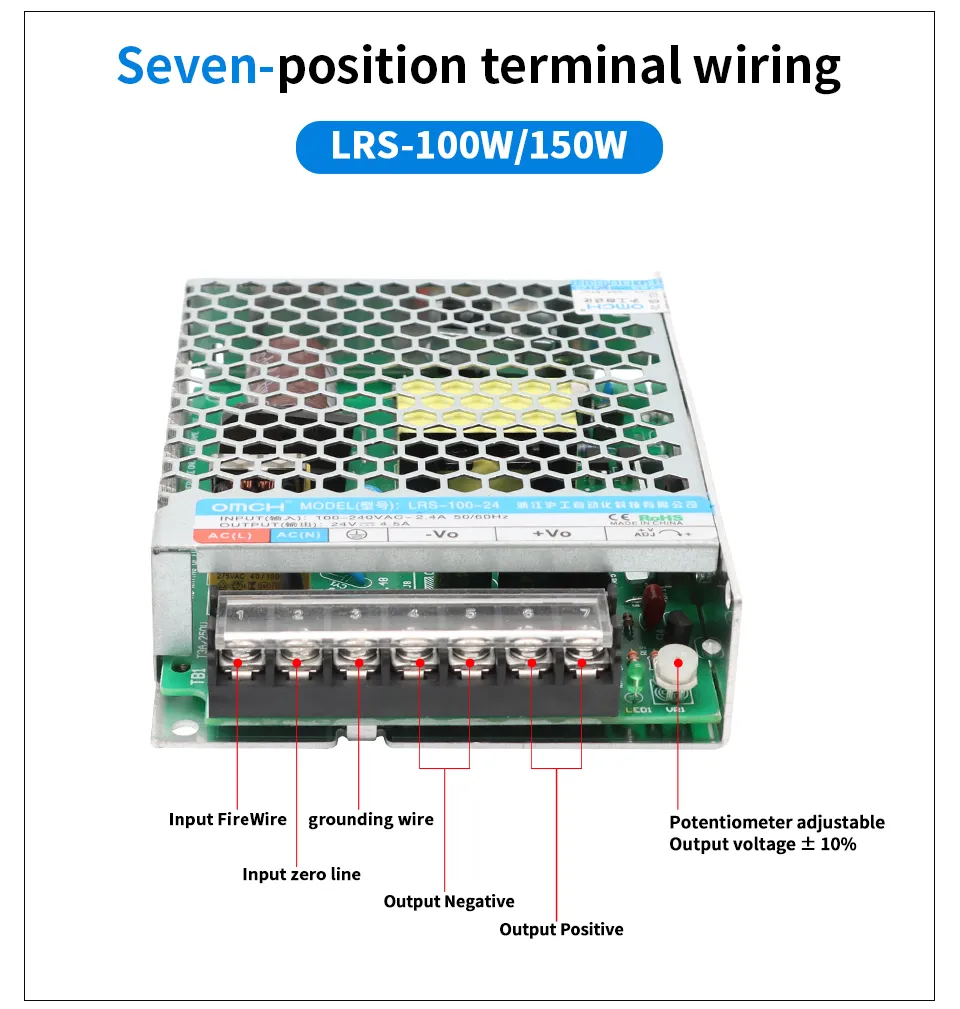

Power Supply 6

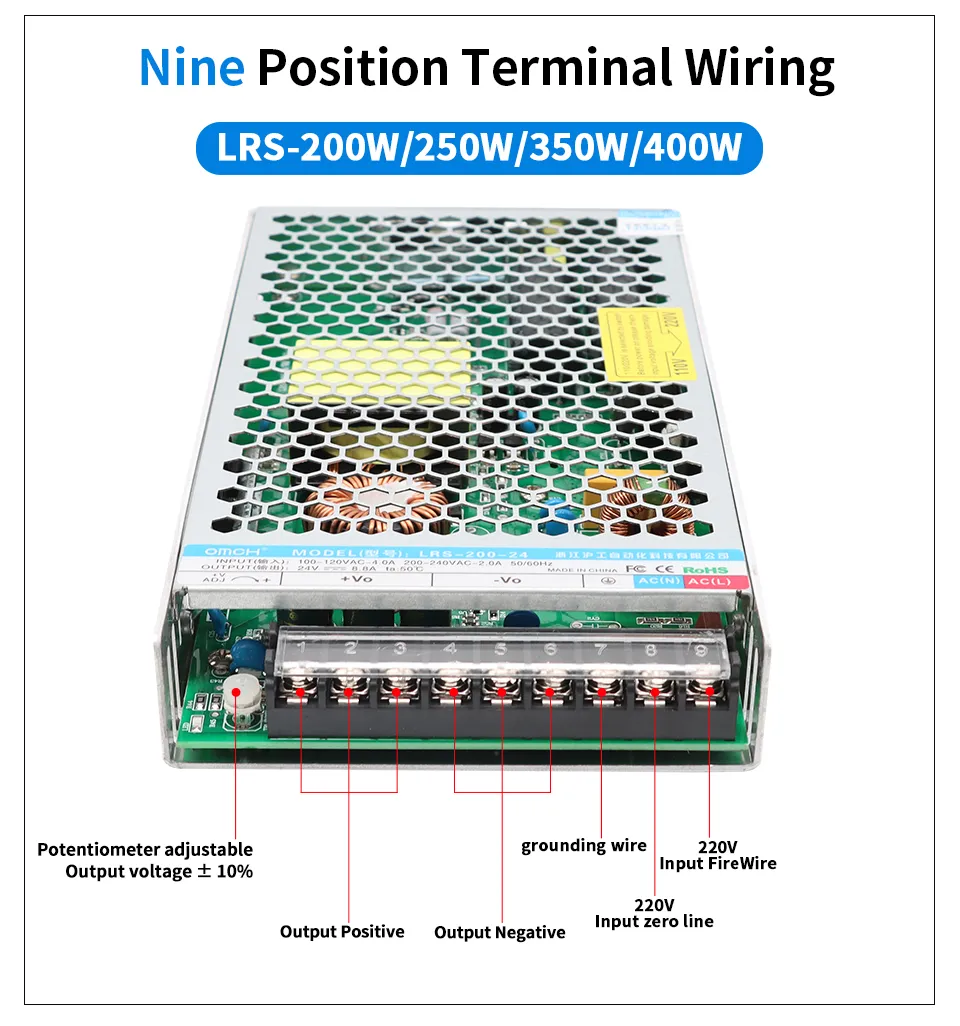

Power Supply 7

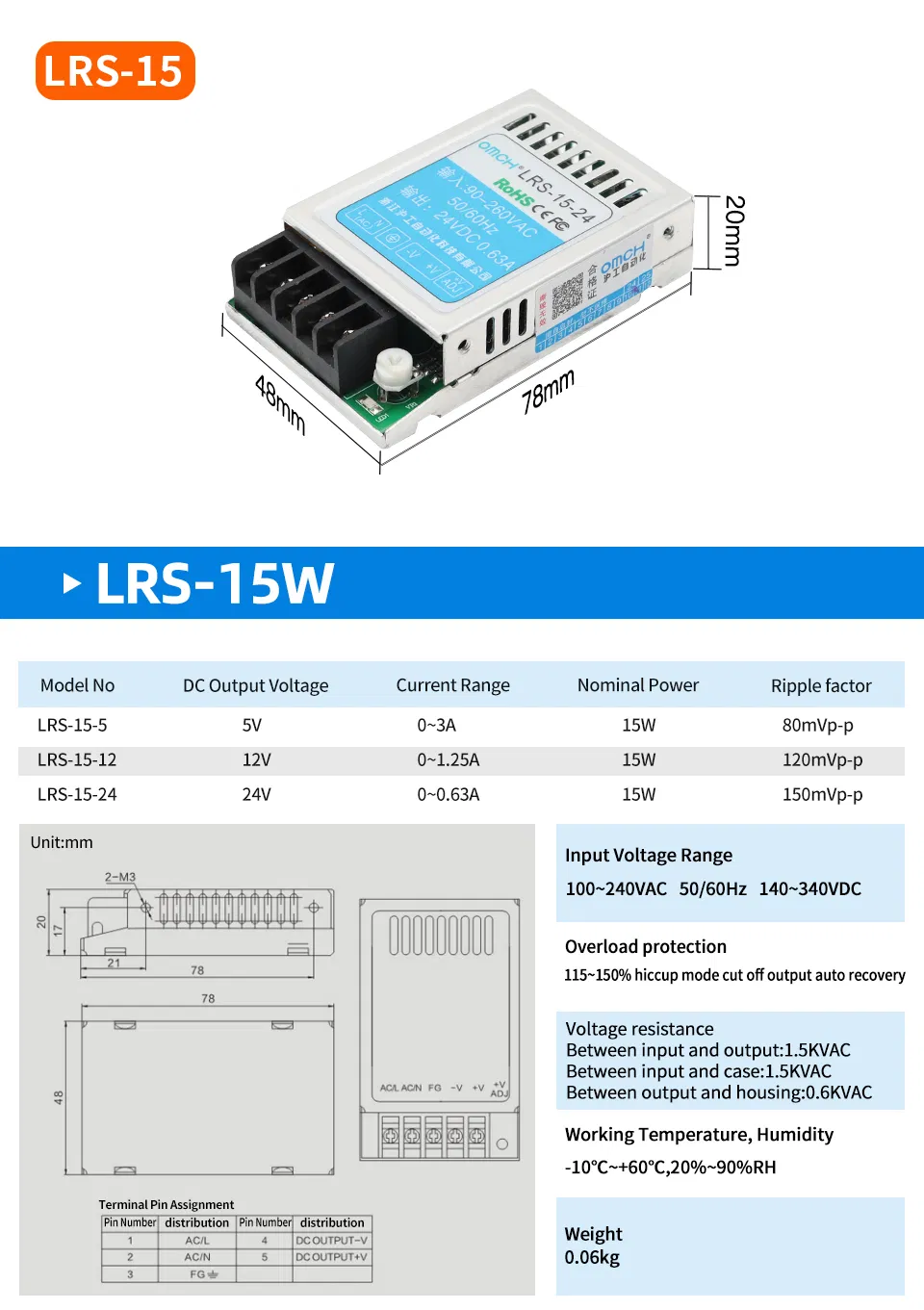

Power Supply 8
Power Supply 9

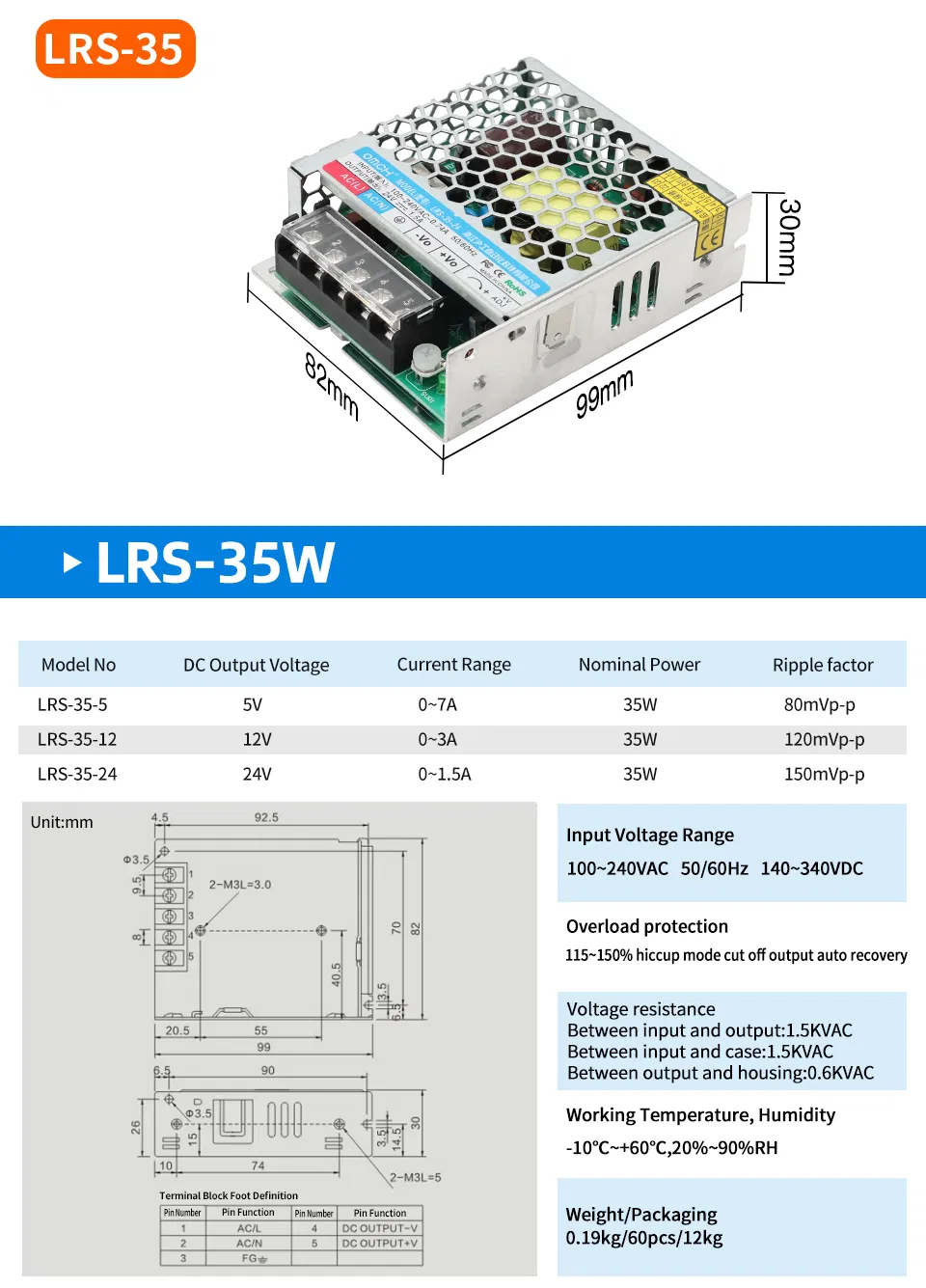

Power Supply 10
Power Supply 11

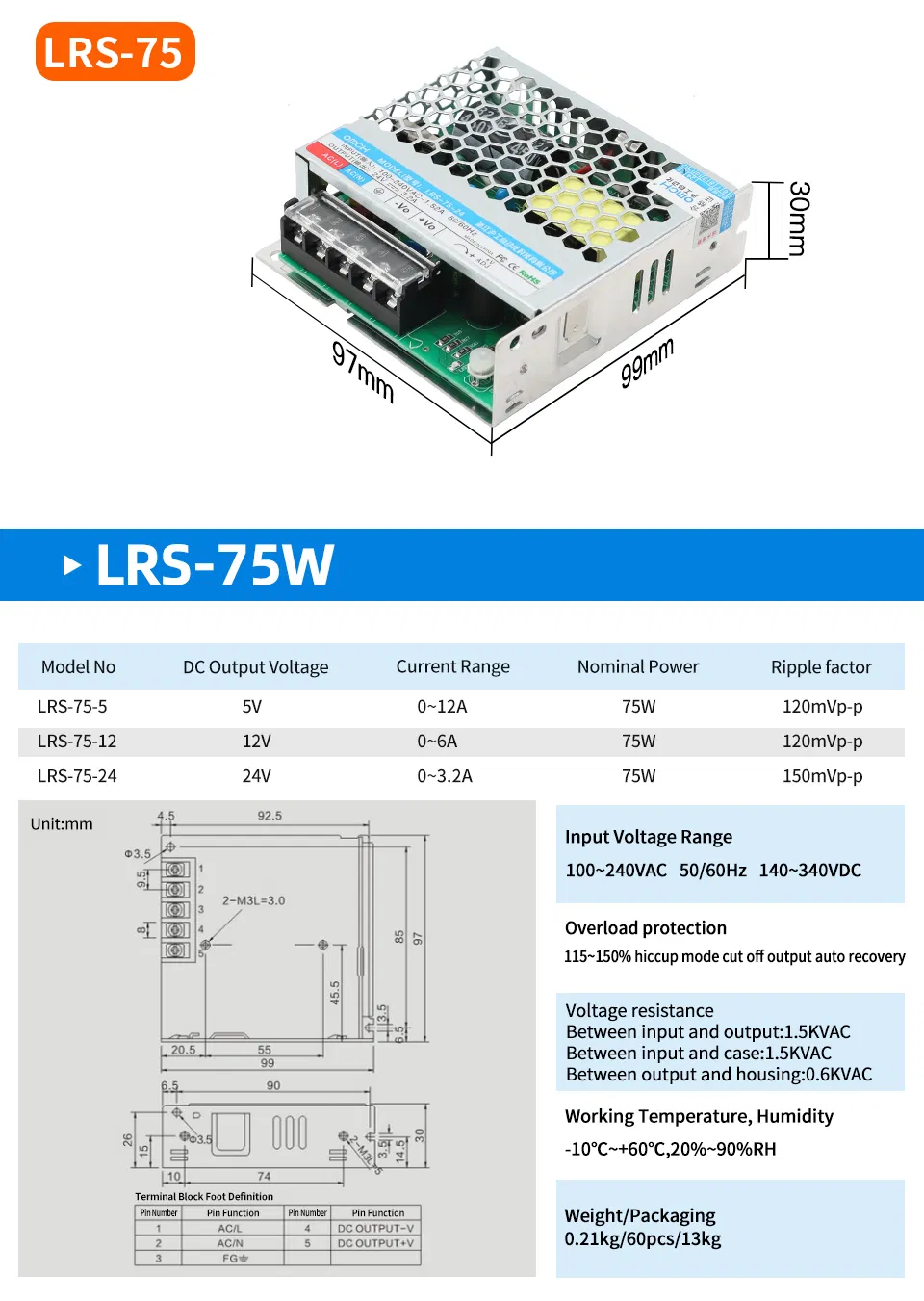

Power Supply 12
Power Supply 13

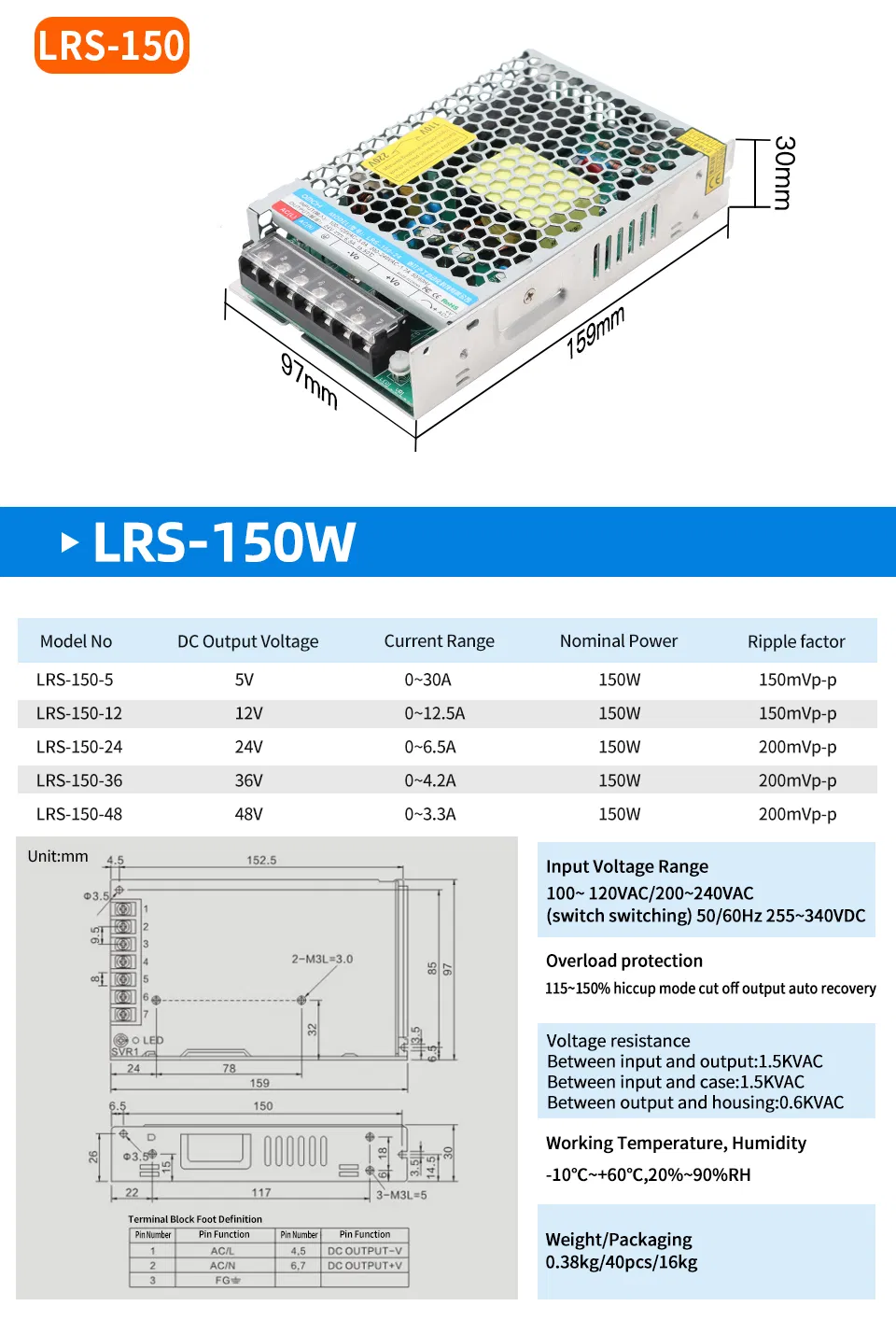

Power Supply 14

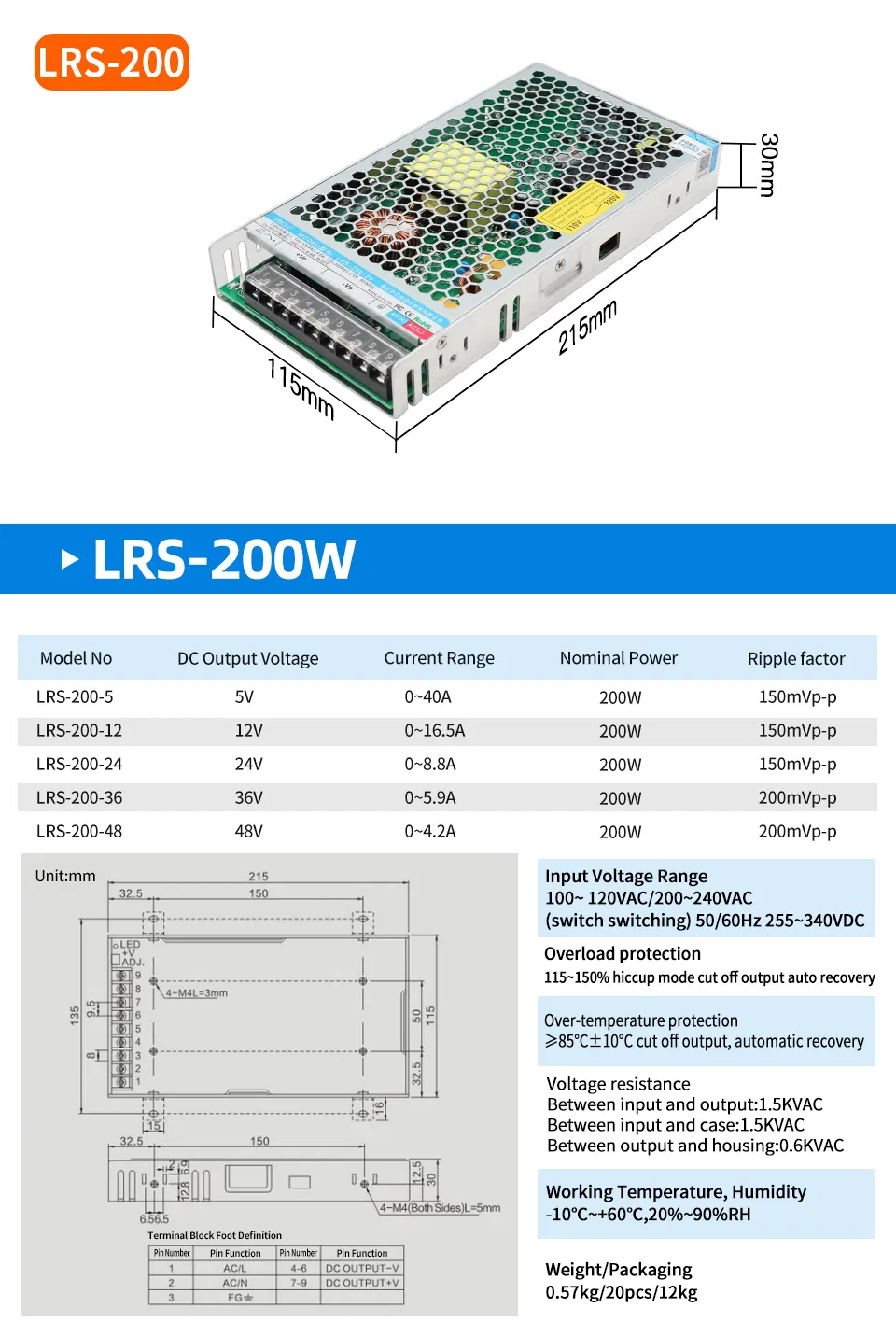

Power Supply 15

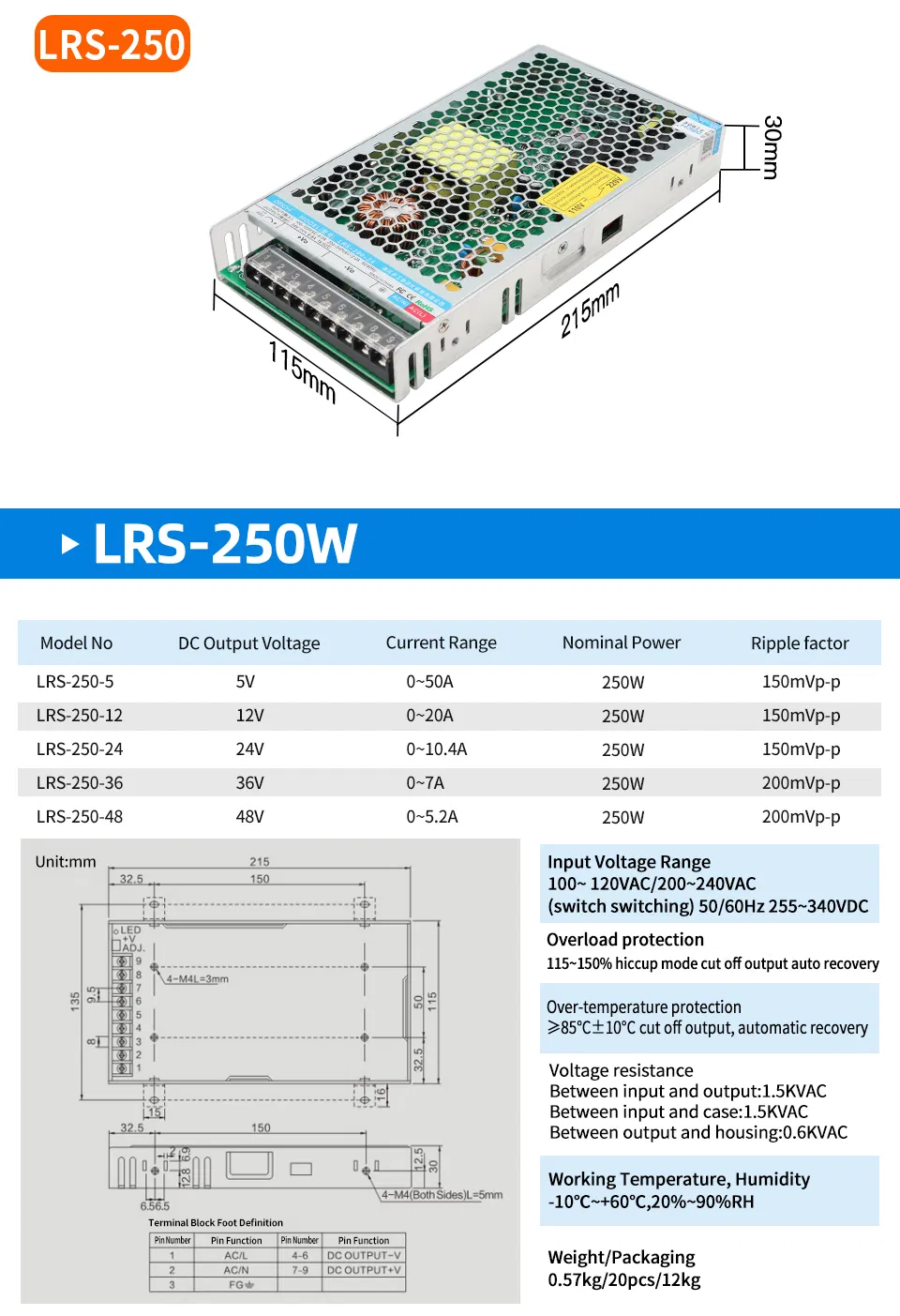

Power Supply 16

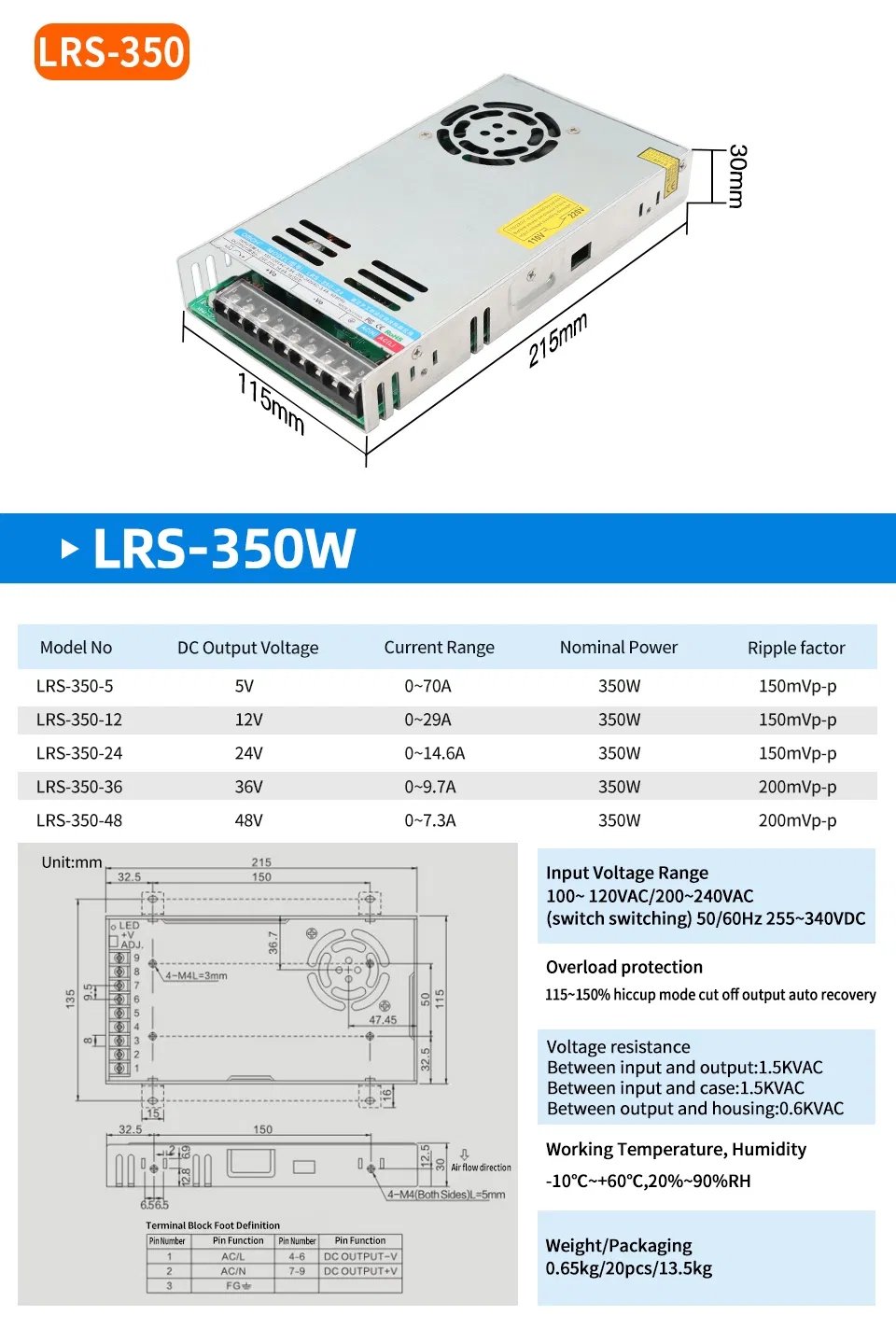

Power Supply 17
Power Supply 18

Specification

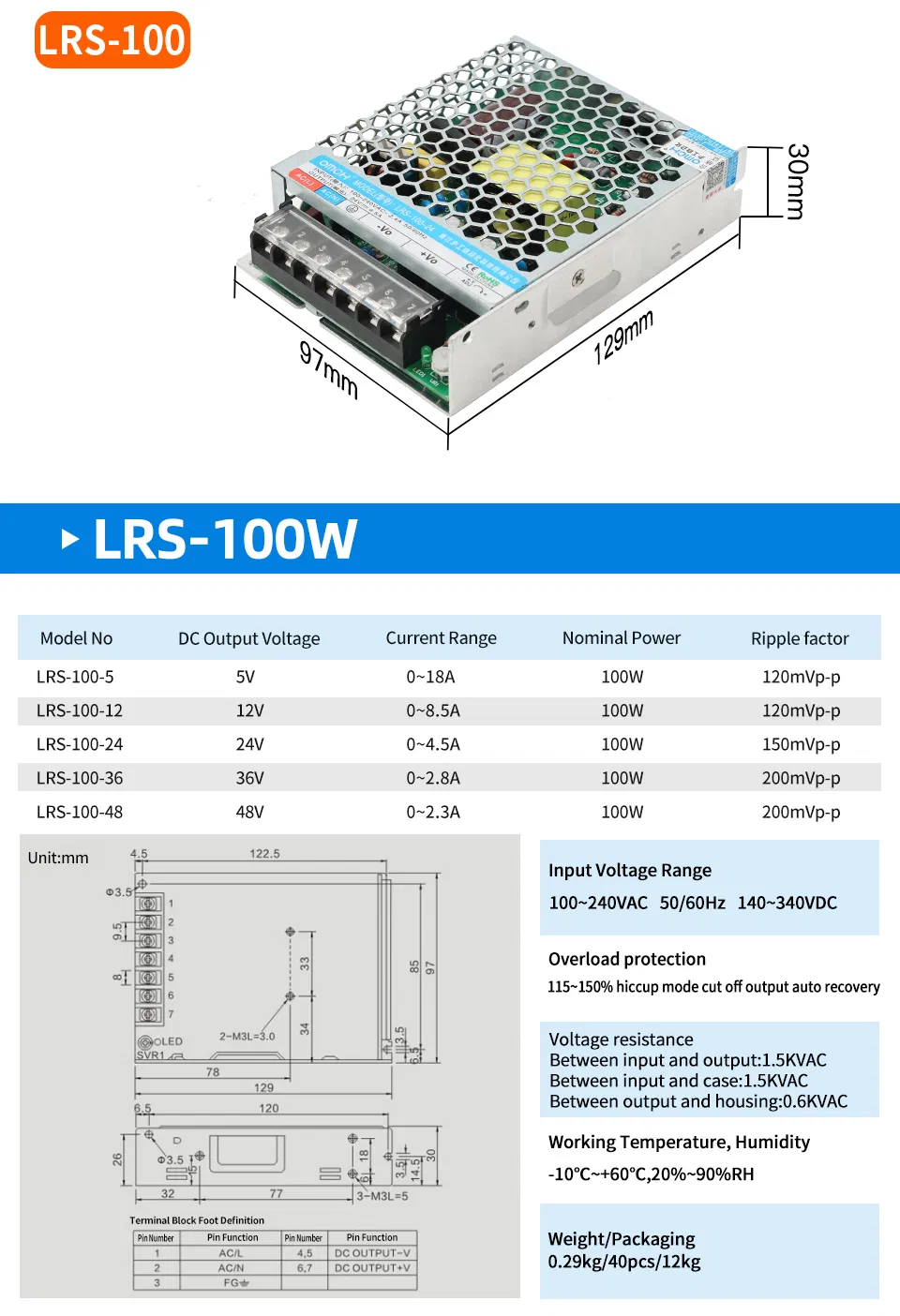

OMCH Lrs-100 DIN Rail Switching Power Supply 35W Input 100-240V AC to DC 5V 12V 24V 36V 48V Output
Attributes Technical Index
Model LRS-100-5 LRS-100-12 LRS-100-24 LRS-100-36 LRS-100-48
Output DC Voltage 5V 12V 24V 36V 48V
Current Range 20A 8.5A 4.5A 2.8A 2.3A
Rated power 100W
Ripple 120mVp-p 120mVp-p 150mVp-p 200mVp-p 200mVp-p
Input Voltage Range 100~240VAC 50Hz~60Hz (240VDC~340VDC)
Protect Overload 115~150% Hiccup Mode; Cut-off Output, Automatic Recovery
Environment Temp. -10ºC~+60ºC
Humidity 20%~90%RH
Safety Withstand Volt. Input-Output: 1.5KVAC | Input-Case: 1.5KVAC | Output-Case: 0.6KVAC
Standard Size 129*97*30mm
Weight 0.3KG/54PCS/17KG; 0.29KG/40PCS/12KG

Company Profile

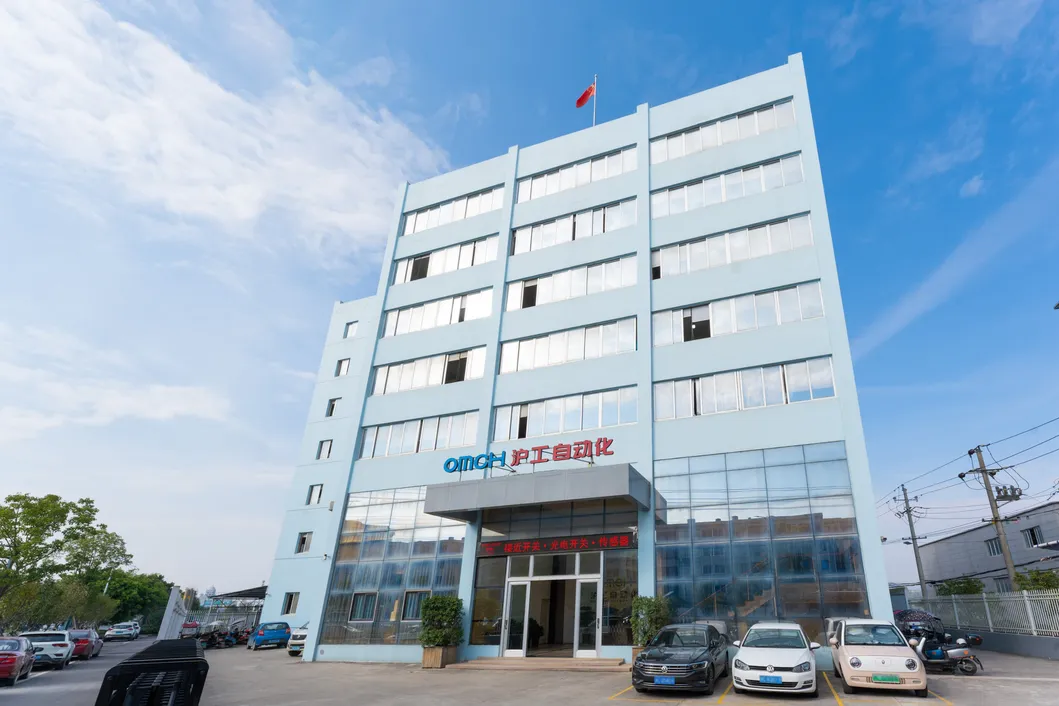

Factory Overview
Certification

Packing & Shipping

Shipping Details

FAQ

Who are we?
We are a leading manufacturer and supplier of switching power supplies, specializing in the design, production, and distribution of various series of power solutions. Our expertise ensures reliable and efficient power supplies to customers worldwide.
What switching power supplies do we offer?
We offer a wide range of switching power supplies, including the S series, MS series, LRS series, Q series, T series, D series, DR series, NDR series, EDR series, MDR serie, HDR series and FYS Rainproof serie.
What are the features of our switching power supply?
Our switching power supply products are characterized by high efficiency, high stability, energy saving and environmental protection, verified through FCC, CE, ROHS, and ISO test reports.
How do we ensure the quality of our products?
We ensure quality through strict production process control, raw material screening, and finished product testing. We maintain a comprehensive quality management system for every aspect from production to delivery.
What additional services do we provide?
We provide comprehensive technical support, product personalization, and after-sales service. We strive to meet individual needs in terms of product specifications, functions, and appearance.
How long is our delivery time?
Our efficient production process and advanced equipment ensure fast delivery. The exact lead time depends on the specific demand and product model; we consult with customers to determine the best delivery schedule.
