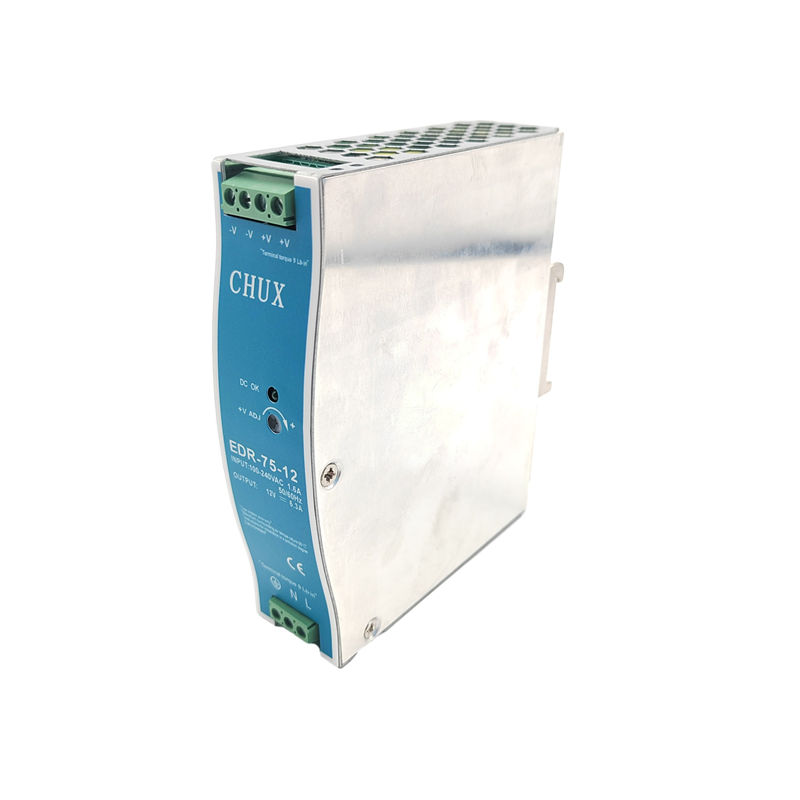

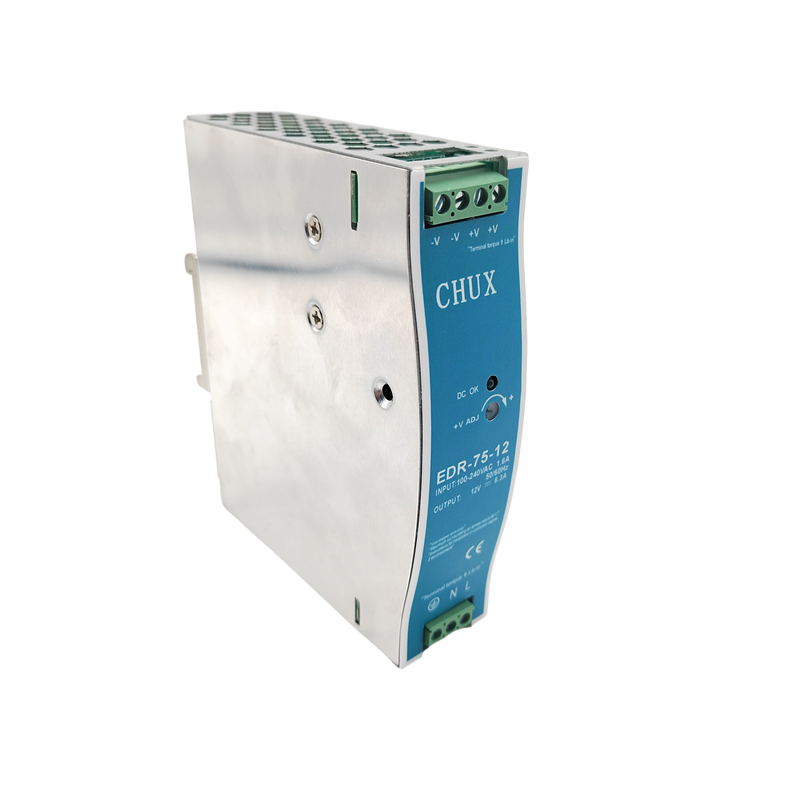

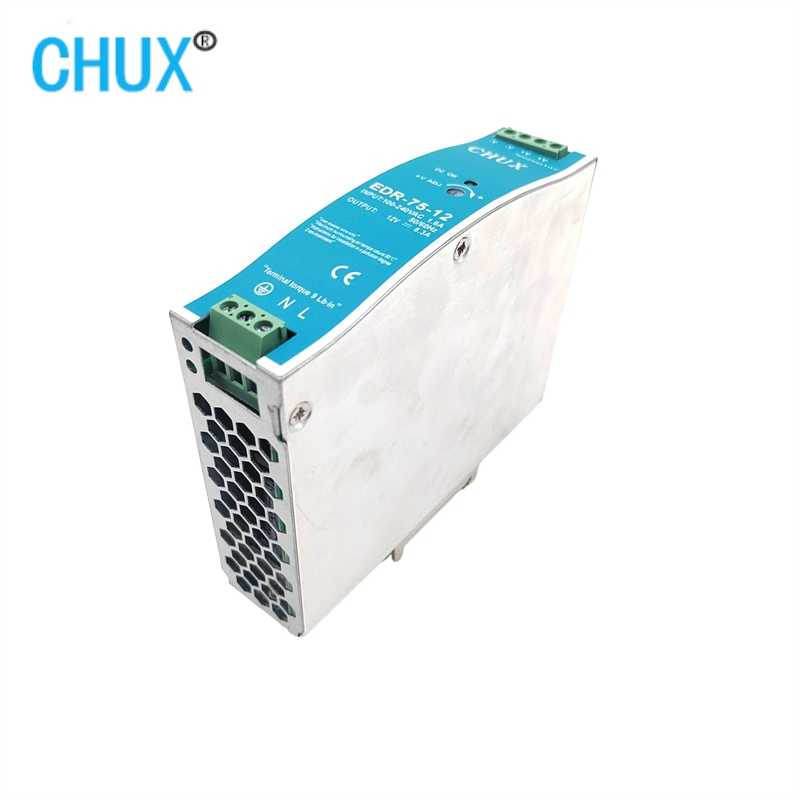

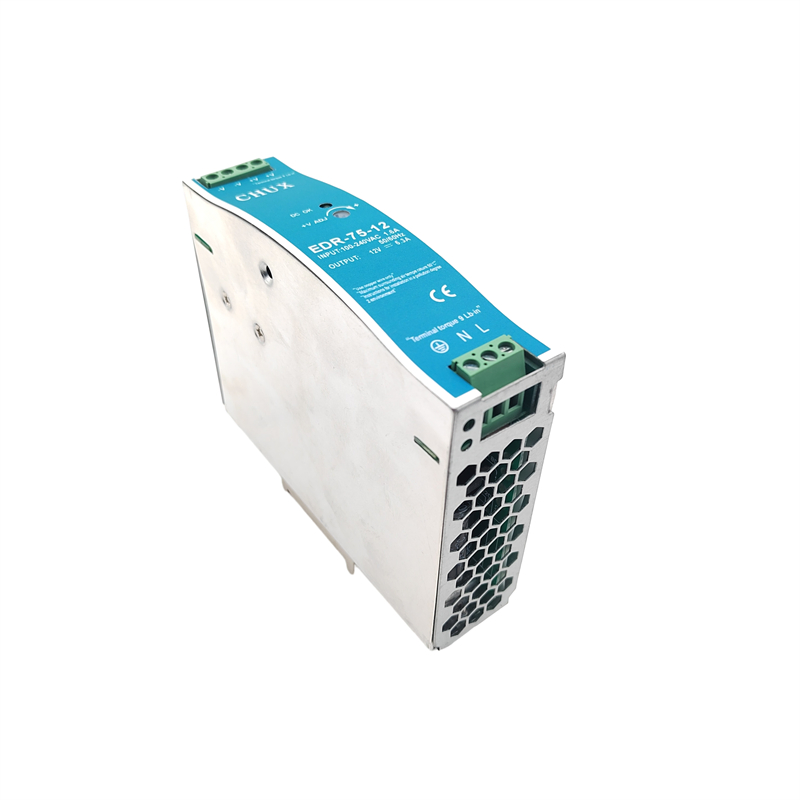

High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
1 / 5
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS
High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS

High Efficiency EDR DIN Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS

Customization: Available
Output Type: Single
Warranty: 2 Years
Send Inquiry

Product Description

Product Overview
Model NO.
EDR-75W-12V
Output Power
51 - 100W
Input Voltage
110-220V
Connection Mode
Series Switching Power Supply
Starting Mode
Self-excited
Voltage Regulating
Frequency Modulation Type
Modulation System
PWM
Certification
CE, RoHS
Output Voltage
12V
Size
32*125.2*113.5mm
Weight
0.55kg
Production Capacity
100,000 PCS /Year
Product Description

High Efficiency EDR Din Rail Single Output Switching Power Supply AC to DC 12V 75W Adjustable SMPS

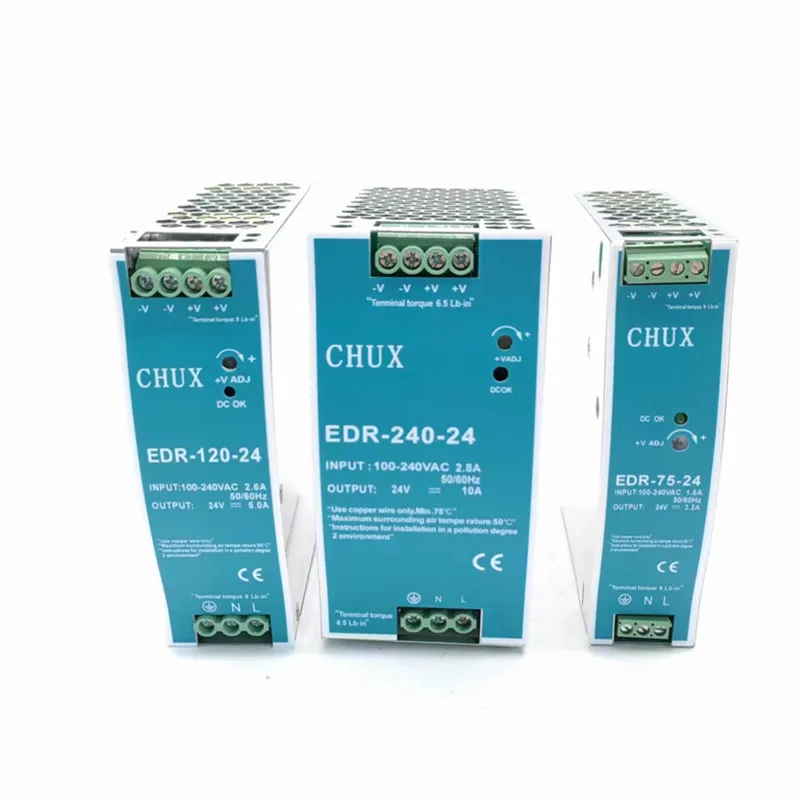

EDR Din Rail Power Supply

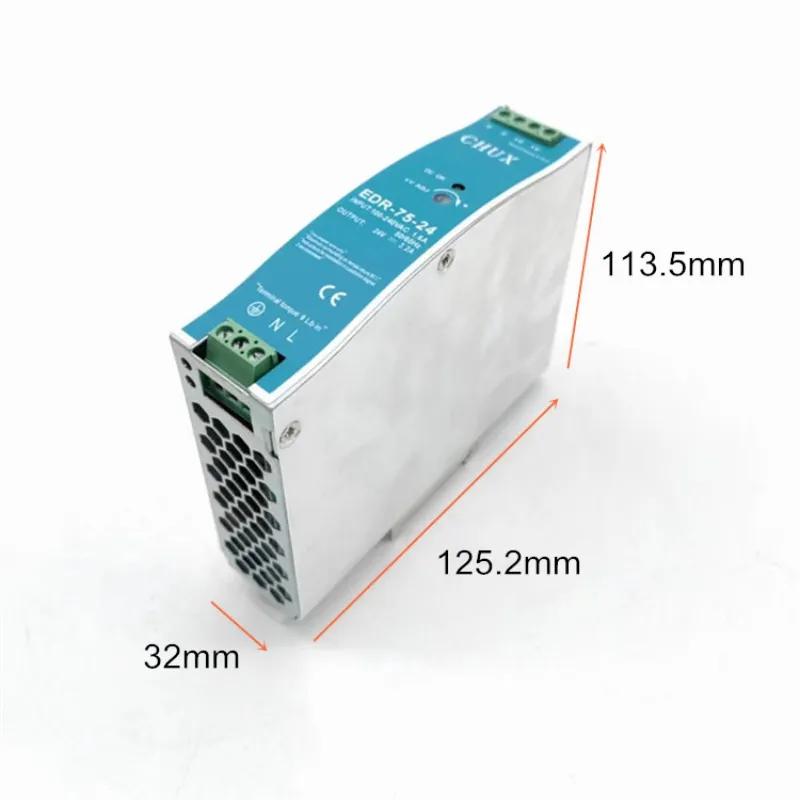

Power Supply Dimensions
  • High Efficiency & Reliability
  • AC Input Range: 85~264VAC
  • 100% Full Load Burn-In Test
  • Short Circuit / Over Load Protection
  • Over Voltage Protection
  • LED Indicator For Power On
  • Cooling By Free Air Convection
  • 2 Years Warranty

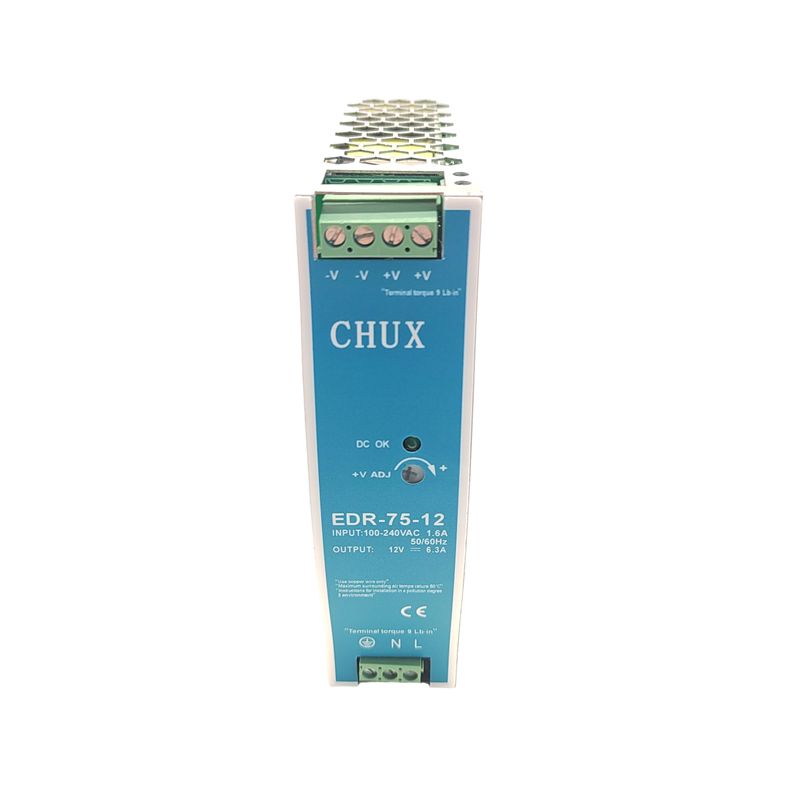

Main Unit View

Key Features:

Universal AC input/ Full range
Installed on DIN rail TS35/ 7.5 OR 15
No load power consumption <0.75W
DC OK signal output (10W)
DC OK relay contact (40W & 60W)
Technical Specifications
Model EDR-75-12 EDR-75-24 EDR-75-48
DC Voltage12V24V48V
Rated Current6.3A3.2A1.6A
Rated Power75.6W76.8W76.8W
Voltage Adj. Range12-14V24-28V48-53V
Efficiency83%85%86%
Ripple & Noise100mVp-p120mVp-p150mVp-p
Voltage Range85~264VAC ; 120~370VDC
Working Temp.-10ºC ~ +60ºC; 20%~90%RH
Dimensions32.5*11.5*125.2mm (L*W*H)
Back View

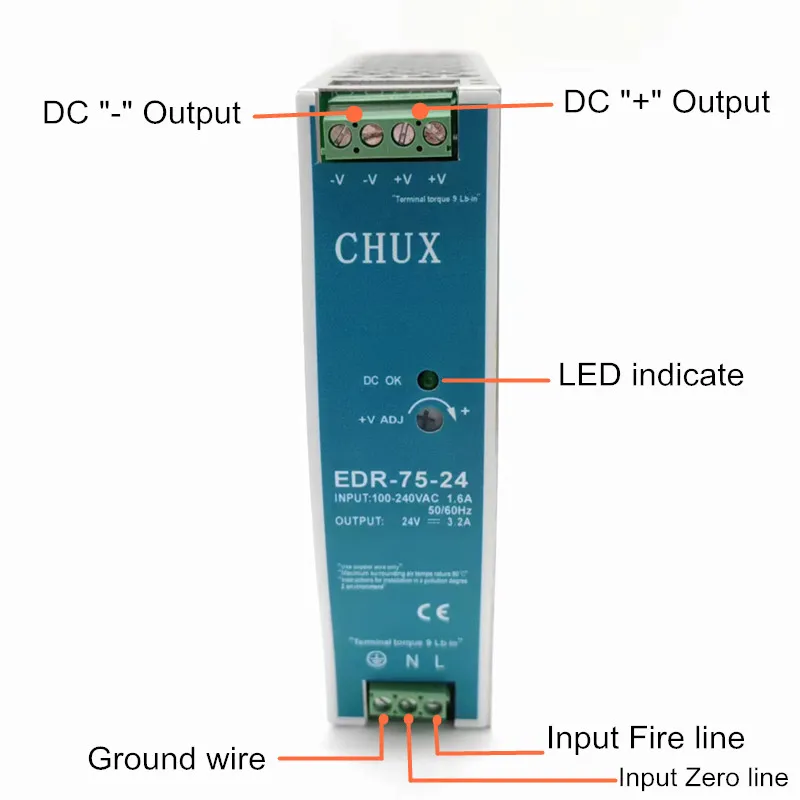

Side View
Installation
Manufacturing & Quality
Factory Production
Testing Area
Quality Control
Frequently Asked Questions
How is the product quality controlled?
We conduct rigorous aging tests for 12 hours on all units before they are released to the market to ensure long-term stability and reliability.
Are samples available for testing?
Yes, we welcome sample orders. We encourage testing our products' performance before proceeding with large-scale orders.
What is your typical production capacity and lead time?
We can produce 100,000 units per year. Lead time for samples (under 100pcs) is approximately 4 days, while general orders under 10,000pcs take 7-15 days.
Do you offer OEM and ODM services?
Yes, we provide full OEM and ODM services and can accept customized product requirements to meet your specific needs.
What is the warranty period for these power supplies?
All products come with a standard 2-year warranty service from the date of purchase.
How do you handle delivery for large orders?
We maintain specialized production lines for samples and bulk orders separately, allowing us to strictly control and guarantee delivery times as promised.
