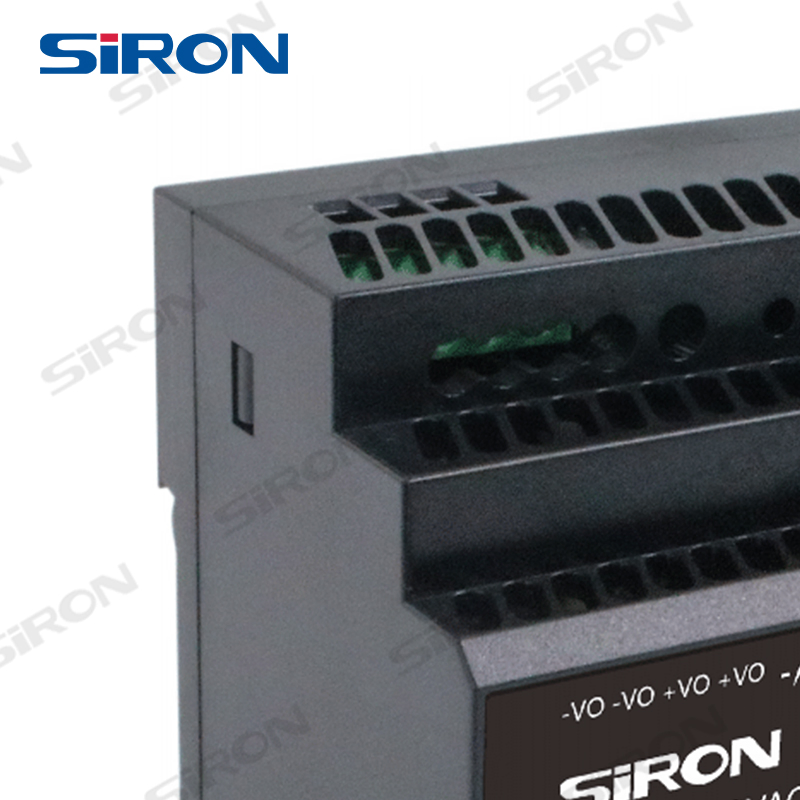

Siron P084 High Efficiency 150W Rail Type Switching Power Supply

1 / 5

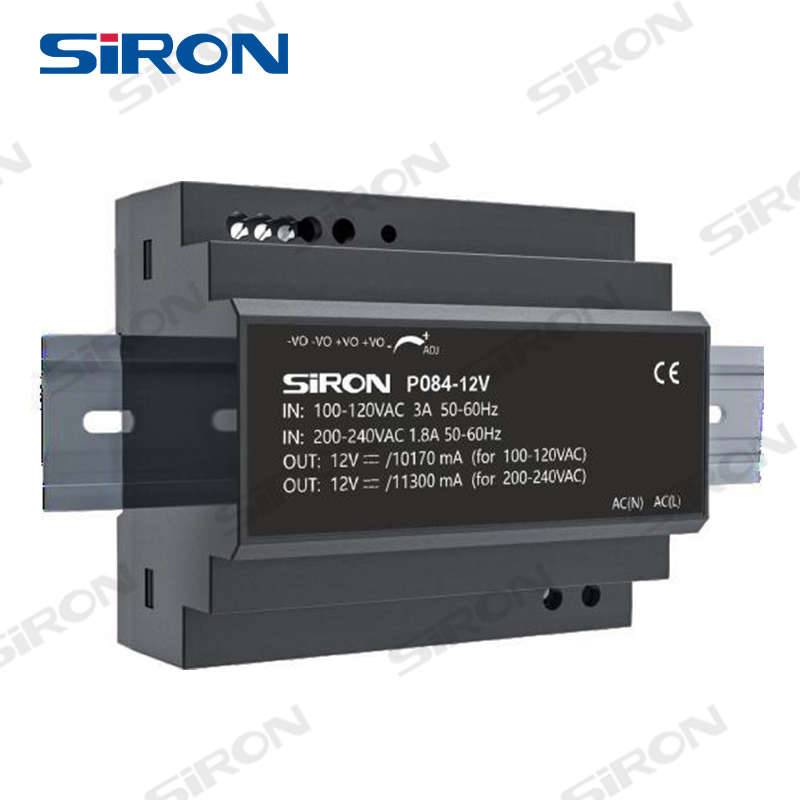

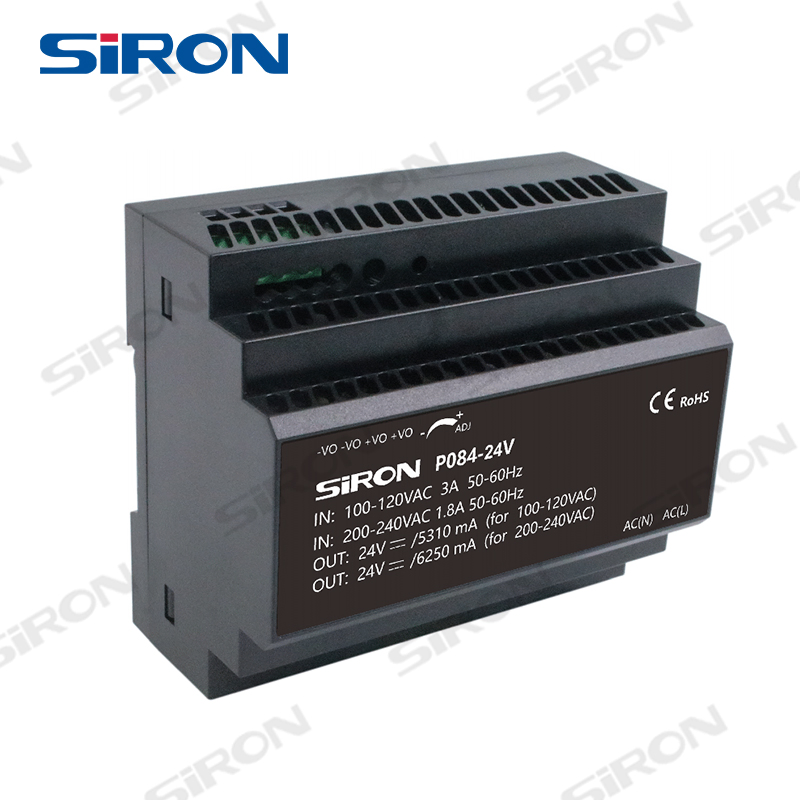

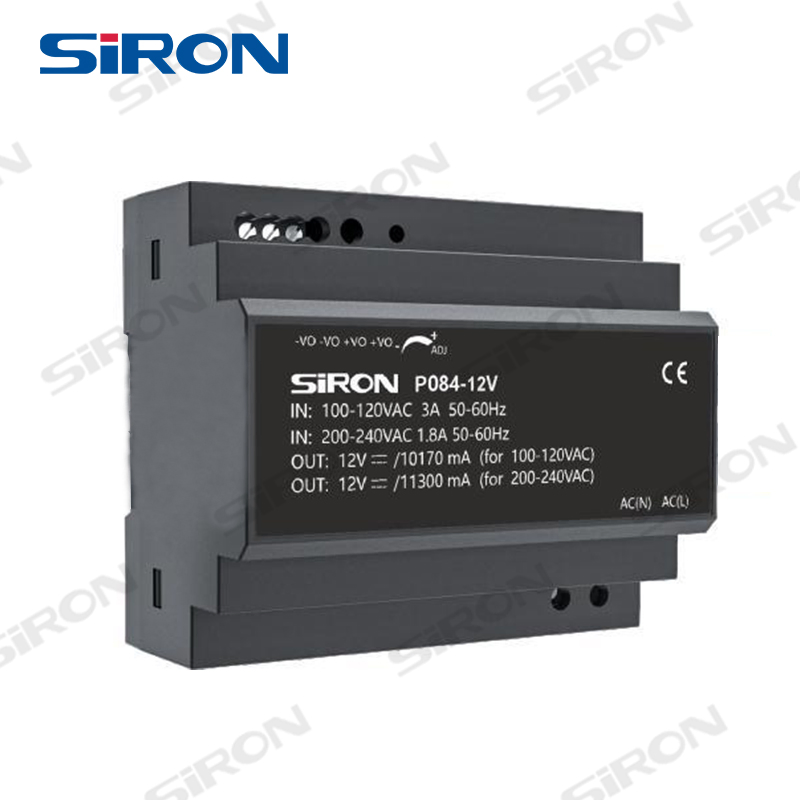

Siron P084 High Efficiency 150W Rail Type Switching Power Supply

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

■ Basic Information

Model NO.P084

Input Voltage85-264VAC/ 120-370VDC

Connection ModeSeries Switching Power Supply

Voltage Regulating ModeFrequency Modulation Type

Power Supplying SystemTerminal Power Distribution Equipment

Energy TransmissionTwo-way Transmission

Modulation SystemPWM

CertificationCE, ISO

Electric Shock70A

Operating Temperature-30℃ TO +70℃

Wiring Diameter24-12AWG

Connector TorqueMax 0.4n.M

Rail TypeTS35

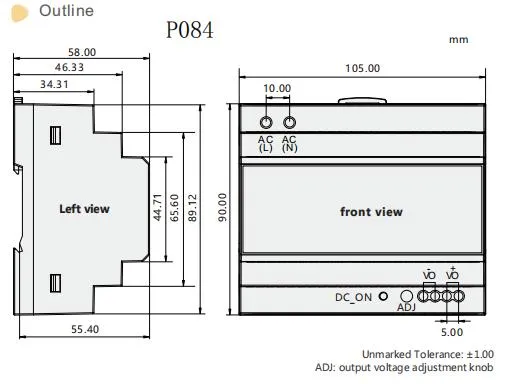

Specification105 × 90 × 55.4

OriginChina

Production Capacity10000/Month

■ Key Features

✔

High Resilience: Input overvoltage resistance: 300VAC input will not be damaged for 5S, 4000VAC high isolation withstand voltage (input-output).

✔

Standard Compliance: Overvoltage level complies with EN61558, featuring low standby power consumption, low ripple noise, and high efficiency.

✔

Full Protection: Built-in output short circuit, over current, over voltage, and over temperature protection.

✔

Easy Installation: Compatible with TS35×7.5 and TS35×15 DIN rails.

■ Technical Specifications

Model	Input Voltage Range	Power	Output Voltage/Current	Efficiency
P084-12V	85-264VAC (277VAC available) 120-370VDC (390VDC available)	135.6W	12V/11.3A	89%
P084-15V		142.5W	15V/9.5A	89.5%

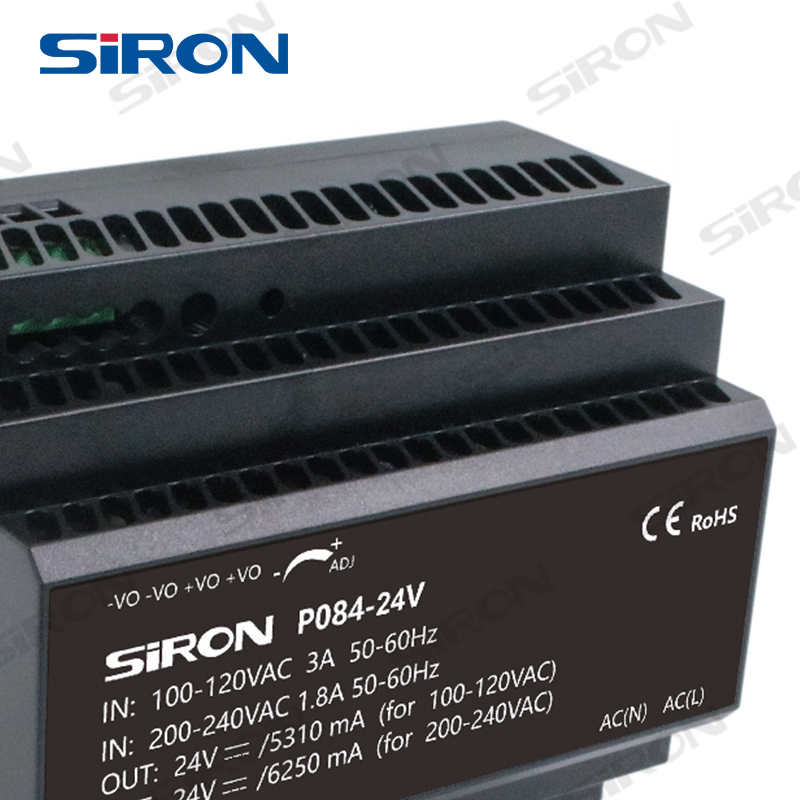

P084-24V		150W	24V/6.25A	91.5%
P084-48V		153.6W	48V/3.2A	91%

Attribute		Description
Electric shock (@230VAC)		70A
Overcurrent Protection	Range	≥105%lo
Overcurrent Protection	Type	Self-healing
Short circuit protection		Hiccup type, continuous short circuit, self-recovery
Isolation withstand voltage		Input-output: 4kVAC (1 min, leakage <10mA)
EMC EMI		CISPR32/EN55032 Class B, IEC/EN61000-3-2 Class A
Safety Standard		UL/EN/IEC62368, IEC/EN60335, IEC61558, UL61010
Shell Material		Flame retardant and heat resistant plastic

■ Product Gallery

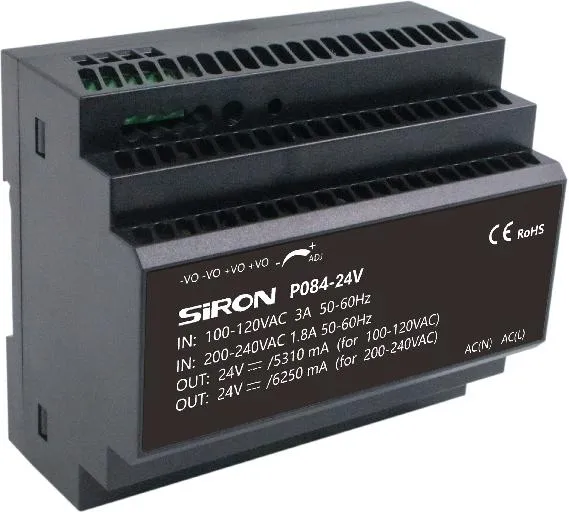

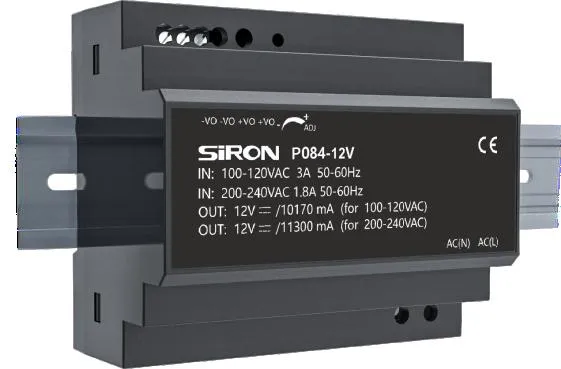

Rail Type Switching Power Supply Display

■ Manufacturing & Capabilities

■ Frequently Asked Questions

What is the input voltage range for this power supply?

The unit supports a wide input range of 85-264VAC (compatible with 277VAC) and 120-370VDC (compatible with 390VDC).

What safety certifications does the P084 series carry?

It is compliant with CE, ISO, and safety standards such as UL/EN/IEC62368, IEC/EN60335, and IEC61558.

How does the short circuit protection function?

It uses a hiccup-type protection mechanism which allows for continuous short circuit protection with automatic self-recovery once the fault is removed.

What is the operating temperature range?

The power supply operates reliably between -30°C and +70°C, with cold start capability as low as -40°C.

What type of DIN rail is required for installation?

The unit is designed to be installed on standard TS35×7.5 or TS35×15 industrial rails.

What is the efficiency rating of the 24V model?

The P084-24V model reaches a high efficiency rating of approximately 91.5%.
