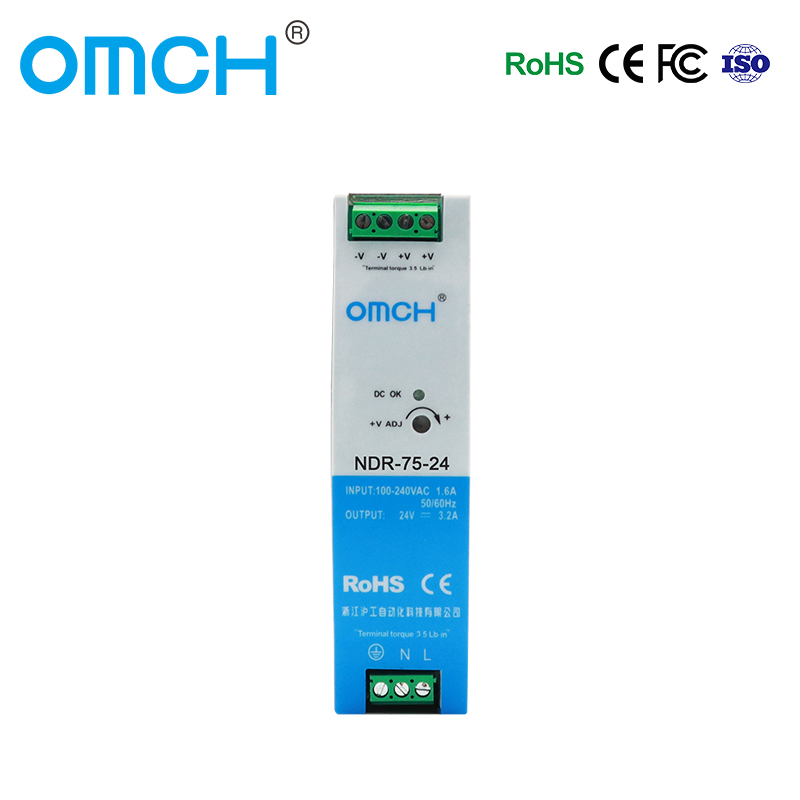

Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
1 / 5
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V
Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V

Omch High-Efficiency Ndr-75 Series DIN-Rail Switching Power Supply 12V 24V

Customization: Available
Warranty: Less Than 2 Years
Output Power: 75W
Send Inquiry

Product Description

Overview & Basic Info
Model NO. NDR-75
Input Voltage 88~264VAC; 120~370VDC
Certification CE, RoHS, ISO, FCC
Installation Rail Mount
Operating Temp. -15℃ to +65℃
Specification 32*125.2*15mm
Package Size 15.00cm * 10.00cm * 5.00cm
Gross Weight 0.360kg
Technical Specification
Attributes Technical Index
Mode NDR-75-12 NDR-75-24 NDR-75-48
Output DC Voltage 12V 24V 48V
Current Range 0~6.3A 0~3.2A 0~1.6A
Rated Power 75W
Ripple Coeff. 80mVp-p 120mVp-p 150mVp-p
Input Voltage Range 88~264VAC 47Hz~63Hz (120VDC~370VDC)
Protect Overload 115~150% Hiccup Mode; Automatic Recovery
Over Temp. ≥85ºC±10ºC Cut off, Automatic Recovery

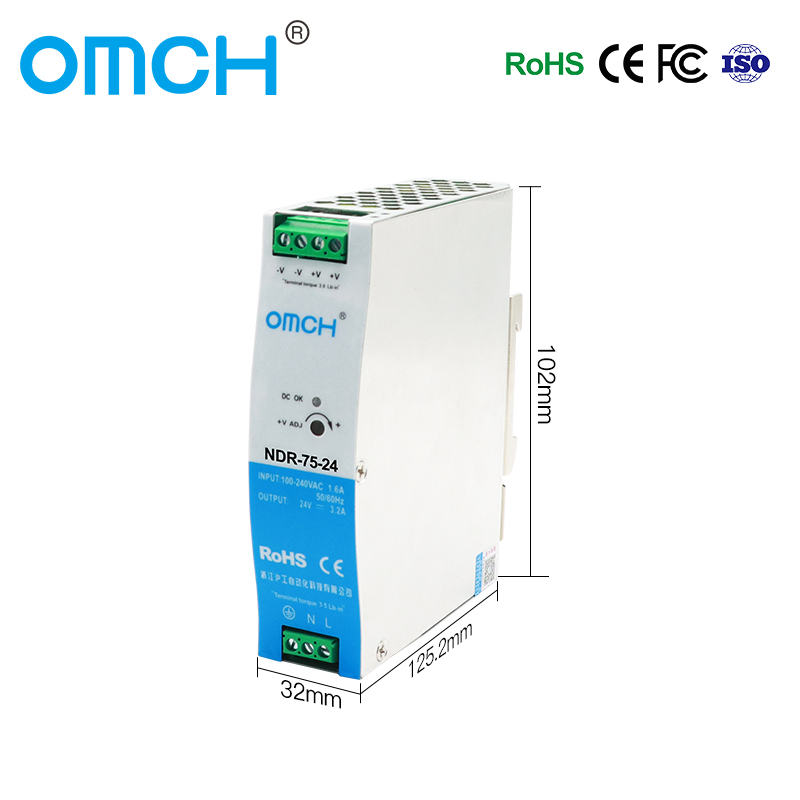

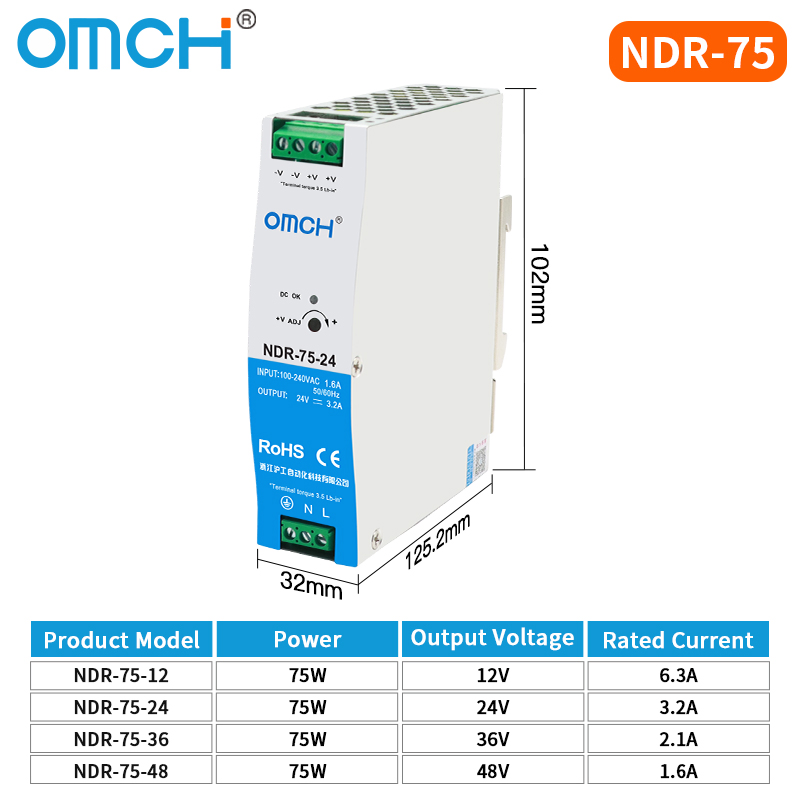

Standard Size 32*125.2*102mm
Product Presentation

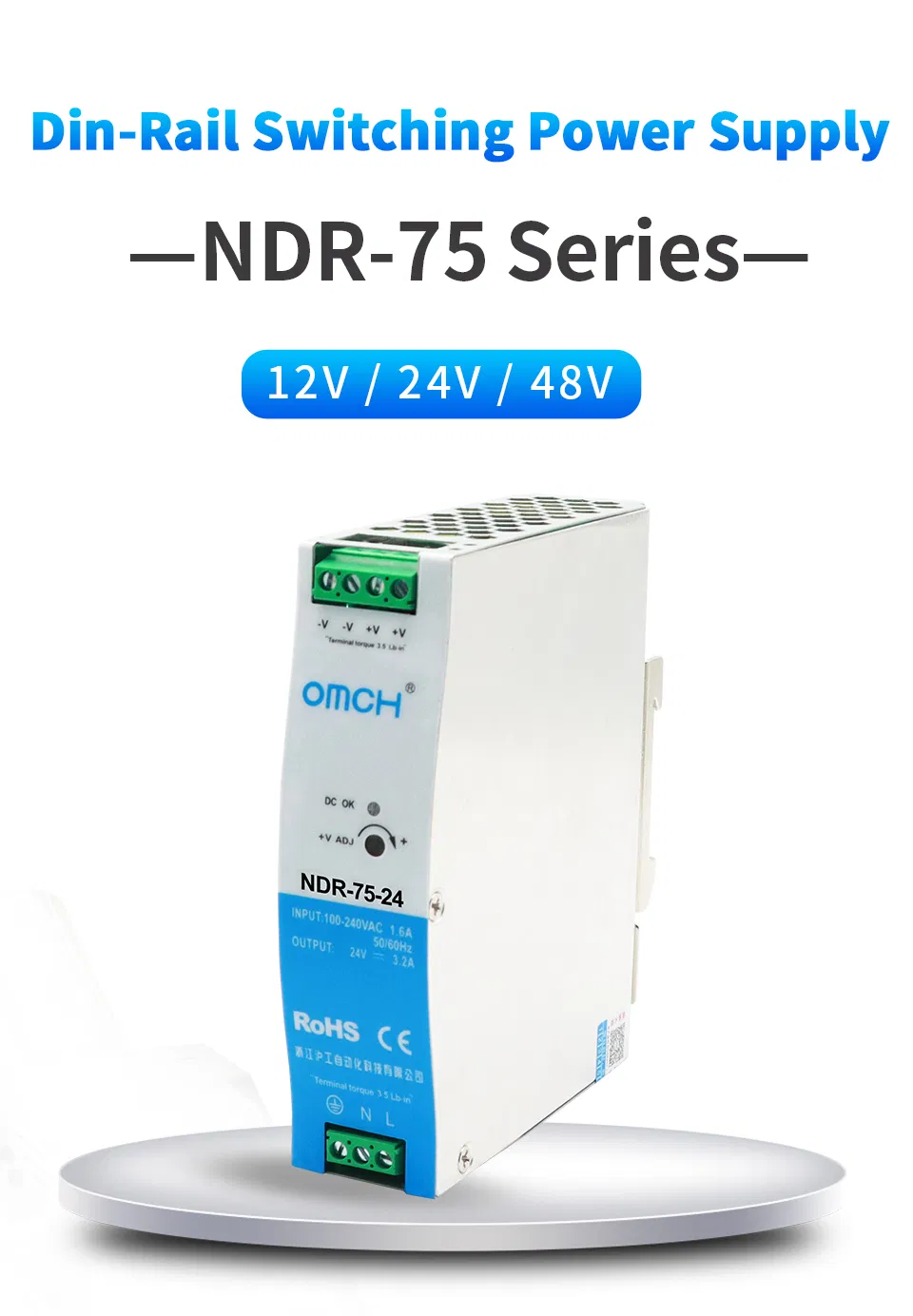

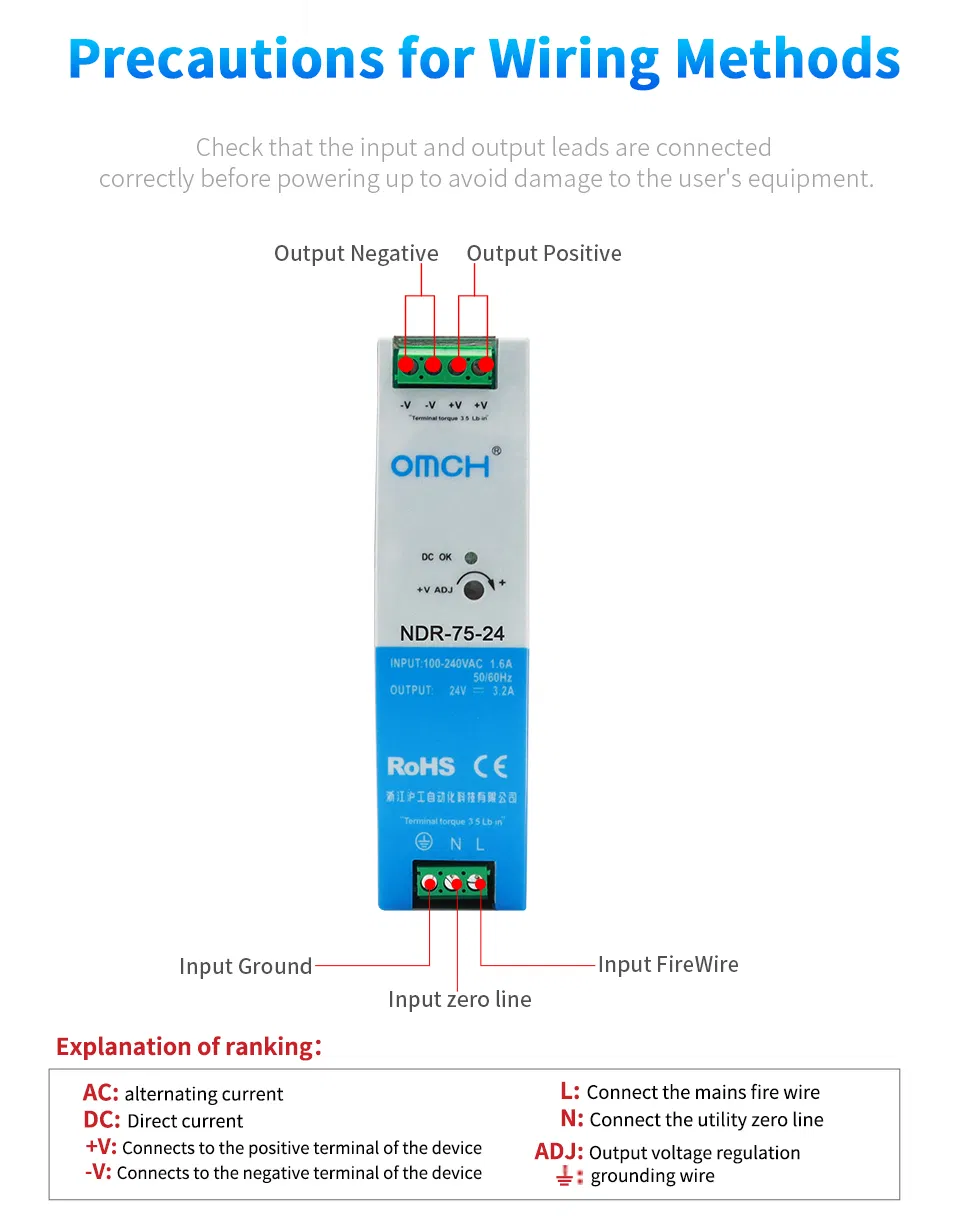

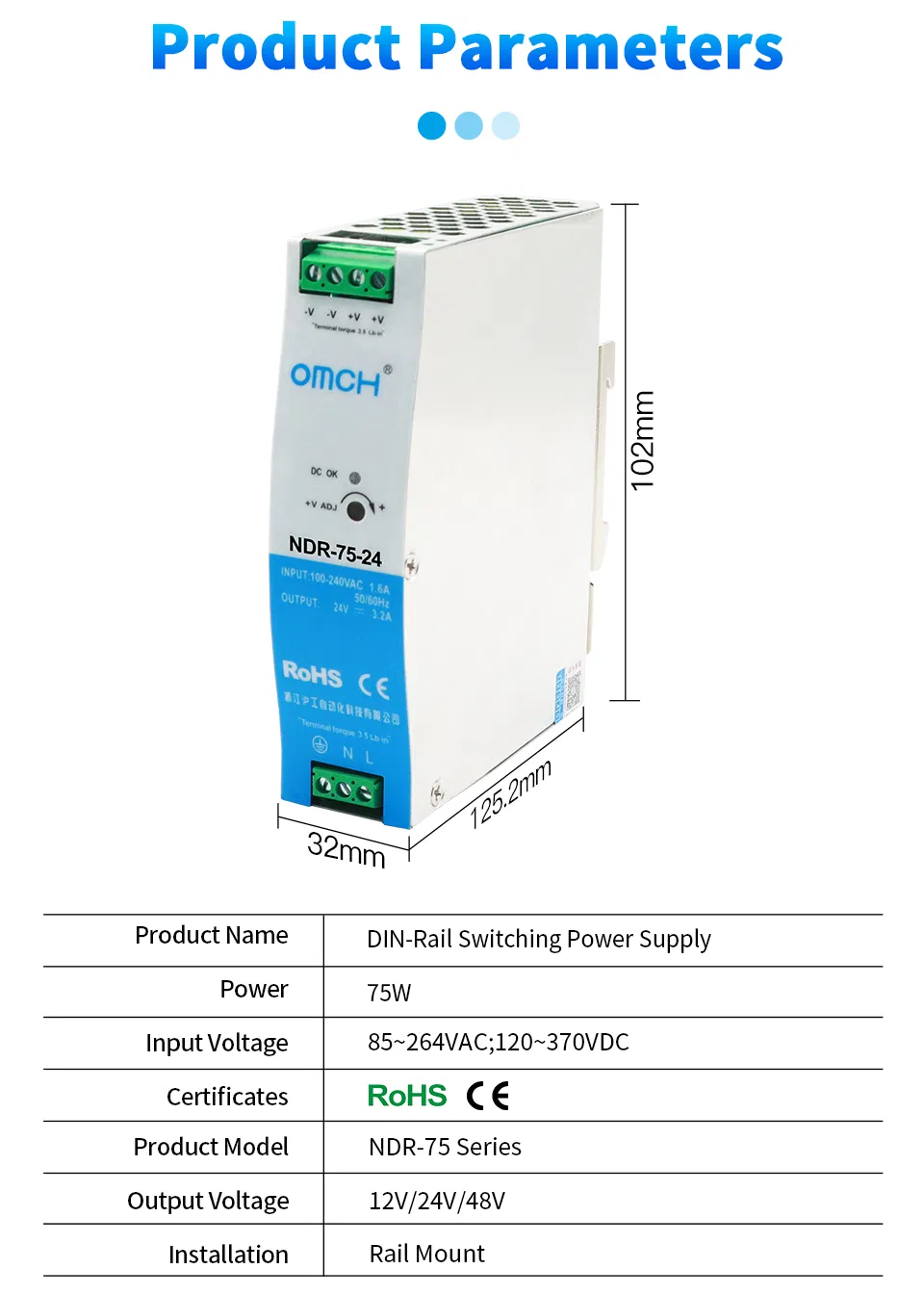

Product Description 1 Product Description 2 Product Description 3 Product Description 4

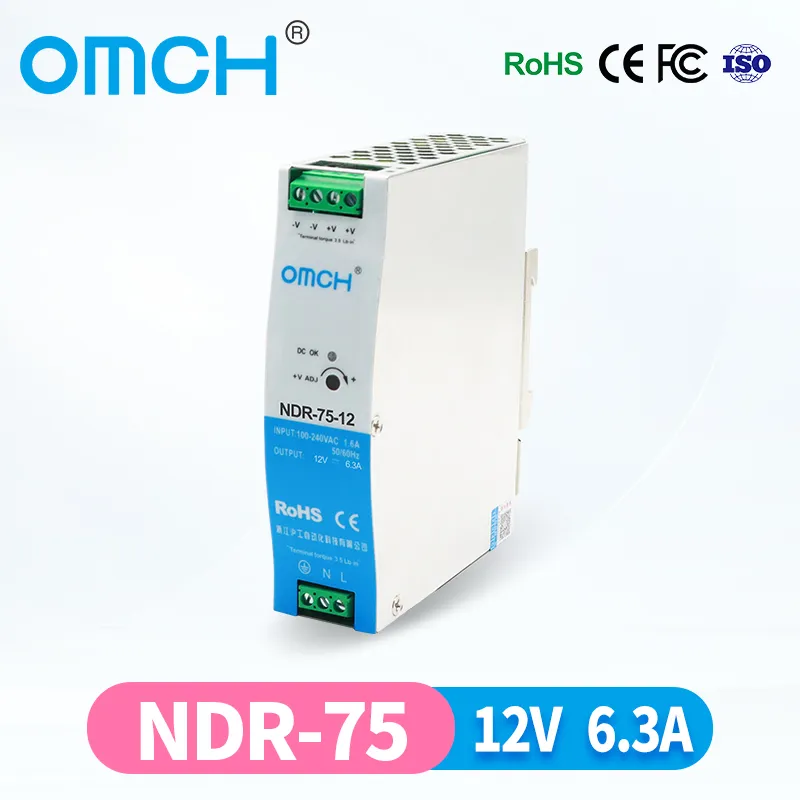

Model 1
Model 2
Model 3
Certifications & Manufacturing
Certifications Company Profile Packing and Shipping
Frequently Asked Questions
Who are we?
We are a leading manufacturer and supplier of switching power supplies, specializing in the design, production, and distribution of various series of power solutions.
What switching power supplies do we offer?

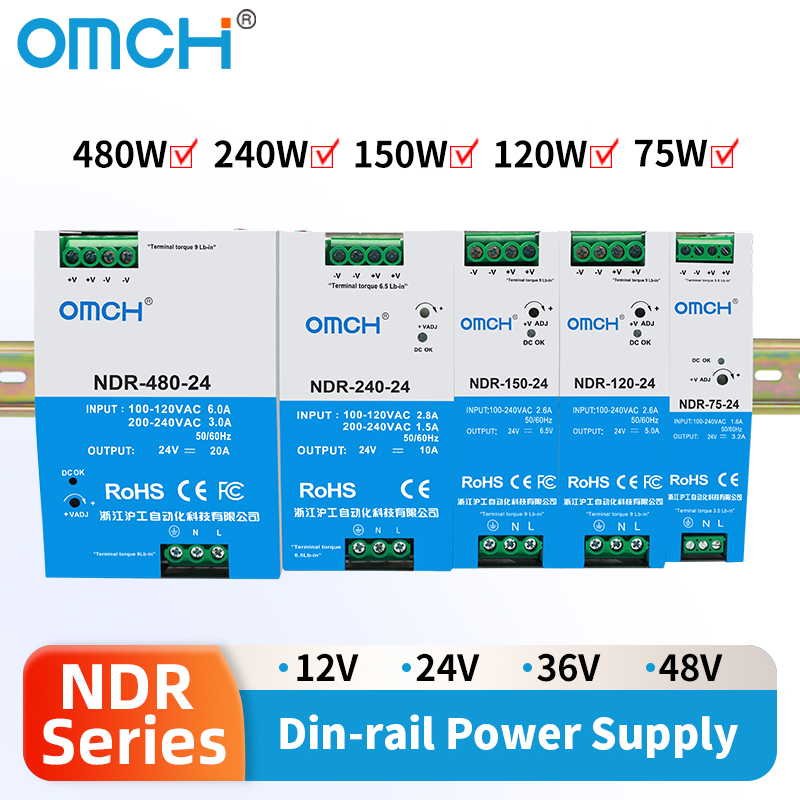

We offer a wide range of switching power supplies, including the S series, MS series, LRS series, Q series, T series, D series, DR series, NDR series, EDR series, MDR serie, HDR series and FYS Rainproof serie.
What are the features of our switching power supply?
Our switching power supply products are characterized by high efficiency, high stability, energy saving and environmental protection, through the FCC, CE, ROHS, ISO test reports and other certification.
How do we ensure the quality of our products?
We ensure the quality through strict production process control, raw material screening and finished product testing, supported by a comprehensive quality management system.
What additional services do we provide?
We provide technical support, product personalization (specifications, functions, and appearance), and comprehensive after-sales service to meet individual customer needs.
How long is the delivery time?
With efficient production processes and advanced equipment, we ensure fast delivery. The exact lead time depends on the specific demand and product model.
