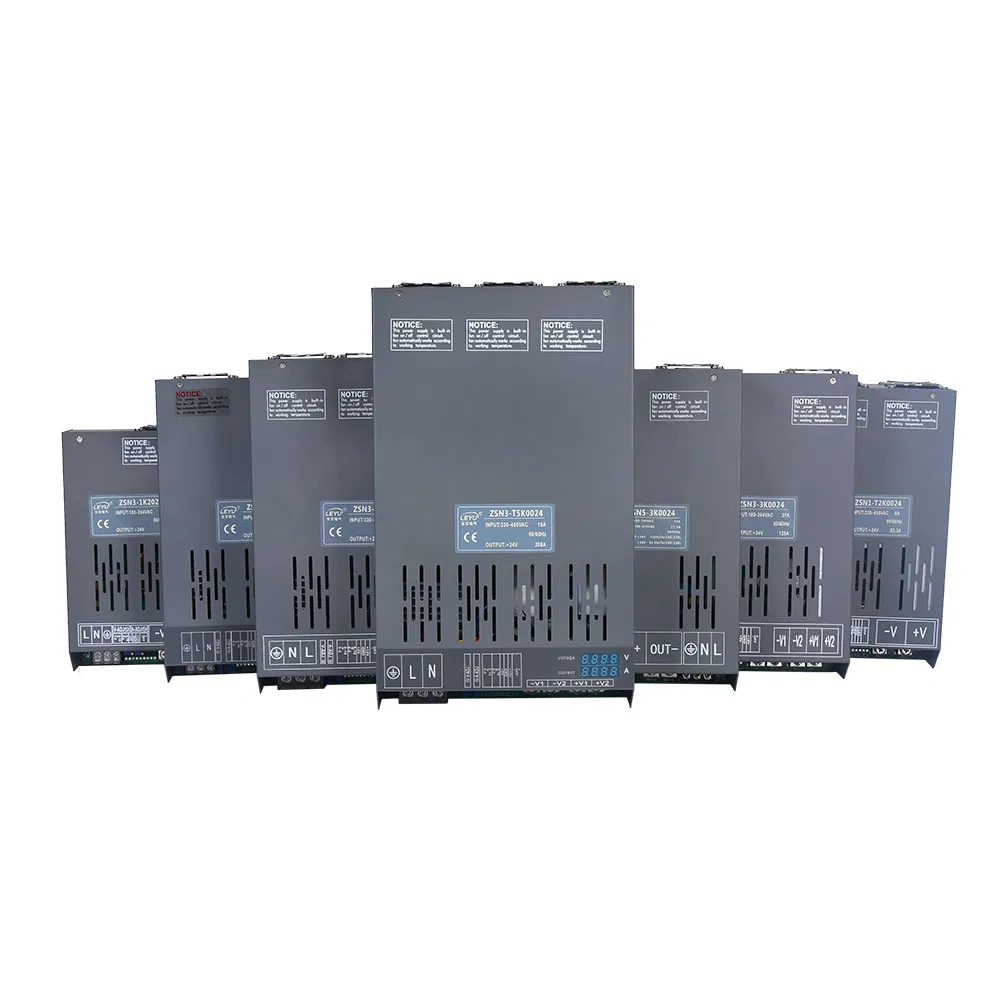

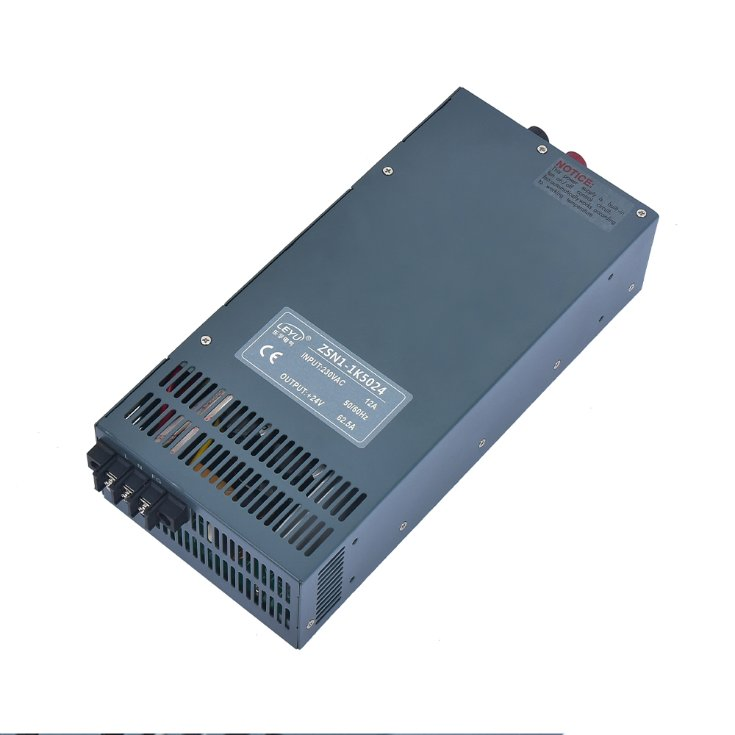

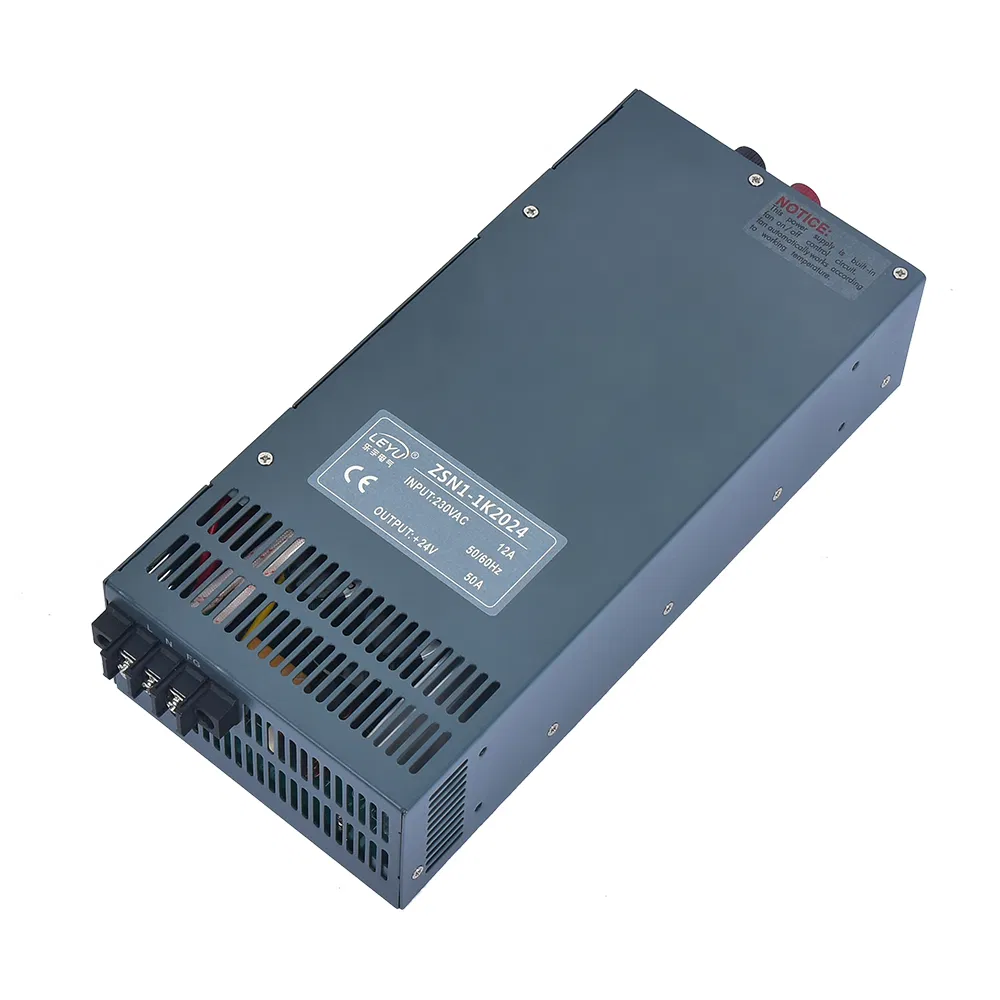

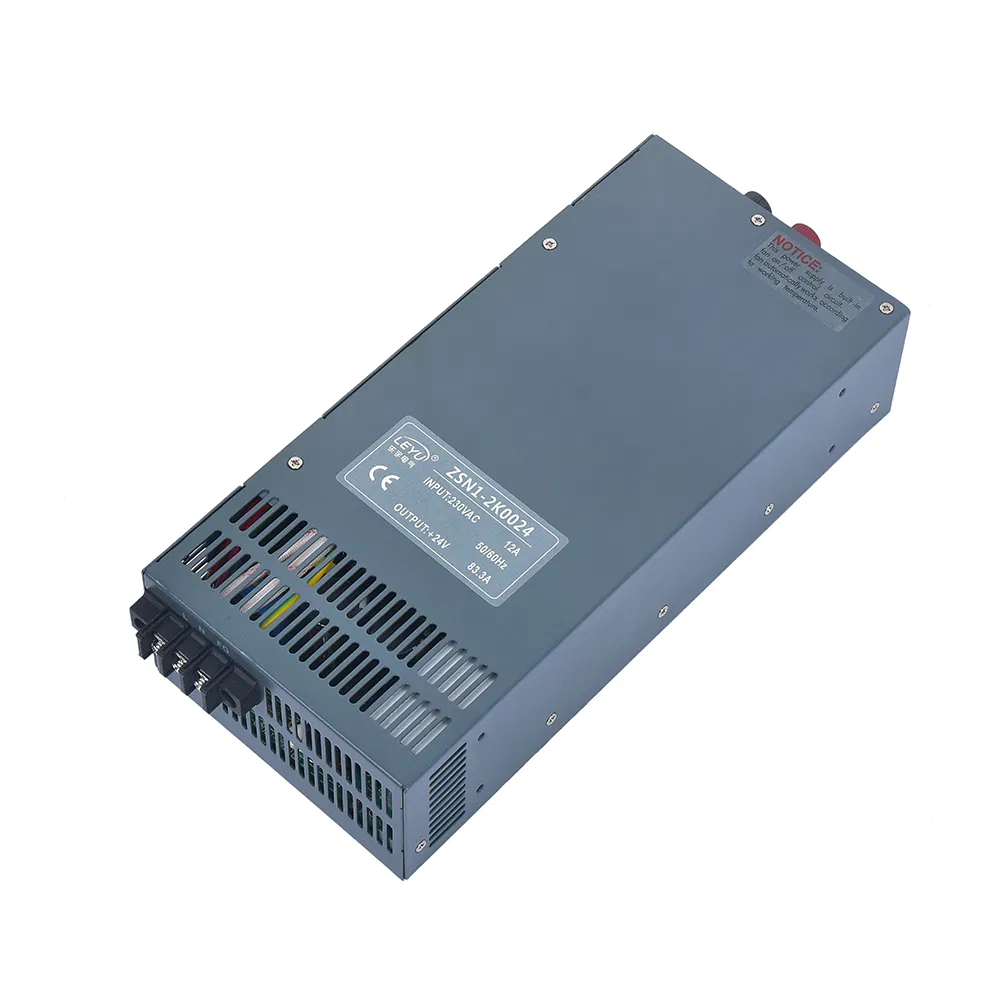

Zsn Series 1200W Stable Output High-Efficiency Switching Power Supply

1 / 5

Zsn Series 1200W Stable Output High-Efficiency Switching Power Supply

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

ZSN1-1K2

Output Power

1000W - 1200W

Input Voltage

220V (180-264VAC)

Connection Mode

Series Switching Power Supply

Voltage Mode

Frequency Modulation Type

Modulation

PWM

Certification

Color

Black

Protections

Short Circuit / Overload / Over Voltage

Application

LED Lighting / Industrial Equipment

DC Voltage

12V 15V 24V 48V

Specification

291x132x68MM

Product Description

ZSN Series High-Power Power Supply: The ZSN series is a single-output chassis-type AC-DC/DC-DC power supply. The entire series supports an input voltage range of 180 - 264VAC / 250 - 370VDC and can provide DC output that meets most industrial requirements.

Key Features:

Universal AC Input / Full Range stability
Internal variable-speed cooling fan
Operating temperatures up to 60°C
Built-in adjustable output voltage and current
Remote on/off control and auxiliary power support

Specifications

Model Parameter	ZSN1-1K2-12	ZSN1-1K2-15	ZSN1-1K2-24	ZSN1-1K2-48
DC Voltage	12V	15V	24V	48V
Rated Current	100A	80A	50A	25A
Rated Power	1200W	1200W	1200W	1200W
Ripple & Noise	120mVp-p	150mVp-p	240mVp-p	480mVp-p
Voltage Adj. Range	10~13.2V	13.5~18V	20~26.4V	41~56V
Efficiency	83%	85%	85%	87%
Input Voltage Range	180~264VAC / 47~63Hz
Setup, Rise, Hold Up	1.5s, 50ms, 20ms at full load

Production Quality

Frequently Asked Questions

What is the input voltage range for the ZSN series?

The series supports a wide input voltage range of 180 - 264VAC or 250 - 370VDC, making it suitable for various industrial power environments.

What types of protection are built into this power supply?

It features comprehensive protections including Short Circuit, Overload, and Over Voltage protection to ensure the safety of connected devices.

Is the output voltage adjustable?

Yes, the ZSN series includes a voltage adjustment range (e.g., 10~13.2V for the 12V model) allowing for fine-tuning based on specific application requirements.

How is the heat dissipated in this high-power unit?

The unit is equipped with an internal variable-speed fan that provides efficient cooling, allowing it to operate in temperatures up to 60°C.

What applications is this power supply best suited for?

Due to its stable output and high efficiency, it is ideal for LED lighting, industrial control systems, and terminal power distribution equipment.

What is the efficiency rating of the 1200W models?

The efficiency ranges from 83% to 87%, depending on the specific output voltage model selected (12V, 15V, 24V, or 48V).
