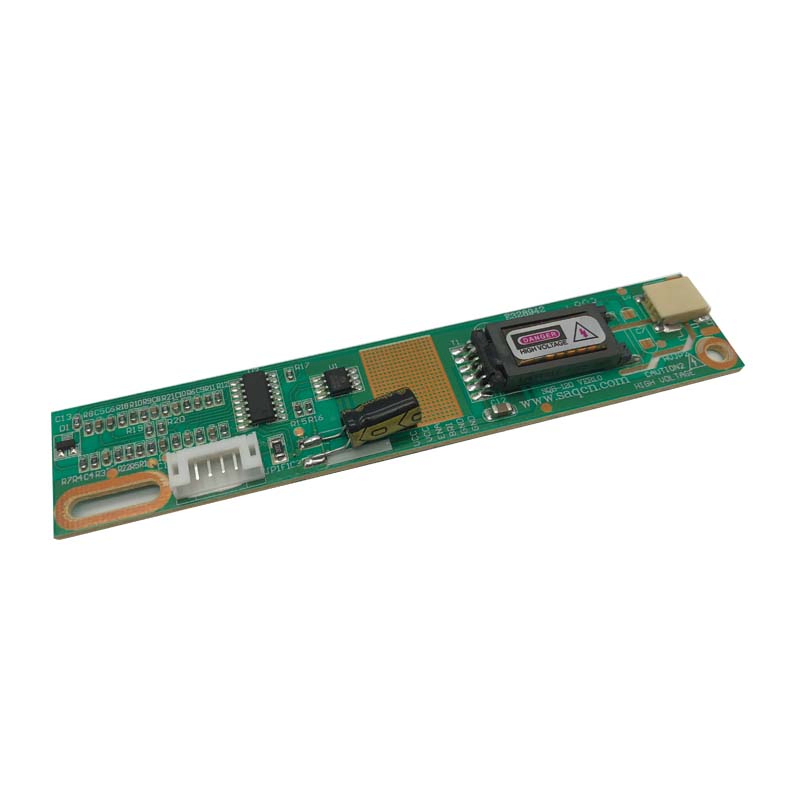

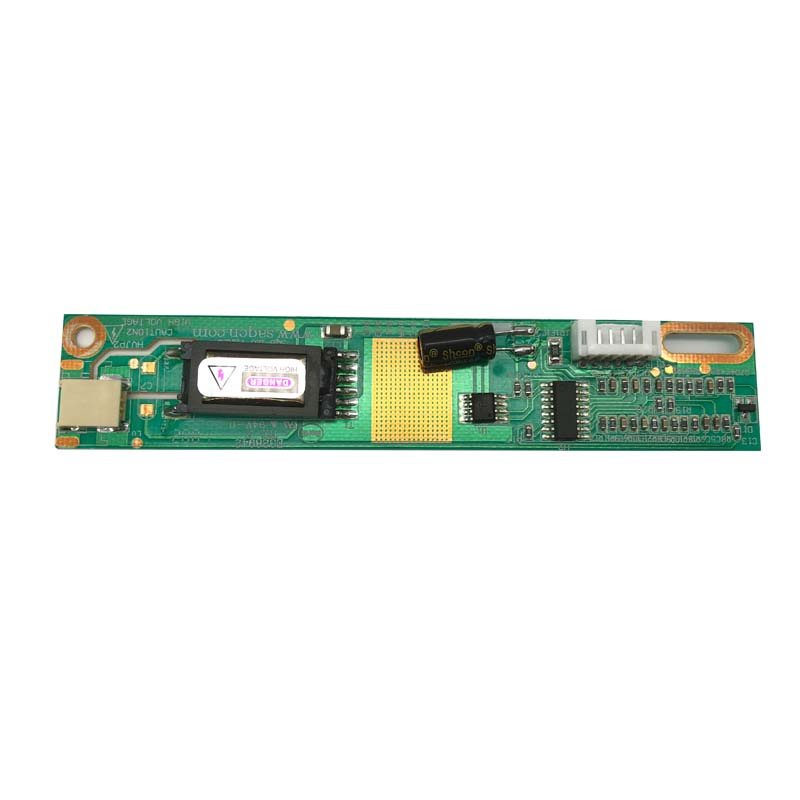

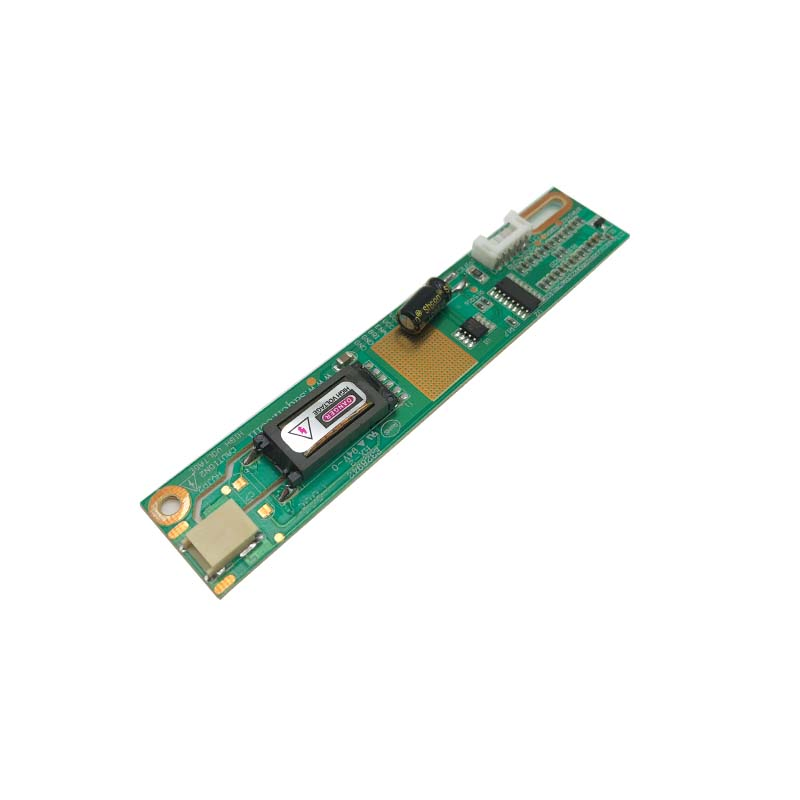

High Efficiency Switching Power Supply Control Board Printed Circuit Board

1 / 5

High Efficiency Switching Power Supply Control Board Printed Circuit Board

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

SQB-120C

Layers

Double-Layer

Base Material

FR-4

Certification

RoHS, ISO

Customized

Condition

New

Output Consumption

Product Name

Single Power Supply

Variation Frequency

47~63Hz

Input Frequency

50~60Hz

Protection

Over Voltage, Over Current

Origin

China

Technical Specifications

SQB-120C Functional features and technical specifications
Product Name	Single power supply
Variation Frequency	47~63Hz
Input Frequency	50~60Hz
Input Voltage	AC90-264V
DC Output Voltage	5V~24V
Output Current	0.5A~10A
Output Consumption	5W
Output Type	Dual
PCB Dimension	120225mm

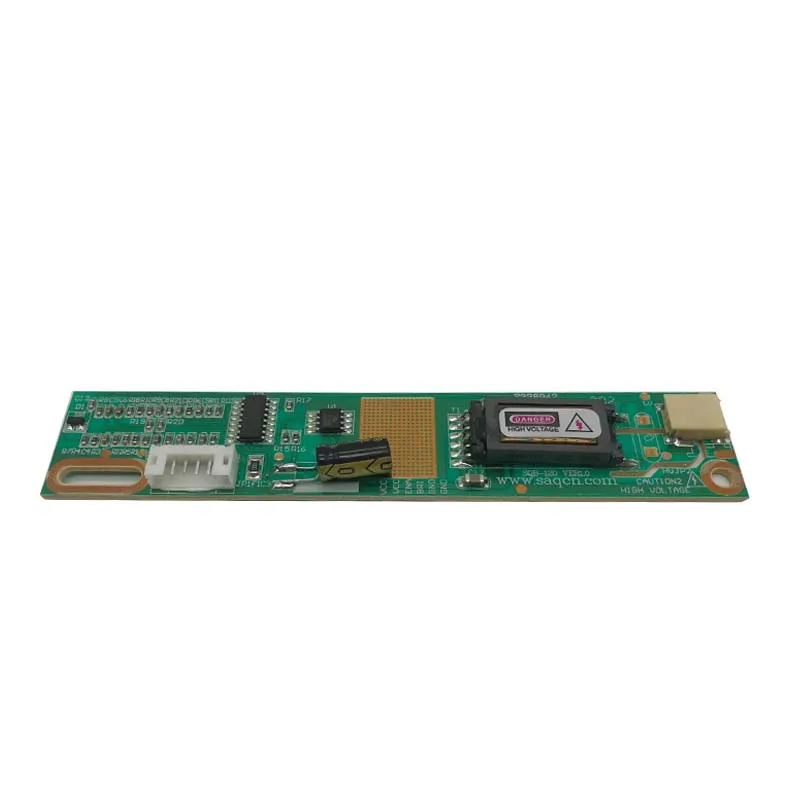

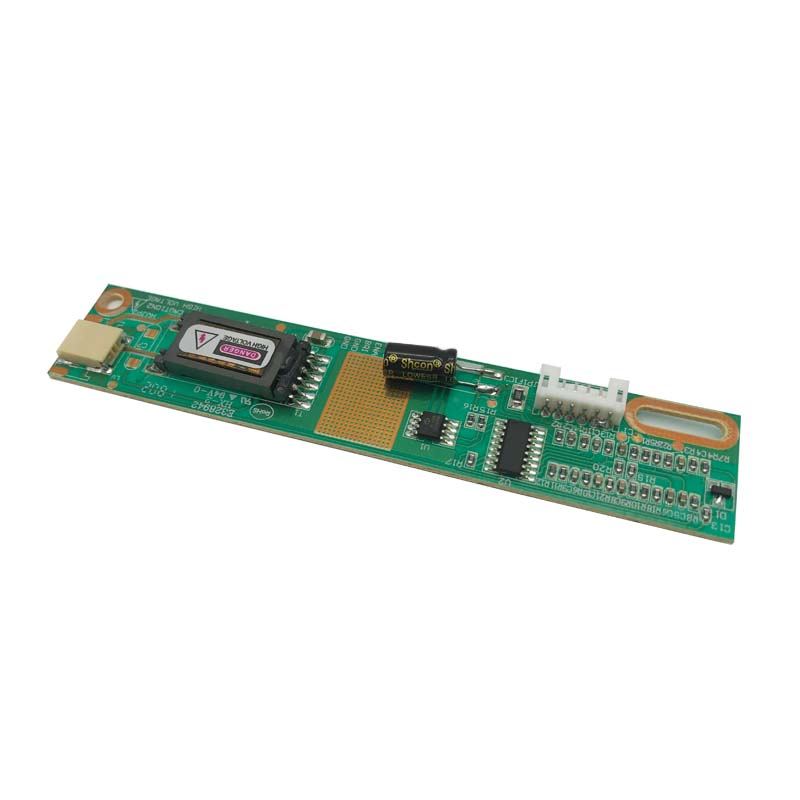

High Efficiency Switching Power Supply Control Board

Product Application

⚙️

Widely Used In:
Mobile Phone, Audio & Video Products, Tablet, Security Products, TV Box, CCTV Camera, Digital Photo Frame, LED, Pos device, Monitor, Instrument and Apparatus, and others.

Packaging & Shipping

📦

1. Packing by carton or according to your request.
2. Express delivery of FOB, FCA, EXW are accepted.
3. Shipping via DHL, UPS, FedEx or TNT for delivery.
4. Sample delivery: 3-5 days; Mass production: 1-2 weeks.
