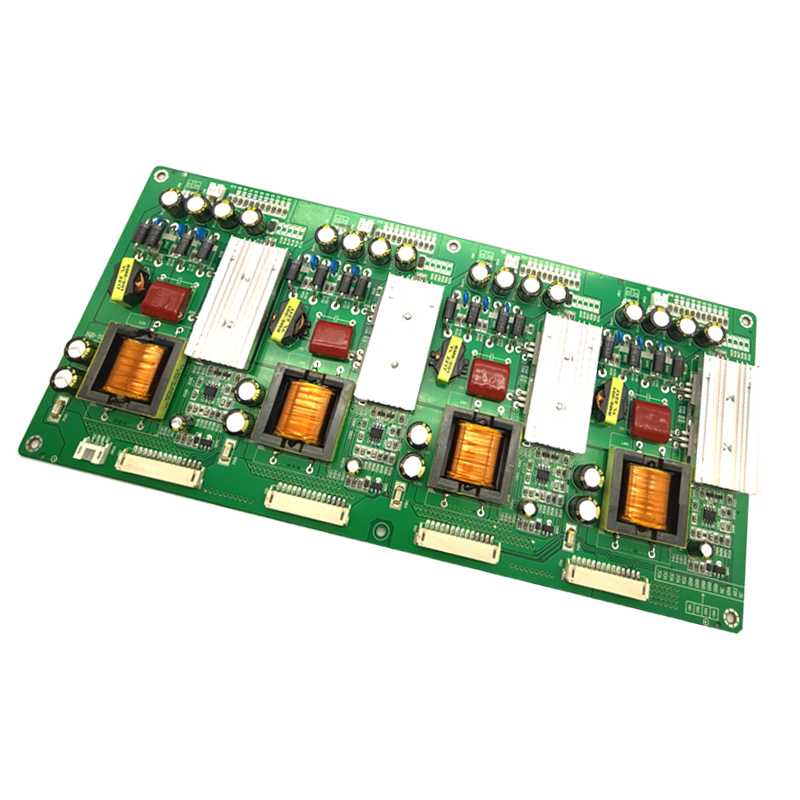

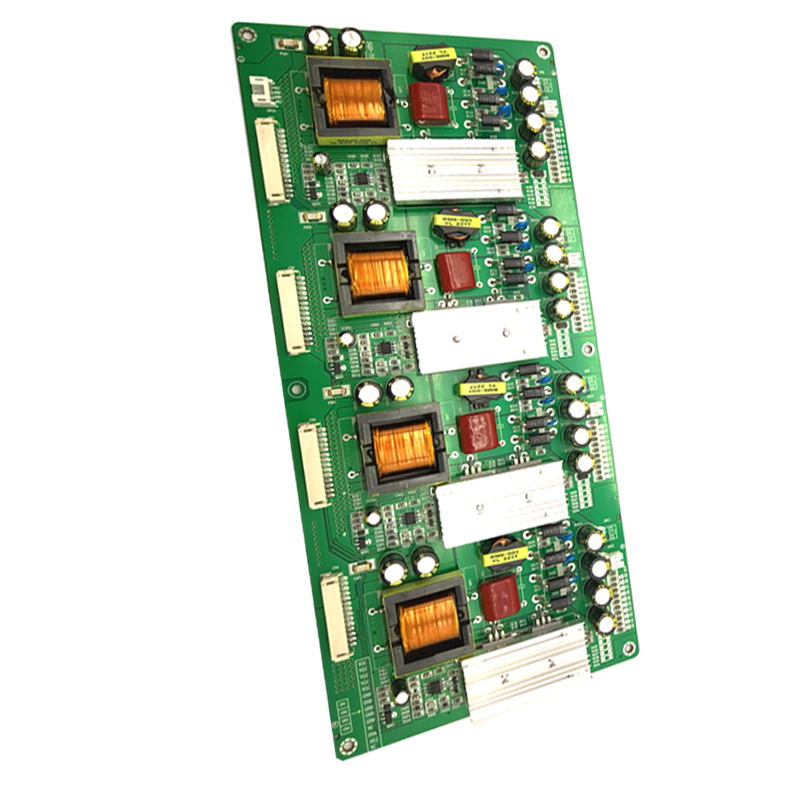

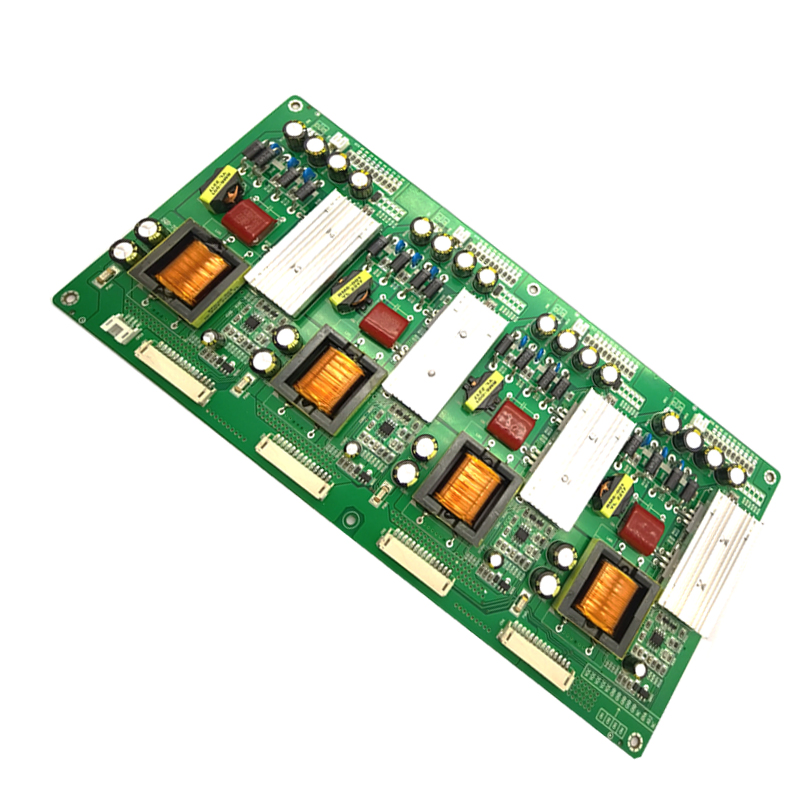

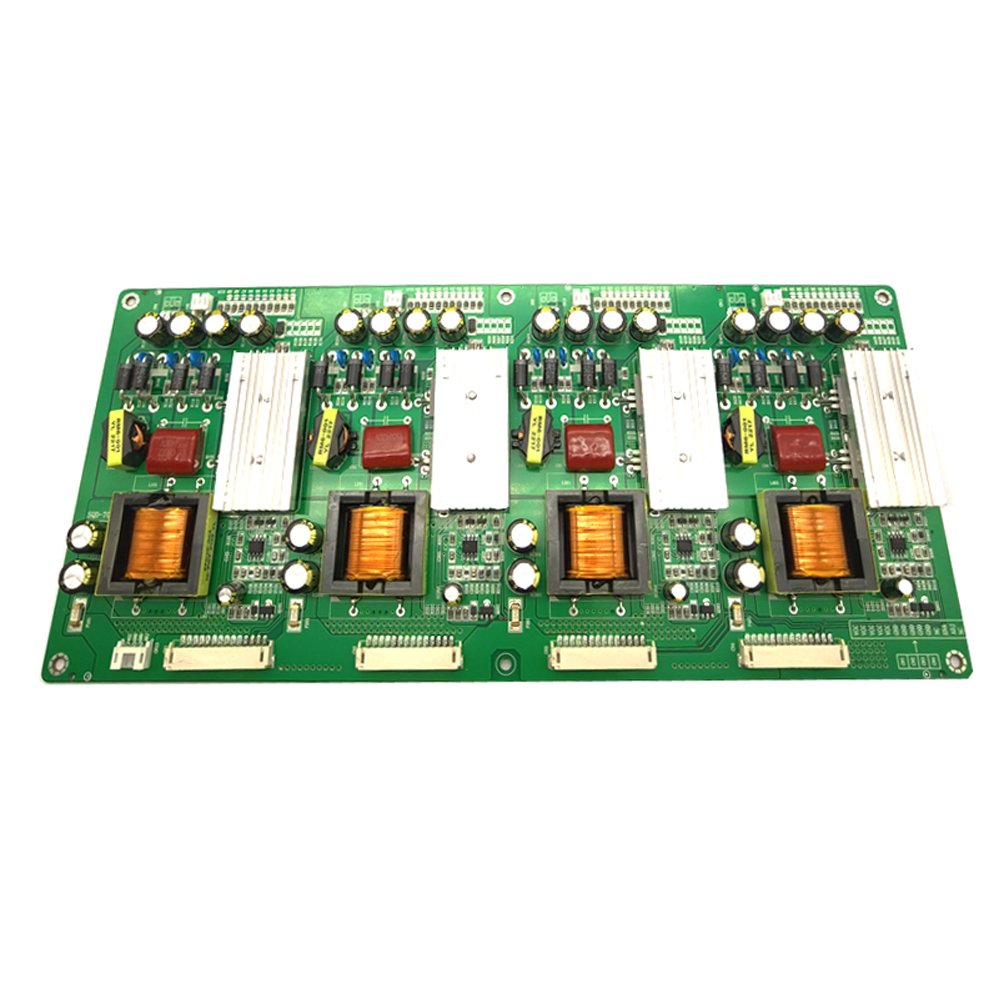

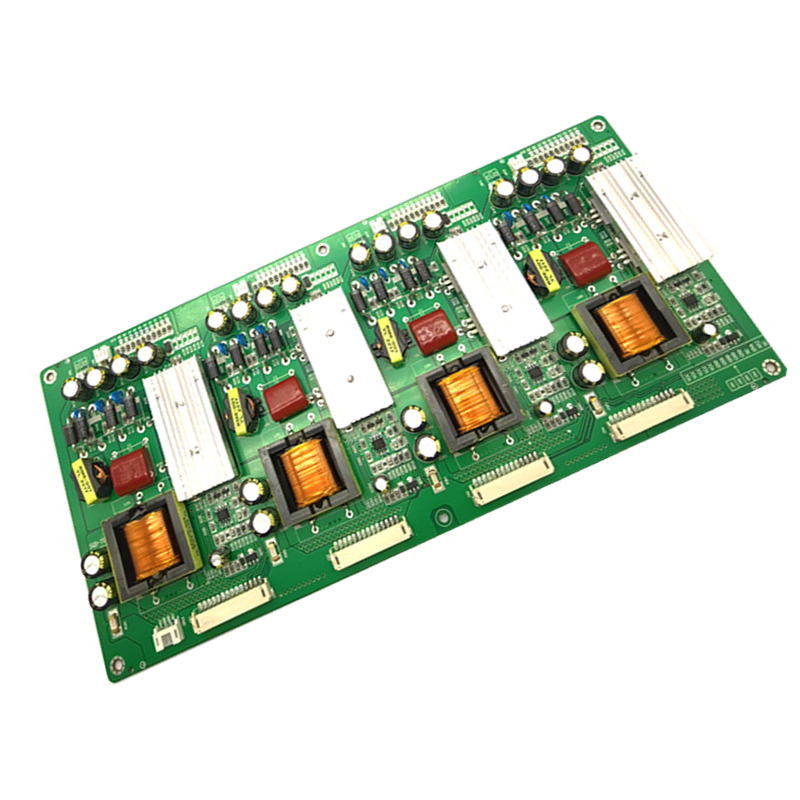

Switching Power Supply PCB Assembly Prototype & Mass Production 90% High Efficiency for Medical/Telecom/IoT Devices

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.SQD-701
LayersDouble-Layer
Base MaterialFR-4
CertificationRoHS, ISO
CustomizedCustomized
ConditionNew
Output Consumption480W
Product NameLED Converter
Variation Frequency47~63Hz
Input Frequency50~60Hz
Protection FunctionOver Voltage, Over Current, Short Circuit
Specification290*130*14mm
OriginChina

Technical Features

SQD-701 Functional Specifications
Intput VoltageAC110-240V
DC Output Voltage36-170V
Output Current100-1300MA
Output TypeQuad
Efficiency90% High Efficiency
Power Supply PCB
PCB Assembly
Technical Layout

Wide Applications

Mobile Phone & Tablet
Audio & Video Products
Security & CCTV Systems
LED & Monitor Display
POS Devices & TV Box
Medical & IoT Devices
Product Detail

Packaging & Shipping

  • Standard carton packing or customized request.
  • Supported Terms: FOB, FCA, EXW.
  • Fast Delivery: 3-5 days for samples, 1-2 weeks for mass production.
Shipping 1
Shipping 2

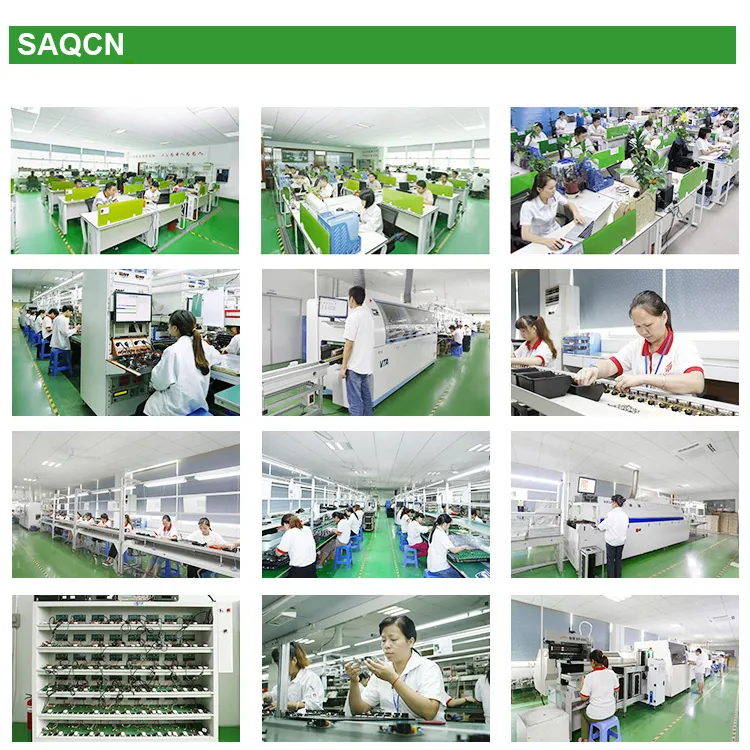

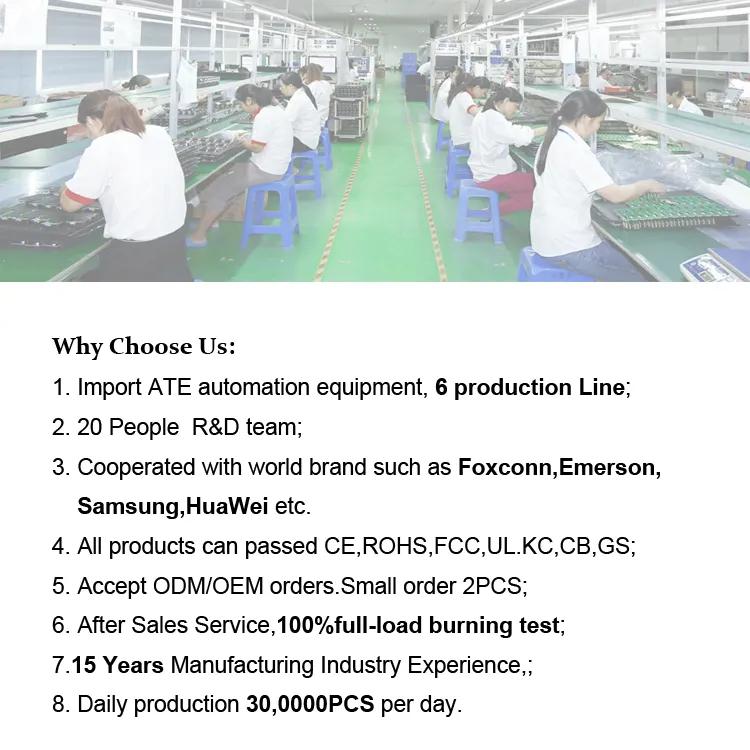

Production Line

Frequently Asked Questions

Q1. Can I have a sample order for the Power Supply Board?
A: Yes, samples are available. Please contact us regarding shipping costs.
Q2. What is the typical lead time?
A: Sample time: 3-5 days; regular bulk orders: 7-15 days.
Q3. What is the Minimum Order Quantity (MOQ)?
A: 1 piece is acceptable for testing. Standard orders typically start from 500 pieces.
Q4. How are the products delivered?
A: Samples and trial orders are sent via express or air; bulk orders are shipped via sea.
Q5. Can I customize the board with my logo?
A: Yes, we support laser carving and sticker logo customization.
Q6. Do you offer a product guarantee?
A: Yes, we offer a 1-2 year warranty period and perform 100% testing before delivery.
Quality Control
Final Assembly
Product Certificate
